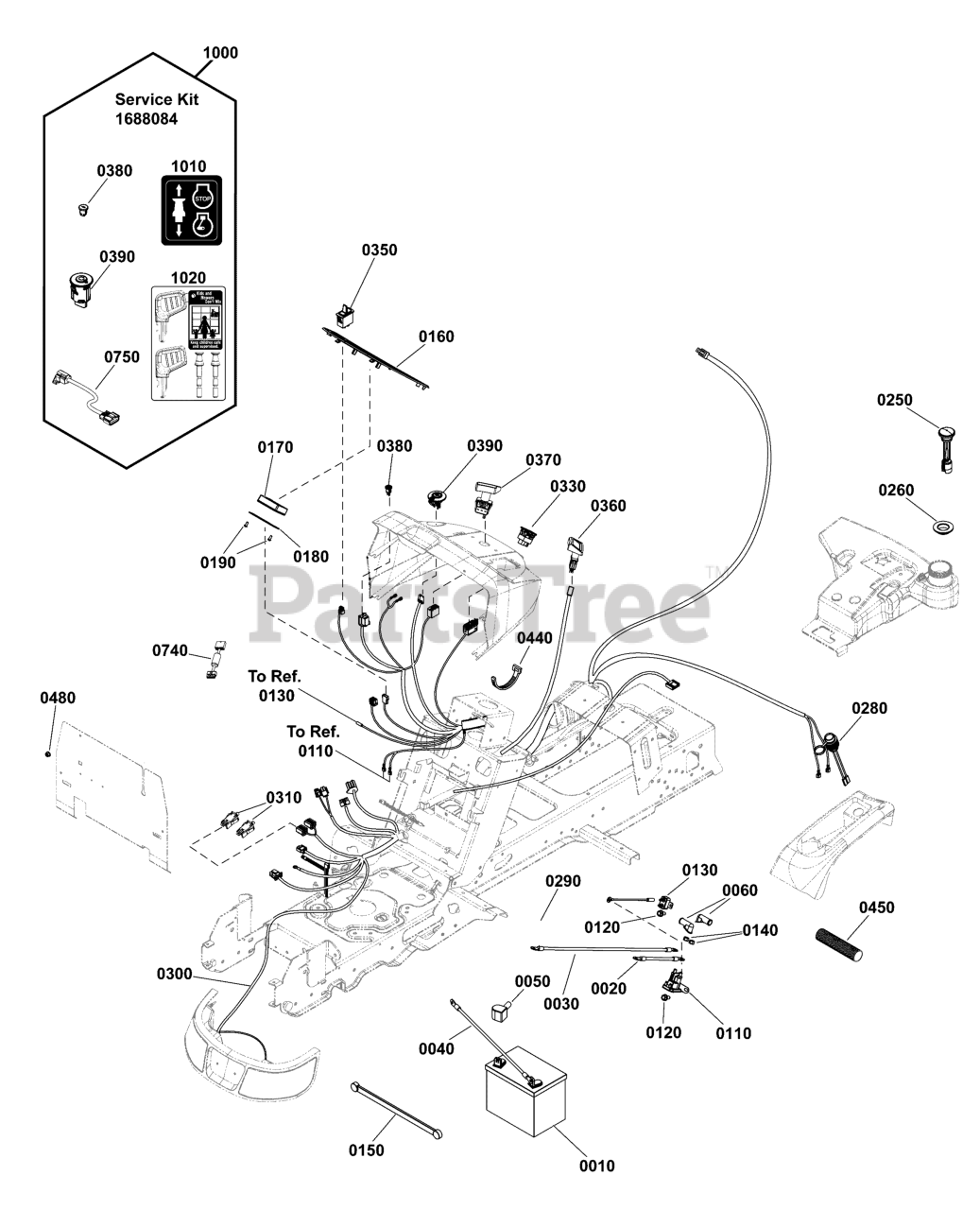

2691337-02 - Simplicity Broadmoor 52" Lawn Tractor, 25hp Electrical Group Parts Diagram

Broadmoor 52" Lawn Tractor, 25hp

Electrical Group Parts Diagram

  • Title

0010

BATTERY, 12 VOLT, 230 CCA

$

$

Not available

0020

Simplicity 1755468YP

CABLE, Electric, #6 X 8", Red

$9.99

$

In Stock, only 1 left!

0

0030

Simplicity 1721830SM

CABLE, #6 x 25

$19.99

$

Usually ships in 2-12 days

0

0040

Simplicity 1755469YP

CABLE, Electric, #6 X 17.5", Black

$12.99

$

Usually ships in 2-12 days

0

0050

Simplicity 1677296SM

BOOT, Insulator, Red

$6.49

$

In Stock, Qty 11

0

0060

Simplicity 1713535SM

BOOT, Insulator

$5.99

$

Usually ships in 2-12 days

0

0110

Simplicity 1755381YP

SOLENOID

$24.99

$

In Stock, Qty 20+

0

0120

Simplicity 704130

SCREW, Hex Head, 1/4-20 X 1/2

$3.99

$

In Stock, Qty 11

0

0130

Simplicity 1665238SM

BREAKER, Circuit, 20 Amp

$14.99

$

In Stock, Qty 20+

0

0140

Simplicity 2860750SM

NUT, Hex KEPS, 5/16-24

$2.99

$

Usually ships in 2-12 days

0

0150

Simplicity 1722009SM

STRAP, Rubber

$10.99

$

In Stock, only 1 left!

0

0160

Simplicity 1755458YP

BEZEL, Basic Instrument

$20.99

$

Usually ships in 2-12 days

0

0170

Simplicity 1750212YP

METER, Service Indicator

$65.99

$

Usually ships in 2-12 days

0

0180

Simplicity 1755662AYP

BRACKET, Hour Meter Mount

$7.99

$

In Stock, only 1 left!

0

0190

Simplicity 1739329YP

SCREW, 5mm. x 12mm Lg

$4.49

$

Usually ships in 2-12 days

0

0250

Simplicity 1722300SM

FUEL, Gauge

$34.99

$

Usually ships in 2-12 days

0

0260

Simplicity 1722337SM

GROMMET

$8.99

$

In Stock, only 1 left!

0

0280

Simplicity 1725302SM

OUTLET, 12 Volt

$26.99

$

Usually ships in 2-12 days

0

0290

Simplicity 1665237SM

WIRE, 12GA, 5.9

$11.99

$

In Stock, Qty 7

0

0300

Simplicity 84005717

WIRING HARNESS, Main

$

$

Currently unavailable

0310

Simplicity 7022886YP

SWITCH, DP NO/NC SNAP-IN

$14.99

$

In Stock, Qty 20+

0

0330

Simplicity 1761897YP

SWITCH, Reverse Mow Option

$30.99

$

Usually ships in 2-12 days

0

0350

Simplicity 1738381YP

SWITCH, Height Of Cut

$38.99

$

In Stock, only 1 left!

0

0360

Simplicity 1757736YP

SWITCH, PTO

$43.99

$

Usually ships in 2-12 days

0

0370

Simplicity 1757737YP

SWITCH, Headlight

$39.99

$

Usually ships in 2-12 days

0

0380

Simplicity 282640YP

PLUG, Hole

$6.99

$

Usually ships in 2-12 days

0

0390

Simplicity 84003613

SWITCH ASSEMBLY, Push Button Start

$96.99

$

Usually ships in 2-12 days

0

0440

Simplicity 703586

TIE, Cable

$4.99

$

Usually ships in 2-12 days

0

0450

Simplicity 5050861X6YP

WIRE LOOM, 5/8 ID X 6 IN

$6.49

$

In Stock, only 1 left!

0

0480

Simplicity 703463

NUT, Flange Nylock , 1/4-20

$4.49

$

In Stock, Qty 20+

0

0740

Simplicity 1759981YP

HARNESS, Fuel Shut Off

$15.99

$

Usually ships in 2-12 days

0

0750

Simplicity 84003694

ADAPTER, Harness

$23.99

$

In Stock, only 2 left!

0

1000

Simplicity 1688084

KIT, IGNITION

Note: ( Incl. Ref. Nos. 0380, 0390, 0750, 1010, 1020 )

$164.99

$

In Stock, Qty 17

0

0380

Simplicity 282640YP

PLUG, Hole

$6.99

$

Usually ships in 2-12 days

0

0390

Simplicity 84003613

SWITCH ASSEMBLY, Push Button Start

$96.99

$

Usually ships in 2-12 days

0

0750

Simplicity 84003694

ADAPTER, Harness

$23.99

$

In Stock, only 2 left!

0

1010

Simplicity 84003695

DECAL, KEY FOB, CONTROL

$9.99

$

Usually ships in 2-12 days

0

1020

Simplicity 84003869

BLISTER PACK

$21.99

$

Usually ships in 2-12 days

0
