2691336-04 - Simplicity Broadmoor 48" Lawn Tractor, 25hp 48" (122cm) Mower Deck - Housing, Arbors & Blades Group Parts Diagram

Broadmoor 48" Lawn Tractor, 25hp

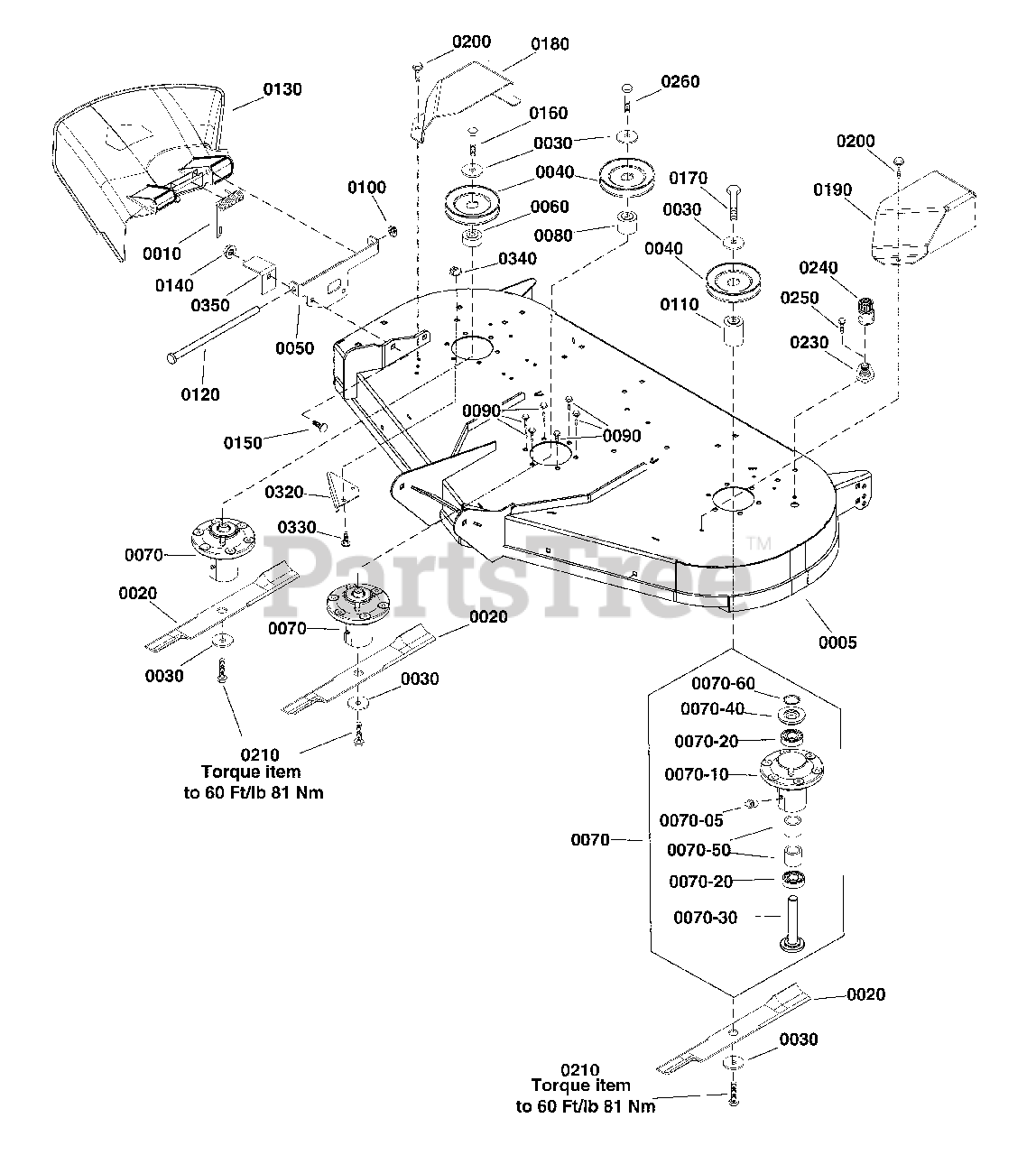

48" (122cm) Mower Deck - Housing, Arbors & Blades Group Parts Diagram

  • Title

0005

Simplicity 708757

HOUSING, Mower Deck, 48" (122cm) Orange
(Superseded to 1687952)

$1049.99

$

Usually ships in 2-12 days

0

0010

Simplicity 7035813SM

SPRING, Torsion

$24.99

$

In Stock, only 1 left!

0

0020

Simplicity 1759055YP

BLADE, 48" (122cm)

$27.99

$

In Stock, Qty 20+

0

0030

Simplicity 1656916SM

WASHER, Spring

$7.49

$

In Stock, Qty 20+

0

0040

Simplicity 1732951SM

PULLEY, 4.60

$19.99

$

In Stock, Qty 20+

0

0050

Simplicity 1758982BMYP

BRACKET, Deflector
(Superseded to 1758982AYP)

$42.99

$

In Stock, only 1 left!

0

0060

Simplicity 706362

SPACER, Pulley

$9.99

$

Usually ships in 2-12 days

0

0070

Simplicity 1760726

ARBOR ASSEMBLY

Note: (*See footnote)

$

$

Currently unavailable

0070-05

Simplicity 1704314SM

FITTING, Lube, 1/4
(Superseded to 703907)

$4.99

$

In Stock, Qty 20+

0

0070-10

Simplicity 1755437YP

HOUSING, w/Lube Fitting
(Superseded to 1760371YP)

$76.99

$

In Stock, only 1 left!

0

0070-20

Simplicity 1735399YP

BEARING, Ball, 20mm

$9.99

$

In Stock, Qty 20+

0

0070-30

Simplicity 1760276YP

SHAFT, Spindle

$27.99

$

In Stock, only 4 left!

0

0070-40

Simplicity 1735323YP

SHIELD, Arbor
(Superseded to 84003166)

$6.99

$

In Stock, only 2 left!

0

0070-50

Simplicity 1735328YP

SPACER, Bearing

$6.49

$

In Stock, only 3 left!

0

0070-60

Simplicity 1960766YP

RING, Self Locking

$4.49

$

In Stock, Qty 20+

0

0080

Simplicity 706363

SPACER, Pulley

$16.99

$

Usually ships in 2-12 days

0

0090

Simplicity 704146

SCREW, Hex Washer Head, Taptite, 5/16-18 x 1

$3.99

$

In Stock, Qty 20+

0

0100

Simplicity 703179

PUSHNUT, 1/2

$3.49

$

In Stock, Qty 20+

0

0110

Simplicity 1759033YP

SPACER, Upper Drive

$45.99

$

Usually ships in 2-12 days

0

0120

Simplicity 7104640YP

ROD, Deflector

$28.99

$

In Stock, only 1 left!

0

0130

Simplicity 7104733YP

DEFLECTOR

$87.99

$

In Stock, Qty 19

0

0140

Simplicity 703793

NUT, Lock, Flange, 3/8-16

$4.49

$

In Stock, only 3 left!

0

0150

Simplicity 703815

BOLT, Carriage, 3/8-16 X 1

$4.49

$

In Stock, only 4 left!

0

0160

Simplicity 1921212SM

CAPSCREW, Hex Head, 7/16-14 X 1 1/2

$

$

Not available

0170

Simplicity 705439

CAPSCREW, Hex Head, 7/16-14 X 3 1/4

$7.49

$

In Stock, only 1 left!

0

0180

Simplicity 1759101BMYP

COVER, Pulley, RH

$69.99

$

Usually ships in 2-12 days

0

0190

Simplicity 1759103BMYP

COVER, Pulley, LH

$65.99

$

Usually ships in 2-12 days

0

0200

Simplicity 703895

NUT, Hex, 3/8-24

$4.49

$

In Stock, only 1 left!

0

0210

Simplicity 2820676SM

CAPSCREW, Hex Head, 7/16-14 X 1

$4.49

$

In Stock, Qty 6

0

0230

Simplicity 1735716YP

ADAPTER, Washout Port
(Superseded to 1687721YP)

$13.99

$

Usually ships in 2-12 days

0

0240

Simplicity 1756246YP

CONNECTOR, Washout Port

$15.99

$

In Stock, only 1 left!

0

0250

Simplicity 703235

SCREW, 5/16-18 X 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

0260

Simplicity 703171

CAPSCREW, Hex Head, 7/16-14 x 1-3/4, GR5

$3.99

$

In Stock, Qty 6

0

0320

Simplicity 706368

BAFFLE, Pinchoff

$107.99

$

Usually ships in 2-12 days

0

0330

Simplicity 703185

BOLT, Carriage, 5/16-18 X 3/4

$3.49

$

In Stock, Qty 12

0

0340

Simplicity 703115

NUT, Flange Nylock, 5/16-18

$3.49

$

In Stock, Qty 20+

0

0350

Simplicity 1758593BMYP

PROP, Deflector

$18.99

$

Usually ships in 2-12 days
