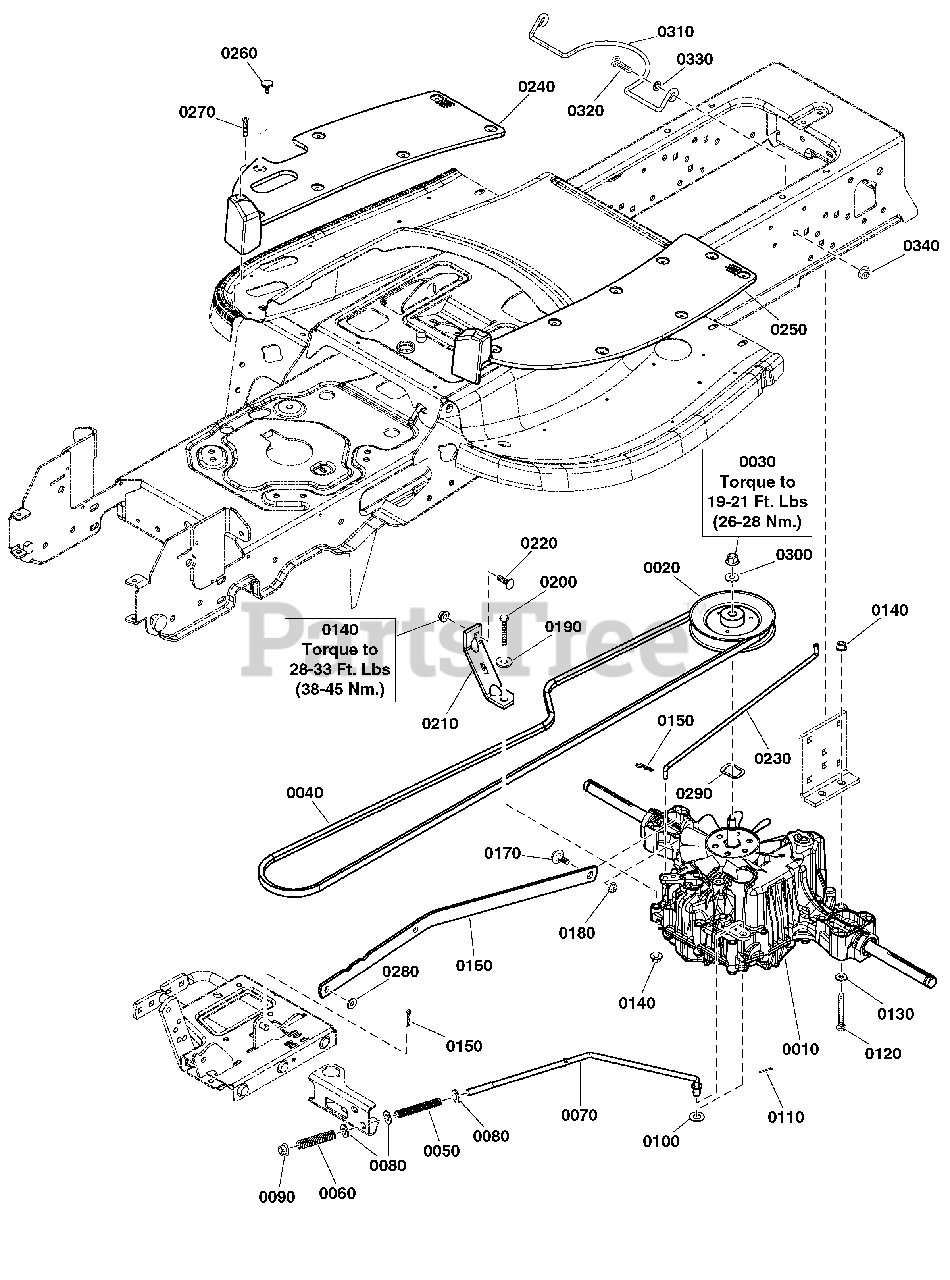

2691335-04 - Simplicity Broadmoor 50" Lawn Tractor, 23hp Transmission Group - Tuff Torq K57AF Parts Diagram

Broadmoor 50" Lawn Tractor, 23hp

Transmission Group - Tuff Torq K57AF Parts Diagram

  • Title

0010

Simplicity 771903

TRANSMISSION, Tuff Torq, K57AF

Note: (Incl. Ref. Nos. 0020, 0030, 0290, 0300, 0310, 0320, 0330, & 0340)

$1646.99

$

Usually ships in 2-12 days

0

0020

Simplicity 1732918SM

PULLEY D

Note: (Included with Ref. 0010)

$54.99

$

In Stock, only 2 left!

0

0030

Simplicity 1719968SM

NUT, Hex Flange, M10-1.5, Nylon Insert

Note: (Included with Ref. 0010)

$3.49

$

Usually ships in 2-12 days

0

0040

Simplicity 1726841SM

V-BELT HA 094.50 LG

$58.99

$

In Stock, Qty 20+

0

0050

Simplicity 1722684SM

SPRING, Compression, 3-1/4" Long, Black

$4.49

$

Usually ships in 2-12 days

0

0060

Simplicity 1729277SM

SPRING, Composite, 3-5/8

Note: (Compress spring to 2.50" with brake locked)

$6.99

$

In Stock, only 1 left!

0

0070

Simplicity 1726871SM

ROD, Brake, 16.69"

$19.99

$

Usually ships in 2-12 days

0

0080

Simplicity 1924940SM

WASHER, 3/8, .41 ID x .87 OD x .08 THK
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

0090

Simplicity 1960687SM

NUT, Hex Flange Nylock, ESNA, 3/8-16
(Superseded to 703158)

$3.49

$

Usually ships in 2-12 days

0

0100

Simplicity 1918267SM

WASHER, 15/32" I.D. x 15/26" O.D.

$3.99

$

In Stock, only 1 left!

0

0110

Simplicity 703312

PIN, Cotter, 3/32 X 3/4

$3.99

$

In Stock, Qty 20+

0

0120

Simplicity 1923141SM

CAPSCREW, Hex Head, 5/16-18 x 2-3/4, G5
(Superseded to 703869)

$6.49

$

Usually ships in 2-12 days

0

0130

Simplicity 1919326SM

WASHER, 5/16

$4.49

$

In Stock, Qty 8

0

0140

Simplicity 1960686SM

NUT, Hex Flange Nylock, 5/16-18
(Superseded to 703115)

$3.49

$

In Stock, Qty 20+

0

0150

Simplicity 1722460SM

PIN, Hair
(Superseded to 703430)

$3.49

$

In Stock, only 2 left!

0

0160

Simplicity 1755619AYP

ARM, Transmission (K57)

$17.99

$

Usually ships in 2-12 days

0

0170

Simplicity 1732426SM

BOLT, Shoulder, 5/16-18

$4.49

$

In Stock, only 1 left!

0

0180

Simplicity 1935048SM

NUT, Hex Flange, Two Way Lock, 5/16-18
(Superseded to 704067)

$3.99

$

In Stock, Qty 14

0

0190

Simplicity 1960141SM

WASHER, 5/16, 0.13 Thick

$3.99

$

Usually ships in 2-12 days

0

0200

Simplicity 1921978SM

CAPSCREW, Hex Head, 5/16-18 x 2 GR5
(Superseded to 703867)

$4.99

$

In Stock, only 4 left!

0

0210

Simplicity 1721592ASM

STRAP, Torque, K57

$8.99

$

Usually ships in 2-12 days

0

0220

Simplicity 1931335SM

BOLT, Carriage, Short Neck, 5/16-18 x 1
(Superseded to 703800)

$3.99

$

In Stock, Qty 7

0

0230

Simplicity 1726806SM

ROD, Transmission Release

$9.99

$

Usually ships in 2-12 days

0

0240

Simplicity 1755642YP

PAD, Foot Rest, RH

$53.99

$

Usually ships in 2-12 days

0

0250

Simplicity 1755799YP

PAD, Foot Rest, LH

$43.99

$

Usually ships in 2-12 days

0

0260

Simplicity 1704351SM

FASTENER, Panel, 3/4 0D x 11/16

$4.99

$

In Stock, only 4 left!

0

0270

Simplicity 1960676SM

SCREW, Pan Head Torx Taptite, 1/4-20 x 1-1/4, Black

$4.49

$

Usually ships in 2-12 days

0

0280

Simplicity 703878

WASHER, Flat, 13/32 x 7/8 x .083

$3.99

$

In Stock, Qty 20+

0

0290

Simplicity 1761520YP

WASHER, Wave, 0.65" ID

Note: (Included with Ref. 0010)

$3.99

$

Usually ships in 2-12 days

0

0300

Simplicity 704128

WASHER, Flat

Note: (Included with Ref. 0010)

$4.99

$

In Stock, Qty 11

0

0310

Simplicity 771919

GUIDE, Belt

Note: (Included with Ref. 0010)

$37.99

$

In Stock, only 1 left!

0

0320

Simplicity 703585

CAPSCREW, Hex Head, 5/16-18 x 1

Note: (Included with Ref. 0010)

$4.99

$

In Stock, only 1 left!

0

0330

Simplicity 1960141SM

WASHER, 5/16, 0.13 Thick

Note: (Included with Ref. 0010)

$3.99

$

Usually ships in 2-12 days

0

0340

Simplicity 703115

NUT, Flange Nylock, 5/16-18

Note: (Included with Ref. 0010)

$3.49

$

In Stock, Qty 20+
