2691334-02 - Simplicity Broadmoor 44" Lawn Tractor, 22hp 44" (112cm) Mower Deck - Housing, Arbors & Blades Group Parts Diagram

Broadmoor 44" Lawn Tractor, 22hp

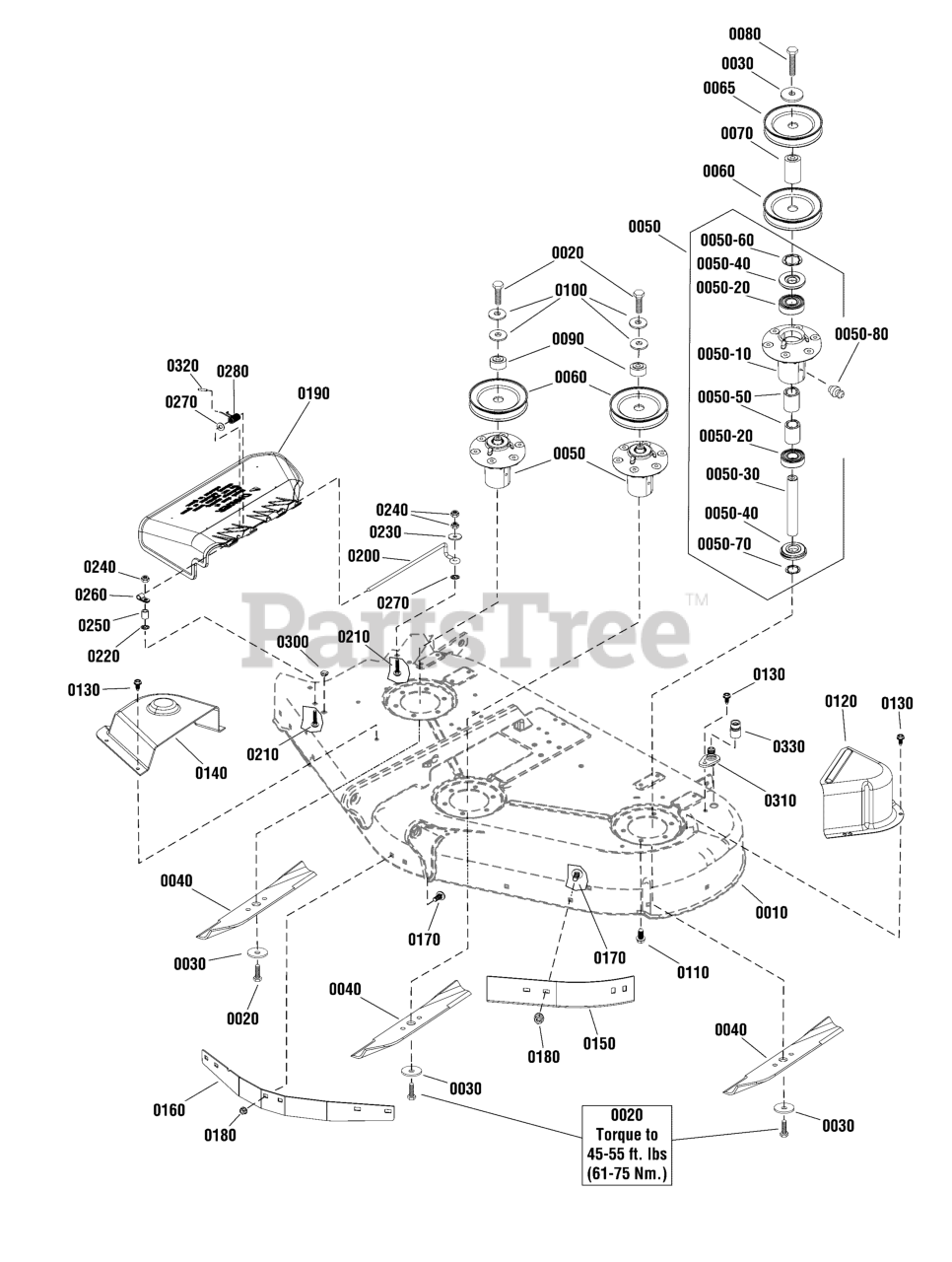

44" (112cm) Mower Deck - Housing, Arbors & Blades Group Parts Diagram

  • Title

0010

Simplicity 770591

DECK, Mower, 44"

$995.99

$

Usually ships in 2-12 days

0

0020

Simplicity 703579

CAPSCREW, Hex Head, 7/16-14 x 1-1/4, GR8

$4.49

$

In Stock, Qty 20+

0

0030

Simplicity 1656916SM

WASHER, Spring

$7.49

$

In Stock, Qty 20+

0

0040

Simplicity 1727774ASM

BLADE, Mower 44", Center & L.H.
(Superseded to 1716696ASM)

$25.99

$

In Stock, Qty 20+

0

0050

Simplicity 1755460

* ARBOR ASSEMBLY

$

$

Not available

0050-10

Simplicity 1755437YP

HOUSING, w/Lube Fitting
(Superseded to 1760371YP)

$76.99

$

In Stock, only 1 left!

0

0050-30

Simplicity 1755472YP

SHAFT, Spindle

$

$

Not available

0050-20

Simplicity 1735399YP

BEARING, Ball 20mm

$9.99

$

In Stock, Qty 20+

0

0050-40

Simplicity 1735323YP

SHIELD, Arbor
(Superseded to 84003166)

$6.99

$

In Stock, only 3 left!

0

0050-30

Simplicity 1755472YP

SHAFT, Spindle

$

$

Not available

0050-30

Simplicity 1755472YP

SHAFT, Spindle

$

$

Not available

0050-50

Simplicity 1735328YP

SPACER, Bearing

$6.49

$

In Stock, only 3 left!

0

0050-60

Simplicity 1960766YP

RING, Self Locking

$4.49

$

In Stock, Qty 20+

0

0050-70

Simplicity 1657528SM

RING, Retaining, Self Lock, #75, 3/4

$4.49

$

In Stock, Qty 20+

0

0050-80

Simplicity 1704314SM

FITTING, Lube, 1/4
(Superseded to 703907)

$4.99

$

In Stock, Qty 20+

0

0060

Simplicity 1755470YP

PULLEY, Deep Groove, 4 1/4

$13.99

$

In Stock, only 1 left!

0

0065

Simplicity 1732951SM

PULLEY, 4.60

$19.99

$

In Stock, Qty 20+

0

0070

Simplicity 1755439YP

HUB, Pulley Double

$16.99

$

Usually ships in 2-12 days

0

0080

Simplicity 705439

CAPSCREW, Hex Head, 7/16-14 X 3 1/4, G5

$7.49

$

In Stock, only 1 left!

0

0090

Simplicity 1735579YP

SPACER, Lower Drive

$7.49

$

In Stock, only 1 left!

0

0100

Simplicity 1960769YP

WASHER, Belleville

$4.99

$

Usually ships in 2-12 days

0

0110

Simplicity 704146

SCREW, Hex Washer Head, Taptite, 5/16-18 x 1

$3.99

$

In Stock, Qty 20+

0

0120

Simplicity 1720560ASM

COVER, Arbor LH
(Superseded to 84002518)

$90.99

$

In Stock, only 1 left!

0

0130

Simplicity 703228

SCREW, 5/16-18 X .750, Washer Head Taptite

$4.49

$

In Stock, Qty 20+

0

0140

Simplicity 1715673SM

COVER, Arbor (RH)

$38.99

$

In Stock, only 1 left!

0

0150

Simplicity 1724538ASM

BAFFLE, Blowout, Short, Plain

$45.99

$

In Stock, only 1 left!

0

0160

Simplicity 1734181ASM

BAFFLE, Front 44" & 50" Decks

$43.99

$

Usually ships in 2-12 days

0

0170

Simplicity 703125

BOLT, Carriage, 5/16-18 x 5/8, GR5

$3.99

$

In Stock, only 2 left!

0

0180

Simplicity 703409

NUT, 5/16-18, Serrated Lock Flange, GR5

$5.49

$

In Stock, Qty 20+

0

0190

Simplicity 1705449SM

DEFLECTOR, Discharge

$122.99

$

In Stock, only 2 left!

0

0200

Simplicity 1706709SM

ROD, Deflector, Front

$8.49

$

In Stock, Qty 20+

0

0210

Simplicity 1931320SM

BOLT, Carriage, Short Neck, 1/4-20 x 1-1/4, G5
(Superseded to 703178)

$3.99

$

In Stock, only 1 left!

0

0220

Simplicity 1960674SM

NUT, Push Pal 1/4 Diameter Thread
(Superseded to 703826)

$3.49

$

In Stock, Qty 20+

0

0230

Simplicity 703229

WASHER, 1/4 x 27/32

$4.49

$

In Stock, Qty 8

0

0240

Simplicity 1920397SM

NUT, Hex Lock, ESNA Light, 1/4-20
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

0250

Simplicity 1710703SM

SPACER, 3/8 ID x 1/2 OD x 5/8"

$6.49

$

In Stock, Qty 20+

0

0260

Simplicity 1704873SM

CLAMP, Wire, 5/16 Diameter . (1) .281 Hole Black

$4.49

$

In Stock, Qty 20+

0

0270

Simplicity 1919326SM

WASHER, 5/16, .34 ID x 3/4 OD x .06 THK

$4.49

$

In Stock, Qty 9

0

0280

Simplicity 1759750YP

SPRING, Deflector

$8.49

$

In Stock, Qty 20+

0

0300

Simplicity 1705115SM

PLUG, Button

$4.49

$

In Stock, only 1 left!

0

0310

Simplicity 1735716YP

ADAPTER, Washout Port
(Superseded to 1687721YP)

$13.99

$

Usually ships in 2-12 days

0

0320

Simplicity 1723323SM

CAP-SPRING END .093ID .75 LG BLACK VINYL

$4.99

$

In Stock, only 1 left!

0

0330

Simplicity 1756246YP

CONNECTOR, Washout Port

$15.99

$

Usually ships in 2-12 days

0
