2691333-02 - Simplicity Regent S 48" Lawn Tractor, 25hp Briggs & Stratton Hood, Grille & Dash Group Parts Diagram

Regent S 48" Lawn Tractor, 25hp Briggs & Stratton

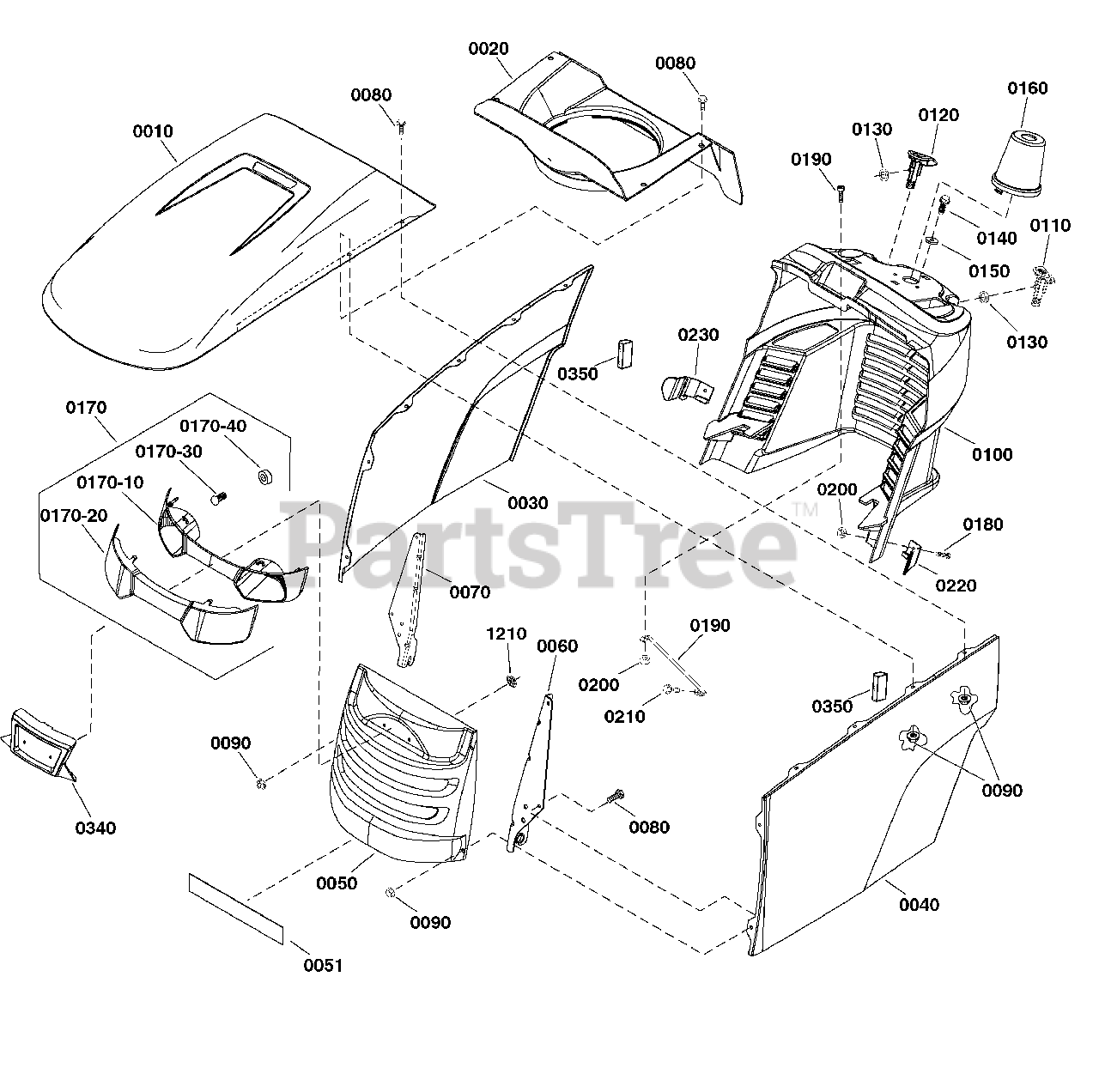

Hood, Grille & Dash Group Parts Diagram

  • Title

0010

Simplicity 1754921CYP

HOOD, w/Scoop

$353.99

$

In Stock, only 1 left!

0

0020

Simplicity 7102326YP

AIR DUCT, Plenum

$131.99

$

In Stock, only 1 left!

0

0030

Simplicity 1755497CYP

PANEL, Hood, R.H.

$182.99

$

Usually ships in 2-12 days

0

0040

Simplicity 1755498CYP

PANEL, Hood, L.H.

$170.99

$

Usually ships in 2-12 days

0

0050

Simplicity 1727297CSM

GRILLE, Orange

$134.99

$

In Stock, only 1 left!

0

0051

Simplicity 1758731YP

INSULATION

$9.49

$

In Stock, only 4 left!

0

0060

Simplicity 1727279BMYP

HINGE, Hood, L.H.

$20.99

$

Usually ships in 2-12 days

0

0070

Simplicity 1727280ASM

HINGE, Hood, R.H.

$20.99

$

Usually ships in 2-12 days

0

0080

Simplicity 1960295SM

CAPSCREW, Hex Flange, Whiz Lock, 1/4-20 x 5/8

$4.49

$

In Stock, only 1 left!

0

0090

Simplicity 703161

NUT, 1/4-20, Hex Flange Whiz Lock, G5, Zinc/Clear

$3.49

$

In Stock, Qty 20+

0

0100

Simplicity 1727293SM

DASHBOARD

$202.99

$

Usually ships in 2-12 days

0

0110

Simplicity 1728089SM

KNOB, Brake Lock

$7.49

$

In Stock, only 4 left!

0

0120

Simplicity 1728090SM

KNOB, Cruise Lock

$7.49

$

In Stock, Qty 10

0

0130

Simplicity 1960518SM

PUSHNUT, 1/4 x 1/2 OD
(Superseded to 703826)

$3.49

$

In Stock, Qty 20+

0

0140

Simplicity 703228

SCREW, Washer Head Taptite, 5/16-18 X 3/4

$4.49

$

In Stock, Qty 20+

0

0150

Simplicity 703298

WASHER, 5/16

$4.49

$

In Stock, only 2 left!

0

0160

Simplicity 1727999SM

COVER, Steering Shaft

$17.99

$

Usually ships in 2-12 days

0

0170

Simplicity 1727296SM

HEADLIGHT ASSEMBLY

Note: (Incl Ref. Nos. 0170-10, 0170-20, 0170-30 & 0170-40)

$237.99

$

In Stock, Qty 7

0

0170-10

Simplicity 1728973SM

REFLECTOR
(Superseded to 1727296SM)

Note: (Included with Ref No. 0170)

$237.99

$

In Stock, Qty 7

0

0170-20

Simplicity 1728974SM

LENS
(Superseded to 1727296SM)

Note: (Included with Ref No. 0170)

$237.99

$

In Stock, Qty 7

0

0170-30

Simplicity 1677371SM

BULB, 1141-12V 21CP

Note: (Included with Ref No. 0170)

$30.99

$

In Stock, only 1 left!

0

0170-30

Simplicity 1755317YP

* LAMP, 12VAC 25-30 Lumen LED

Note: (Interchangeable with Incandescent bulb)

$35.99

$

Usually ships in 2-12 days

0

0170-40

Simplicity 1723451SM

SOCKET ASSEMBLY

Note: (Included with Ref No. 0170)

$28.99

$

In Stock, only 1 left!

0

0180

Simplicity 1960392SM

SCREW, Pan Head Phillips, #10-24 x 1

$3.99

$

Usually ships in 2-12 days

0

0190

Simplicity 1723123SM

ROD, Dash Support, 10"

$11.99

$

Usually ships in 2-12 days

0

0200

Simplicity 703412

NUT, Nylock, #10-24, GR2

$4.49

$

In Stock, only 2 left!

0

0210

Simplicity 1925003SM

CAPSCREW, Hex Washer Head, Taptite, 1/4-20 x 1/2
(Superseded to 704130)

$3.99

$

In Stock, Qty 7

0

0220

Simplicity 1732030SM

GUIDE, Hood, L.H.

$7.49

$

In Stock, only 2 left!

0

0230

Simplicity 1732031SM

GUIDE, Hood, R.H.

$7.49

$

In Stock, Qty 5

0

0340

Simplicity 1755583YP

INSERT, Headlight

$24.99

$

In Stock, Qty 20+

0

0350

Simplicity 1754094YP

POSITIONER, Hood

$8.49

$

Usually ships in 2-12 days

0

1210

Simplicity 1960521SM

FASTENER, Push On .156 Internal Diameter

$3.49

$

In Stock, Qty 13

0
