2691330-01 - Simplicity Regent 44" Lawn Tractor, 23hp Briggs & Stratton 44" (112cm) Mower Deck - Housing, Arbors & Blades Group Parts Diagram

Regent 44" Lawn Tractor, 23hp Briggs & Stratton

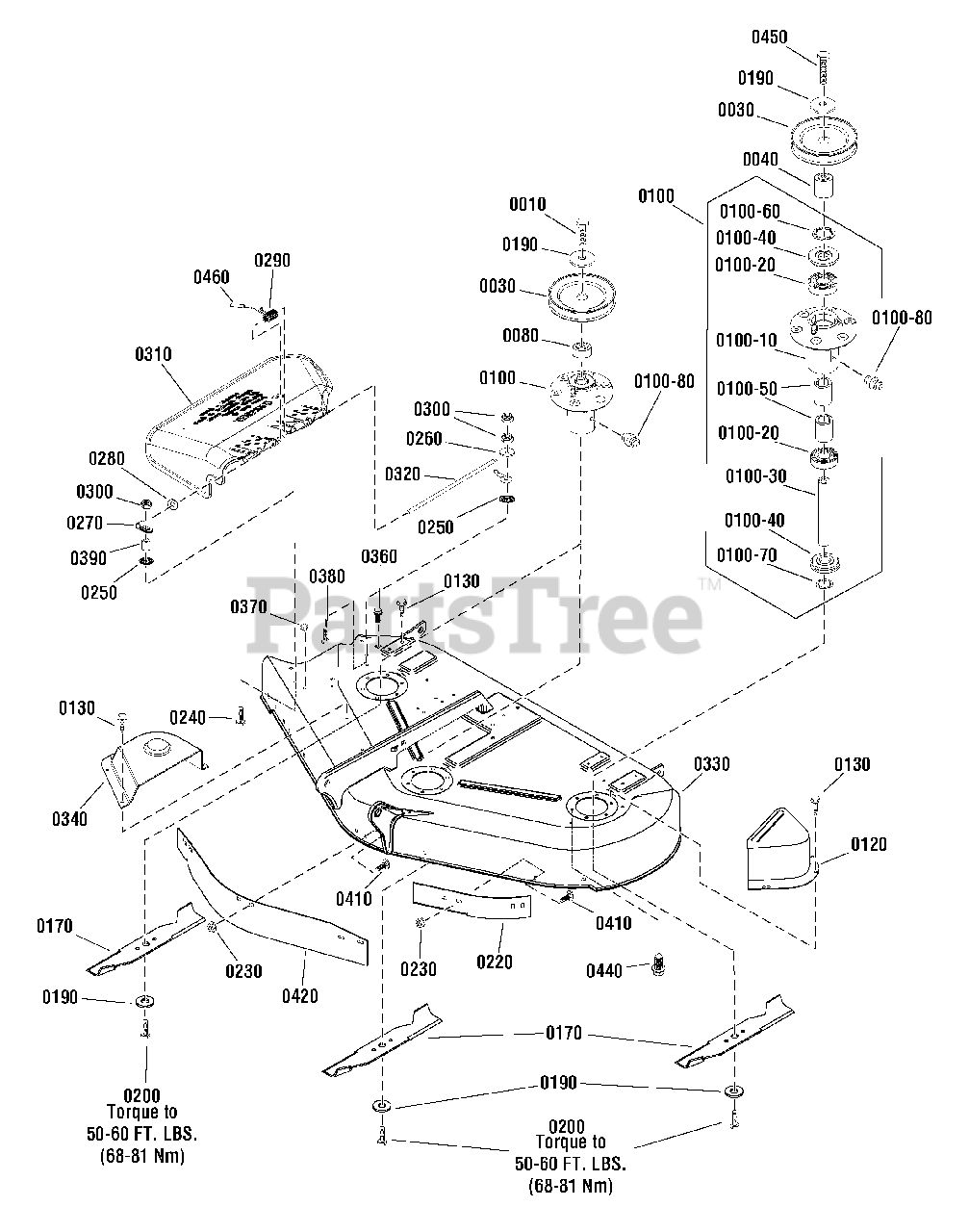

44" (112cm) Mower Deck - Housing, Arbors & Blades Group Parts Diagram

  • Title

0010

Simplicity 703171

CAPSCREW, Hex Head, 7/16-14 x 1-3/4, GR5

$3.99

$

In Stock, Qty 6

0

0030

Simplicity 1713098SM

PULLEY, RH Arbor & LH Arbor, 4-1/4, .49" Shallow-Groove

$19.99

$

In Stock, Qty 20+

0

0040

Simplicity 1759033YP

SPACER, Upper Drive

$45.99

$

Usually ships in 2-12 days

0

0080

Simplicity 1758623YP

SPACER, Hub

$

$

Not available

0100

Simplicity 1755460

* ARBOR ASSEMBLY

$

$

Not available

0100-05

Simplicity 1704314SM

FITTING, Lube, 1/4
(Superseded to 703907)

$4.99

$

In Stock, Qty 20+

0

0100-10

Simplicity 1755437YP

HOUSING, w/Lube Fitting
(Superseded to 1760371YP)

$76.99

$

Usually ships in 2-12 days

0

0100-20

Simplicity 1735399YP

BEARING, Ball 20mm

$9.99

$

In Stock, Qty 20+

0

0100-30

Simplicity 1755472YP

SHAFT, Spindle

$

$

Not available

0100-40

Simplicity 1735323YP

SHIELD, Arbor
(Superseded to 84003166)

$6.99

$

In Stock, only 3 left!

0

0100-50

Simplicity 1755328YP

SPACER, Bearing

$

$

Not available

0100-60

Simplicity 1960766SM

RING-SELF LOCKING 46" MWR
(Superseded to 1960766YP)

$4.49

$

In Stock, Qty 20+

0

0120

Simplicity 1720560ASM

COVER, Arbor LH
(Superseded to 84002518)

$90.99

$

In Stock, only 1 left!

0

0130

Simplicity 703228

SCREW, 5/16-18 X .750, Washer Head Taptite

$4.49

$

In Stock, Qty 20+

0

0170

Simplicity 1727774ASM

BLADE, Mower 44", Center & L.H.
(Superseded to 1716696ASM)

$25.99

$

In Stock, Qty 20+

0

0190

Simplicity 1656916SM

WASHER, Spring

$7.49

$

In Stock, Qty 20+

0

0200

Simplicity 2820676SM

CAPSCREW, HexHead, 7/16-14 X 1, G5

$4.49

$

In Stock, Qty 6

0

0220

Simplicity 1724538ASM

BAFFLE, Blowout, Short, Plain

$45.99

$

In Stock, only 1 left!

0

0230

Simplicity 703409

NUT, 5/16-18, Serrated Lock Flange, GR5

$5.49

$

In Stock, Qty 20+

0

0240

Simplicity 703584

BOLT, Carriage, 1/4-20 x 1

$3.99

$

In Stock, Qty 9

0

0250

Simplicity 703826

NUT, Nylock, 5/16-18

$3.49

$

In Stock, Qty 20+

0

0260

Simplicity 703229

WASHER, 1/4 x 27/32

$4.49

$

In Stock, Qty 8

0

0270

Simplicity 1704873SM

CLAMP, Wire, 5/16 Diameter . (1) .281 Hole Black

$4.49

$

In Stock, Qty 20+

0

0280

Simplicity 1919326SM

WASHER, 5/16, .34 ID x 3/4 OD x .06 THK

$4.49

$

In Stock, Qty 9

0

0290

Simplicity 7101082SM

SPRING, Torsion Chute, 44" & 50" Decks
(Superseded to 1759750YP)

$8.49

$

In Stock, Qty 20+

0

0300

Simplicity 703232

NUT, Hex Lock, 1/4-20, ESNA

$4.49

$

In Stock, Qty 20+

0

0310

Simplicity 1705449SM

DEFLECTOR, Discharge

$122.99

$

In Stock, only 2 left!

0

0320

Simplicity 1706709SM

ROD, Deflector, Front

$8.49

$

In Stock, Qty 20+

0

0330

Simplicity 1687271SM

MOWER, Kit, 44"
(Superseded to 1687948)

$1463.99

$

Usually ships in 2-12 days

0

0340

Simplicity 1715673SM

COVER, Arbor (RH)

$38.99

$

In Stock, only 1 left!

0

0360

Simplicity 025X15MA

SCREW, Hex Washer Head, Thread Roll, 3/8-16 x 3/4
(Superseded to 703950)

$5.49

$

In Stock, only 1 left!

0

0370

Simplicity 1705115SM

PLUG, Button

$4.49

$

In Stock, only 1 left!

0

0380

Simplicity 704214

BOLT, Carriage, Short Neck, 1/4-20 x 1 1/2, GR5

$3.99

$

Usually ships in 2-12 days

0

0390

Simplicity 1710703SM

SPACER, 3/8 ID x 1/2 OD x 5/8"

$6.49

$

In Stock, Qty 20+

0

0410

Simplicity 703185

BOLT, Carriage, 5/16-18 X 3/4, GR5

$3.49

$

In Stock, Qty 20+

0

0420

Simplicity 1734181ASM

BAFFLE, Front 44" & 50" Decks

$43.99

$

Usually ships in 2-12 days

0

0440

Simplicity 704146

SCREW, Hex Washer Head, Taptite, 5/16-18 x 1

$3.99

$

In Stock, Qty 20+

0

0450

Simplicity 705439

CAPSCREW, Hex Head, 7/16-14 X 3 1/4, G5

$7.49

$

In Stock, only 1 left!

0

0460

Simplicity 1723323SM

CAP-SPRING END .093ID .75 LG BLACK VINYL

$4.99

$

In Stock, only 1 left!

0
