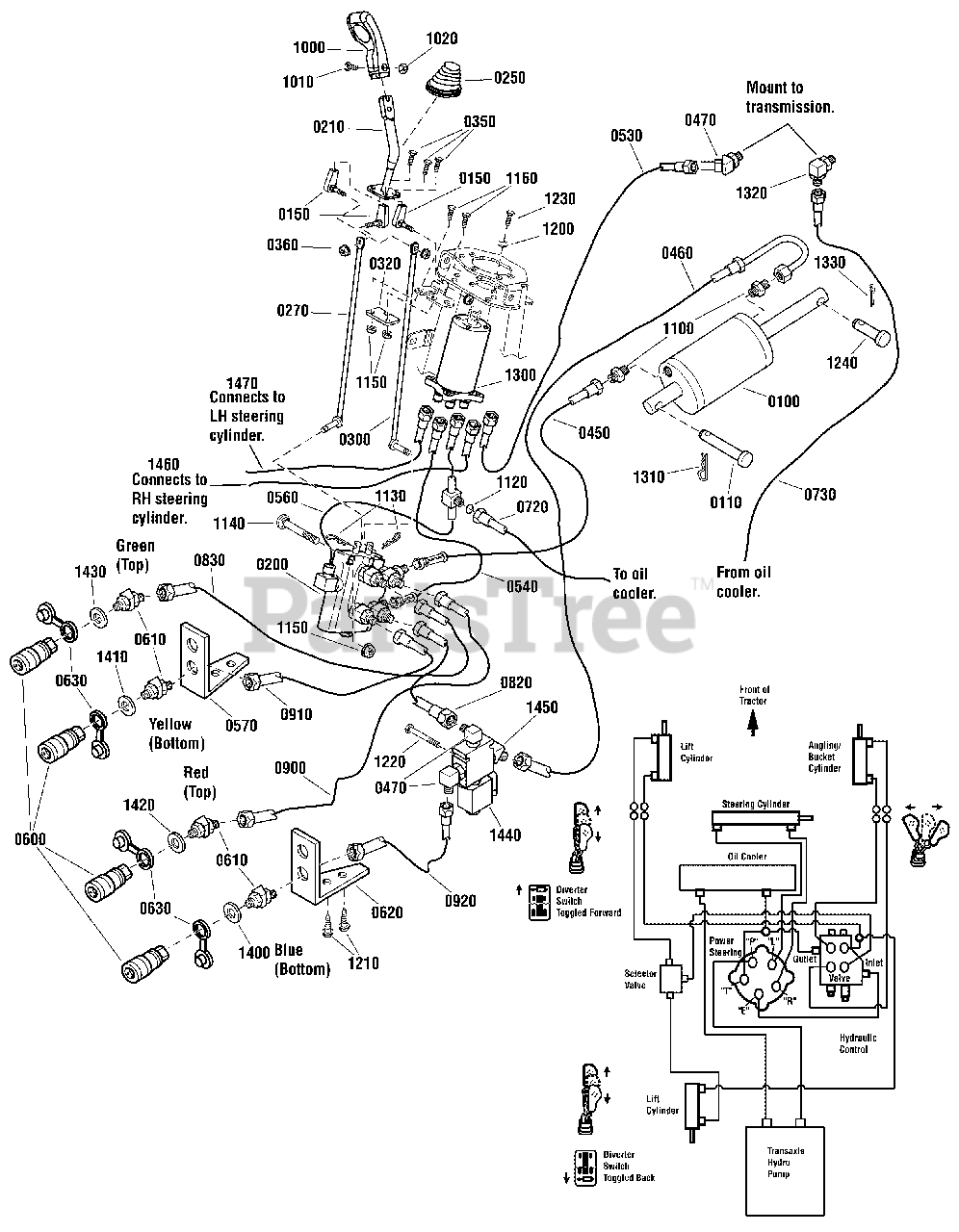

2691325-00 - Simplicity Legacy XL Garden Tractor, 31hp Briggs & Stratton Hydraulic Group Parts Diagram

Legacy XL Garden Tractor, 31hp Briggs & Stratton

Hydraulic Group Parts Diagram

  • Title

0100

Simplicity 1726442SM

CYLINDER ASSEMBLY, Hydraulic

$615.99

$

Usually ships in 2-12 days

0

0110

Simplicity 1725223SM

PIN, Clevis

$6.99

$

Usually ships in 2-12 days

0

0150

Simplicity 1725117SM

JOINT, Ball, 1/4-28 Int

$24.99

$

Usually ships in 2-12 days

0

0200

Simplicity 1725080SM

VALVE ASSEMBLY, Control 2 Spool
(Superseded to 1688015)

$

$

Not available

0210

Simplicity 1757503COYP

LEVER ASSEMBLY, Joystick

$101.99

$

Usually ships in 2-12 days

0

0250

Simplicity 1725120SM

BOOT, Hydraulic Control

$

$

Not available

0270

Simplicity 1724878SM

ROD & PIN ASSEMBLY, Control

$34.99

$

In Stock, only 1 left!

0

0300

Simplicity 1724434SM

ROD & PIN ASSEMBLY, Control

$26.99

$

Usually ships in 2-12 days

0

0320

Simplicity 1724881SM

PAD, Hydraulic

$4.49

$

Usually ships in 2-12 days

0

0350

Simplicity 2860696SM

SCREW, Hex SEMS Square Washer, 1/4-28 x 3/4

$3.99

$

Usually ships in 2-12 days

0

0360

Simplicity 2860697SM

NUT, Hex, Spiralock Flange 1/4-28

$4.49

$

In Stock, only 1 left!

0

0450

Simplicity 1725110SM

HOSE ASSEMBLY, Hydraulic Rubber, 13.7 LG, 30 Degrees

$

$

Not available

0460

Simplicity 1725111SM

HOSE ASSEMBLY, Hydraulic Rubber, 180 Degrees

$97.99

$

In Stock, only 2 left!

0

0470

Simplicity 1729591SM

FITTING, Tube Elbow, 9/16-18 11/16-16, 90 Degrees

$23.99

$

Usually ships in 2-12 days

0

0530

Simplicity 1729590SM

TUBE, Assembly Hydraulic

$119.99

$

In Stock, only 1 left!

0

0540

Simplicity 1724886SM

TUBE, Hydraulic

$44.99

$

Usually ships in 2-12 days

0

0560

Simplicity 1725690SM

TUBE, Hydraulic

$91.99

$

Usually ships in 2-12 days

0

0570

Simplicity 1725325ASM

SUPPORT, Quick Disc R.H.

$25.99

$

Usually ships in 2-12 days

0

0600

Simplicity 2173358SM

BODY ASSEMBLY, Coupler 1/4-18 Int, 1.94 LG

$74.99

$

In Stock, only 1 left!

0

0610

Simplicity 1725351SM

FITTING, Tube Elbow

$12.99

$

Usually ships in 2-12 days

0

0620

Simplicity 1725323ASM

SUPPORT, Quick Disc L.H.

$26.99

$

Usually ships in 2-12 days

0

0630

Simplicity 2173360SM

PLUG, Plastic

$16.99

$

In Stock, Qty 6

0

0720

Simplicity 1725604SM

HOSE ASSEMBLY, Hydraulic Rubber, 29 LG, 1 Swivel

$78.99

$

Usually ships in 2-12 days

0

0730

Simplicity 1725691SM

HOSE, Hydraulic

$97.99

$

Usually ships in 2-12 days

0

0820

Simplicity 1725688SM

TUBE, Hydraulic

$40.99

$

Usually ships in 2-12 days

0

0830

Simplicity 1725686SM

TUBE, Hydraulic

$64.99

$

Usually ships in 2-12 days

0

0900

Simplicity 1725684SM

TUBE, Hydraulic

$54.99

$

Usually ships in 2-12 days

0

0910

Simplicity 1725687SM

TUBE, Hydraulic

$49.99

$

Usually ships in 2-12 days

0

0920

Simplicity 1725685SM

TUBE, Hydraulic

$56.99

$

Usually ships in 2-12 days

0

1000

Simplicity 1722303SM

HANDLE, Cruise 3/8 x 7/8 Slot

$13.99

$

Usually ships in 2-12 days

0

1010

Simplicity 1960666SM

SCREW, TORX PLUS Socket Head, 1/4-20 x 7/8

$4.49

$

In Stock, only 1 left!

0

1020

Simplicity 1920397SM

NUT, Hex, Lock, ESNA LIGHT, 1/4-20 NC-3B
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

1100

Simplicity 2819171SM

TUBE, Fitting Mail 1/8 NPT+7/16-20 .250TU

$5.99

$

In Stock, only 2 left!

0

1120

Simplicity 1725485SM

O-RING

$2.99

$

Usually ships in 2-12 days

0

1130

Simplicity 1960221SM

CLIP, Hair Pin
(Superseded to 704039)

$4.49

$

In Stock, Qty 9

0

1140

Simplicity 1960700SM

CARRIAGE BOLT, 1/4-20 x 2 G5

$3.49

$

Usually ships in 2-12 days

0

1150

Simplicity 1960685SM

NUT, Hex 1/4-20 Conical Washer
(Superseded to 703061)

$3.49

$

In Stock, Qty 13

0

1160

Simplicity 1923341SM

CAPSCREW, Hex Head, 1/4-20 x 3/4 G5

$4.49

$

In Stock, Qty 8

0

1200

Simplicity 1916964SM

LOCKWASHER, Spring
(Superseded to 704133)

$3.99

$

In Stock, Qty 11

0

1210

Simplicity 1930594SM

SCREW, Hex Lock Flange 1/4-20 x 3/4
(Superseded to 1935450SM)

$4.49

$

Usually ships in 2-12 days

0

1220

Simplicity 1960571SM

SCREW, Hex, Washer Head Taptite, 1/4-20 x 1-3/4

$3.49

$

Usually ships in 2-12 days

0

1230

Simplicity 2860444SM

CAPSCREW, Hex Head

$2.99

$

Usually ships in 2-12 days

0

1240

Simplicity 1729275SM

PIN, Round Head Drilled, 1/2 x 2-1/2

$18.99

$

Usually ships in 2-12 days

0

1300

Simplicity 1725288SM

POWER STEERING UNIT

$

$

Not available

1310

Simplicity 1960033SM

CLIP, Hair Pin

$3.49

$

In Stock, Qty 20+

0

1320

Simplicity 1725655SM

FITTING, Tube Elbow 9/16-18 13/16-16, 90 Degrees

$28.99

$

Usually ships in 2-12 days

0

1330

Simplicity 1918452SM

PIN, Cotter, 1/4 x 1
(Superseded to 703795)

$5.99

$

In Stock, only 1 left!

0

1400

Simplicity 1726318SM

WASHER

$5.99

$

Usually ships in 2-12 days

0

1410

Simplicity 1726319SM

WASHER

$4.49

$

Usually ships in 2-12 days

0

1420

Simplicity 1726320SM

WASHER

$4.49

$

Usually ships in 2-12 days

0

1430

Simplicity 1726321SM

WASHER

$3.99

$

Usually ships in 2-12 days

0

1440

Simplicity 1724857SM

VALVE ASSEMBLY, Selector
(Superseded to 1687610YP)

$805.99

$

Usually ships in 2-12 days

0

1450

Snapper 1752988YP

FITTING, Hydraulic, 45 degree

$55.99

$

Usually ships in 2-12 days

0

1460

Simplicity 1725012SM

HOSE ASSEMBLY, Hydraulics, R.H.

$

$

Not available

1470

Simplicity 1724890SM

HOSE ASSEMBLY, Hydraulics, L.H.

$96.99

$

Usually ships in 2-12 days

0
