2691324-01 - Simplicity Courier 52" Zero-Turn Mower, 25hp Briggs & Stratton Suspension Group Parts Diagram

Courier 52" Zero-Turn Mower, 25hp Briggs & Stratton

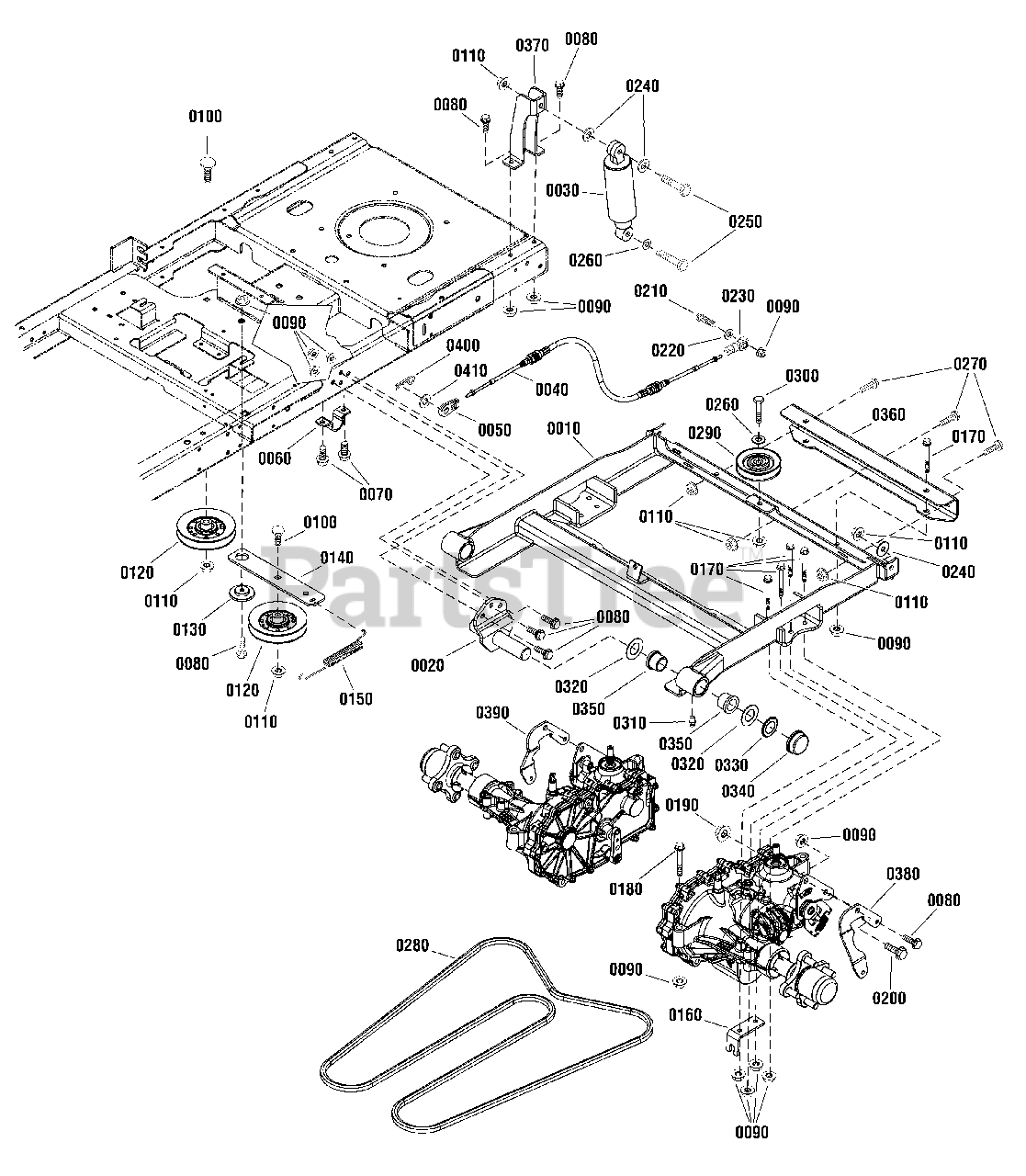

Suspension Group Parts Diagram

  • Title

0010

Simplicity 1758718CYP

CARRIER, Transmission

$410.99

$

Usually ships in 2-12 days

0

0020

Simplicity 1758716CYP

ARM, Rear Swing

$53.99

$

Usually ships in 2-12 days

0

0030

Simplicity 1755531YP

ABSORBER, Shock

$118.99

$

Usually ships in 2-12 days

0

0040

Simplicity 1759206YP

CABLE, Push/Pull

$158.99

$

In Stock, only 4 left!

0

0050

Simplicity 1759413YP

END, Cable

$10.99

$

Usually ships in 2-12 days

0

0060

Simplicity 1720147SM

STRAP, Shaft
(Superseded to 1720147BZYP)

$9.99

$

In Stock, only 1 left!

0

0070

Simplicity 1664847SM

SCREW, Taptite, 5/16-18 X 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

0080

Simplicity 770697

SCREW, Hex Flange, 5/16-18 X 1

$

$

Not available

0090

Simplicity 703115

NUT, Nylock Flange, 5/16-18, GR F

$3.49

$

In Stock, Qty 20+

0

0100

Simplicity 703858

BOLT, Carriage, 3/8-16 X 1 3/4

$4.99

$

In Stock, Qty 7

0

0110

Simplicity 703158

NUT, Hex Flange, 3/8-16

$3.49

$

Usually ships in 2-12 days

0

0120

Simplicity 1759212YP

PULLEY, V Idler, 4.50"

$57.99

$

In Stock, only 1 left!

0

0130

Simplicity 1727935SM

SPACER

$5.99

$

In Stock, only 2 left!

0

0140

Simplicity 1758744AYP

ARM, Idler

$18.99

$

Usually ships in 2-12 days

0

0150

Simplicity 1758045YP

SPRING, Extension

$8.49

$

In Stock, only 1 left!

0

0160

Simplicity 1758822AYP

MOUNT, Cable

$13.99

$

Usually ships in 2-12 days

0

0170

Simplicity 707943

SCREW, Hex Washer, 5/16-18 X 3

$5.99

$

Usually ships in 2-12 days

0

0180

Simplicity 707944

SCREW, Hex Washer, 5/16-18 X 2 1/4

$4.99

$

Usually ships in 2-12 days

0

0190

Simplicity 1930650SM

NUT, Flange, 7/16-14

$5.49

$

In Stock, only 4 left!

0

0200

Simplicity 1960043SM

SCREW, Hex Flange, 7/16-14 X 1

$7.49

$

Usually ships in 2-12 days

0

0210

Simplicity 703172

SCREW, Button Head

$3.99

$

Usually ships in 2-12 days

0

0220

Simplicity 5025155SM

WASHER, 5/16
(Superseded to 703350)

$4.49

$

In Stock, only 3 left!

0

0230

Simplicity 5101801YP

JOINT, Ball, Female, 10-32

$19.99

$

Usually ships in 2-12 days

0

0240

Simplicity 5025165SM

WASHER, 3/8

$3.99

$

In Stock, only 2 left!

0

0250

Simplicity 1921971SM

BOLT, 3/8-16 X 1-3/4, GR 5, CZ
(Superseded to 704289)

$4.99

$

In Stock, Qty 13

0

0260

Simplicity 71072MA

WASHER, Flat, 13/32

$4.49

$

In Stock, only 4 left!

0

0270

Simplicity 5025390X8YP

BOLT, Flange, 3/8-16 X 1, GR 5
(Superseded to 704038)

$5.99

$

In Stock, only 2 left!

0

0280

Simplicity 885714YP

BELT, Deck

$81.99

$

In Stock, Qty 20+

0

0290

Simplicity 885482YP

IDLER, Deck

$33.99

$

In Stock, only 1 left!

0

0300

Simplicity 703872

CAPSCREW, Hex Head, 3/8-16 X 2 1/4, GR 5

$4.99

$

In Stock, Qty 20+

0

0310

Simplicity 1704314SM

FITTING, Lube, 1/4
(Superseded to 703907)

$4.99

$

In Stock, Qty 20+

0

0320

Simplicity 703199

WASHER, Flat

$4.99

$

In Stock, only 2 left!

0

0330

Simplicity 703200

NUT, Push

$4.99

$

Usually ships in 2-12 days

0

0340

Simplicity 094618MA

HUB CAP

$5.99

$

In Stock, Qty 8

0

0350

Simplicity 1758717YP

BUSHING, Flange, 1 x 1

$8.99

$

Usually ships in 2-12 days

0

0360

Simplicity 1759163CYP

SUPPORT, Transmission

$46.99

$

Usually ships in 2-12 days

0

0370

Simplicity 1758778CYP

MOUNT, Rear Coil

$29.99

$

Usually ships in 2-12 days

0

0380

Simplicity 1759021AYP

ARM, Transmission, LH

$25.99

$

Usually ships in 2-12 days

0

0390

Simplicity 1759022AYP

ARM, Transmission, RH

$24.99

$

Usually ships in 2-12 days

0

0400

Simplicity 403162MA

PIN, Hair, 3/32

$

$

Not available

0410

Simplicity 703878

WASHER, Flat, 13/32

$3.99

$

In Stock, Qty 20+

0
