2691179-00 - Simplicity Conquest 50" Garden Tractor, 25hp Wheels & Tires Group Parts Diagram

Conquest 50" Garden Tractor, 25hp

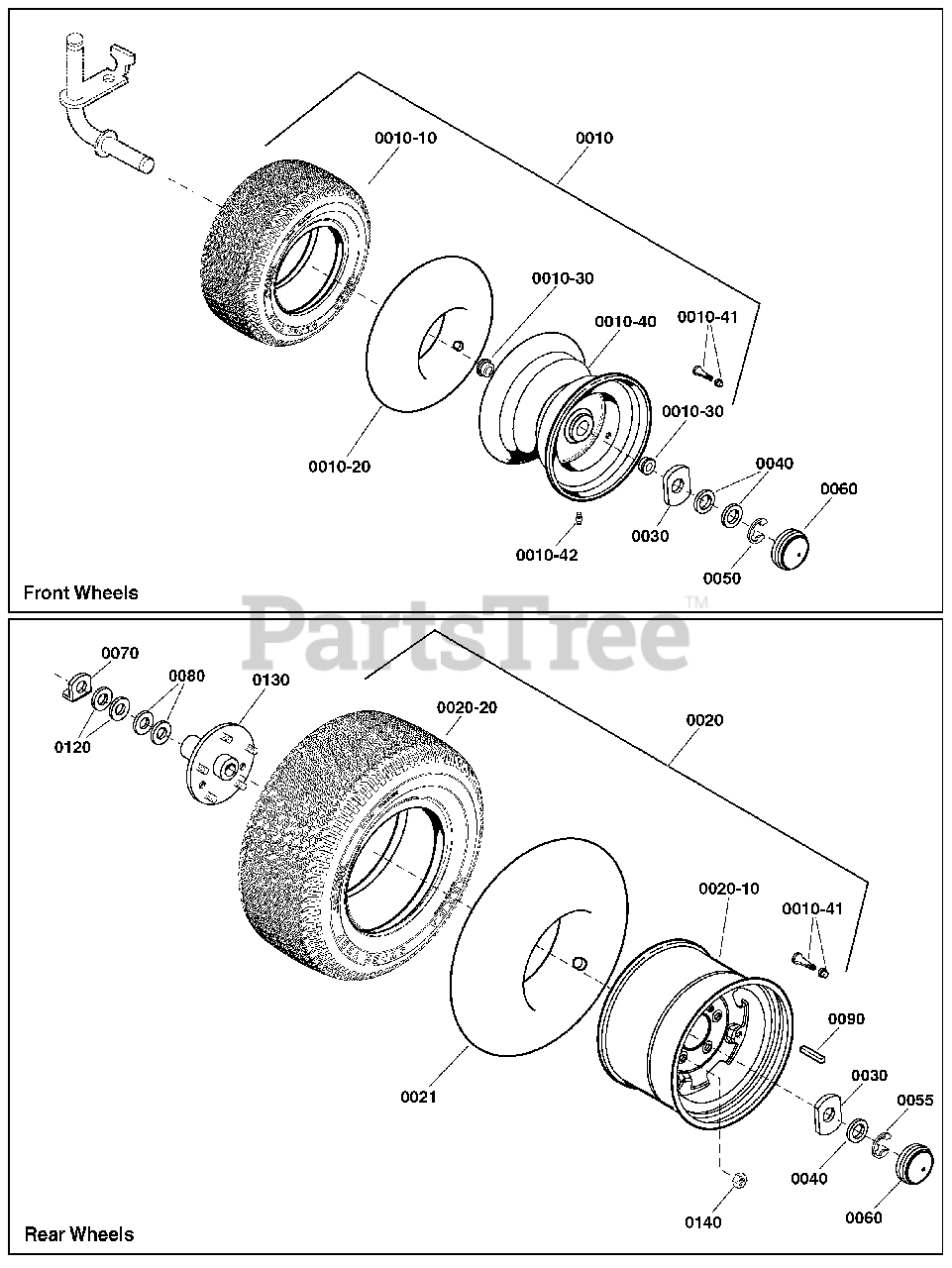

Wheels & Tires Group Parts Diagram

  • Title
0010

Simplicity 1722305SM

WHEEL & TIRE ASSEMBLY, Front, 16 x 6-1/2
(Superseded to 84002906)

Note: (Includes Ref. Nos. 0010-10, 0010-20, 0010-30, 0010-40, 0010-41 & 0010-42)

$227.99

$

In Stock, only 1 left!

0

0010-10

Simplicity 1722833SM

TIRE, 16 x 6-1/2 - 8 Super Turf, Front
(Superseded to 7073584YP)

$170.99

$

Usually ships in 2-12 days

0

0010-20

Simplicity 2164247SM

TUBE, Tire 16 x 6-1/2 - 8, Front

$40.99

$

Usually ships in 2-12 days

0

0010-30

Simplicity 1717056SM

BEARING, Ball

$

$

Not available

0010-40

RIM, Wheel, Front

Note: (Not a serviceable part)

$

$

Not available

0010-41

Simplicity 2172353SM

VALVE STEM & CAP
(Superseded to 024373MA)

$

$

Not available

0010-42

Simplicity 2812808SM

GREASE FITTING

$4.49

$

In Stock, Qty 20+

0

0020

Simplicity 1755499YP

WHEEL & TIRE ASSEMBLY, Rear, 23 x 10.50-12

Note: (Includes Ref. Nos. 0020-10, 0020-20 & 0010-41)

$408.99

$

Usually ships in 2-12 days

0

0020-10

RIM, Wheel, Rear

Note: (Not a serviceable part)

$

$

Not available

0020-20

Simplicity 1722830SM

TIRE, 23 x 10.50

$242.99

$

Usually ships in 2-12 days

0

0021

Simplicity 2173477SM

TUBE, Tire, Rear

$85.99

$

Usually ships in 2-12 days

0

0030

Simplicity 1722726SM

WASHER, Hub Cap

$5.49

$

In Stock, only 2 left!

0

0040

Simplicity 703149

WASHER, Flat, 1

$3.49

$

In Stock, Qty 20+

0

0050

$4.99

$

In Stock, only 2 left!

0

0055

Simplicity 2834712SM

RING, "E" External, (Units with K62)

$4.99

$

In Stock, only 2 left!

0

0060

$5.49

$

In Stock, Qty 20+

0

0070

Simplicity 1737043AYP

WASHER, Bracket, Axle Seal

$14.99

$

In Stock, only 1 left!

0

0080

$5.49

$

In Stock, Qty 5

0

0090

Simplicity 2105337SM

KEY, Hi-Pro, 1/4 x 2

$8.49

$

In Stock, Qty 12

0

0120

$6.99

$

In Stock, only 2 left!

0

0130

Simplicity 1755832YP

WHEEL HUB ASSEMBLY

$108.99

$

Usually ships in 2-12 days

0

0140

Simplicity 2177725SM

NUT, Hex, 7/16-20

$6.49

$

In Stock, only 3 left!

0
