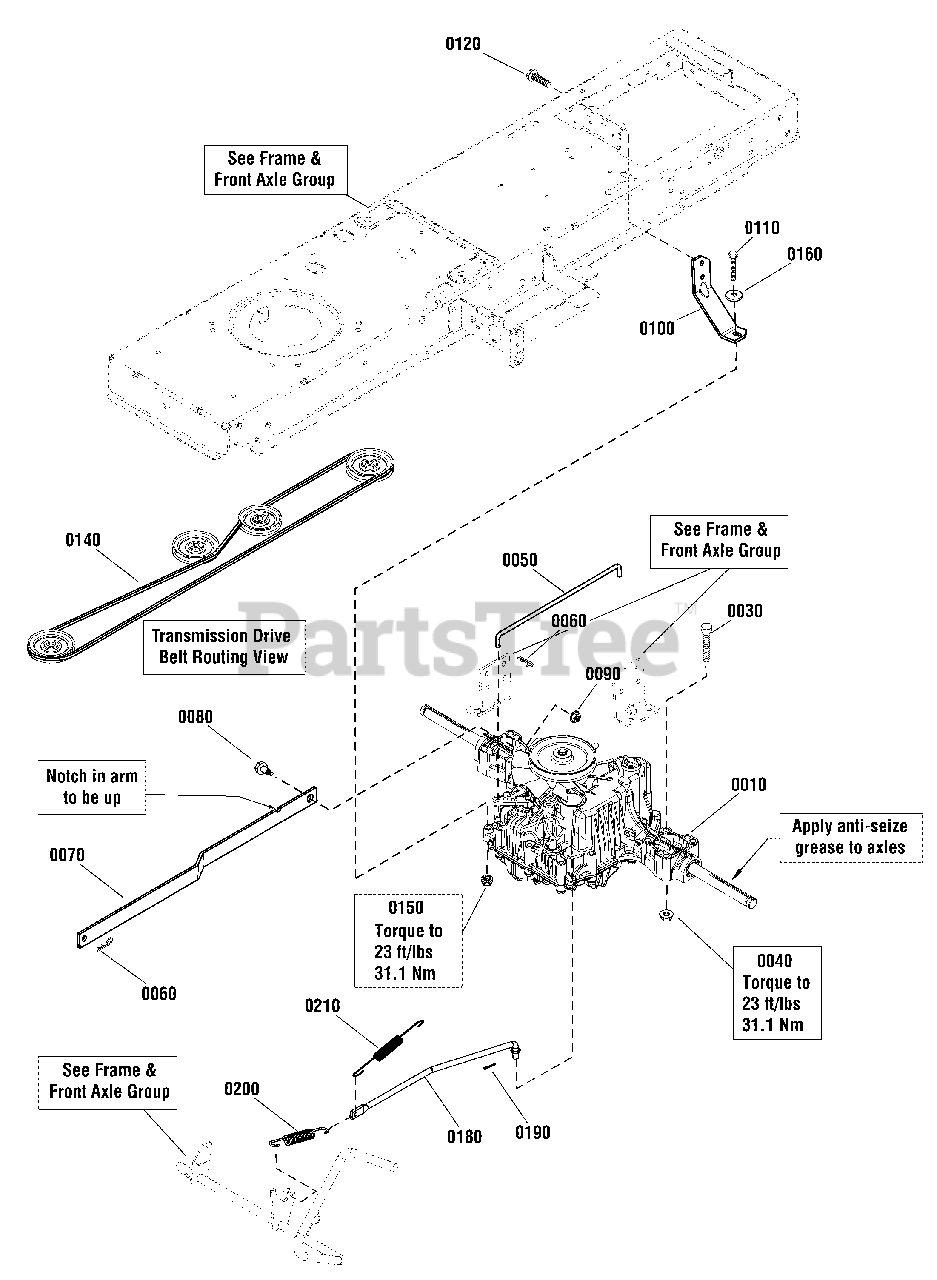

2691172-01 - Simplicity Regent EX 38" Lawn Tractor, Briggs & Stratton Transmission Group - Tuff Torq Parts Diagram

Regent EX 38" Lawn Tractor, Briggs & Stratton

Transmission Group - Tuff Torq Parts Diagram

  • Title
0010

Simplicity 1729588SM

TRANSMISSION, Tuff Torq K46BP
(Superseded to 1761324YP)

$1372.99

$

Usually ships in 2-12 days

0

0010

Simplicity 1729589SM

TRANSMISSION, Tuff Torq K46BL
(Superseded to 1761325YP)

Note: (Used with 22" Tire Models)

$1253.99

$

Usually ships in 2-12 days

0

0030

Simplicity 1960586SM

SCREW, Hex Head Flange Lock, 5/16-18 x 2-1/2

$4.99

$

Usually ships in 2-12 days

0

0040

Simplicity 1931277SM

NUT, Hex Flange, Whiz Lock, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

0050

Simplicity 1728120SM

ROD, Bypass, 11.44 LG Yellow
(Superseded to 1758474YP)

$10.99

$

In Stock, only 1 left!

0

0060

Simplicity 1722460SM

PIN, Quick
(Superseded to 703430)

$3.49

$

In Stock, only 2 left!

0

0070

Simplicity 1727258SM

ARM, Control

$22.99

$

In Stock, only 1 left!

0

0080

Simplicity 1732426SM

BOLT, Shoulder, 5/16-18

$4.49

$

In Stock, only 1 left!

0

0090

Simplicity 1960686SM

NUT, Hex Flange, 5/16-18 ESNA
(Superseded to 703115)

$3.49

$

In Stock, Qty 20+

0

0100

Simplicity 1754842BMYP

STRAP, Torque 7 GA

$11.99

$

In Stock, Qty 20+

0

0110

Simplicity 1922127SM

CAPSCREW, Hex Head, 5/16-18 x 1-3/4
(Superseded to 704288)

$4.99

$

Usually ships in 2-12 days

0

0120

Simplicity 1664847SM

CAPSCREW, Hex Head, Taptite, 5/16-18 x 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

0140

Simplicity 1728008SM

V-BELT, Drive Belt, Aramid/Kevlar

$47.99

$

In Stock, Qty 20+

0

0150

Simplicity 1960686SM

NUT, Hex Flange, 5/16-18 ESNA
(Superseded to 703115)

$3.49

$

In Stock, Qty 20+

0

0160

Simplicity 1919381SM

WASHER, Plain, 5/16
(Superseded to 703298)

$4.49

$

In Stock, only 2 left!

0

0180

Simplicity 1727253SM

ROD, 3/8-15.1 LG

$16.99

$

Usually ships in 2-12 days

0

0190

Simplicity 1918447SM

PIN, Cotter
(Superseded to 703312)

$3.99

$

In Stock, Qty 20+

0

0200

Simplicity 1731262SM

SPRING, Extension, .7 OD

$9.99

$

Usually ships in 2-12 days

0

0210

Simplicity 1721995SM

SPRING, Extension, 5/8 OD

$8.49

$

Usually ships in 2-12 days

0
