2691171-01 - Simplicity Regent Lawn 42" Tractor, 22hp Briggs & Stratton Steering Group Parts Diagram

Regent Lawn 42" Tractor, 22hp Briggs & Stratton

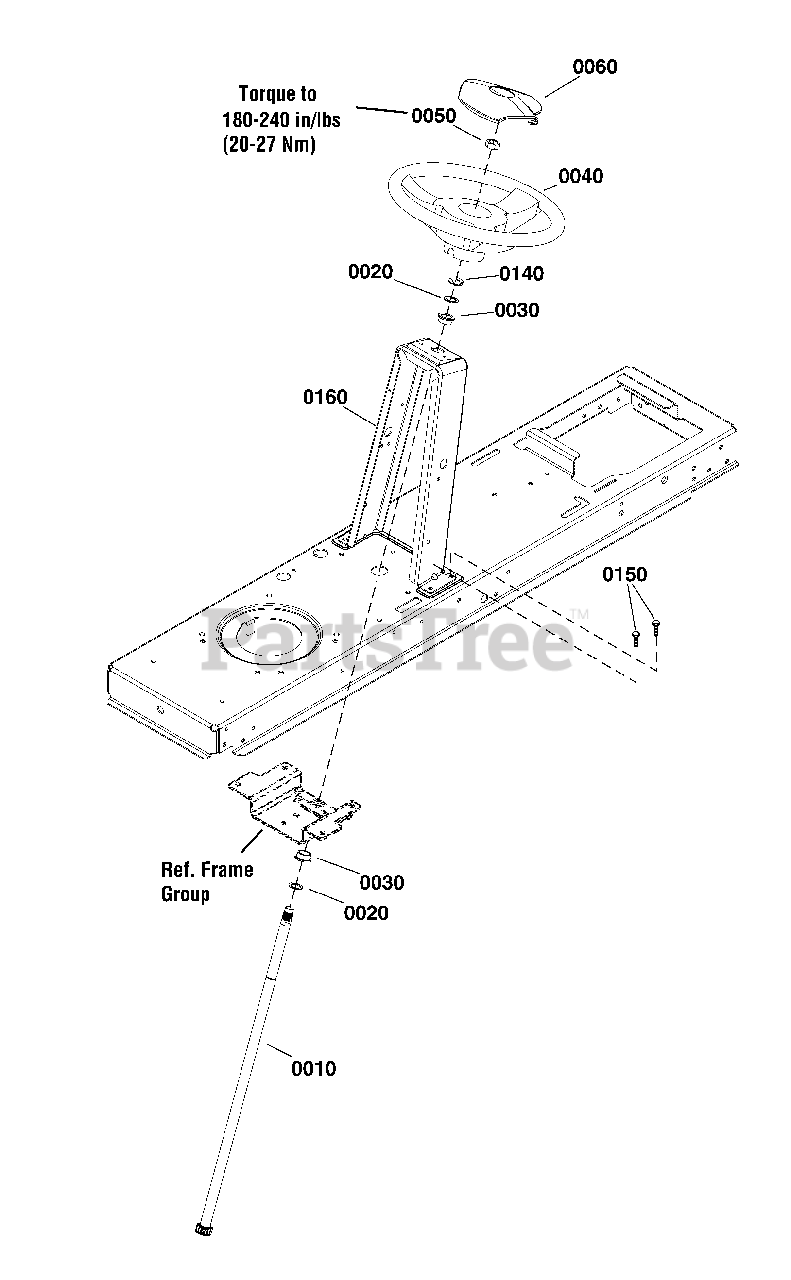

Steering Group Parts Diagram

  • Title
0010

Simplicity 1727813SM

SHAFT, Steering Gear & Spline

$76.99

$

In Stock, Qty 20+

0

0020

Simplicity 703151

WASHER, .766 ID X 1.06 OD X .07

$3.49

$

In Stock, Qty 20+

0

0030

Simplicity 1729665SM

BUSHING, Steering, 3/4 ID

$5.99

$

In Stock, Qty 5

0

0040

Simplicity 1728069SM

STEERING WHEEL, w/Aluminum Insert

$74.99

$

Usually ships in 2-12 days

0

0050

Simplicity 1960576SM

NUT, Hex Lock, ESNA Light, 5/8-18

$5.99

$

In Stock, Qty 9

0

0060

Simplicity 1722319SM

CAP, Steering Wheel, Simplicity Logo

$14.99

$

In Stock, Qty 7

0

0140

Simplicity 1611710SM

RING, Klipring, For 3/4 Dia. Shaft

$4.49

$

In Stock, Qty 20+

0

0150

Simplicity 703949

SCREW, Washer Head, 5/16-18 X 5/8

$3.99

$

In Stock, Qty 5

0

0160

Simplicity 1761498CJYP

TOWER, Steering

$113.99

$

Usually ships in 2-12 days

0
