2691130-00 - Simplicity Prestige Garden Tractor, 30hp Wheels & Tires Group Parts Diagram

Prestige Garden Tractor, 30hp

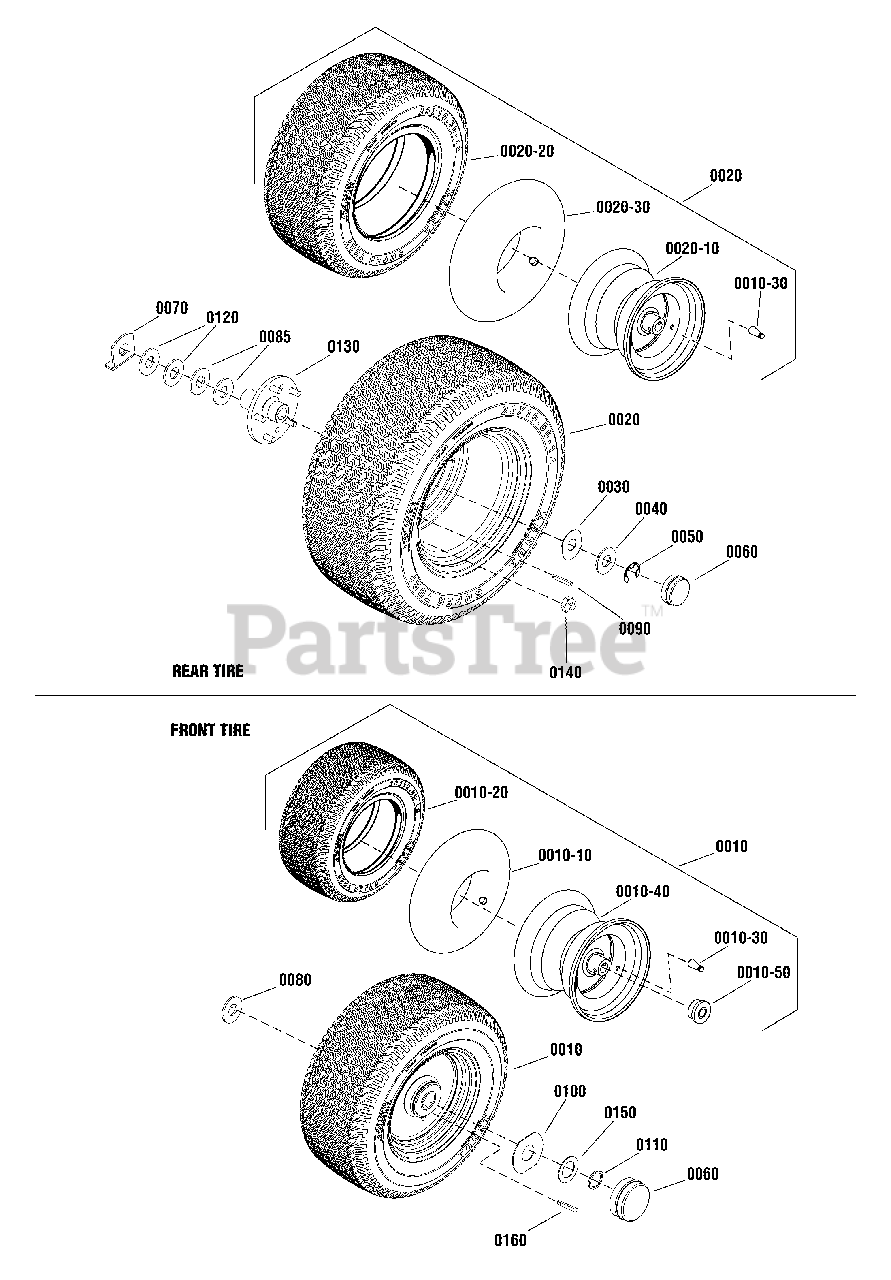

Wheels & Tires Group Parts Diagram

  • Title

0010

Simplicity 1735010SM

WHEEL & TIRE ASSEMBLY, Front, (Includes Ref. Nos. 0010-10 th

$199.99

$

Usually ships in 2-12 days

0

0010-10

Simplicity 2164247SM

TUBE, Tire 16 x 6-1/2 - 8, Front

$40.99

$

Usually ships in 2-12 days

0

0010-20

Simplicity 1735706YP

TIRE, 16 x 6-1/2 - 8, Front
(Superseded to 1735010SM)

$199.99

$

Usually ships in 2-12 days

0

0010-30

Simplicity 2172353SM

VALVE STEM & CAP ASSEMBLY
(Superseded to 024373MA)

$

$

Not available

0010-40

Simplicity 1733237SM

WHEEL, w/Bearings, 5 3/8 x 7 15/16, Front

$

$

Not available

0010-50

Simplicity 1717056SM

BEARING, Ball

$

$

Not available

0020

Simplicity 1735011SM

WHEEL & TIRE ASSEMBLY, Rear 23" (Includes Ref. Nos. 0020-10

$381.99

$

Usually ships in 2-12 days

0

0020-10

Simplicity 1722831SM

WHEEL ASSEMBLY, 12" Rim w/valve stem

$176.99

$

Usually ships in 2-12 days

0

0020-20

Simplicity 1722830SM

TIRE, 23 x 10-1/2 - 12, Rear

$242.99

$

Usually ships in 2-12 days

0

0020-30

Simplicity 2157638SM

TUBE, Tire 23 x 10-1/2 - 12, Rear

$86.99

$

In Stock, only 2 left!

0

0030

Simplicity 1722726SM

WASHER, Special, Hub Cap, 1 x 2 1/2

$5.49

$

In Stock, only 1 left!

0

0040

Simplicity 703149

WASHER, 1"

$3.49

$

In Stock, Qty 20+

0

0050

Simplicity 2834712SM

E-RING, Retainer

$4.99

$

In Stock, only 2 left!

0

0060

Simplicity 1722676SM

CAP, Hub

$5.49

$

In Stock, Qty 20+

0

0070

Simplicity 1737043AYP

WASHER, Axle Seal

$14.99

$

In Stock, only 1 left!

0

0080

Simplicity 2860202SM

WASHER, 3/4"

$4.49

$

In Stock, Qty 20+

0

0085

Simplicity 2860200SM

WASHER, 1"

$5.49

$

In Stock, Qty 5

0

0090

Simplicity 2105337SM

KEY, HI PRO, 1/4 x 2

$8.49

$

In Stock, Qty 12

0

0100

Simplicity 1722717SM

WASHER, Hub Cap

$7.99

$

In Stock, Qty 20+

0

0110

Simplicity 2827794SM

E-RING, Retainer

$3.49

$

In Stock, Qty 16

0

0120

Simplicity 1960701SM

WASHER, 1"

$6.99

$

In Stock, only 2 left!

0

0130

Simplicity 1755832YP

PLATE & HUB ASSEMBLY, Rear Wheel w/Studs

$108.99

$

Usually ships in 2-12 days

0

0140

Simplicity 2177725SM

NUT, Hex 7/16-20, For Wheel Bolt

$6.49

$

In Stock, only 3 left!

0

0150

Simplicity 703151

WASHER, .766 ID

$3.49

$

In Stock, Qty 20+

0

0160

Simplicity 703889

KEYSTOCK, Parrallel

$4.49

$

In Stock, only 3 left!

0
