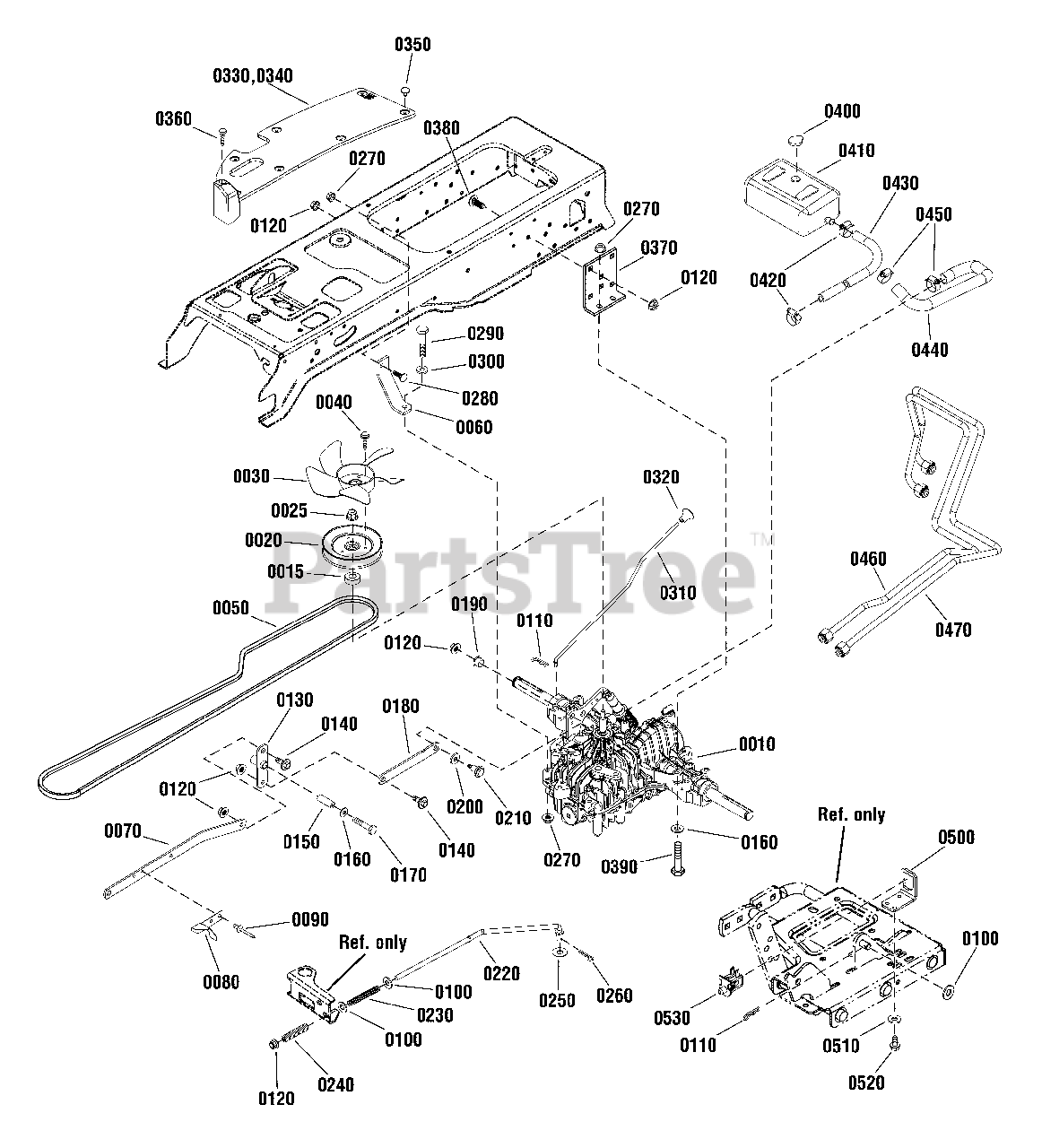

2691130-00 - Simplicity Prestige Garden Tractor, 30hp Transmission Group Parts Diagram

Prestige Garden Tractor, 30hp

Transmission Group Parts Diagram

  • Title

0010

Simplicity 1755452YP

TRANSMISSION ASSEMBLY, K664K

$2714.99

$

Usually ships in 2-12 days

0

0015

Simplicity 1755765YP

SPACER, Splined

$6.99

$

In Stock, only 1 left!

0

0020

Simplicity 1722194SM

PULLEY & HUB ASSEMBLY

$86.99

$

In Stock, only 1 left!

0

0025

Simplicity 1719968SM

NUT, Hex Flange

$3.49

$

Usually ships in 2-12 days

0

0030

Simplicity 1719233SM

FAN

$27.99

$

Usually ships in 2-12 days

0

0040

Simplicity 1933958SM

SCREW, Hex Washer Head, Taptite, 1/4-20 x 1-1/4

$4.49

$

In Stock, only 1 left!

0

0050

Simplicity 1721392SM

BELT, 94.05

$54.99

$

In Stock, Qty 20+

0

0060

Simplicity 1721593ASM

STRAP, Torque

$32.99

$

Usually ships in 2-12 days

0

0070

Simplicity 1756180AYP

ARM, Control K664

$22.99

$

Usually ships in 2-12 days

0

0080

Simplicity 1727215ASM

ACTUATOR, Switch

$21.99

$

Usually ships in 2-12 days

0

0090

Simplicity 1960241SM

POP RIVET

$5.49

$

Usually ships in 2-12 days

0

0100

Simplicity 703878

WASHER, 3/8

$3.99

$

In Stock, Qty 20+

0

0110

Simplicity 1722460SM

PIN, Quick
(Superseded to 703430)

$3.49

$

In Stock, only 2 left!

0

0120

Simplicity 703158

NUT, Hex Flange 3/8-16 ESNA

$3.49

$

Usually ships in 2-12 days

0

0130

Simplicity 1737022ASM

CONTROL, Pivot

$39.99

$

Usually ships in 2-12 days

0

0140

Simplicity 1732129SM

BOLT, Shoulder, 3/8-16 x 0.94LG

$5.99

$

Usually ships in 2-12 days

0

0150

Simplicity 1713588SM

SPACER

$8.49

$

Usually ships in 2-12 days

0

0160

Simplicity 1919326SM

WASHER, flat

$4.49

$

In Stock, Qty 8

0

0170

Simplicity 1921160SM

CAPSCREW, Hex Head, 5/16-18 X 2 1/4, G5

$4.99

$

Usually ships in 2-12 days

0

0180

Simplicity 1737020ASM

ARM, Control, K664

$12.99

$

Usually ships in 2-12 days

0

0190

Simplicity 1722648SM

BEARING, Nylon, 1/2

$6.99

$

Usually ships in 2-12 days

0

0200

Simplicity 703451

WASHER, Flat

$4.49

$

In Stock, Qty 20+

0

0210

Simplicity 2172622SM

BOLT, Shoulder, 3/8-16 X 1.34

$6.99

$

In Stock, Qty 20+

0

0220

Simplicity 1755737YP

ROD, Brake

$26.99

$

Usually ships in 2-12 days

0

0230

Simplicity 1722684SM

SPRING, Compression

$4.49

$

Usually ships in 2-12 days

0

0240

Simplicity 1729277SM

SPRING, Compression

$6.99

$

In Stock, only 1 left!

0

0250

Simplicity 703183

WASHER, Flat, 7/16 ID

$3.99

$

In Stock, only 2 left!

0

0260

Simplicity 703312

PIN, Cotter

$3.99

$

In Stock, Qty 20+

0

0270

Simplicity 703115

NUT, Nylock Flange, 5/16-18, GR F

$3.49

$

In Stock, Qty 20+

0

0280

Simplicity 703800

BOLT, Carriage, 5/16-18 X 1

$3.99

$

In Stock, Qty 7

0

0290

Simplicity 703868

CAPSCREW, Hex Head, 5/16-18 X 2 1/2, GR 5,

$4.99

$

In Stock, only 4 left!

0

0300

Simplicity 1960141SM

WASHER, 5/16

$3.99

$

Usually ships in 2-12 days

0

0310

Simplicity 1721622SM

ROD, Free Wheel

$15.99

$

Usually ships in 2-12 days

0

0320

Simplicity 1723126SM

KNOB, Interior Thread

$6.99

$

In Stock, only 2 left!

0

0330

Simplicity 1755799YP

PAD, Footrest L.H.

$43.99

$

Usually ships in 2-12 days

0

0340

Simplicity 1755642YP

PAD, Footrest R.H.

$53.99

$

Usually ships in 2-12 days

0

0350

Simplicity 1704351SM

FASTENER, Panel

$4.99

$

In Stock, only 4 left!

0

0360

Simplicity 1960676SM

SCREW, Pan Head Torx, 1/4-20 x 1-1/4 Taptite

$4.49

$

Usually ships in 2-12 days

0

0370

Simplicity 1721728ASM

SUPPORT

$14.99

$

Usually ships in 2-12 days

0

0380

Simplicity 1931350SM

BOLT, Carriage 3/8-16 x 1 G5
(Superseded to 703815)

$4.49

$

In Stock, only 4 left!

0

0390

Simplicity 1960590SM

CAPSCREW, Hex Head 5/16-18 x 3 G5
(Superseded to 703870)

$4.49

$

Usually ships in 2-12 days

0

0400

Simplicity 1722711SM

CAP, Expansion

$7.99

$

Usually ships in 2-12 days

0

0410

Simplicity 1732989SM

TANK, Oil

$60.99

$

Usually ships in 2-12 days

0

0420

Simplicity 770594

CLAMP, Hose

$4.99

$

Usually ships in 2-12 days

0

0430

Simplicity 1733531SM

HOSE, Hydraulic, 52.5, Lg

$45.99

$

Usually ships in 2-12 days

0

0440

Simplicity 1755802YP

RESERVOIR, Hydraulic

$82.99

$

Usually ships in 2-12 days

0

0450

Simplicity 1723214SM

CLAMP, Hose Worm

$5.99

$

Usually ships in 2-12 days

0

0460

Simplicity 1722468SM

HOSE, Hydraulic
(Superseded to 1755802YP)

$82.99

$

Usually ships in 2-12 days

0

0460

Simplicity 1733483SM

TUBE, Hydraulic 4WD

$110.99

$

Usually ships in 2-12 days

0

0470

Simplicity 1733484SM

TUBE, Hydraulic Rear

$104.99

$

Usually ships in 2-12 days

0

0500

Simplicity 1733525ASM

ARM, Control
(Superseded to 1737020ASM)

$12.99

$

Usually ships in 2-12 days

0

0500

Simplicity 1726810SM

BRACKET, Mounting Switch
(Superseded to 1726810ASM)

$12.99

$

Usually ships in 2-12 days

0

0510

Simplicity 703332

WASHER, Flat 1/4, Type A

$4.49

$

In Stock, Qty 20+

0

0520

Simplicity 704130

SCREW, Hex Washer Head, Taptite

$3.99

$

In Stock, Qty 7

0

0530

Simplicity 1704379SM

SWITCH, Push Button
(Superseded to 1732004SM)

$8.99

$

In Stock, Qty 20+

0
