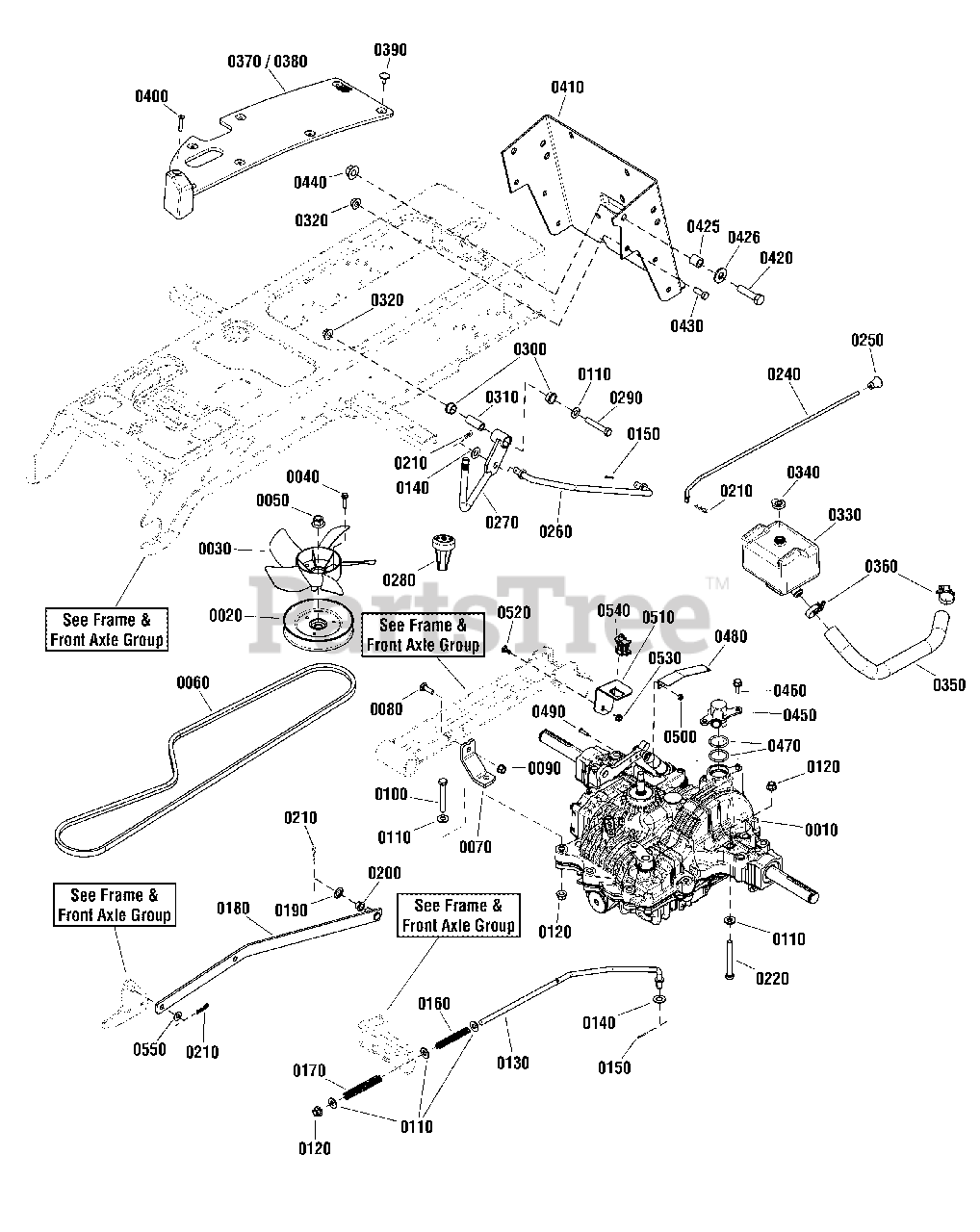

2691129-00 - Simplicity Prestige Garden Tractor, 30hp Transmission Group Parts Diagram

Prestige Garden Tractor, 30hp

Transmission Group Parts Diagram

  • Title

0010

Simplicity 1755006YP

TRANSMISSION, Tuff Torq, K72H

$3232.99

$

Usually ships in 2-12 days

0

0020

Simplicity 1722194SM

PULLEY & HUB ASSEMBLY

$86.99

$

In Stock, only 1 left!

0

0030

Simplicity 1719233SM

FAN, 9 OD

$27.99

$

Usually ships in 2-12 days

0

0040

Simplicity 1933958SM

SCREW, Hex Wasr Hd, Taptt 1/4-20x1.25blk

$4.49

$

In Stock, only 1 left!

0

0050

Simplicity 1722517SM

NUT, Hex Flange Nylon Insert M12-1-3/4

$3.49

$

Usually ships in 2-12 days

0

0060

Simplicity 1721393SM

V-BELT, HA 94.45

$54.99

$

In Stock, Qty 20+

0

0070

Simplicity 1754649AYP

BRACKET, Torque, K72 (Suspension)

$17.99

$

Usually ships in 2-12 days

0

0080

Simplicity 703800

BOLT, Carriage, Short Neck 5/16-18 x 1

$3.99

$

In Stock, Qty 7

0

0090

Simplicity 1960686SM

NUT-Hex Flange, 5/16-18 ESNA
(Superseded to 703115)

$3.49

$

In Stock, Qty 20+

0

0100

Simplicity 1921973SM

CAPSCREW, Hex Head 3/8-16 x 2-3/4 G5

$5.49

$

Usually ships in 2-12 days

0

0110

Simplicity 703878

WASHER, Flat, 13/32 x 7/8 x .083

$3.99

$

In Stock, Qty 20+

0

0120

Simplicity 1960687SM

NUT, Hex Flange 3/8-16 ESNA
(Superseded to 703158)

$3.49

$

Usually ships in 2-12 days

0

0130

Simplicity 1755737YP

BRAKE ROD, Transmission

$26.99

$

Usually ships in 2-12 days

0

0140

Simplicity 1918267SM

WASHER, 7/16 x 15/16 OD

$3.99

$

In Stock, only 1 left!

0

0150

Simplicity 331613MA

PIN, Cotter, 3/32 x 3/4

$25.99

$

Usually ships in 2-12 days

0

0160

Simplicity 1722684SM

SPRING, Compression,13/32

$4.49

$

Usually ships in 2-12 days

0

0170

Simplicity 1729277SM

SPRING, Compression, 25/64 x 3-5/8 Long

$6.99

$

In Stock, only 1 left!

0

0180

Simplicity 1756169AYP

TRANSMISSION CONTROL ARM ASSEMBLY

$42.99

$

Usually ships in 2-12 days

0

0190

Simplicity 703128

WASHER, 33/64 x .7/8 OD

$3.49

$

In Stock, Qty 20+

0

0200

Simplicity 1722648SM

BEARING, Nylon, 1/2

$6.99

$

Usually ships in 2-12 days

0

0210

Simplicity 1722460SM

PIN, Quick, 1-3/16 Long
(Superseded to 703430)

$3.49

$

In Stock, only 1 left!

0

0220

Simplicity 703874

CAPSCREW. Hex Head, 3/8-16 x 3-1/4, G5

$4.49

$

In Stock, Qty 11

0

0240

Simplicity 1755645YP

ROD, Tow Release

$12.99

$

Usually ships in 2-12 days

0

0250

Simplicity 1723126SM

KNOB-Internal Thread

$6.99

$

In Stock, only 2 left!

0

0260

Simplicity 1755431YP

ROD, Diff Lock

$25.99

$

Usually ships in 2-12 days

0

0270

Simplicity 1721360AYP

PEDAL ASSEMBLY, Differential

$50.99

$

Usually ships in 2-12 days

0

0280

Simplicity 1716289SM

KNOB, Hole, 1/2 x 1-3/4, 2-11/16

$13.99

$

In Stock, only 1 left!

0

0290

Simplicity 703872

CAPSCREW, Hex Head, 3/8-16 X 2 1/4

$4.99

$

In Stock, Qty 20+

0

0300

Simplicity 1676148SM

BUSHING, 5/8 x ¾ x 13/32

$5.99

$

In Stock, Qty 20+

0

0310

Simplicity 1669105SM

SPACER, 25/64 x 5/8 OD, 1-1/2 Long

$13.99

$

In Stock, only 2 left!

0

0320

Simplicity 703793

NUT, Hex Flange Whiz Lock,3/8-16

$4.49

$

In Stock, only 3 left!

0

0330

Simplicity 1722430SM

TANK, Oil Natural

$69.99

$

Usually ships in 2-12 days

0

0340

Simplicity 1722711SM

CAP, Expansion Tank

$7.99

$

Usually ships in 2-12 days

0

0350

Simplicity 1755874YP

HOSE, Expansion Tank

$59.99

$

Usually ships in 2-12 days

0

0360

Simplicity 1723214SM

CLAMP, Hose Worm Drive #12 1-1/4 x 11/16

$5.99

$

Usually ships in 2-12 days

0

0370

Simplicity 1755643YP

PAD, LH, Foot Rest With Diff Lock

$45.99

$

Usually ships in 2-12 days

0

0380

Simplicity 1755642YP

PAD, RH, Foot Rest

$53.99

$

Usually ships in 2-12 days

0

0390

Simplicity 1704351SM

FASTENER, Panel, 3/4

$4.99

$

In Stock, only 4 left!

0

0400

Simplicity 1960676SM

SCREW, Pan Head Torx, 1/4-20 x 1-1/4 Taptite

$4.49

$

Usually ships in 2-12 days

0

0410

Simplicity 1755742AYP

PLATE, Back, Hitch

$116.99

$

Usually ships in 2-12 days

0

0420

Simplicity 5025017X16YP

BOLT, 1/2-13 x 2 G5

$4.49

$

In Stock, only 1 left!

0

0425

Simplicity 703450

SPACER, ¾ OD X 1/2

$8.49

$

Usually ships in 2-12 days

0

0426

Simplicity 1926192SM

WASHER, 1/2 x 1-1/4

$19.99

$

Usually ships in 2-12 days

0

0430

Simplicity 703407

CAPSCREW. Hex Head, 3/8-16 x 1, G5

$11.99

$

In Stock, Qty 7

0

0440

Simplicity 703918

NUT, Hex Flange Whiz Lock, 1/2-13

$3.49

$

Usually ships in 2-12 days

0

0450

Simplicity 1755873YP

ADAPTER, Expansion Tank Hose

$7.99

$

In Stock, only 1 left!

0

0460

Simplicity 197955GS

SCREW, M8-1-1/4 x 20, Taptite

$3.49

$

Usually ships in 2-12 days

0

0470

Simplicity 1755992YP

O-RING, 31.7 ID

$4.99

$

Usually ships in 2-12 days

0

0480

Simplicity 1755940AYP

ACTUATOR, Switch

$26.99

$

Usually ships in 2-12 days

0

0490

Simplicity 1960589SM

SCREW, Round Head Phillips #10-24 x 3/4

$3.99

$

Usually ships in 2-12 days

0

0500

Simplicity 1933896SM

NUT, Hex Lock Nylon Insert, 10-24
(Superseded to 703412)

$4.49

$

In Stock, only 2 left!

0

0510

Simplicity 1755941AYP

BRACKET, RMO Switch

$9.49

$

Usually ships in 2-12 days

0

0520

Simplicity 1960252SM

BOLT, Carriage, 1/4-20 x 5/8

$3.99

$

In Stock, only 1 left!

0

0530

Simplicity 7091584SM

NUT, Serrated Flange, 1/4-20, G5
(Superseded to 703233)

$4.49

$

In Stock, Qty 5

0

0540

Simplicity 1704379SM

SWITCH, Push Button, Snap In
(Superseded to 1732004SM)

$8.99

$

In Stock, Qty 20+

0

0550

Simplicity 1919326SM

WASHER, 5/16

$4.49

$

In Stock, Qty 5
