2691129-00 - Simplicity Prestige Garden Tractor, 30hp Hydraulic Group - Lift & Steering Parts Diagram

Prestige Garden Tractor, 30hp

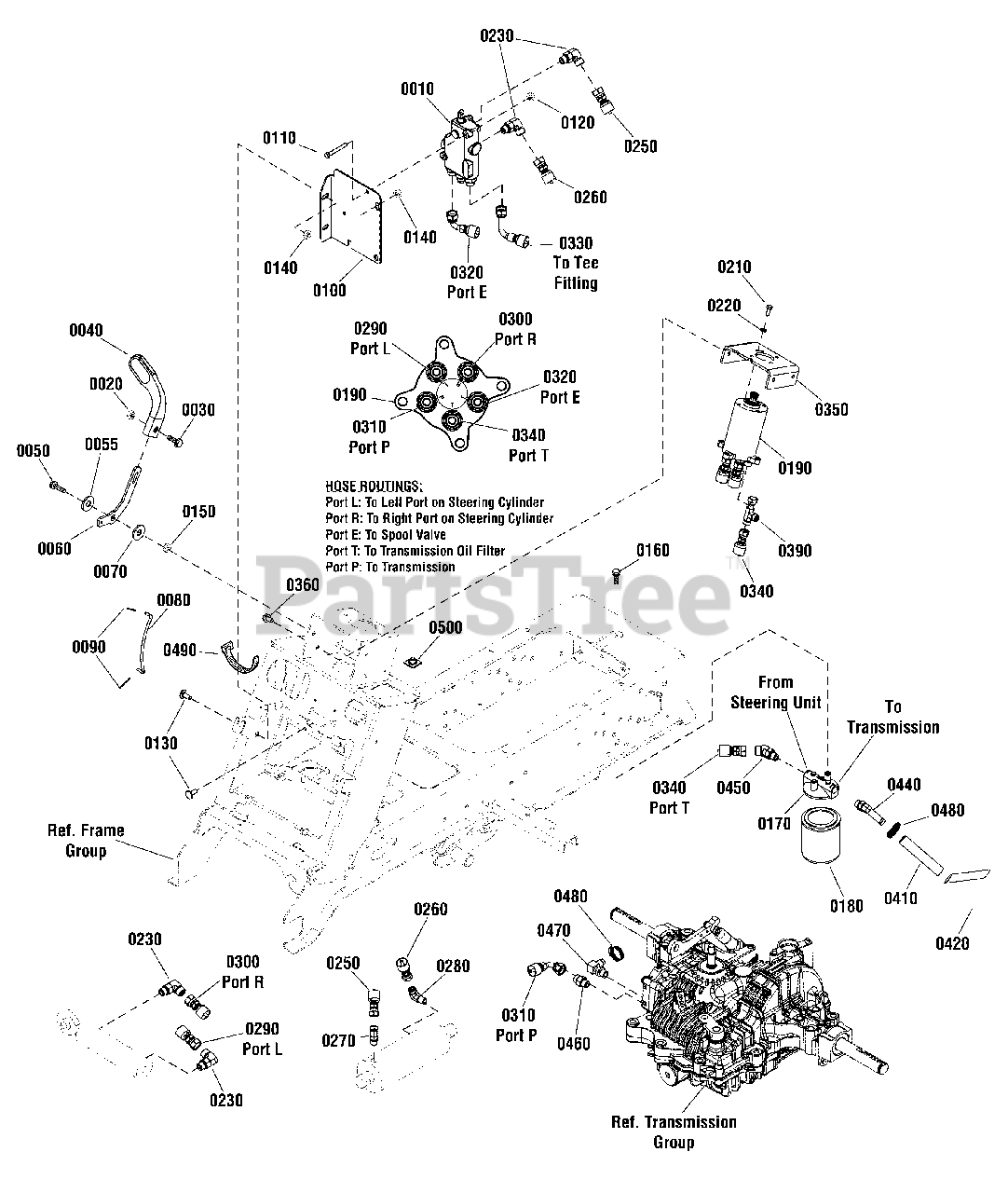

Hydraulic Group - Lift & Steering Parts Diagram

  • Title

0010

Simplicity 1717558SM

CONTROL VALVE, Single Spool

$670.99

$

Usually ships in 2-12 days

0

0020

Simplicity 703232

NUT, Hex Lock ESNA Light, 1/4-20

$4.49

$

In Stock, Qty 20+

0

0030

Simplicity 703819

CAPSCREW, Hex Head, 1/4-20 X 7/8

$4.49

$

Usually ships in 2-12 days

0

0040

Simplicity 1722146SM

HANDLE, Lift

$14.99

$

Usually ships in 2-12 days

0

0050

Simplicity 703570

CAPSCREW, Hex Head, 5/16-18 x 1 1/4

$4.99

$

In Stock, Qty 7

0

0055

Simplicity 1919381SM

WASHER, 5/16 x 1 OD
(Superseded to 703298)

$4.49

$

In Stock, only 2 left!

0

0060

Simplicity 1755961AYP

LEVER, Hydraulic Lift

$10.99

$

Usually ships in 2-12 days

0

0070

Simplicity 1723244SM

SPACER, Pivot

$7.99

$

Usually ships in 2-12 days

0

0080

Simplicity 1727557SM

ROD, Curved, 3/16 dia, x 5-3/32 Lg

$13.99

$

In Stock, Qty 7

0

0090

Simplicity 703892

PIN, Cotter, 1/16 x3/4

$3.49

$

In Stock, only 1 left!

0

0100

Simplicity 1721904ASM

SUPPORT, Control Valve

$23.99

$

Usually ships in 2-12 days

0

0110

Simplicity 1921963SM

CAPSCREW, Hex Head,1/4-20 x 2, G5

$4.49

$

Usually ships in 2-12 days

0

0120

Simplicity 703914

NUT,1/4-20, Hex Keps

$3.49

$

In Stock, Qty 14

0

0130

Simplicity 1931333SM

BOLT, Carriage, Short Neck, 5/16-18 x 3/4, G5
(Superseded to 703185)

$3.49

$

In Stock, Qty 16

0

0140

Simplicity 1960636SM

NUT, Hex KEPS, 5/16-18

$4.99

$

In Stock, only 1 left!

0

0150

Simplicity 1501883701MA

NUT, Hex Nylock, 5/16-18
(Superseded to 1501884E701MA)

$120.99

$

Usually ships in 2-12 days

0

0160

Simplicity 1931646SM

SCREW, Hex Whiz Lock Flange, 1/4-20 x 1/2

$4.49

$

In Stock, only 2 left!

0

0170

Simplicity 5023096SM

FILTER HEAD, Hydraulic

$52.99

$

Usually ships in 2-12 days

0

0180

Simplicity 1719168SM

FILTER, Oil
(Superseded to 1719168YP)

$26.99

$

In Stock, Qty 20+

0

0190

Simplicity 1732449SM

PUMP, Power Steering, 5 Port

$

$

Not available

0210

Simplicity 2860444SM

CAPSCREW, Hex Head, M06, 1 x 16mm

$2.99

$

Usually ships in 2-12 days

0

0220

Simplicity 1916964SM

LOCKWASHER, Spring, 1/4
(Superseded to 704133)

$3.99

$

In Stock, Qty 11

0

0230

Simplicity 1729591SM

FITTING, Elbow, 90 Deg, 9/16-18 x 11/16-16

$23.99

$

Usually ships in 2-12 days

0

0250

Simplicity 1755564YP

HOSE ASSEMBLY, Hydraulic Rubber 12.00lg

$48.99

$

Usually ships in 2-12 days

0

0260

Simplicity 1755593YP

HOSE ASSEMBLY, Hydraulic Rubber 09.25lg

$51.99

$

Usually ships in 2-12 days

0

0270

Simplicity 1722122SM

FITTING, Elbow, 45 Degree, 9/16-18, 1/4

$

$

Not available

0280

Simplicity 1722141SM

FITTING, Elbow, 9/16-18, 1/4NPT, 90 Degrees

$17.99

$

Usually ships in 2-12 days

0

0290

Simplicity 1755592YP

HOSE ASSEMBLY, Hydraulic Rubber 46 Lg

$80.99

$

Usually ships in 2-12 days

0

0300

Simplicity 1755591YP

HOSE ASSEMBLY, Hydraulic Rubber 50 Lg

$95.99

$

Usually ships in 2-12 days

0

0310

Simplicity 1755561YP

HOSE ASSEMBLY, Hydraulic Rubber 39 Lg

$110.99

$

Usually ships in 2-12 days

0

0320

Simplicity 1755949YP

HOSE ASSEMBLY, Hydraulic-Rubber 10-3/4 Lg

$75.99

$

Usually ships in 2-12 days

0

0330

Simplicity 1756192YP

HOSE ASSEMBLY, Hydraulic-Rubber 15 Lg

$92.99

$

Usually ships in 2-12 days

0

0340

Simplicity 1756213YP

HOSE ASSEMBLY, Hydraulic Rubber 40 Lg

$76.99

$

Usually ships in 2-12 days

0

0350

Simplicity 1756207AYP

BRACKET, Steering Unit

$27.99

$

Usually ships in 2-12 days

0

0360

Simplicity 1924856SM

SCREW, Hex Washer Head, Taptite, 5/16-18 x 1/2
(Superseded to 703985)

$4.49

$

In Stock, only 3 left!

0

0390

Simplicity 1755983YP

FITTING, Tee

$25.99

$

Usually ships in 2-12 days

0

0410

Simplicity 5050857X24YP

HOSE, 1/2" Push-On, 24"

$21.99

$

Usually ships in 2-12 days

0

0420

Simplicity 5050920X22YP

SLEEVE, Protective, 22"

$12.99

$

In Stock, only 1 left!

0

0440

Simplicity 1755987YP

FITTING, #6 O-Ring, 1/2 Hose Barb, 45 Deg

$14.99

$

Usually ships in 2-12 days

0

0450

Simplicity 1756212YP

FITTING, Elbow, 45 Deg

$19.99

$

Usually ships in 2-12 days

0

0460

Simplicity 1722123SM

FITTING, Straight

$9.99

$

Usually ships in 2-12 days

0

0470

Simplicity 5100370YP

FITTING, 9/16 O-Ring, 1/2" Hose, 90 Deg

$18.99

$

Usually ships in 2-12 days

0

0480

Simplicity 5021164SM

CLAMP, #10 Hose, Stainless

$3.99

$

In Stock, only 1 left!

0

0490

Simplicity 703586

TIE, Self Locking

$4.99

$

Usually ships in 2-12 days

0

0500

Simplicity 1756249YP

MOUNT, Zip-Tie, Adhesive Backed

$2.99

$

Usually ships in 2-12 days

0
