2691125-00 - Simplicity Broadmoor 50" Lawn Tractor, 27hp Hood, Grille & Dash Group Parts Diagram

Broadmoor 50" Lawn Tractor, 27hp

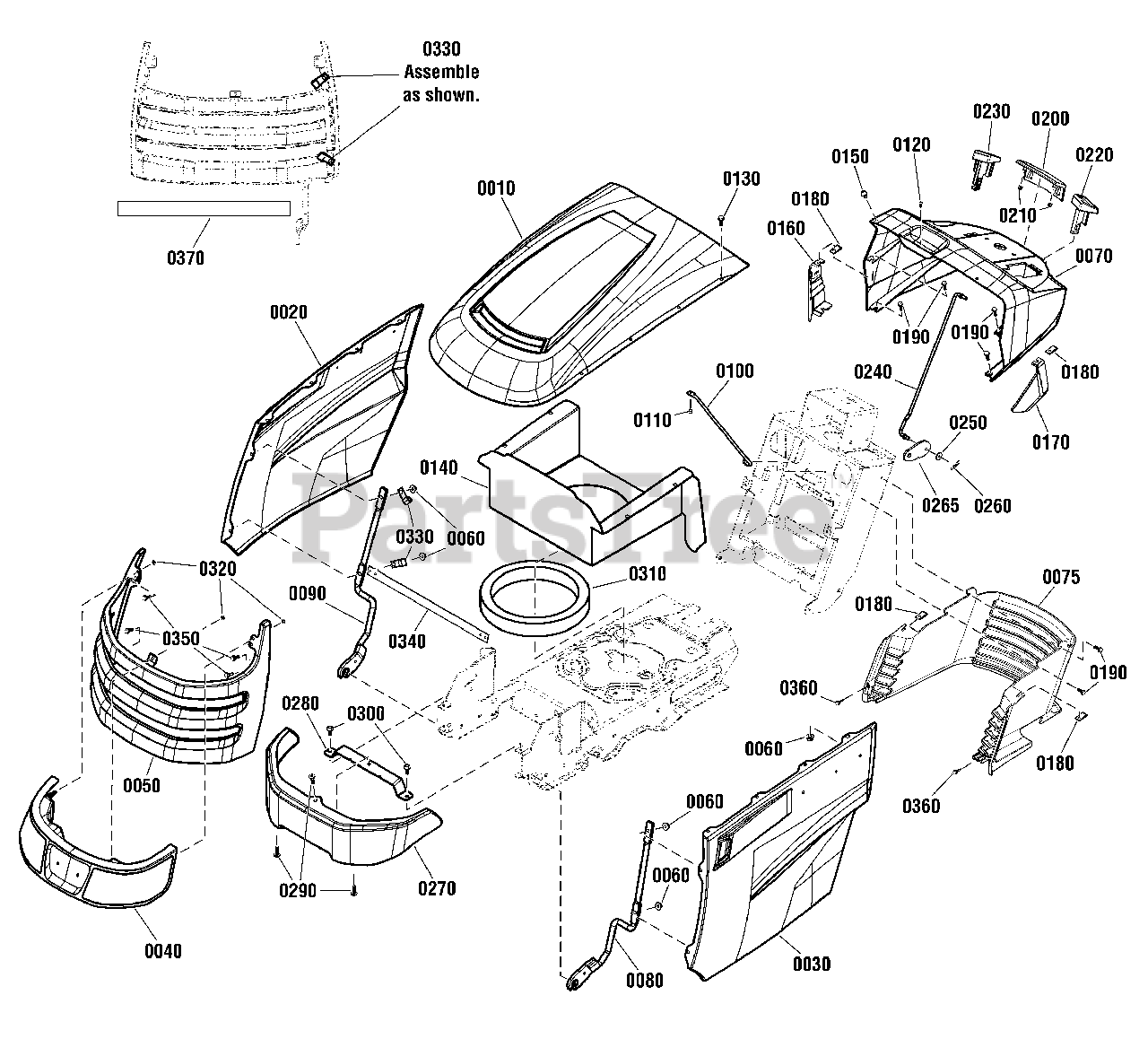

Hood, Grille & Dash Group Parts Diagram

  • Title

0010

Simplicity 1754921CYP

HOOD, Top

$353.99

$

In Stock, only 1 left!

0

0020

Simplicity 1754925CYP

PANEL, Side, RH

$289.99

$

Usually ships in 2-12 days

0

0030

Simplicity 1754924CYP

PANEL, Side, LH

$289.99

$

Usually ships in 2-12 days

0

0040

Simplicity 1754936YP

HEADLIGHT ASSEMBLY (LED)

$313.99

$

In Stock, Qty 6

0

0050

Simplicity 1754922CYP

GRILLE, Front

$231.99

$

Usually ships in 2-12 days

0

0060

Simplicity 1930641SM

NUT, Hex Flange, Whiz Lock, 1/4-20
(Superseded to 703161)

$3.49

$

In Stock, Qty 20+

0

0070

Simplicity 1754860YP

DASH, Upper

$202.99

$

Usually ships in 2-12 days

0

0070

Simplicity 1755814YP

DASH, Upper, With Hydraulic Lift Cut-out

$282.99

$

Usually ships in 2-12 days

0

0075

Simplicity 1754859YP

DASH. Lower

$131.99

$

Usually ships in 2-12 days

0

0080

Simplicity 1755578YP

HOOD HINGE ASSEMBLY, LH

$40.99

$

Usually ships in 2-12 days

0

0090

Simplicity 1755577YP

HOOD HINGE ASSEMBLY, RH

$40.99

$

In Stock, only 1 left!

0

0100

Simplicity 1755633YP

ROD, Dash Support

$15.99

$

Usually ships in 2-12 days

0

0110

Simplicity 1933896SM

NUT, Hex, Nylon Insert Lock, 10-24
(Superseded to 703412)

$4.49

$

In Stock, only 2 left!

0

0120

Simplicity 1960392SM

SCREW, Pan Head Phillips, #10-24 x 1

$3.99

$

Usually ships in 2-12 days

0

0130

Simplicity 1960295SM

SCREW, Hex Flange, Whiz Lock, 1/4-20 x 5/8

$4.49

$

In Stock, only 1 left!

0

0140

Simplicity 1755176AYP

DUCT, Air Inlet

$176.99

$

Usually ships in 2-12 days

0

0150

Simplicity 1755815YP

BUMPER, Rubber

$4.99

$

Usually ships in 2-12 days

0

0160

Simplicity 1755223YP

GUIDE, Hood, RH

$7.49

$

In Stock, only 1 left!

0

0170

Simplicity 1755224YP

GUIDE, Hood, LH

$7.49

$

In Stock, only 1 left!

0

0180

Simplicity 1926018SM

NUT, Speed,1/4

$4.49

$

In Stock, Qty 12

0

0190

Simplicity 703054

SCREW, Hex Washer Head, 1/4-20 x 5/8

$4.49

$

In Stock, Qty 5

0

0200

Simplicity 1754918YP

TRIM

$7.49

$

Usually ships in 2-12 days

0

0210

Simplicity 703582

CLIP, Panel

$4.49

$

Usually ships in 2-12 days

0

0220

Simplicity 1755457YP

PLUG, Dash Knob

$7.49

$

Usually ships in 2-12 days

0

0230

Simplicity 1754862YP

KNOB, Parking Brake

$8.49

$

In Stock, only 1 left!

0

0240

Simplicity 1755594YP

ROD, Parking Brake

$11.99

$

Usually ships in 2-12 days

0

0250

Simplicity 1921319SM

WASHER, 184
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

0260

Simplicity 1722460SM

PIN, Quick, 1.19"
(Superseded to 703430)

$3.49

$

In Stock, only 2 left!

0

0265

Simplicity 1755598AYP

LATCH, Parking Brake

$9.99

$

Usually ships in 2-12 days

0

0270

Simplicity 1754923AYP

BUMPER

$158.99

$

In Stock, only 1 left!

0

0280

Simplicity 1755506AYP

SUPPORT, Front Bumper

$19.99

$

Usually ships in 2-12 days

0

0290

Simplicity 1960086SM

SCREW, Truss Head Torx, 5/16-18 x 7/8

$4.99

$

In Stock, only 2 left!

0

0300

Simplicity 703228

SCREW, Washer Head Taptite, 5/16-18 X 3/4

$4.49

$

In Stock, Qty 20+

0

0310

Simplicity 1751237YP

SEAL, Foam

$35.99

$

In Stock, only 2 left!

0

0320

Simplicity 1960521SM

NUT, Push

$3.49

$

In Stock, Qty 13

0

0330

Simplicity 7012652YP

CLIP, Wire, 7/16

$3.99

$

Usually ships in 2-12 days

0

0340

Simplicity 1756204AYP

STRIP, Hood Support

$14.99

$

Usually ships in 2-12 days

0

0350

Simplicity 1960611SM

SCREW, Hex Flange, Whiz Lock, 1/4-20 x 1

$4.49

$

In Stock, only 1 left!

0

0360

Simplicity 1960536SM

SCREW, Hex Washer Head, Plastite, 1/4 x 1/2

$4.99

$

Usually ships in 2-12 days

0

0370

Simplicity 1758731YP

INSULATION, 2 x 12 1/2

$9.49

$

In Stock, only 4 left!

0
