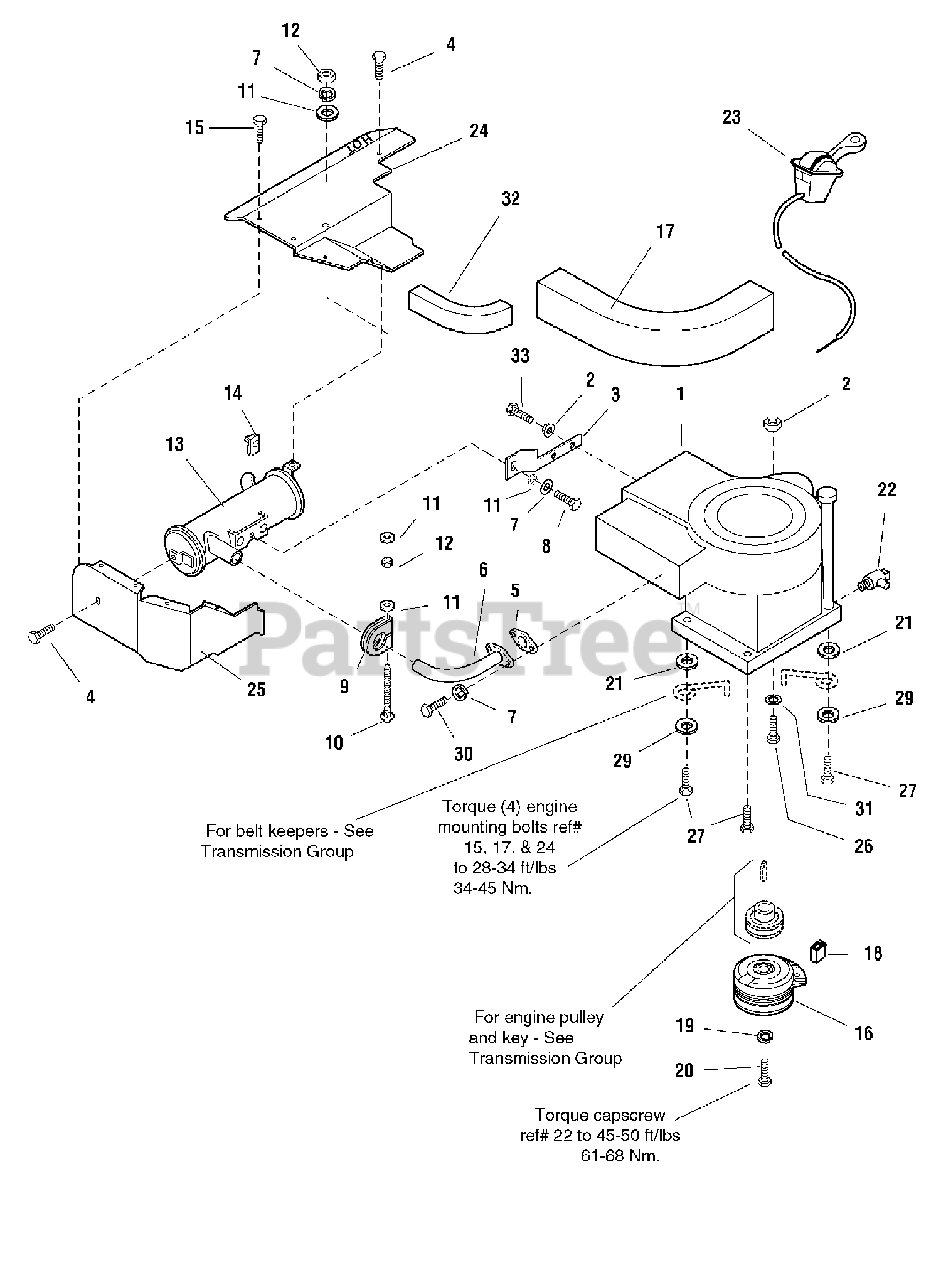

2691012-00 - Simplicity Coronet 30" Rear-Engine Riding Mower, 14.5hp Engine Group Parts Diagram

Coronet 30" Rear-Engine Riding Mower, 14.5hp

Engine Group Parts Diagram

  • Title

1

Simplicity 31E577-0116-G5

* ENGINE, 14.5 HP B&S INTEK, Model 31E577-0116-G5

$

$

Not available

2

Simplicity 703409

NUT, 5/16-18, Serrated Lock Flange, GR5

Note: (Was 1931277 or 80002728)

$5.49

$

In Stock, Qty 20+

0

3

Simplicity 1724428BSM

SUPPORT, Muffler

$

$

Not available

4

Simplicity 1924856SM

CAPSCREW, Taptite, 5/16-18 x 1/2
(Superseded to 703985)

$4.49

$

In Stock, only 3 left!

0

5

Simplicity 1650670SM

GASKET, Muffler

$8.49

$

Usually ships in 2-12 days

0

6

Simplicity 1724466SM

PIPE, Exhaust, 1.125 OD, 4 Bends

$87.99

$

In Stock, only 1 left!

0

7

Simplicity 703116

LOCKWASHER, 5/16, Split

Note: (Was 1917356 or 80002745)

$3.49

$

In Stock, Qty 20+

0

8

Simplicity 703585

CAPSCREW, 5/16-18 x 1

Note: (Was 1921333 or 80002716)

$4.99

$

In Stock, only 1 left!

0

9

Simplicity 1676183SM

CLAMP, Muffler, 1.312 Dia.

$4.49

$

Usually ships in 2-12 days

0

10

Simplicity 1960748SM

BOLT, Carriage, 5/16-18 x 3-1/4

Note: (Was 1960483 or 80004561)

$4.49

$

Usually ships in 2-12 days

0

11

Simplicity 1919326SM

WASHER, 5/16, Flat

Note: (Was 80003617)

$4.49

$

In Stock, Qty 8

0

12

Simplicity 1917372SM

NUT, Hex, 5/16-18
(Superseded to 7091511SM)

Note: (Was 80002725)

$3.49

$

In Stock, Qty 20+

0

13

Simplicity 1708416SM

MUFFLER ASSEMBLY

$198.99

$

Usually ships in 2-12 days

0

14

Simplicity 1935255SM

NUT, Speed, 5/16-18

$3.49

$

In Stock, only 3 left!

0

15

Simplicity 1960720SM

SCREW, #10-16 x 1/2

$4.99

$

Usually ships in 2-12 days

0

16

Simplicity 1708536SM

CLUTCH, Electric (15217-2)

Note: (Was 1686882)

$

$

Not available

17

Simplicity 1709055SM

SEAL, Air Inlet, 17.8 Lg

$

$

Not available

18

Simplicity 1708537SM

SLEEVE, Clutch Anchor

$4.49

$

In Stock, only 1 left!

0

19

Simplicity 1918199SM

LOCKWASHER, 7/16
(Superseded to 704007)

$4.49

$

In Stock, Qty 20+

0

20

Simplicity 1960370SM

CAPSCREW, 7/16-20 x 2-12

$5.49

$

Usually ships in 2-12 days

0

21

Simplicity 703990

WASHER, Flat, 7/16

Note: (Was 1933263 or 80005608)

$6.99

$

In Stock, Qty 20+

0

22

Simplicity 1708405SM

VALVE, Shut Off

$38.99

$

Usually ships in 2-12 days

0

23

Simplicity 1722955SM

THROTTLE CONTROL, 37 Lg, W/Knob

$100.99

$

In Stock, only 2 left!

0

24

Simplicity 1724426BMSM

SHIELD, Top

$

$

Not available

25

Simplicity 1724427BMSM

DUCT, Bottom

$

$

Not available

26

Simplicity 1933689SM

CAPSCREW, Hex, Whiz, 5/16-18 x 1-1/2

$4.49

$

Usually ships in 2-12 days

0

27

Simplicity 704010

CAPSCREW, Taptite, 3/8-16 x 1-1/2

Note: (Was 1930598 or 80005605)

$4.99

$

Usually ships in 2-12 days

0

29

Simplicity 1922755SM

WASHER, 3/8
(Superseded to 704128)

Note: (Was 80003616)

$4.99

$

In Stock, Qty 11

0

30

Simplicity 1936228SM

CAPSCREW, Socket Head, 5/16-18 x 3/4

$4.49

$

In Stock, only 1 left!

0

31

Simplicity 703297

PUSHNUT, 5/16

Note: (Was 1933988 or 80002734)

$3.99

$

In Stock, Qty 20+

0

32

Simplicity 1718648SM

EDGING, Seal, 13.9 Lg

$15.99

$

Usually ships in 2-12 days

0

33

Simplicity 1960568SM

CAPSCREW, Taptite, 1/4-20 x 7/8

$3.99

$

Usually ships in 2-12 days

0
