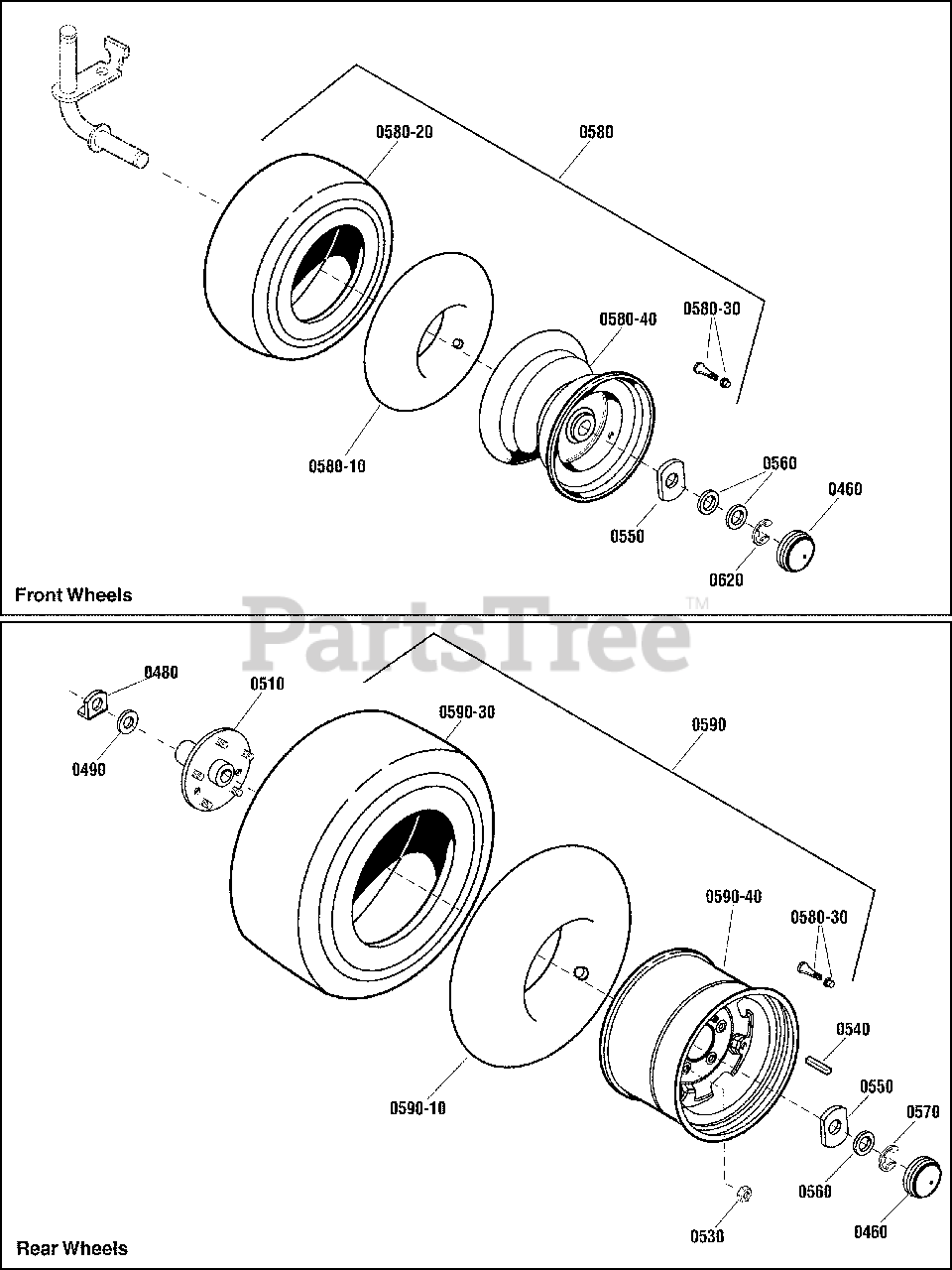

2690932 - Simplicity Conquest 52" Garden Tractor, 24hp Wheels & Tires Group Parts Diagram

Conquest 52" Garden Tractor, 24hp

Wheels & Tires Group Parts Diagram

  • Title

0460

Simplicity 1722676

HUB CAP
(Superseded to 1722676SM)

$5.49

$

In Stock, Qty 20+

0

0480

Simplicity 1737043A

WASHER, Bracket
(Superseded to 1737043AYP)

$14.99

$

In Stock, only 1 left!

0

0490

Simplicity 2860200

WASHER, 1"
(Superseded to 2860200SM)

$5.49

$

In Stock, Qty 5

0

0510

Simplicity 1721400

PLATE & HUB ASSEMBLY
(Superseded to 1721400SM)

$101.99

$

Usually ships in 2-12 days

0

0530

Simplicity 2177725

NUT, Hex, 7/16-20
(Superseded to 2177725SM)

$6.49

$

In Stock, only 3 left!

0

0540

Simplicity 2105337

KEY, Hi-Pro, 1/4 x 2
(Superseded to 2105337SM)

$8.49

$

In Stock, Qty 12

0

0550

Simplicity 1722726

WASHER, Hub Cap
(Superseded to 1722726SM)

$5.49

$

In Stock, only 1 left!

0

0560

Simplicity 1919394

WASHER, 1"
(Superseded to 703149)

$3.49

$

In Stock, Qty 20+

0

0570

Simplicity 2834712

RING, Retaining
(Superseded to 2834712SM)

$4.99

$

In Stock, only 2 left!

0

0580

Simplicity 1722305

WHEEL & TIRE ASSEMBLY, Front
(Superseded to 1722305SM)

$227.99

$

In Stock, only 1 left!

0

0580

Simplicity 1735010

WHEEL & TIRE ASSEMBLY, Front, 4WD Trail Tread
(Superseded to 1735010SM)

$199.99

$

Usually ships in 2-12 days

0

0580-20

Simplicity 1722833

TIRE, 16 x 6.5 - 8
(Superseded to 7073584YP)

$170.99

$

Usually ships in 2-12 days

0

0580-30

Simplicity 2172353

VALVE STEM & CAP
(Superseded to 7012234SM)

$6.49

$

Usually ships in 2-12 days

0

0580-40

* RIM, Wheel, Front

$

$

Not available

0580-10

Simplicity 2153038

TUBE, Tire, Front
(Superseded to 2153038SM)

$35.99

$

Usually ships in 2-12 days

0

0590

Simplicity 1738096

WHEEL & TIRE ASSEMBLY, Rear
(Superseded to 1738096YP)

Note: (Includes Ref. Nos. 0590-10,-30,-40,0580-20)

$393.99

$

Usually ships in 2-12 days

0

0590

Simplicity 1735011

WHEEL & TIRE ASSEMBLY, Rear, 4WD Trail Tread
(Superseded to 1735011SM)

Note: (Includes Ref. Nos. 0590-10,-30,-40,0580-20)

$381.99

$

Usually ships in 2-12 days

0

0590-10

Simplicity 2157638

TUBE, Tire, Rear
(Superseded to 2157638SM)

$86.99

$

In Stock, only 2 left!

0

0590-30

Simplicity 1722830

TIRE, 23 x 10.5 - 12
(Superseded to 1722830SM)

$242.99

$

Usually ships in 2-12 days

0

0590-40

* RIM, Wheel, Rear

$

$

Not available

0620

Simplicity 2832577

Ring, Retainer, 63/64
(Superseded to 2832577SM)

$4.49

$

In Stock, Qty 20+

0
