2690912 - Bad Boy 46" Lawn Tractor, 24hp (2010) Transmission Group AWS, T2-HP Parts Diagram

46" Lawn Tractor, 24hp

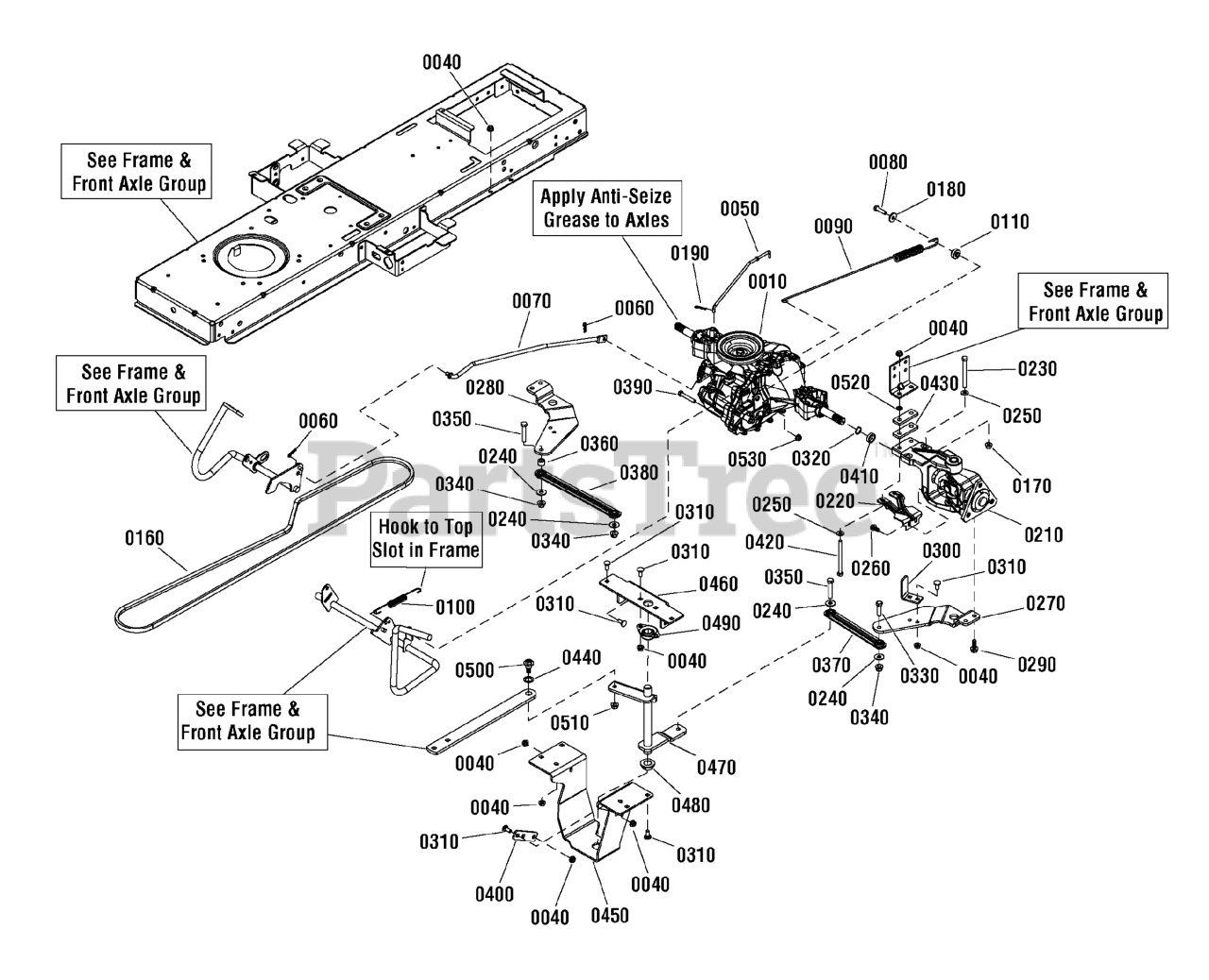

Transmission Group AWS, T2-HP Parts Diagram

  • Title

0010

Murray 1739953YP

TRANSMISSION, T2-HP

$

$

Currently unavailable

0040

Murray 1931277SM

NUT, Hex Flange Whiz Lock, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

0050

Murray 1736716YP

ROD, Free Wheel
(Superseded to 1759749YP)

$14.99

$

Usually ships in 2-12 days

0

0060

Murray 1722460SM

PIN, Quick
(Superseded to 703430)

$3.49

$

In Stock, only 2 left!

0

0070

Murray 1750545YP

ROD, Speed Control

$23.99

$

Usually ships in 2-12 days

0

0080

Murray 1921977SM

CAPSCREW, Hex Head, 5/16-18 x 1 1/4
(Superseded to 703570)

$4.99

$

In Stock, Qty 10

0

0090

Murray 1736409YP

SPRING, Extension

$16.99

$

Usually ships in 2-12 days

0

0100

Murray 1721995SM

SPRING, Extension, 5/8 x 6-5/8

$8.49

$

Usually ships in 2-12 days

0

0110

Murray 1736854YP

SPACER

$14.99

$

Usually ships in 2-12 days

0

0160

Murray 1737441YP

V-BELT, 88.46

$51.99

$

Usually ships in 2-12 days

0

0170

Murray 1960686SM

NUT, Hex Flange ESNA, 5/16-18
(Superseded to 703115)

$3.49

$

In Stock, Qty 20+

0

0180

Murray 1919381SM

WASHER, 5/16
(Superseded to 703298)

$4.49

$

In Stock, only 1 left!

0

0190

Murray 1960221SM

HAIRPIN
(Superseded to 704039)

$4.49

$

In Stock, Qty 9

0

0210

Murray 1001931MA

STEERING ASSEMBLY, Rear

$

$

Not available

0220

Murray 1750461BZYP

BRACKET, Transmission Support

$

$

Currently unavailable

0230

Murray 1925690SM

BOLT, Hex, 5/16 x 3-1/2

$4.99

$

Usually ships in 2-12 days

0

0240

Murray 7900047YP

WASHER, .391 x 1" x 14 Ga. Flat

$3.99

$

Usually ships in 2-12 days

0

0250

Murray 1919326SM

WASHER, 5/16

$4.49

$

In Stock, Qty 9

0

0260

Murray 26X216MA

SCREW, 5/16-18 x 0.75

$6.99

$

In Stock, Qty 5

0

0270

Murray 1739379BZYP

ARM, Rear Control, LH

$

$

Currently unavailable

0280

Murray 1739378BZYP

ARM, Rear Control, RH

$

$

Currently unavailable

0290

Murray 0025X6MA

SCREW, Hex Head, 3/8-16 x 1

$5.49

$

Usually ships in 2-12 days

0

0300

Murray 1750179BZYP

STOP, STEERING

$

$

Currently unavailable

0310

Murray 1931333SM

CARRIAGE BOLT, 5/16-18 x 3/4 G5
(Superseded to 703185)

$3.49

$

In Stock, Qty 20+

0

0320

Murray 2827732SM

RING, Retaining Extension
(Superseded to 703979)

$4.49

$

In Stock, Qty 11

0

0330

Murray 1921968SM

CAPSCREW, Hex, 3/8-16 x 1-3/8

$4.49

$

In Stock, only 3 left!

0

0340

Murray 1960687SM

NUT, Hex Flange ESNA, 3/8-16, Black
(Superseded to 703158)

$3.49

$

Usually ships in 2-12 days

0

0350

Murray 1923701SM

CAPSCREW, Hex Head, 3/8-16 x 2 G5
(Superseded to 703589)

$4.49

$

Usually ships in 2-12 days

0

0360

Murray 1666294SM

SPACER, 3/8 x 43/64 x 29/64

$4.99

$

In Stock, Qty 20+

0

0370

Murray 1739735YP

DRAG LINK ASSY, LH, Sbort

$

$

Currently unavailable

0380

Murray 1739736YP

DRAG LINK ASSY, RH, Long

$

$

Currently unavailable

0390

Murray 1921978YP

CAPSCREW, Hex Head, 5/16-18 x 2

$

$

Not available

0400

Murray 1739904BZYP

STRAP, Torque

$

$

Currently unavailable

0410

Murray 1750723YP

SPACER, Transmission Axle

$

$

Currently unavailable

0420

Murray 7090924YP

SCREW, 5/16-18 x 4 1/8" Hex Head Cap

$3.49

$

Usually ships in 2-12 days

0

0430

Murray 1750553YP

SPACER, Transmission

$

$

Currently unavailable

0440

Murray 2860164SM

WASHER, 5/8

$4.49

$

In Stock, only 3 left!

0

0450

Murray 1739318BZYP

SUPPORT, Rear Steering, Jackshaft

$

$

Currently unavailable

0460

Murray 1739319BZYP

SUPPORT, Jackshaft, Top

$

$

Currently unavailable

0470

Murray 1739618BZYP

JACKSHAFT, Steering

$

$

Currently unavailable

0480

Murray 1501114MA

BEARING, Axle D-Hole

$11.99

$

In Stock, Qty 20+

0

0490

Murray 1722459SM

BEARING, Flanged

$11.99

$

In Stock, Qty 20+

0

0500

Murray 009X81MA

Bolt, Shoulder

$8.49

$

Usually ships in 2-12 days

0

0510

Murray 720143YP

NUT, 3/8-24 CENTER LOCK ZINC

$

$

Currently unavailable

0520

Murray 1933988SM

NUT, Push Pal, 5/16 DIA Thread, 5/8 OD
(Superseded to 703297)

$3.99

$

In Stock, Qty 20+

0

0530

Murray 1927557SM

NUT, Hex Whiz Lock Flange, 5/16-18

$4.99

$

Usually ships in 2-12 days

0
