2690912 - Bad Boy 46" Lawn Tractor, 24hp (2010) Hood, Grille & Dash Group Parts Diagram

46" Lawn Tractor, 24hp

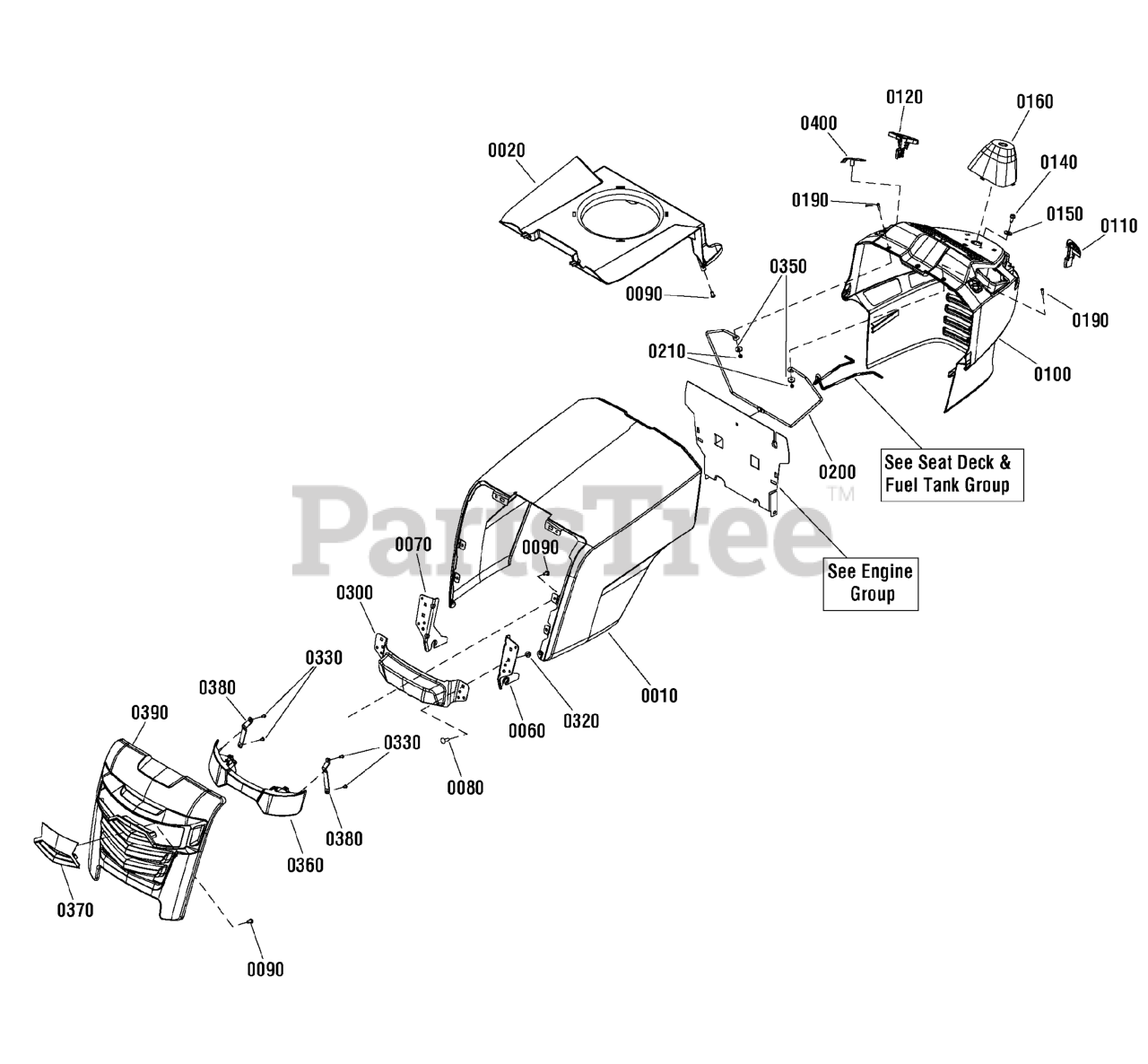

Hood, Grille & Dash Group Parts Diagram

  • Title

0010

Murray 1750388BQYP

HOOD

$

$

Currently unavailable

0020

Murray 1738734YP

PLENUM, Air Duct

$155.99

$

Usually ships in 2-12 days

0

0060

Murray 1738566AYP

HINGE, Hood LH

$15.99

$

Usually ships in 2-12 days

0

0070

Murray 1738565AYP

HINGE, Hood RH

$14.99

$

Usually ships in 2-12 days

0

0080

Murray 7091714YP

BOLT, 5/16-18 x 1" Round Head Square Neck, GR 5 YZ
(Superseded to 703483)

$3.99

$

In Stock, only 3 left!

0

0090

Murray 1739220YP

SCREW, Washer Head 7MM DIA. x 16MM Long
(Superseded to 1754203YP)

$4.49

$

In Stock, Qty 8

0

0100

Murray 1738423YP

DASH, Black

$259.99

$

Usually ships in 2-12 days

0

0110

Murray 1738789YP

KNOB, Parking Brake

$7.49

$

In Stock, only 1 left!

0

0120

Murray 1738788YP

KNOB, Cruise

$8.49

$

Usually ships in 2-12 days

0

0140

Murray 1664847SM

SCREW, Hex Washer Head Taptite 5/16-18 x 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

0150

Murray 1919381SM

WASHER, 5/16
(Superseded to 703298)

$4.49

$

In Stock, only 1 left!

0

0160

Murray 1738790YP

COVER, Steering Shaft

$10.99

$

Usually ships in 2-12 days

0

0190

Murray 1739942YP

SCREW, Pan-Head, Phillips 10-24 X .875 BLK

$3.99

$

Usually ships in 2-12 days

0

0200

Murray 1738964YP

ROD, Dash Support, 10"

$19.99

$

Usually ships in 2-12 days

0

0210

Murray 1933896SM

NUT, Hex Lock 10-24 W/Nylon Insert
(Superseded to 703412)

$4.49

$

In Stock, only 4 left!

0

0300

Murray 1750390AYP

BUMPER

$

$

Currently unavailable

0320

Murray 1960686SM

NUT, Hex Flange ESNA, 5/16-18
(Superseded to 703115)

$3.49

$

In Stock, Qty 20+

0

0330

Murray 1739329YP

SCREW, Washer Head, 5MM x 12MM Long

$4.49

$

Usually ships in 2-12 days

0

0350

Murray 1960353SM

WASHER, 1/4
(Superseded to 703229)

$4.49

$

In Stock, Qty 8

0

0360

Murray 1727296SM

HEADLIGHT ASSEMBLY, Complete

$237.99

$

In Stock, Qty 7

0

0370

Murray 1750552YP

LIGHT BAR

$

$

Currently unavailable

0380

Murray 1750772BZYP

BRACKET, Headlight

$

$

Currently unavailable

0390

Murray 1750389YP

GRILL, Chevron Front

$

$

Currently unavailable

0400

Murray 1750460YP

PLUG, Insert

$

$

Currently unavailable
