2690912 - Bad Boy 46" Lawn Tractor, 24hp (2010) Engine Group 24HP Briggs & Stratton Twin Professional Series Parts Diagram

46" Lawn Tractor, 24hp

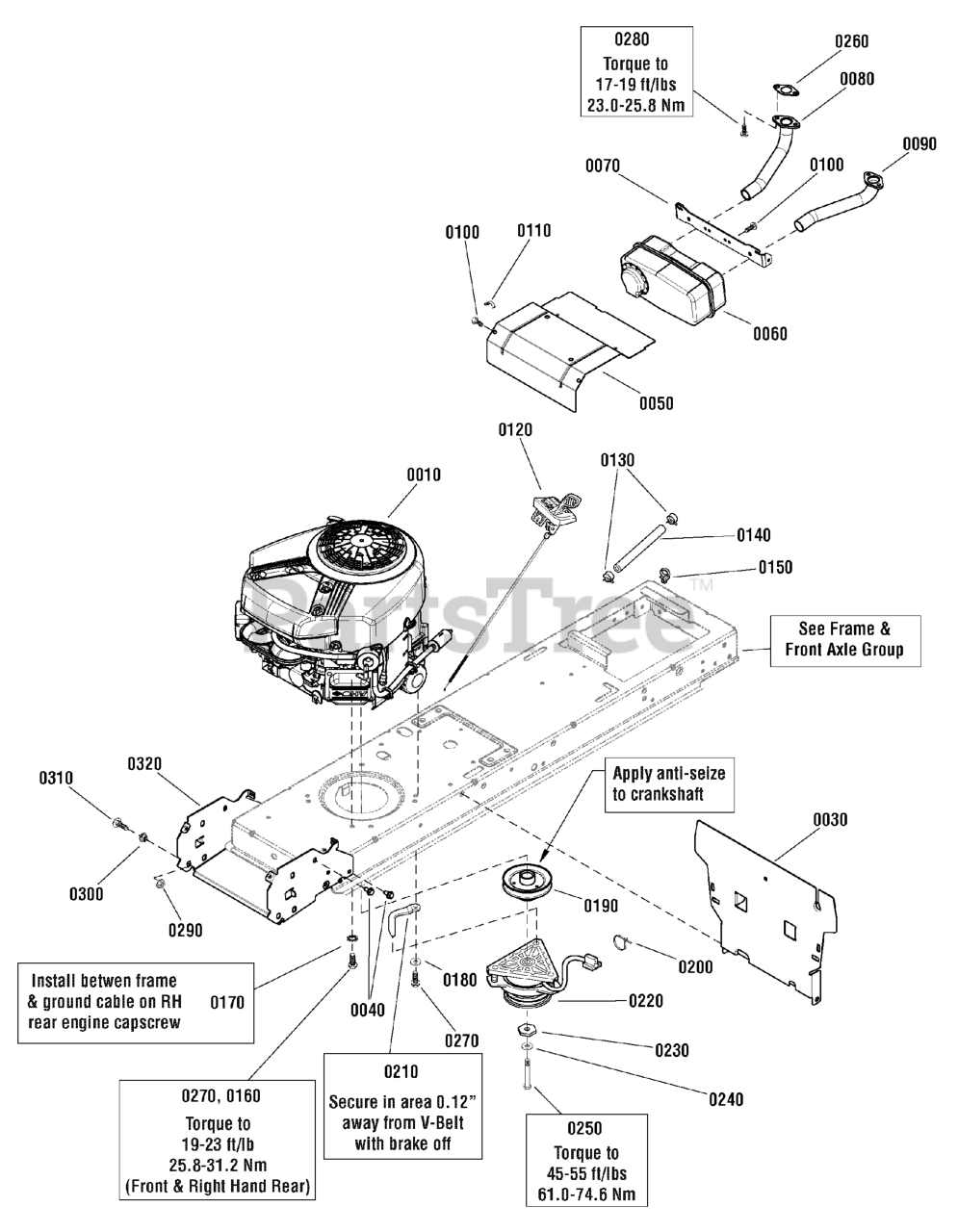

Engine Group 24HP Briggs & Stratton Twin Professional Series Parts Diagram

  • Title

0010

Murray 44M777-0166-B1

* ENGINE, 23HP Briggs & Stratton EFM Twin Professional Series

Note: (Engine Model: 44M777-0166-B1)

$

$

Not available

0030

Murray 1738380AYP

HEAT SHIELD, Engine

$51.99

$

Usually ships in 2-12 days

0

0040

Murray 1930601SM

CAPSCREW, Hex Washer Head, Taptite, 5/16-18 x 5/8
(Superseded to 703949)

$3.99

$

In Stock, only 3 left!

0

0050

Murray 1727997AYP

HEAT SHIELD, Engine, Twin

$

$

Currently unavailable

0060

Murray 1727994SM

MUFFLER, Briggs & Stratton Twin

$98.99

$

Usually ships in 2-12 days

0

0070

Murray 1727976AYP

SUPPORT, Muffler

$

$

Currently unavailable

0080

Murray 1727979SM

PIPE, Exhaust, Flanged, R.H, 11/8 OD

$37.99

$

In Stock, only 1 left!

0

0090

Murray 1727980SM

PIPE, Exhaust, Flanged, L.H, 11/8 OD

$37.99

$

In Stock, only 2 left!

0

0100

Murray 1925003SM

CAPSCREW, Hex Washer Head, Taptite, 1/4-20 x 1/2
(Superseded to 704130)

$3.99

$

In Stock, only 4 left!

0

0110

Murray 2834683SM

CLIP, Wire, 1/8 Dia.
(Superseded to 2172434SM)

$4.99

$

Usually ships in 2-12 days

0

0120

Murray 1738793YP

CONTROL, Throttle Only

$52.99

$

Usually ships in 2-12 days

0

0130

Murray 791850

CLAMP, Hose

$3.49

$

In Stock, Qty 20+

0

0140

Murray 1734993SM

HOSE, Fuel, 1/4 ID x 1/2 OD, 55" Long, Low Perm.
(Superseded to 845503)

$35.99

$

Usually ships in 2-12 days

0

0150

Murray 1730268SM

CLIP, Hose, 1/2 Dia.

$3.99

$

Usually ships in 2-12 days

0

0160

Murray 2827187SM

CAPSCREW, Hex Washer Head, Taptite, 3/8-16 x 1
(Superseded to 704000)

$4.99

$

Usually ships in 2-12 days

0

0170

Murray 2820427SM

LOCKWASHER, External Tooth, 3/8
(Superseded to 703864)

$4.49

$

Usually ships in 2-12 days

0

0180

Murray 1924940SM

WASHER, 3/8 x 7/8 OD
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

0190

Murray 1732576SM

PULLEY & HUB ASSEMBLY, Engine

$42.99

$

In Stock, only 1 left!

0

0200

Murray 1701011SM

TIE, Self Locking, 15" Long

$5.49

$

In Stock, only 2 left!

0

0210

Murray 1737421AYP

GUIDE, Belt, Long

$12.99

$

In Stock, Qty 10

0

0220

Murray 1736105SM

CLUTCH, Electric, OGURA

$387.99

$

Usually ships in 2-12 days

0

0230

Murray 1708264SM

WASHER, Hex, 7/16, ID x 1-1/2

$8.99

$

In Stock, Qty 5

0

0240

Murray 1918199SM

LOCKWSHER, Spring, 7/16
(Superseded to 704007)

$4.49

$

In Stock, Qty 20+

0

0250

Murray 1960649SM

CAPSCREW, Hex Head, 7/16-20 x 3-1/2, G5

$7.49

$

In Stock, only 1 left!

0

0260

Murray 1731214SM

GASKET, Exhaust

$4.99

$

Usually ships in 2-12 days

0

0270

Murray 2828635SM

CAPSCREW, Hex Washer Head, Taptite, 3/8-16 x 1-1/4

$4.99

$

In Stock, Qty 20+

0

0280

Murray 690341

SCREW

$5.99

$

In Stock, only 3 left!

0

0290

Murray 1931277SM

NUT, Hex Flange, Whiz Lock, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

0300

Murray 1728086SM

PIVOT, Hood

$5.99

$

In Stock, Qty 7

0

0310

Murray 1931335SM

BOLT, Carriage, Short Neck, 5/16-18 x 1
(Superseded to 703800)

$3.99

$

In Stock, Qty 7

0

0320

Murray 1738265AYP

SUPPORT, Muffler & Hood Pivot

$67.99

$

Usually ships in 2-12 days

0
