2690905 - Simplicity Regent Lawn Tractor, 23hp Briggs & Stratton Wheels & Tires Group Parts Diagram

Regent Lawn Tractor, 23hp Briggs & Stratton

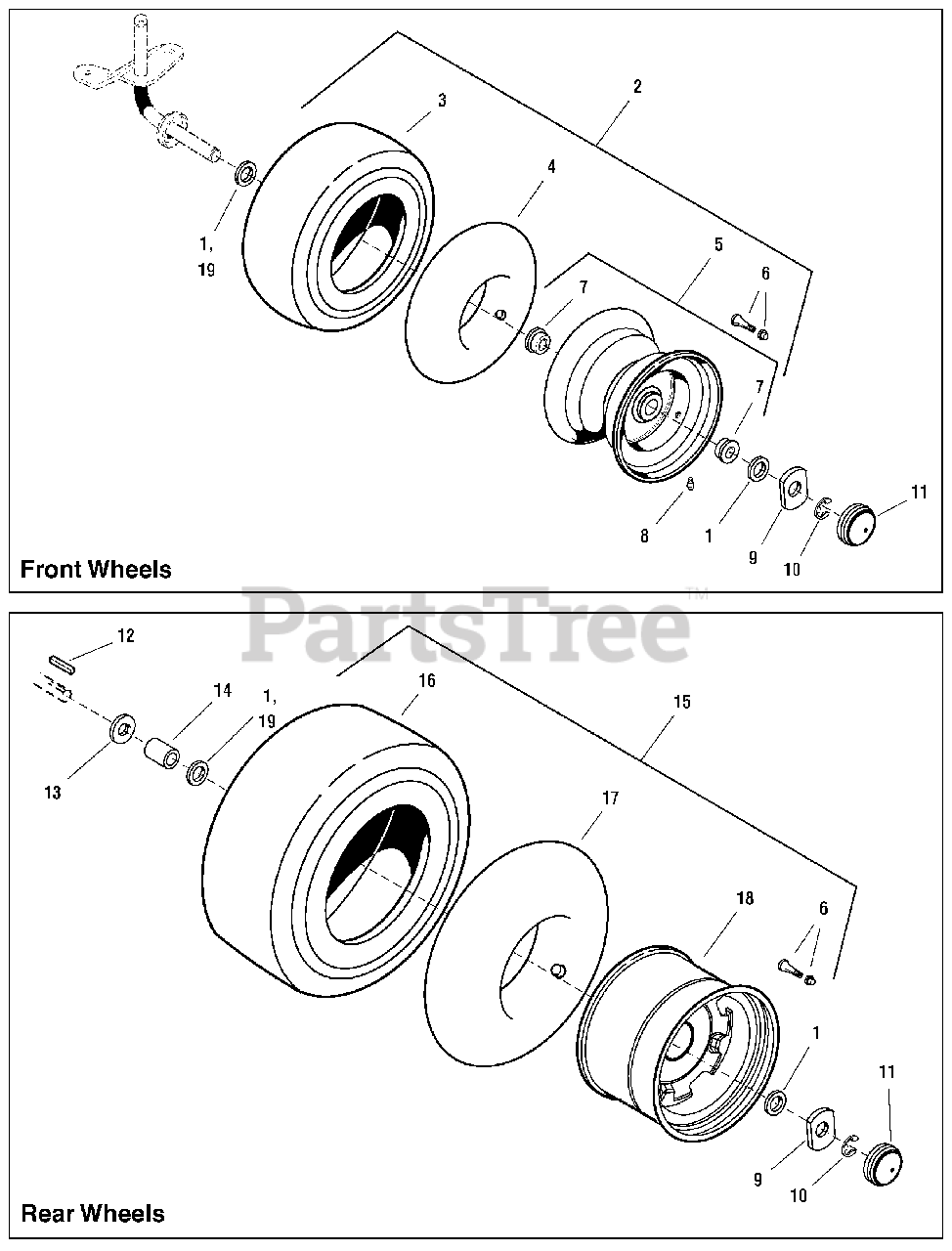

Wheels & Tires Group Parts Diagram

  • Title

1

Simplicity 2860183

WASHER, 3/4
(Superseded to 2860183SM)

$4.99

$

In Stock, Qty 20+

0

1

Simplicity 722620

WASHER, Flat
(Superseded to 17X195MA)

Note: (Use on 22 Gross HP Models only)

$4.99

$

In Stock, only 4 left!

0

2

Simplicity 1729708

WHEEL & TIRE ASSEMBLY, Front
(Superseded to 1729708SM)

$168.99

$

Usually ships in 2-12 days

0

3

Simplicity 1731951

TIRE, Turf 15 X 6.00 - 6 Saver TL
(Superseded to 1731951SM)

$131.99

$

In Stock, Qty 8

0

4

Simplicity 1664090

TUBE, Tire, Front
(Superseded to 1664090SM)

$26.99

$

In Stock, only 3 left!

0

5

Simplicity 1726301

WHEEL & BUSHINGS ASSEMBLY, Front
(Superseded to 1726301SM)

$82.99

$

In Stock, only 1 left!

0

6

Simplicity 2172353

VALVE STEM & CAP
(Superseded to 7012234SM)

$6.49

$

Usually ships in 2-12 days

0

7

Simplicity 1713167

BEARING
(Superseded to 1752171YP)

$11.99

$

In Stock, Qty 20+

0

8

Simplicity 2812808

FITTING, Grease, 1/4-28 Thread
(Superseded to 2812808SM)

$4.49

$

In Stock, Qty 20+

0

9

Simplicity 1722717

WASHER, Special Yellow
(Superseded to 1722717SM)

$7.99

$

In Stock, Qty 20+

0

10

Simplicity 2827794

RING, Retaining
(Superseded to 2827794SM)

$3.49

$

In Stock, Qty 17

0

10

Simplicity 720010

RING, Retaining
(Superseded to 0011X3MA)

Note: (Use on 22 Gross HP Models only)

$5.49

$

In Stock, Qty 20+

0

11

Simplicity 1722676

CAP, Hub
(Superseded to 1722676SM)

$5.49

$

In Stock, Qty 20+

0

11

Simplicity 721318

CAP, Hub
(Superseded to 094618MA)

Note: (Use on 22 Gross HP Models only)

$5.99

$

In Stock, only 4 left!

0

12

Simplicity 1713409

KEY, 3/16 x 3/16 x 3
(Superseded to 1713409SM)

$4.99

$

In Stock, only 2 left!

0

12

Simplicity 720258

KEY, 3/16 x 3/16 x 2
(Superseded to 021553MA)

Note: (Use on 22 Gross HP Models only)

$4.99

$

In Stock, only 2 left!

0

13

Simplicity 2860202

WASHER
(Superseded to 2860202SM)

$4.49

$

In Stock, Qty 20+

0

14

Simplicity 1730181

SPACER, 3/4 ID x 1-1/4 OD x 1-5/8
(Superseded to 1730181SM)

$9.49

$

In Stock, only 2 left!

0

15

Simplicity 1729709

WHEEL & TIRE ASSEMBLY, Rear 20"
(Superseded to 7101560YP)

$274.99

$

In Stock, only 1 left!

0

15

Simplicity 7101560

WHEEL & TIRE ASSEMBLY, Rear 20"
(Superseded to 7101560YP)

Note: (Use on 20 Gross HP Model only)

$274.99

$

In Stock, only 1 left!

0

15

Simplicity 1732324

WHEEL & TIRE ASSEMBLY, Rear 22"
(Superseded to 1732324SM)

Note: (Use on Model 2690840)

$311.99

$

Usually ships in 2-12 days

0

16

Simplicity 1731952

TIRE, Turf 20 X 8.00 - 8 Saver TL
(Superseded to 7101559YP)

$222.99

$

Usually ships in 2-12 days

0

16

Simplicity 7101559

TIRE, 20 x 830-8, 2 Ply, K358
(Superseded to 7101559YP)

Note: (Use 7101560)

$222.99

$

Usually ships in 2-12 days

0

16

Simplicity 1732394

TIRE, 22 x 10.00-8, 2 Ply, K358
(Superseded to 1732394SM)

$256.99

$

Usually ships in 2-12 days

0

17

Simplicity 2164247

TUBE, Tire, Rear
(Superseded to 2164247SM)

Note: (Use on 20" Tire)

$40.99

$

Usually ships in 2-12 days

0

17

Simplicity 2173477

TUBE, Tire, Rear
(Superseded to 2173477SM)

Note: (Use on 22" Tire)

$85.99

$

Usually ships in 2-12 days

0

18

Simplicity 1731954

WHEEL, Hub
(Superseded to 7101558YP)

$104.99

$

Usually ships in 2-12 days

0

19

Simplicity 722598

WASHER, Flat, 3/4 x 1-1/4
(Superseded to 17X160MA)

Note: (Use on 22 Gross HP Models only)

$4.99

$

In Stock, Qty 20+

0
