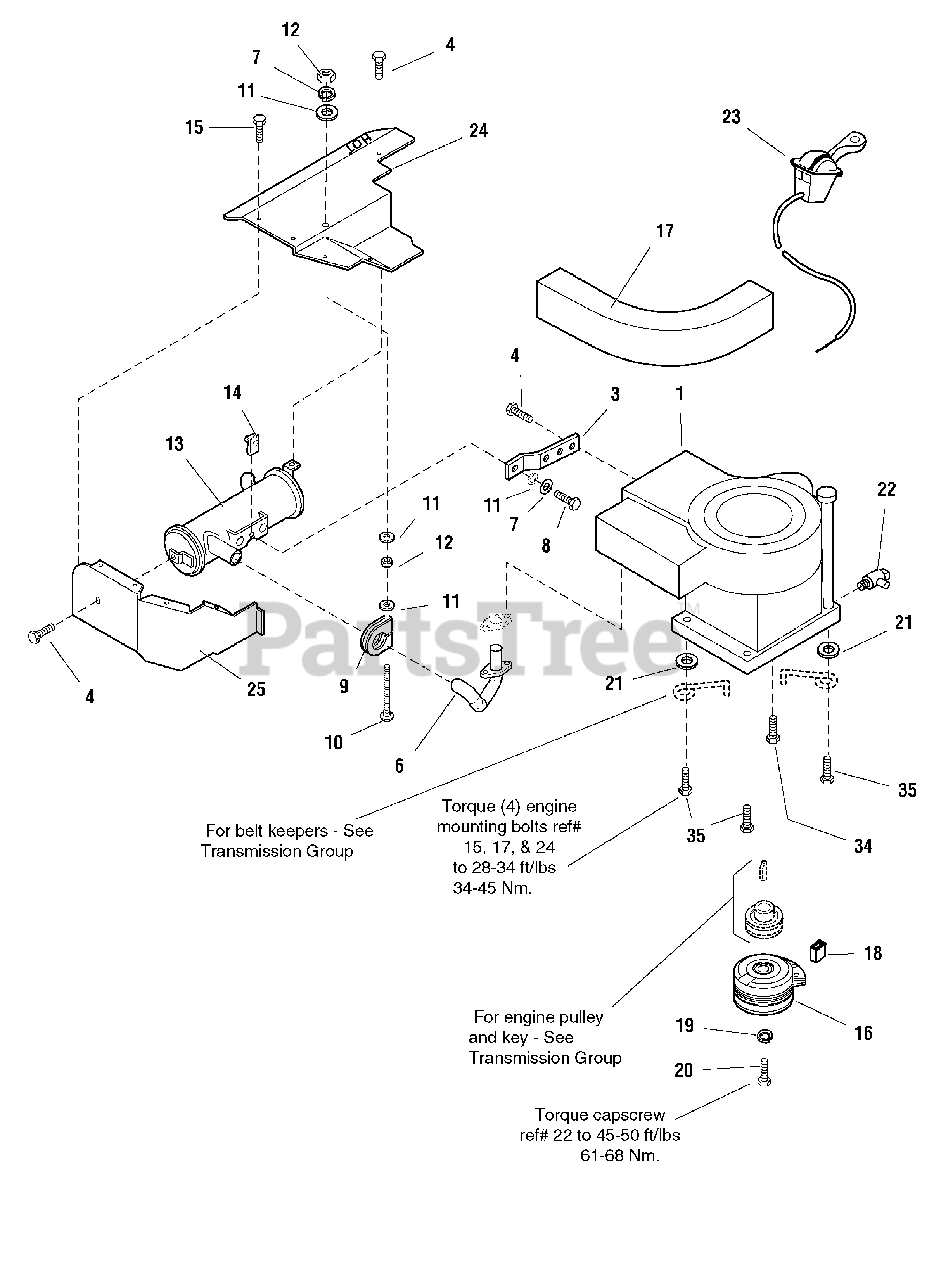

2690802 - Simplicity Coronet 34" Rear-Engine Riding Mower, 16hp Engine Group Parts Diagram

Coronet 34" Rear-Engine Riding Mower, 16hp

Engine Group Parts Diagram

  • Title

1

ENGINE, Briggs & Straton, 16HP *

$

$

Not available

3

Simplicity 1713557ASM

SUPPORT, Muffler

$22.99

$

Usually ships in 2-12 days

0

4

Simplicity 1924856SM

CAPSCREW, Taptite, 5/16-18 x 1/2
(Superseded to 703985)

$4.49

$

In Stock, only 3 left!

0

6

Simplicity 1713502SM

PIPE, Exhaust

$90.99

$

Usually ships in 2-12 days

0

7

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

8

Simplicity 1921333SM

CAPSCREW, 5/16-18 x 1
(Superseded to 703585)

$4.99

$

In Stock, only 1 left!

0

9

Simplicity 1676183SM

CLAMP, Muffler

$4.49

$

Usually ships in 2-12 days

0

10

Simplicity 1960748SM

BOLT, Carriage, 5/16-18 x 3-1/4

$4.49

$

Usually ships in 2-12 days

0

11

Simplicity 1919326SM

WASHER, 5/16

$4.49

$

In Stock, Qty 8

0

12

Simplicity 1917372SM

NUT, Hex, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

13

Simplicity 1708416SM

MUFFLER ASSEMBLY

$198.99

$

Usually ships in 2-12 days

0

14

Simplicity 1935255SM

NUT, Speed, 5/16-18

$3.49

$

In Stock, only 3 left!

0

15

Simplicity 1960720SM

SCREW, #10-16 x 1/2

$4.99

$

Usually ships in 2-12 days

0

16

Simplicity 1708536YP

CLUTCH, Electric

$

$

Not available

17

Simplicity 1709055SM

SEAL, Air Inlet

$

$

Not available

18

Simplicity 1708537SM

SLEEVE, Clutch Anchor

$4.49

$

In Stock, only 1 left!

0

19

Simplicity 1918199SM

LOCKWASHER, 7/16
(Superseded to 704007)

$4.49

$

In Stock, Qty 20+

0

20

Simplicity 1960370SM

CAPSCREW, 7/16-20 x 2-12

$5.49

$

Usually ships in 2-12 days

0

21

Simplicity 1933263SM

WASHER, Flat, 7/16
(Superseded to 703990)

$6.99

$

In Stock, Qty 20+

0

22

Simplicity 1708405SM

VALVE, Shut Off

$38.99

$

Usually ships in 2-12 days

0

23

Simplicity 1722955SM

THROTTLE CONTROL, Single

$100.99

$

In Stock, only 2 left!

0

24

Simplicity 1726418ASM

DUCT, Top, R.H.

$

$

Not available

25

Simplicity 1722621ASM

DUCT, Bottom

$30.99

$

In Stock, only 1 left!

0

34

Simplicity 2827187SM

CAPSCREW, Taptite, 3/8-16 x 1
(Superseded to 704000)

$4.99

$

Usually ships in 2-12 days

0

35

Simplicity 2828635SM

CAPSCREW, Taptite, 3/8-16 x 1-1/4

$4.99

$

In Stock, Qty 20+

0
