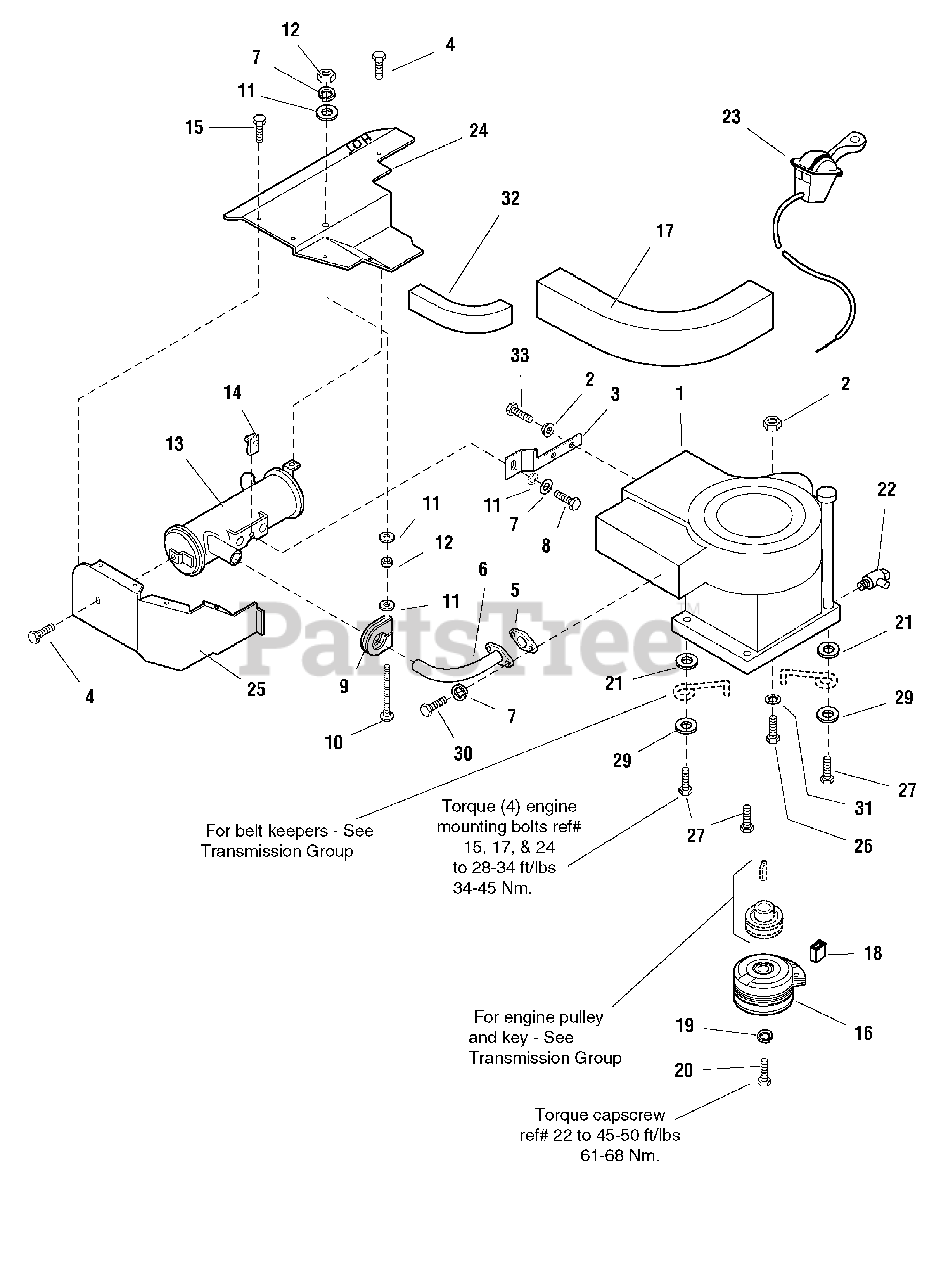

2690800 - Simplicity Coronet 30" Rear-Engine Riding Mower, 13.5hp Engine Group Parts Diagram

Coronet 30" Rear-Engine Riding Mower, 13.5hp

Engine Group Parts Diagram

  • Title

1

Simplicity 20B9070203G1

ENGINE, Briggs & Straton, 13.5HP *

Note: (20B9070203G1)

$

$

Not available

2

Simplicity 1931277SM

NUT, Hex Flange, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

3

Simplicity 1724428ASM

SUPPORT, Muffler

$26.99

$

Usually ships in 2-12 days

0

4

Simplicity 1924856SM

CAPSCREW, Taptite, 5/16-18 x 1/2
(Superseded to 703985)

$4.49

$

In Stock, only 3 left!

0

5

Simplicity 1650670SM

GASKET, Muffler

$8.49

$

Usually ships in 2-12 days

0

6

Simplicity 1724466SM

PIPE, Exhaust

$87.99

$

In Stock, only 1 left!

0

7

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

8

Simplicity 1921333SM

CAPSCREW, 5/16-18 x 1
(Superseded to 703585)

$4.99

$

In Stock, only 1 left!

0

9

Simplicity 1676183SM

CLAMP, Muffler

$4.49

$

Usually ships in 2-12 days

0

10

Simplicity 1960748SM

BOLT, Carriage, 5/16-18 x 3-1/4

$4.49

$

Usually ships in 2-12 days

0

11

Simplicity 1919326SM

WASHER, 5/16

$4.49

$

In Stock, Qty 8

0

12

Simplicity 1917372SM

NUT, Hex, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

13

Simplicity 1708416SM

MUFFLER ASSEMBLY

$198.99

$

Usually ships in 2-12 days

0

14

Simplicity 1935255SM

NUT, Speed, 5/16-18

$3.49

$

In Stock, only 3 left!

0

15

Simplicity 1960720SM

SCREW, #10-16 x 1/2

$4.99

$

Usually ships in 2-12 days

0

16

Simplicity 1686882SM

CLUTCH, Electric

$365.99

$

Usually ships in 2-12 days

0

17

Simplicity 1709055SM

SEAL, Air Inlet

$

$

Not available

18

Simplicity 1708537SM

SLEEVE, Clutch Anchor

$4.49

$

In Stock, only 1 left!

0

19

Simplicity 1918199SM

LOCKWASHER, 7/16
(Superseded to 704007)

$4.49

$

In Stock, Qty 20+

0

20

Simplicity 1960370SM

CAPSCREW, 7/16-20 x 2-12

$5.49

$

Usually ships in 2-12 days

0

21

Simplicity 1933263SM

WASHER, Flat, 7/16
(Superseded to 703990)

$6.99

$

In Stock, Qty 20+

0

22

Simplicity 1708405SM

VALVE, Shut Off

$38.99

$

Usually ships in 2-12 days

0

23

Simplicity 1722955SM

THROTTLE CONTROL, Single

$100.99

$

In Stock, only 2 left!

0

24

Simplicity 1724426ASM

DUCT, Top, R.H.

$62.99

$

Usually ships in 2-12 days

0

25

Simplicity 1724427ASM

DUCT, Bottom

$42.99

$

Usually ships in 2-12 days

0

26

Simplicity 1933689SM

CAPSCREW, Hex, Whiz, 5/16-18 x 1-1/2

$4.49

$

Usually ships in 2-12 days

0

27

Simplicity 1930598SM

CAPSCREW, Taptite, 3/8-16 x 1-1/2
(Superseded to 704010)

$4.99

$

Usually ships in 2-12 days

0

29

Simplicity 1922755SM

WASHER, 3/8
(Superseded to 704128)

$4.99

$

In Stock, Qty 11

0

30

Simplicity 1936228SM

CAPSCREW, Socket HEad, 5/16-18 x 3/4

$4.49

$

In Stock, only 1 left!

0

31

Simplicity 1933988SM

PUSHNUT, 5/16
(Superseded to 703297)

$3.99

$

In Stock, Qty 20+

0

32

Simplicity 1718648SM

EDGING, Seal

$15.99

$

Usually ships in 2-12 days

0

33

Simplicity 1960568SM

CAPSCREW, Taptite, 1/4-20 x 7/8

$3.99

$

Usually ships in 2-12 days

0
