2690747 - Simplicity Conquest 44" Garden Tractor, 23hp Engine Group - 23HP Kohler, Courage Twin Parts Diagram

Conquest 44" Garden Tractor, 23hp

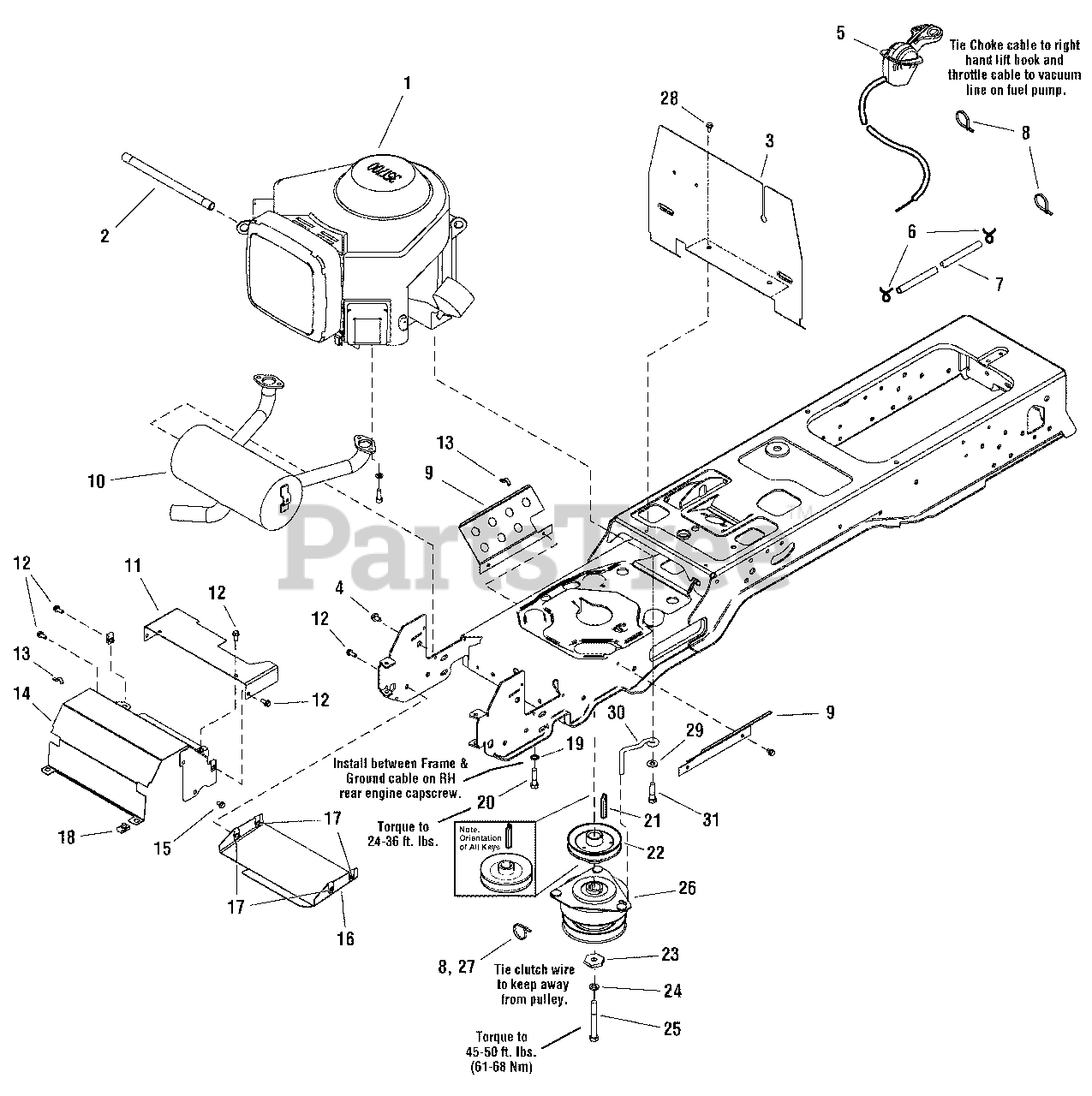

Engine Group - 23HP Kohler, Courage Twin Parts Diagram

  • Title

1

ENGINE, 23HP Kohler Courage Twin, Model SV720, Type PS-SV720-0031

$

$

Not available

2

Simplicity 1723165SM

HOSE, Oil Drain

$20.99

$

In Stock, Qty 9

0

3

Simplicity 1722388ASM

BULKHEAD

$39.99

$

Usually ships in 2-12 days

0

4

Simplicity 1924856SM

SCREW, Hex Washer Head Taptite 5/16-18 x 1/2
(Superseded to 703985)

$4.49

$

In Stock, only 2 left!

0

5

Simplicity 1727375SM

THROTTLE, Control Double w/Knob

$125.99

$

Usually ships in 2-12 days

0

6

Simplicity 2860112SM

CLAMP, Hose 1/2 Diameter Wire Type-E

$3.99

$

Usually ships in 2-12 days

0

7

Simplicity 1723174SM

HOSE, Fuel

$

$

Not available

8

Simplicity 2825094SM

TIE, Self Locking
(Superseded to 1701011SM)

$5.49

$

In Stock, only 2 left!

0

9

Simplicity 1722392ASM

SHIELD, Side 18GA

$10.99

$

Usually ships in 2-12 days

0

10

Simplicity 1721705SM

MUFFLER, Kohler Twin

$213.99

$

Usually ships in 2-12 days

0

11

Simplicity 1733884ASM

DUCT, Muffler Extension 18GA Courage

$15.99

$

Usually ships in 2-12 days

0

12

Simplicity 1960295SM

SCREW, Hex Whiz Lock Flange 1/4-20 x 5/8

$4.49

$

In Stock, only 1 left!

0

13

Simplicity 2834683SM

CLIP, Speed Wire
(Superseded to 2172434SM)

$4.99

$

Usually ships in 2-12 days

0

14

Simplicity 1722389ASM

DUCT, Muffler Top

$80.99

$

Usually ships in 2-12 days

0

15

Simplicity 1929000SM

SCREW, Hex Washer Head Taptite 1/4-20 x 3/8
(Superseded to 703583)

$4.99

$

In Stock, Qty 20+

0

16

Simplicity 1722414ASM

SHIELD, Muffler

$20.99

$

Usually ships in 2-12 days

0

17

Simplicity 1960368SM

NUT, Speed 1/4-20 Lug Type
(Superseded to 705876)

$4.49

$

In Stock, Qty 20+

0

18

Simplicity 1935255SM

NUT, Speed, 5/16-18 Lug Type

$3.49

$

In Stock, only 3 left!

0

19

Simplicity 2820427SM

LOCKWASHER, External Tooth 3/8
(Superseded to 703864)

$4.49

$

Usually ships in 2-12 days

0

20

Simplicity 2827187SM

SCREW, Hex Washer Head Taptite 3/8-16 x 1
(Superseded to 704000)

$4.99

$

Usually ships in 2-12 days

0

21

Simplicity 1720463SM

KEY, Hi-Pro 1/4 x 2-1/2

$8.99

$

In Stock, only 1 left!

0

22

Simplicity 1722288SM

PULLEY & HUB ASSEMBLY
(Superseded to 1739847YP)

$42.99

$

In Stock, only 1 left!

0

23

Simplicity 1708264SM

WASHER, Hex

$8.99

$

In Stock, Qty 5

0

24

Simplicity 1918199SM

LOCKWASHER, Spring
(Superseded to 704007)

$4.49

$

In Stock, Qty 20+

0

25

Simplicity 1960649SM

CAPSCREW, Hex Head 7/16-20 x 3-1/2 G5

$7.49

$

In Stock, only 1 left!

0

26

Simplicity 1718836SM

CLUTCH, Electric
(Superseded to 1687296SM)

$402.99

$

In Stock, only 1 left!

0

27

Simplicity 2832747SM

TIE, Self Locking

$3.99

$

Usually ships in 2-12 days

0

28

Simplicity 1925003SM

SCREW, Hex Washer Head Taptite 1/4-20 x 1/2
(Superseded to 704130)

$3.99

$

In Stock, Qty 9

0

29

Simplicity 1924940SM

WASHER, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

30

Simplicity 1732026SM

RETAINER, Clutch
(Superseded to 1737420AYP)

$12.99

$

Usually ships in 2-12 days

0

31

Simplicity 704010

SCREW, Hex Washer Head Taptite 3/8-16 x 1-1/2

$4.99

$

Usually ships in 2-12 days

0
