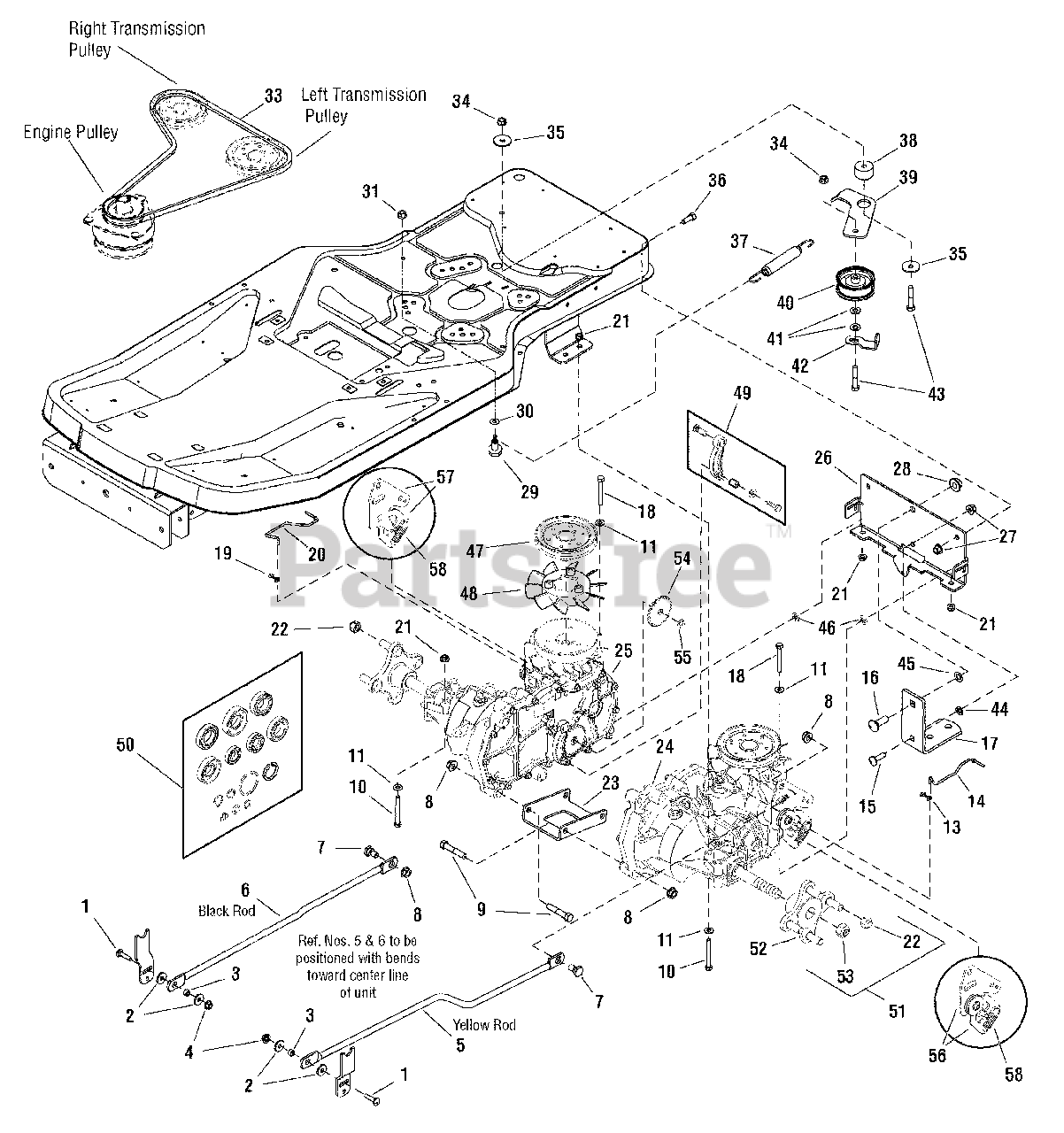

2690644 - Simplicity Axion 50" Zero-Turn Mower, 24hp Transmission Group Parts Diagram

Axion 50" Zero-Turn Mower, 24hp

Transmission Group Parts Diagram

  • Title

1

Simplicity 1960223SM

BOLT, Carriage, 5/16-18 x 1-1/4, G5
(Superseded to 703446)

$4.49

$

In Stock, Qty 5

0

2

Simplicity 1919381SM

WASHER, .34 ID x 1 OD x .13 THK
(Superseded to 703298)

$4.49

$

Usually ships in 2-12 days

0

3

Simplicity 1703900SM

SPACER

$7.99

$

Usually ships in 2-12 days

0

4

Simplicity 1960684SM

NUT, Hex Keps, 5/16-18
(Superseded to 703222)

$5.99

$

In Stock, only 2 left!

0

5

Simplicity 1727555SM

ROD, Control L.H.

$37.99

$

Usually ships in 2-12 days

0

6

Simplicity 1727556SM

ROD, Control R.H.

$23.99

$

Usually ships in 2-12 days

0

7

Simplicity 1727831SM

BOLT, Shoulder

$8.49

$

Usually ships in 2-12 days

0

8

Simplicity 1930650SM

NUT, Hex Flange Two-Way Lock, 7/16-14

$5.49

$

In Stock, only 4 left!

0

9

Simplicity 1927120SM

CAPSCREW, Hex Head, 7/16-14 x 2-1/4, G8

$6.99

$

Usually ships in 2-12 days

0

10

Simplicity 1923141SM

CAPSCREW, Hex Head, 5/16-18 x 2-3/4, G5
(Superseded to 703869)

$6.49

$

Usually ships in 2-12 days

0

11

Simplicity 1919326SM

WASHER, .34 ID x 3/4 OD x .06 THK

$4.49

$

In Stock, Qty 6

0

13

Simplicity 1717024SM

CLIP, Rod End Linkage

$7.49

$

In Stock, only 2 left!

0

14

Simplicity 1733913SM

ROD, Tow Valve L.H.

$9.99

$

Usually ships in 2-12 days

0

15

Simplicity 1960268SM

BOLT, Carriage, 3/8-16 x 1-1/4, G5

$4.49

$

In Stock, Qty 9

0

16

Simplicity 1960758SM

BOLT, Carriage, 1/2-13 x 1-1/2, G5

$3.99

$

Usually ships in 2-12 days

0

17

Simplicity 1733305ASM

DRAWBAR

$24.99

$

In Stock, only 1 left!

0

18

Simplicity 1921719SM

CAPSCREW, Hex Head, 5/16-18 x 2-1/2, G5
(Superseded to 703868)

$4.99

$

In Stock, only 3 left!

0

19

Simplicity 1725550SM

CLIP, Rod End Linkage

$5.99

$

Usually ships in 2-12 days

0

20

Simplicity 1733914SM

ROD, Tow Valve R.H.

$9.99

$

In Stock, only 1 left!

0

21

Simplicity 1931277SM

NUT, Hex Flange Whiz Lock, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

22

Simplicity 5020601SM

NUT, Wheel Hex, 1/2-20

$3.49

$

In Stock, Qty 20+

0

23

Simplicity 1733309ASM

SUPPORT, Transmission Center

$47.99

$

Usually ships in 2-12 days

0

24

Simplicity 1733351SM

TRANSMISSION, Hydro Gear EZT L.H.
(Superseded to 7104656YP)

$1171.99

$

Usually ships in 2-12 days

0

25

Simplicity 1733352SM

TRANSMISSION, Hydro Gear EZT R.H.
(Superseded to 7104657YP)

$1173.99

$

Usually ships in 2-12 days

0

26

Simplicity 1733302ASM

SUPPORT, Transmission Rear

$107.99

$

Usually ships in 2-12 days

0

27

Simplicity 1960687SM

NUT, Hex Flange, 3/8-16 ESNA
(Superseded to 703158)

$3.49

$

Usually ships in 2-12 days

0

28

Simplicity 5025396SM

NUT, Hex Flange, 1/2-13

$3.49

$

In Stock, only 2 left!

0

29

Simplicity 1728976SM

BOLT, Shoulder

$6.49

$

In Stock, only 2 left!

0

30

Simplicity 1924874SM

WASHER, .34 ID x .87 OD x .06 THK
(Superseded to 703302)

$4.49

$

In Stock, Qty 20+

0

31

Simplicity 1927557SM

NUT, Hex Flange, 5/16-18

$4.99

$

Usually ships in 2-12 days

0

33

Simplicity 1732224SM

V-BELT, Transmission Drive, 54.4

$

$

Not available

34

Simplicity 1930645SM

NUT, Hex Flange Two-Way Lock, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

35

Simplicity 1924356SM

WASHER, .41 ID x 1-1/2 OD x .12 THK
(Superseded to 703591)

$5.49

$

In Stock, Qty 20+

0

36

Simplicity 1921210SM

CAPSCREW, Hex Head, 3/8-16 x 1, G5
(Superseded to 703407)

$11.99

$

In Stock, Qty 7

0

37

Simplicity 1734316SM

SPRING, Extension

$11.99

$

In Stock, only 1 left!

0

38

Simplicity 1729007SM

SPACER, Powdered Metal

$11.99

$

In Stock, Qty 20+

0

39

Simplicity 1733303ASM

ARM, Idler

$28.99

$

Usually ships in 2-12 days

0

40

Simplicity 1721133SM

PULLEY, Idler Flat

$29.99

$

In Stock, Qty 20+

0

41

Simplicity 1924940SM

WASHER, .41 ID x .87 OD x .08 THK
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

42

Simplicity 1708352ASM

BELT GUIDE

$35.99

$

Usually ships in 2-12 days

0

43

Simplicity 1923701SM

CAPSCREW, Hex Head, 3/8-16 x 2, G5
(Superseded to 703589)

$4.49

$

In Stock, only 1 left!

0

44

Simplicity 1931942SM

NUT, Push Pal, 3/8
(Superseded to 703986)

$4.49

$

Usually ships in 2-12 days

0

45

Simplicity 1960759SM

NUT, Push Pal, 1/2

$3.99

$

Usually ships in 2-12 days

0

46

Simplicity 1933988SM

NUT, Push Pal, 5/16
(Superseded to 703297)

$3.99

$

In Stock, Qty 20+

0

47

Simplicity 1728073SM

PULLEY, 4-1/2" Transmission

$

$

Not available

48

Simplicity 1728074SM

FAN, 6" Transmission

$43.99

$

Usually ships in 2-12 days

0

49

Simplicity 1728075SM

PARKING BRAKE ARM ASSEMBLY, Transmission

$50.99

$

In Stock, only 1 left!

0

50

Simplicity 1728060SM

HYDRO SEAL KIT

$140.99

$

Usually ships in 2-12 days

0

51

Simplicity 1687329SM

HUB REPLACEMENT KIT
(Superseded to 1687471YP)

Note: (Includes Ref. Nos. 52 & 53)

$153.99

$

Usually ships in 2-12 days

0

52

HUB, EZT Transmission

Note: (Included in Ref. No. 51)

$

$

Not available

53

NUT, EZT Transmission

Note: (Included in Ref. No. 51)

$

$

Not available

54

Simplicity 1728076SM

GEAR, Parking Brake, Transmission

$37.99

$

Usually ships in 2-12 days

0

55

Simplicity 1716622SM

CLIP, E Transmission Parking Brake

$4.49

$

Usually ships in 2-12 days

0

56

Simplicity 1735490SM

ARM, Control Kit L.H.

$108.99

$

Usually ships in 2-12 days

0

57

Simplicity 1735491SM

ARM, Control Kit R.H.

$92.99

$

Usually ships in 2-12 days

0

58

Simplicity 1735483SM

SPRING, Extension

Note: (Used only on Hydro Gear P/N ZC-AHBB-2A7B-1DPX and ZC-DHBB-2A7C-1DPX)

$16.99

$

In Stock, Qty 6

0

58

Simplicity 1735482SM

SPRING, Extension

Note: (Used only on Hydro Gear P/N ZC-AHBB-2ADB-1DPX and ZC-DHBB-2ADC-1DPX)

$

$

Not available
