2690644 - Simplicity Axion 50" Zero-Turn Mower, 24hp Engine Group - 24HP Briggs & Stratton Parts Diagram

Axion 50" Zero-Turn Mower, 24hp

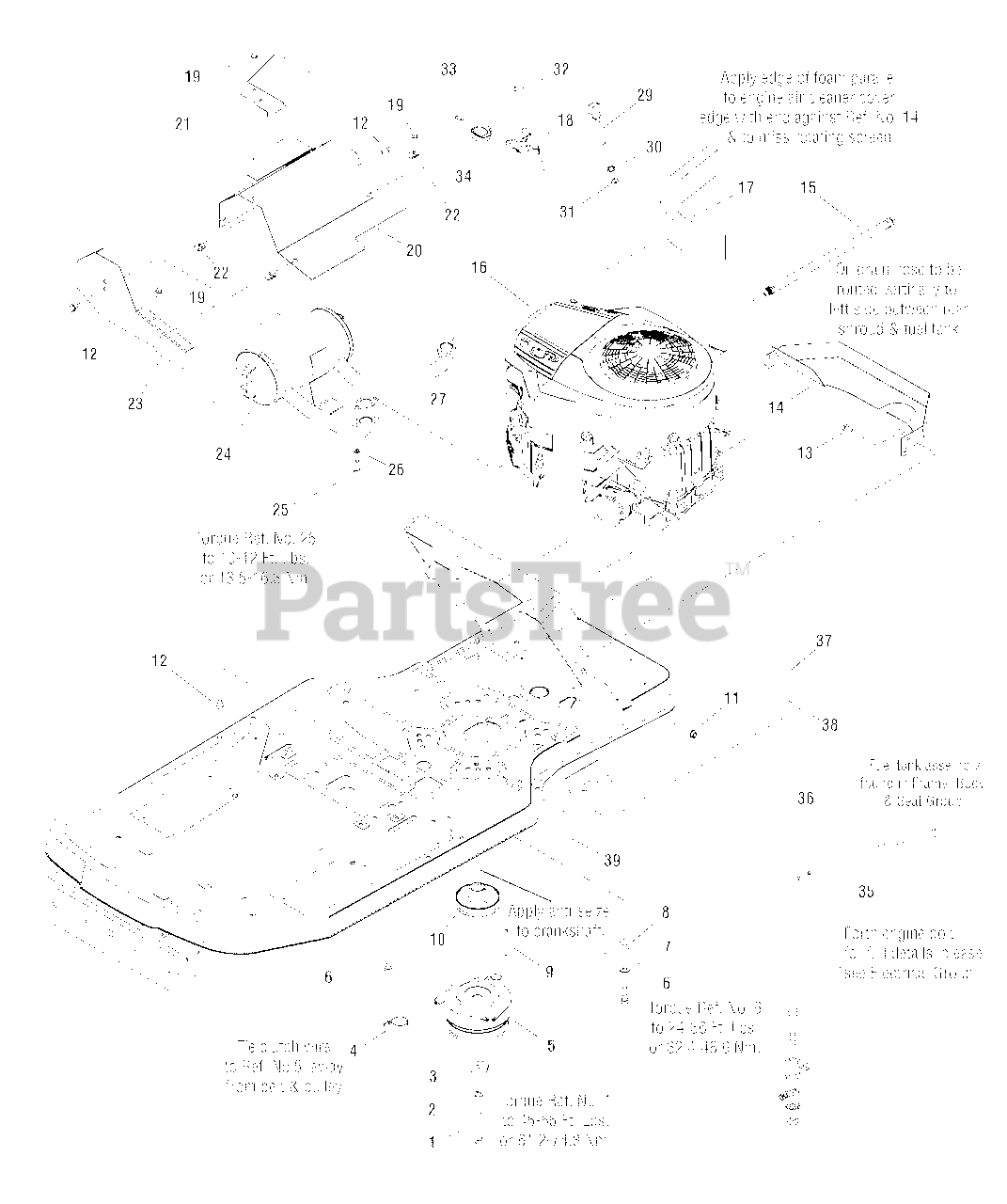

Engine Group - 24HP Briggs & Stratton Parts Diagram

  • Title

1

Simplicity 1960648SM

CAPSCREW, Hex Head, 7/16-20 x 2-3/4, G5

$6.49

$

Usually ships in 2-12 days

0

2

Simplicity 1918199SM

LOCKWASHER, Spring
(Superseded to 704007)

$4.49

$

In Stock, Qty 20+

0

3

Simplicity 1708264SM

WASHER, Hex, 7/16

$8.99

$

In Stock, Qty 5

0

4

Simplicity 2832747SM

TIE, Self-Locking, 3.62"

$3.99

$

Usually ships in 2-12 days

0

5

Simplicity 1717664SM

CLUTCH, Electric Ogura
(Superseded to 1687746YP)

$376.99

$

In Stock, only 1 left!

0

6

Simplicity 2828635SM

SCREW, Hex Washer Head Taptite, 3/8-16 x 1-1/4

$4.99

$

In Stock, Qty 20+

0

7

Simplicity 1924940SM

WASHER, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

8

Simplicity 1734049SM

RETAINER, Clutch

$12.99

$

In Stock, only 2 left!

0

9

Simplicity 1720463SM

KEY, Hi-Pro, 1/4 x 2-1/2

$8.99

$

In Stock, only 1 left!

0

10

Simplicity 1727816SM

PULLEY ASSEMBLY, Engine

$

$

Not available

11

Simplicity 1931277SM

NUT, Hex Whiz Lock Flange, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

12

Simplicity 1924856SM

SCREW, Hex Washer Head Taptite, 5/16-18 x 1/2
(Superseded to 703985)

$4.49

$

In Stock, only 3 left!

0

13

Simplicity 1921332SM

CAPSCREW, Hex Head, 5/16-18 x 3/4, G5
(Superseded to 704287)

$3.99

$

In Stock, Qty 9

0

14

Simplicity 1733414ASM

AIR DUCT, Inlet

$70.99

$

Usually ships in 2-12 days

0

15

Simplicity 1726498SM

HOSE, Oil Drain, 16.5"

$26.99

$

Usually ships in 2-12 days

0

16

Simplicity 44M777-0113-E1

*ENGINE, 24HP Briggs & Stratton

Note: (Engine Model: 44M777-0113-E1)

$

$

Not available

17

Simplicity 1734169SM

SEAL, Foam Air Inlet

$32.99

$

In Stock, only 1 left!

0

18

Simplicity 1734332SM

THROTTLE ASSEMBLY

$37.99

$

Usually ships in 2-12 days

0

19

Simplicity 1960295SM

SCREW, Hex Whiz Lock Flange, 1/4-20 x 5/8

$4.49

$

In Stock, only 1 left!

0

20

Simplicity 1734246ASM

HEAT SHIELD, Muffler Top

$56.99

$

Usually ships in 2-12 days

0

21

Simplicity 1728017SM

HEAT SHIELD, Throttle

$7.99

$

Usually ships in 2-12 days

0

22

Simplicity 1960368SM

NUT, Speed, 1/4-20
(Superseded to 705876)

$4.49

$

In Stock, Qty 20+

0

23

Simplicity 1727939ASM

HEAT SHIELD, Muffler Side

$29.99

$

Usually ships in 2-12 days

0

24

Simplicity 1734061SM

MUFFLER, 24HP V-Twin ELS

$384.99

$

In Stock, only 1 left!

0

25

Simplicity 1936228SM

CAPSCREW, Hex Head, 5/16-18 x 3/4, G8

$4.49

$

In Stock, only 1 left!

0

26

Simplicity 1917356SM

LOCKWASHER, Spring, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

27

Simplicity 1731214SM

GASKET, Exhaust

$4.99

$

Usually ships in 2-12 days

0

28

Simplicity 1734273SM

DECAL, Hot Exhaust

$21.99

$

Usually ships in 2-12 days

0

29

Simplicity 1734333SM

CABLE, Choke

$37.99

$

Usually ships in 2-12 days

0

30

Simplicity 7090390SM

WASHER, Lock Internal Tooth, 3/8
(Superseded to 703930)

$4.49

$

In Stock, only 1 left!

0

31

Simplicity 7091630SM

NUT, Hex, 3/8
(Superseded to 703895)

$4.49

$

In Stock, only 1 left!

0

32

Simplicity 7090999SM

SCREW, Taptite Pan Head Torx, 1/4-20 x 5/8
(Superseded to 703953)

$4.49

$

In Stock, only 2 left!

0

33

Simplicity 7091195SM

SCREW, Taptite Pan Head Combo, #10-16 x 3/4

$4.49

$

In Stock, only 1 left!

0

34

Simplicity 7100529SM

KNOB, Throttle
(Superseded to 1725337SM)

$12.99

$

In Stock, only 1 left!

0

35

Simplicity 1718678SM

HOSE, Fuel, 19.5"

Note: (See Frame, Body & Seat Group for fuel tank assembly.)

$

$

Not available

36

Simplicity 2860112SM

CLAMP, Hose

$3.99

$

Usually ships in 2-12 days

0
