2690642 - Simplicity Axion 42" Zero-Turn Mower, 20hp Engine Group - 20HP Briggs & Stratton Parts Diagram

Axion 42" Zero-Turn Mower, 20hp

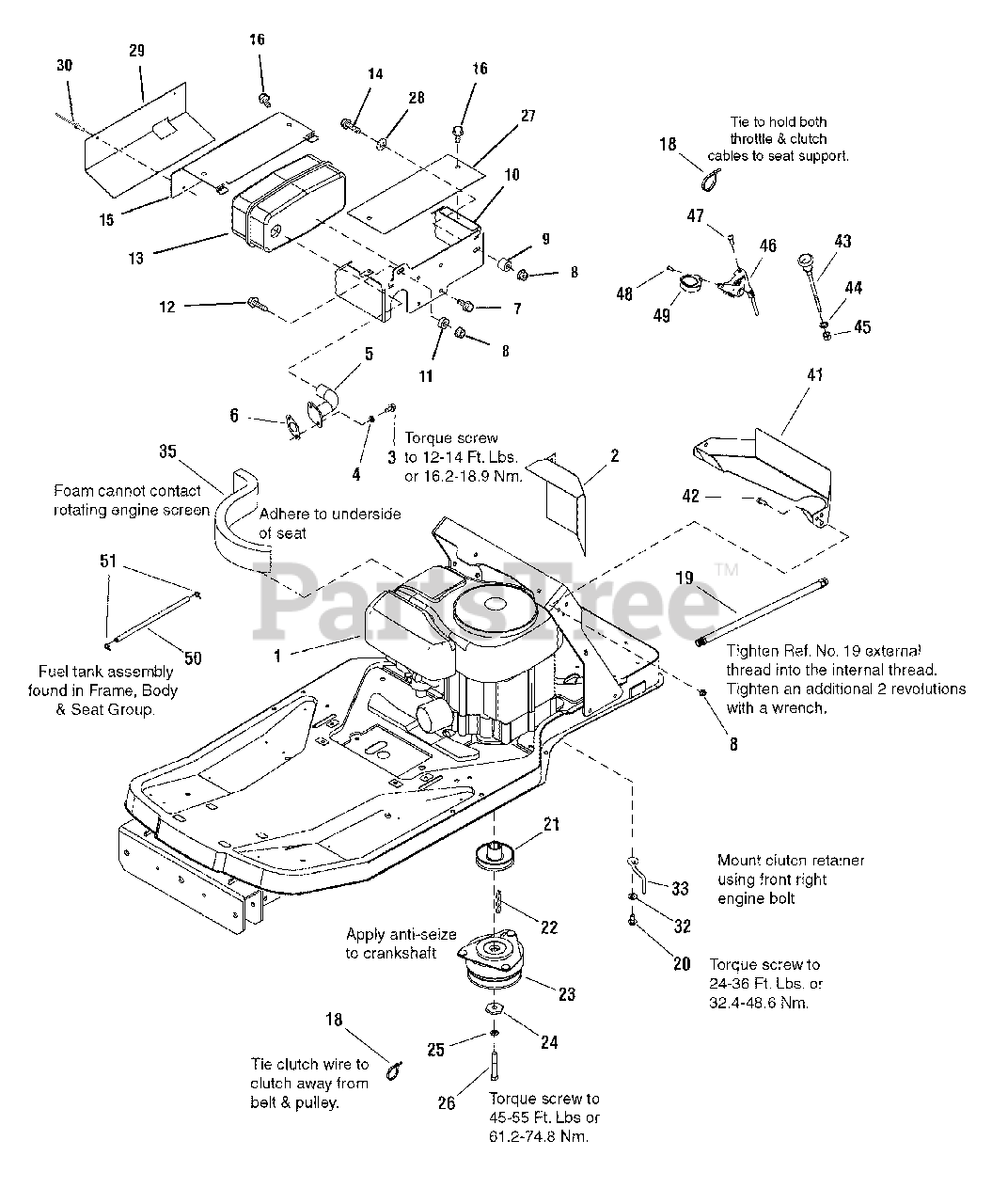

Engine Group - 20HP Briggs & Stratton Parts Diagram

  • Title

1

Simplicity 31M977-0111-E1

*ENGINE, 20 HP Briggs & Stratton Intek

Note: (Engine Model: 31M977-0111-E1)

$

$

Not available

2

Simplicity 1734150ASM

HEAT SHIELD, Inner

$32.99

$

Usually ships in 2-12 days

0

3

Simplicity 1936228SM

CAPSCREW, Hex Head, 5/16-18 x 3/4, G8

$4.49

$

In Stock, only 1 left!

0

4

Simplicity 1917356SM

LOCKWASHER, Spring, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

5

Simplicity 1732259SM

PIPE ASSEMBLY, Exhaust

$34.99

$

Usually ships in 2-12 days

0

6

Simplicity 1731214SM

GASKET, Exhaust

$4.99

$

Usually ships in 2-12 days

0

7

Simplicity 1960295SM

SCREW, Hex Whiz Lock Flange, 1/4-20 x 5/8

$4.49

$

In Stock, only 1 left!

0

8

Simplicity 1927557SM

NUT, Hex Whiz Lock Flange, 5/16-18

$4.99

$

Usually ships in 2-12 days

0

9

Simplicity 1667812SM

SPACER

$5.99

$

In Stock, Qty 16

0

10

Simplicity 1732255SM

BRACKET, Muffler/Heat Shield

$

$

Not available

11

Simplicity 1667811SM

SPACER, .390 ID x .9 OD x .34 LG, Powdered Metal

$3.49

$

In Stock, Qty 20+

0

12

Simplicity 1921977SM

CAPSCREW, Hex Head, 5/16-18 x 1-1/4, G5
(Superseded to 703570)

$4.99

$

In Stock, Qty 7

0

13

Simplicity 1732273SM

MUFFLER ASSEMBLY, Single

$93.99

$

In Stock, Qty 5

0

14

Simplicity 1921221SM

CAPSCREW, Hex Head, 5/16-18 x 1-1/2, G5
(Superseded to 703906)

$4.99

$

In Stock, only 4 left!

0

15

Simplicity 1727996ASM

HEAT SHIELD, Outer Single
(Superseded to 7300918ASM)

$48.99

$

Usually ships in 2-12 days

0

16

Simplicity 1960720SM

CAPSCREW, Thread Cutting, # 10 x 1/2

$4.99

$

Usually ships in 2-12 days

0

18

Simplicity 2832747SM

TIE, Self Locking, 3-5/8 LG

$3.99

$

Usually ships in 2-12 days

0

19

Simplicity 1726498SM

HOSE, Oil Drain, 16-1/2 LG

$26.99

$

Usually ships in 2-12 days

0

20

Simplicity 2828635SM

SCREW, Hex Washer Head Taptite, 3/8-16 x 1-1/4

$4.99

$

In Stock, Qty 20+

0

21

Simplicity 1727816SM

PULLEY ASSEMBLY, Engine

$

$

Not available

22

Simplicity 1720463SM

KEY, Hi-Pro, 1/4 x 2-1/2

$8.99

$

In Stock, only 1 left!

0

23

Simplicity 1717664SM

CLUTCH, Electric
(Superseded to 1687746YP)

$376.99

$

In Stock, only 1 left!

0

24

Simplicity 1708264SM

WASHER, Hex, .453 ID x 1-1/2

$8.99

$

In Stock, Qty 5

0

25

Simplicity 1918199SM

LOCKWSHER, Spring, .438
(Superseded to 704007)

$4.49

$

In Stock, Qty 20+

0

26

Simplicity 1960648SM

CAPSCREW, Hex Head, 7/16-20 x 2-3/4, G5

$6.49

$

Usually ships in 2-12 days

0

27

Simplicity 1732885ASM

HEAT SHIELD

$15.99

$

Usually ships in 2-12 days

0

28

Simplicity 1919326SM

WASHER, 5/16, .34 ID x 3/4 OD x .06 THK

$4.49

$

In Stock, Qty 5

0

29

Simplicity 1733063SM

HEAT SHIELD

$48.99

$

Usually ships in 2-12 days

0

30

Simplicity 1675044SM

RIVET, Pop

$3.99

$

In Stock, only 1 left!

0

32

Simplicity 1924940SM

WASHER, 3/8, .41 ID x .87 OD x .08 THK
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

33

Simplicity 1734049SM

RETAINER, Clutch

$12.99

$

In Stock, only 2 left!

0

35

Simplicity 1734189SM

SEAL, Foam Air Duct, 1 x 2-1/2, 12" LG

$21.99

$

Usually ships in 2-12 days

0

41

Simplicity 1734180ASM

AIR DUCT, Inlet

$69.99

$

Usually ships in 2-12 days

0

42

Simplicity 1921332SM

CAPSCREW, Hex Head, 5/16-18 x 3/4, G5
(Superseded to 704287)

$3.99

$

In Stock, Qty 8

0

43

Simplicity 7100416SM

CABLE, Choke

$42.99

$

Usually ships in 2-12 days

0

44

Simplicity 7090390SM

WASHER, Lock Internal Tooth, 3/8
(Superseded to 703930)

$4.49

$

Usually ships in 2-12 days

0

45

Simplicity 7091630SM

NUT, Hex, 3/8
(Superseded to 703895)

$4.49

$

Usually ships in 2-12 days

0

46

Simplicity 7075449SM

CONTROL, Throttle

$37.99

$

Usually ships in 2-12 days

0

47

Simplicity 7090999SM

SCREW, Pan Head Taptite Torx, 1/4-20 x 5/8
(Superseded to 703953)

$4.49

$

In Stock, only 2 left!

0

48

Simplicity 7091195SM

SCREW, Pan Head Taptite Combo, 310-16 x 3/4

$4.49

$

In Stock, only 1 left!

0

49

Simplicity 7100529SM

KNOB, Throttle
(Superseded to 1725337SM)

$12.99

$

In Stock, only 1 left!

0

50

Simplicity 1718678SM

HOSE, Fuel, 19.5"

Note: (See Frame, Body & Seat Group for fuel tank assembly.)

$

$

Not available

51

Simplicity 2860112SM

CLAMP, Hose

$3.99

$

Usually ships in 2-12 days

0
