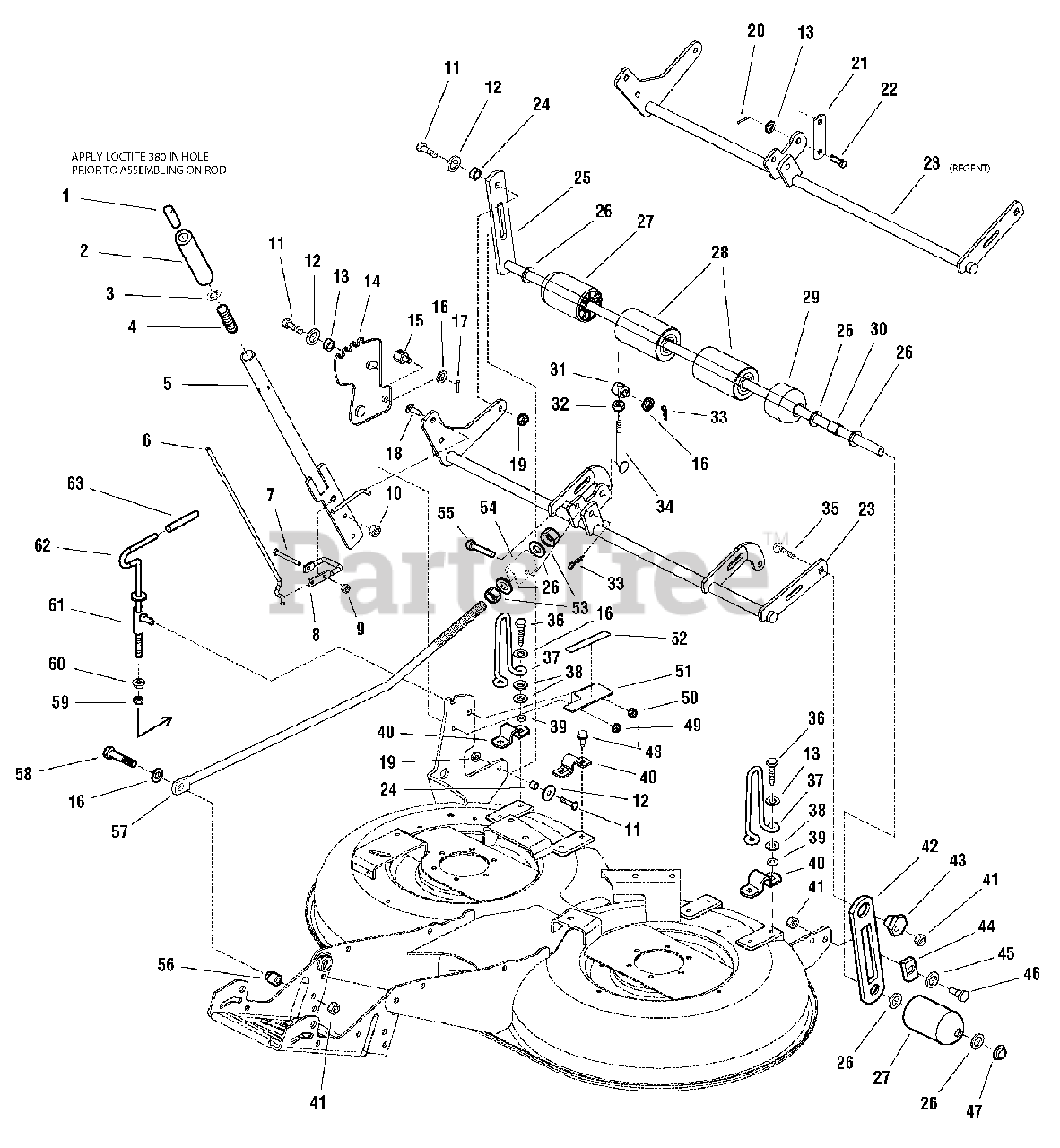

2690495 - Simplicity Regent 40" Lawn Tractor, 18.5hp Briggs & Stratton 40" Mower Deck - Height Adjustment & Roller Bar Group Parts Diagram

Regent 40" Lawn Tractor, 18.5hp Briggs & Stratton

40" Mower Deck - Height Adjustment & Roller Bar Group Parts Diagram

  • Title

1

Simplicity 1723124

BUTTON
(Superseded to 1723124SM)

$5.99

$

In Stock, Qty 20+

0

2

Simplicity 1713995

GRIP, Lift Lever
(Superseded to 1713995SM)

$12.99

$

In Stock, only 1 left!

0

3

Simplicity 1960518

NUT, Push 1/4 Thread
(Superseded to 703826)

$3.49

$

In Stock, Qty 20+

0

4

Simplicity 1723321

SPRING, Compression
(Superseded to 1723321SM)

$6.99

$

In Stock, only 4 left!

0

5

Simplicity 1720695A

HANDLE ASSEMBLY, Lift
(Superseded to 1720695ASM)

$133.99

$

Usually ships in 2-12 days

0

6

Simplicity 1721257

ROD, Latch
(Superseded to 1721257SM)

$10.99

$

Usually ships in 2-12 days

0

7

Simplicity 1921159

CAPSCREW, Hex Head, 1/4-20 x 2-1/4
(Superseded to 704291)

$5.49

$

Usually ships in 2-12 days

0

8

Simplicity 1720599

LATCH
(Superseded to 1720599SM)

$22.99

$

Usually ships in 2-12 days

0

9

Simplicity 1920397

NUT, Hex Lock, ESNA, 1/4-20
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

10

Simplicity 1931277

NUT, 5/16-18, Hex Flange Whiz Lock Small
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

11

Simplicity 1921977

CAPSCREW, Hex Head, 5/16-18 x 1-1/4
(Superseded to 1921977SM)

$4.99

$

In Stock, Qty 7

0

12

Simplicity 1960044

WASHER, Plain, 21/64 x 1-1/4
(Superseded to 1960044SM)

$4.49

$

In Stock, only 3 left!

0

13

Simplicity 1666697

SPACER
(Superseded to 1666697SM)

$6.49

$

In Stock, only 2 left!

0

14

Simplicity 1723409A

BRACKET, Adjusting
(Superseded to 1723409ASM)

$14.99

$

Usually ships in 2-12 days

0

15

Simplicity 2108512

PIVOT
(Superseded to 2108512SM)

$36.99

$

In Stock, only 1 left!

0

16

Simplicity 1924940

WASHER, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

17

Simplicity 1918447

PIN, Cotter 3/32 x 3/4
(Superseded to 703312)

$3.99

$

In Stock, Qty 20+

0

18

Simplicity 1931335

CARRIAGE BOLT, 5/16-18 x 1
(Superseded to 703800)

$3.99

$

In Stock, Qty 7

0

19

Simplicity 2860643

NUT, Hex Flange Collar Lock, 5/16-18
(Superseded to 2860643SM)

$3.49

$

In Stock, only 4 left!

0

20

Simplicity 1918448

PIN, Cotter
(Superseded to 1918448SM)

$4.49

$

Usually ships in 2-12 days

0

21

Simplicity 1732102A

LINK, Lift Mower
(Superseded to 1732102ASM)

$9.49

$

Usually ships in 2-12 days

0

22

Simplicity 1732049

PIN, Clevis
(Superseded to 1732049SM)

$5.99

$

In Stock, only 4 left!

0

23

Simplicity 1731993A

SHAFT ASSEMBLY, Rocker Mulch
(Superseded to 1731993ASM)

$170.99

$

Usually ships in 2-12 days

0

24

Simplicity 1960236

SPACER
(Superseded to 1960236SM)

$6.49

$

In Stock, only 2 left!

0

25

Simplicity 1723305A

SHAFT & BAR ASSEMBLY
(Superseded to 1723305ASM)

$131.99

$

Usually ships in 2-12 days

0

26

Simplicity 1924366

WASHER, 5/8
(Superseded to 703580)

$4.49

$

In Stock, Qty 20+

0

27

Simplicity 1722036

ROLLER, Rounded End
(Superseded to 1722036SM)

$7.99

$

In Stock, Qty 20+

0

28

Simplicity 1668513

ROLLER
(Superseded to 1668513SM)

$10.99

$

In Stock, Qty 20+

0

29

Simplicity 1717675

ROLLER, End
(Superseded to 1717675SM)

$6.99

$

In Stock, Qty 20+

0

30

Simplicity 1602946

SPACER
(Superseded to 1602946SM)

$13.99

$

In Stock, Qty 20+

0

31

Simplicity 7028200

TRUNNION
(Superseded to 7028200SM)

$13.99

$

In Stock, only 2 left!

0

32

Simplicity 1920161

NUT, Jam, 5/16-18
(Superseded to 1920161SM)

$4.49

$

In Stock, only 2 left!

0

33

Simplicity 1960074

CLIP, Spring
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

34

Simplicity 1724959

ROD, Height Adjustment
(Superseded to 703827)

$10.99

$

In Stock, Qty 12

0

35

Simplicity 1931352

CARRIAGE BOLT, 3/8-16 x 1-1/2
(Superseded to 1931352SM)

$4.49

$

In Stock, only 4 left!

0

36

Simplicity 1931202

CAPSCREW, Taptite, 5/16-18 x 1-1/4
(Superseded to 703167)

$3.99

$

In Stock, only 3 left!

0

37

Simplicity 1732010A

UPSTOP
(Superseded to 1732010ASM)

$29.99

$

Usually ships in 2-12 days

0

38

Simplicity 1919381

WASHER, Plain, 5/16
(Superseded to 1919381SM)

$4.49

$

In Stock, only 2 left!

0

39

Simplicity 1933988

NUT, Push
(Superseded to 703297)

$3.99

$

In Stock, Qty 20+

0

40

Simplicity 1665374

STRAP
(Superseded to 1761690HYP)

$7.99

$

Usually ships in 2-12 days

0

41

Simplicity 2860681

NUT, Hex Toplock Spiral Flange, 3/8-16
(Superseded to 2860681SM)

$4.49

$

In Stock, Qty 7

0

42

Simplicity 1704073A

BAR, Roller
(Superseded to 1704073ASM)

$34.99

$

In Stock, only 1 left!

0

43

Simplicity 1704082

NUT, Adjuster
(Superseded to 1704082SM)

$5.49

$

In Stock, Qty 15

0

44

Simplicity 1677507

SLIDE
(Superseded to 1677507SM)

$6.99

$

In Stock, only 3 left!

0

45

Simplicity 1924361

WASHER, Plain
(Superseded to 703451)

$4.49

$

In Stock, Qty 20+

0

46

Simplicity 2172622

SHOULDER BOLT
(Superseded to 2172622SM)

$6.99

$

In Stock, Qty 20+

0

47

Simplicity 1960520

PUSH NUT, 5/8
(Superseded to 1960520SM)

$3.99

$

In Stock, Qty 20+

0

48

Simplicity 1664847SM

CAPSCREW, Hex Head, Taptite, 5/16-18 x 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

49

Simplicity 1935048

NUT, Hex, Flange Lock, 5/16-18
(Superseded to 704067)

$3.99

$

In Stock, Qty 14

0

50

Simplicity 1930645

NUT, Hex, Flange, Locking, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

51

Simplicity 1720931A

BRACKET, Height of Cut
(Superseded to 1720931ASM)

$10.99

$

Usually ships in 2-12 days

0

52

Simplicity 1720919

DECAL, Height
(Superseded to 1720919SM)

$13.99

$

Usually ships in 2-12 days

0

53

Simplicity 1915726

NUT, Hex, Full, 5/8
(Superseded to 703912)

$3.49

$

In Stock, Qty 5

0

54

Simplicity 1706645A

TRUNNION, Rod
(Superseded to 1706645ASM)

$8.49

$

Usually ships in 2-12 days

0

55

Simplicity 2118053

Pin
(Superseded to 704241)

$9.99

$

In Stock, only 2 left!

0

56

Simplicity 1706644

SPACER, 3/8 x 3/4 x 15/16
(Superseded to 1706644SM)

$8.49

$

In Stock, only 2 left!

0

57

Simplicity 1722661

ROD, Adjusting
(Superseded to 1722661SM)

$24.99

$

Usually ships in 2-12 days

0

58

Simplicity 1922606

CAPSCREW, Hex Head, 3/8-16 x 1 3/4
(Superseded to 704289)

$4.99

$

In Stock, Qty 13

0

59

Simplicity 1917421

NUT, Jam, Hex, 3/8-16
(Superseded to 1917421SM)

$4.99

$

In Stock, Qty 11

0

60

Simplicity 1960601

NUT, Hex Flange, 3/8-16
(Superseded to 1960601SM)

$3.49

$

Usually ships in 2-12 days

0

61

Simplicity 2108241

SOCKET ASSEMBLY
(Superseded to 2108241AYP)

$50.99

$

Usually ships in 2-12 days

0

62

Simplicity 1720704

ROD & WASHER ASSEMBLY, Adjust Handle
(Superseded to 1720704SM)

$22.99

$

Usually ships in 2-12 days

0

63

Simplicity 1651820

GRIP
(Superseded to 5023198SM)

$4.49

$

In Stock, only 2 left!

0
