2690495 - Simplicity Regent 40" Lawn Tractor, 18.5hp Briggs & Stratton 40" Mower Deck - Belt, Idler Arm & Hitch Group Parts Diagram

Regent 40" Lawn Tractor, 18.5hp Briggs & Stratton

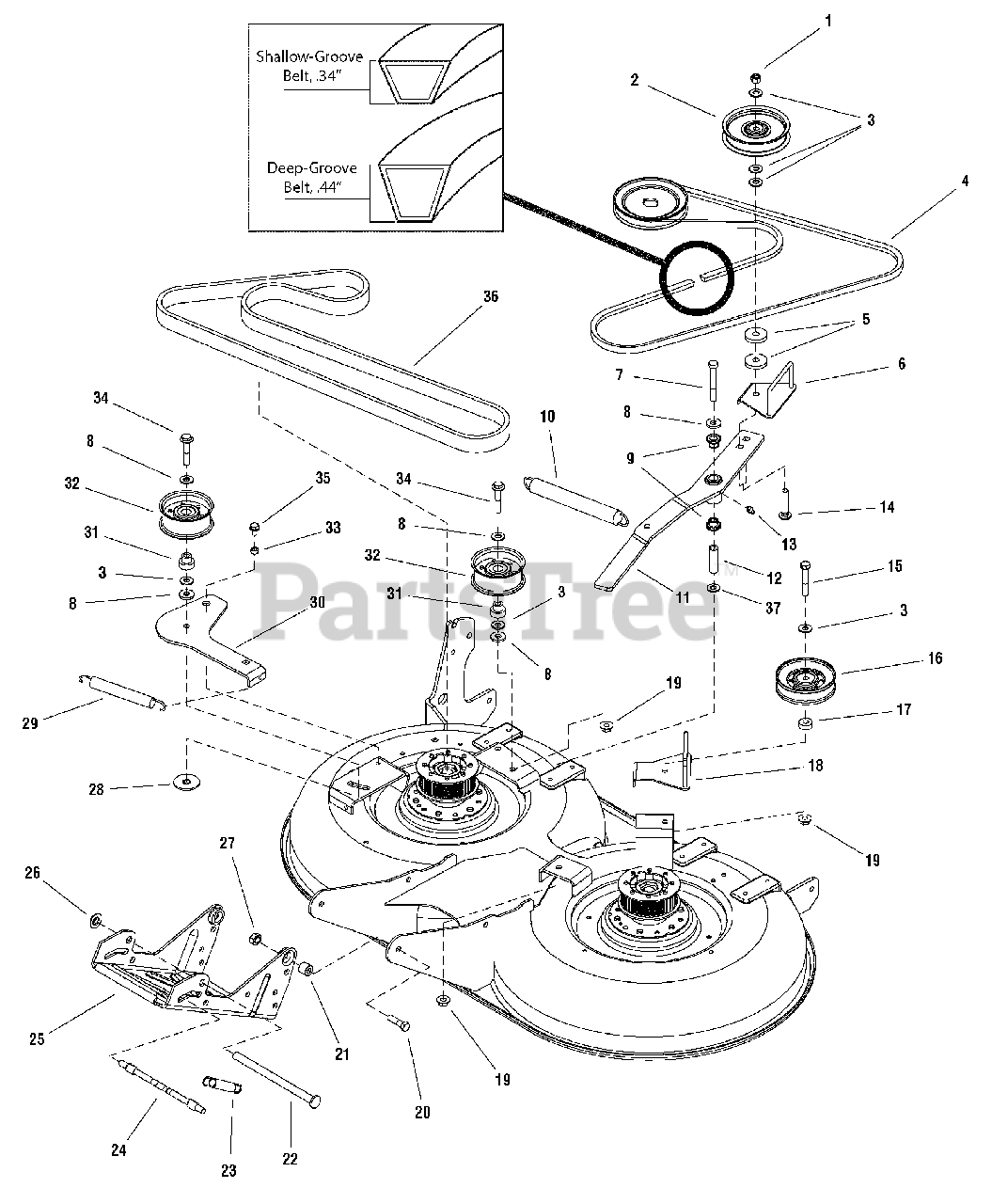

40" Mower Deck - Belt, Idler Arm & Hitch Group Parts Diagram

  • Title

2

Simplicity 1725408

PULLEY, Idler
(Superseded to 1725408SM)

$47.99

$

Usually ships in 2-12 days

0

3

Simplicity 1924940

WASHER, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

4

Simplicity 1721532

V-BELT, PTO, Front, .34" Shallow-Groove
(Superseded to 1721532SM)

Note: (Must be used with shallow-groove pulley)

$58.99

$

In Stock, Qty 20+

0

4

Simplicity 1732955

V-BELT, PTO, Front, .44" Deep-Groove
(Superseded to 1732955SM)

Note: (Must be used with deep-groove pulley)

$56.99

$

In Stock, Qty 20+

0

5

Simplicity 1960534

WASHER
(Superseded to 1960534SM)

$

$

Not available

6

Simplicity 1722175A

BELT GUIDE
(Superseded to 1722175ASM)

$26.99

$

Usually ships in 2-12 days

0

7

Simplicity 1960614

CAPSCREW, Hex Head, 3/8-16 x 3 G8
(Superseded to 1960614SM)

$4.99

$

In Stock, only 1 left!

0

8

Simplicity 1922755

WASHER, 3/8
(Superseded to 704128)

$4.99

$

In Stock, Qty 11

0

9

Simplicity 1663114

BUSHING
(Superseded to 1663114SM)

$4.49

$

In Stock, only 3 left!

0

10

Simplicity 1715435

SPRING, Extension, Idler Arm
(Superseded to 1715435SM)

$9.49

$

In Stock, Qty 20+

0

1

Simplicity 1919439

NUT, Hex Lock, ESNA, 3/8-16
(Superseded to 703117)

$3.49

$

In Stock, Qty 20+

0

11

Simplicity 1724835

ARM ASSEMBLY, with Bushing & Fitting, 38 Tooth
(Superseded to 1724835SM)

Note: (Includes Ref. Nos. 26 & 37)

$

$

Not available

12

Simplicity 1657242

SPACER, Hardened
(Superseded to 1657242SM)

$10.99

$

In Stock, Qty 10

0

13

Simplicity 2812808

FITTING, Grease, 1/4-28 Thread
(Superseded to 2812808SM)

$4.49

$

In Stock, Qty 20+

0

14

Simplicity 1931355

CARRIAGE BOLT, 3/8-16 x 2-1/4
(Superseded to 1931355SM)

$5.99

$

In Stock, Qty 11

0

15

Simplicity 1922130

CAPSCREW, Hex Head, 3/8-16 x 2-1/4
(Superseded to 703872)

$4.99

$

In Stock, Qty 20+

0

16

Simplicity 1723952

PULLEY
(Superseded to 1723952SM)

$43.99

$

Usually ships in 2-12 days

0

17

Simplicity 1667812

SPACER
(Superseded to 1667812SM)

$5.99

$

In Stock, Qty 16

0

18

Simplicity 1722182A

BELT GUIDE
(Superseded to 1722182ASM)

$43.99

$

Usually ships in 2-12 days

0

19

Simplicity 1928352

NUT, Hex, Flange, Whizlock, 5/16-18 x 1/2
(Superseded to 703793)

$4.49

$

In Stock, Qty 5

0

20

Simplicity 1921968

CAPSCREW, Hex Head, 3/8-16 x 1-3/8
(Superseded to 1921968SM)

$4.49

$

In Stock, only 3 left!

0

21

Simplicity 2172329

SPACER
(Superseded to 1732443SM)

$5.99

$

In Stock, Qty 20+

0

22

Simplicity 1713578

ROD
(Superseded to 1713578SM)

$15.99

$

In Stock, only 1 left!

0

23

Simplicity 2156302

SPRING, Extension
(Superseded to 2156302SM)

$6.49

$

In Stock, Qty 20+

0

24

Simplicity 1715759

ROD
(Superseded to 1715759SM)

$7.99

$

In Stock, Qty 11

0

25

Simplicity 1720044A

HITCH, Mower
(Superseded to 1760192AYP)

$155.99

$

In Stock, only 1 left!

0

26

Simplicity 1960519

NUT, Push, 1/2
(Superseded to 703179)

$3.49

$

In Stock, Qty 20+

0

27

Simplicity 2860681

NUT, Hex Toplock Spiral Flange, 3/8-16
(Superseded to 2860681SM)

$4.49

$

In Stock, Qty 7

0

28

Simplicity 1721425

WASHER & NUT ASSEMBLY, 3/8 x 1-1/2
(Superseded to 1721425SM)

$

$

Not available

29

Simplicity 1674671

SPRING, Extension
(Superseded to 1674671SM)

$24.99

$

In Stock, Qty 5

0

30

Simplicity 1726387A

ARM, Idler
(Superseded to 1726387ASM)

$55.99

$

Usually ships in 2-12 days

0

31

Simplicity 1719221

HUB
(Superseded to 1719221SM)

$23.99

$

Usually ships in 2-12 days

0

32

Simplicity 1731892

PULLEY, Idler
(Superseded to 1731892SM)

$67.99

$

Usually ships in 2-12 days

0

33

Simplicity 1666697

SPACER
(Superseded to 1666697SM)

$6.49

$

In Stock, only 2 left!

0

34

Simplicity 1960746

SCREW, Hex Head, Flange 3/8-16 x 2
(Superseded to 1960746SM)

$3.49

$

Usually ships in 2-12 days

0

35

Simplicity 1930601

SCREW, Taptite, 5/16-18 x 5/8
(Superseded to 703949)

$3.99

$

In Stock, Qty 5

0

36

Simplicity 1724625

BELT, Timing, 38" Tooth
(Superseded to 1724625SM)

$213.99

$

Usually ships in 2-12 days

0

37

Simplicity 1933263

WASHER, 3/8
(Superseded to 703990)

$6.99

$

In Stock, Qty 20+

0
