2690479 - Simplicity Cobalt 61" Zero-Turn Mower, 27hp Kohler Rear Suspension Group Parts Diagram

Cobalt 61" Zero-Turn Mower, 27hp Kohler

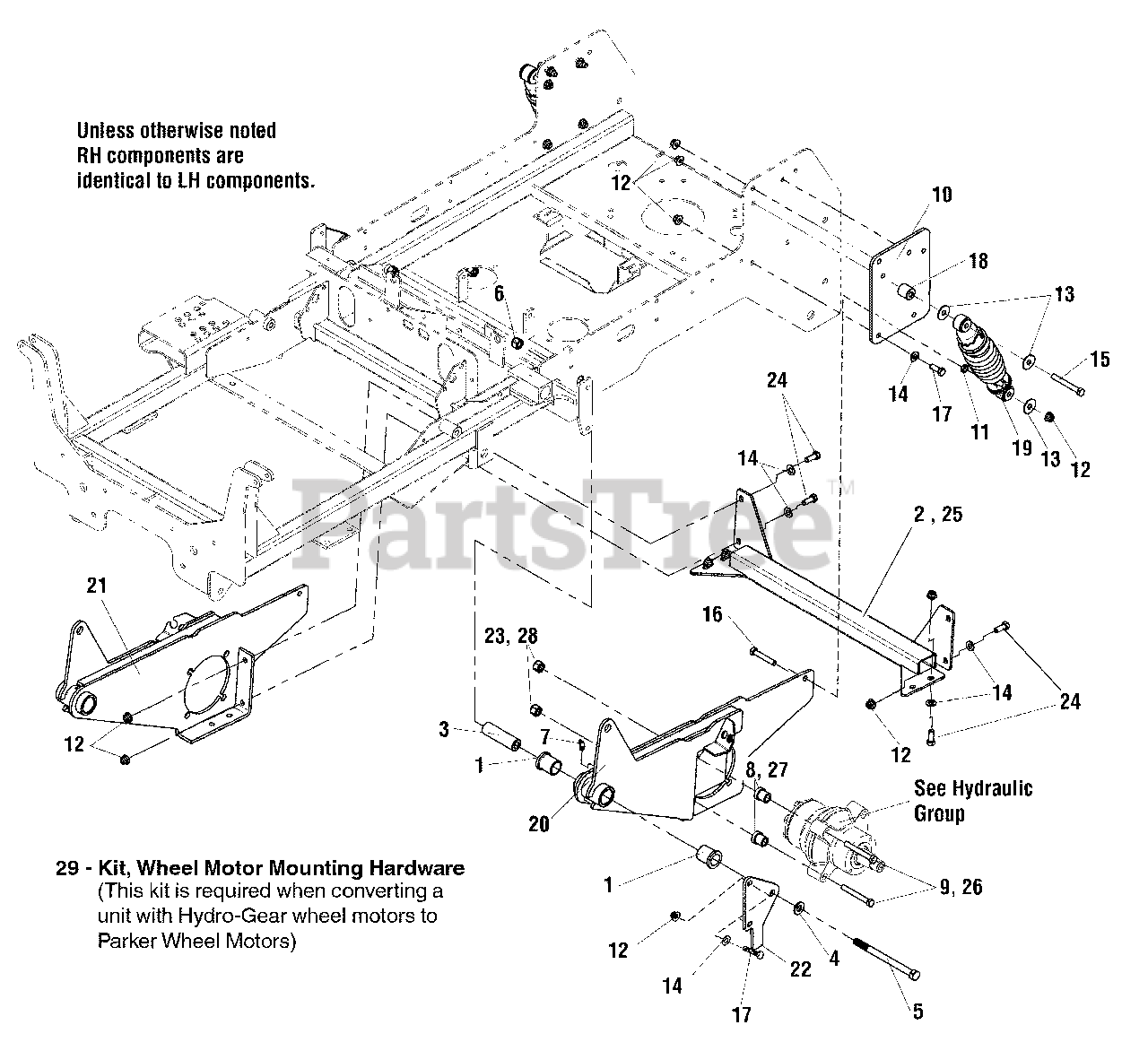

Rear Suspension Group Parts Diagram

  • Title

1

Simplicity 5021541SM

BUSHING, FLANGE

$9.99

$

In Stock, Qty 20+

0

2

Simplicity 5600188

KIT, TIE BAR
(Superseded to 5600188YP)

Note: (S/N: 2013018954 & Below)(Includes Mounting Hardware)

$256.99

$

Usually ships in 2-12 days

0

3

Simplicity 5061339SM

SPACER, .52 X 1.00 X 3.42

$13.99

$

Usually ships in 2-12 days

0

4

Simplicity 5025158SM

WASHER, 1/2" SAE

$3.99

$

In Stock, Qty 20+

0

5

Simplicity 5025017X52SM

BOLT, 1/2-13 X 6-1/2" GD5

$10.99

$

In Stock, only 2 left!

0

6

Simplicity 5025056SM

NUT, 1/2-13 HEX NYLON LOCK
(Superseded to 7091325YP)

$4.99

$

In Stock, only 1 left!

0

7

Simplicity 5020095SM

GREASE FITTING, 1/4-28 STRAIGHT

$3.99

$

In Stock, only 3 left!

0

8

Simplicity 5061670SM

SPACER, .53 X 1.00 X 1.00
(Superseded to 5102689YP)

Note: (Models w/ Hydro-Gear wheel motors)

$5.49

$

In Stock, only 2 left!

0

9

Simplicity 5025017X28SM

BOLT, 1/2-13 X 3-1/2" GD5

Note: (Models w/ Hydro-Gear wheel motors)

$5.99

$

In Stock, only 2 left!

0

10

Simplicity 5061751CSM

PLATE, FRAME SUPPORT

$40.99

$

Usually ships in 2-12 days

0

11

Simplicity 5046860SM

SPACER, .39 X 1.00 X .50

$6.49

$

In Stock, only 1 left!

0

12

Simplicity 5025394SM

NUT, 3/8-16 HEX NYLOCK FLANGE

$4.49

$

In Stock, Qty 20+

0

13

Simplicity 5025165SM

WASHER, 3/8" FENDER

$3.99

$

In Stock, only 1 left!

0

14

Simplicity 5025156SM

WASHER 3/8" SAE
(Superseded to 703590)

$3.99

$

In Stock, Qty 20+

0

15

Simplicity 5025013X28SM

BOLT, 3/8-16 X 3-1/2" GD5 YZ

$4.99

$

In Stock, Qty 20+

0

16

Simplicity 5025013X18SM

BOLT, 3/8-16 X 2-1/4" GD5 YZ

$3.99

$

In Stock, only 2 left!

0

17

Simplicity 5025013X8SM

BOLT, 3/8-16 X 1" GD5

$3.99

$

In Stock, only 4 left!

0

18

Simplicity 5103427SM

SPACER, .39 X 1.00 X 1.25, CZ

$

$

Not available

19

Simplicity 5023436SM

COIL - OVER SHOCK ASSEMBLY

$210.99

$

Usually ships in 2-12 days

0

20

Simplicity 5401166CSM

WELD, MOTOR MOUNT, LH - ORANGE

$324.99

$

Usually ships in 2-12 days

0

21

Simplicity 5401165CSM

WELD, MOTOR MOUNT, RH - ORANGE

$341.99

$

Usually ships in 2-12 days

0

22

Simplicity 5400648A

SUPPORT, SWING ARM - BLK
(Superseded to 5400648AYP)

$11.99

$

Usually ships in 2-12 days

0

23

Simplicity 5025396SM

NUT, 1/2-13 NEX NYLOCK FLANGE

Note: (Models w/ Hydro-Gear wheel motors)

$3.49

$

In Stock, only 2 left!

0

24

Simplicity 5025013X10SM

BOLT, 3/8-16 X 1-1/4 GD5

$3.99

$

In Stock, Qty 10

0

25

Simplicity 5600188

KIT, TIE BAR, 61 (5404051A)
(Superseded to 5600188YP)

Note: (S/N: 2013018955 & Above)

$256.99

$

Usually ships in 2-12 days

0

26

Simplicity 5025553

BOLT, 1/2-13 X 3.5, DRI-LOC PATCH
(Superseded to 5025553YP)

Note: (Models w/ Parker wheel motors)

$6.49

$

Usually ships in 2-12 days

0

27

Simplicity 5102689

SPACER, .53 X 1.00 X 1.00, W/ FLAT, CZ
(Superseded to 5102689YP)

Note: (Models w/ Parker wheel motors)

$5.49

$

In Stock, only 2 left!

0

28

Simplicity 5025330

NUT, 1/2-13 SQUARE
(Superseded to 5025330SM)

Note: (Models w/ Parker wheel motors)

$3.49

$

Usually ships in 2-12 days

0

29

Simplicity 5600578

KIT, WHEEL MOTOR MOUNTING HARDWARE
(Superseded to 5600578YP)

Note: (For converting a unit from Hydro-Gear to Parker wheel motors)

$84.99

$

Usually ships in 2-12 days

0
