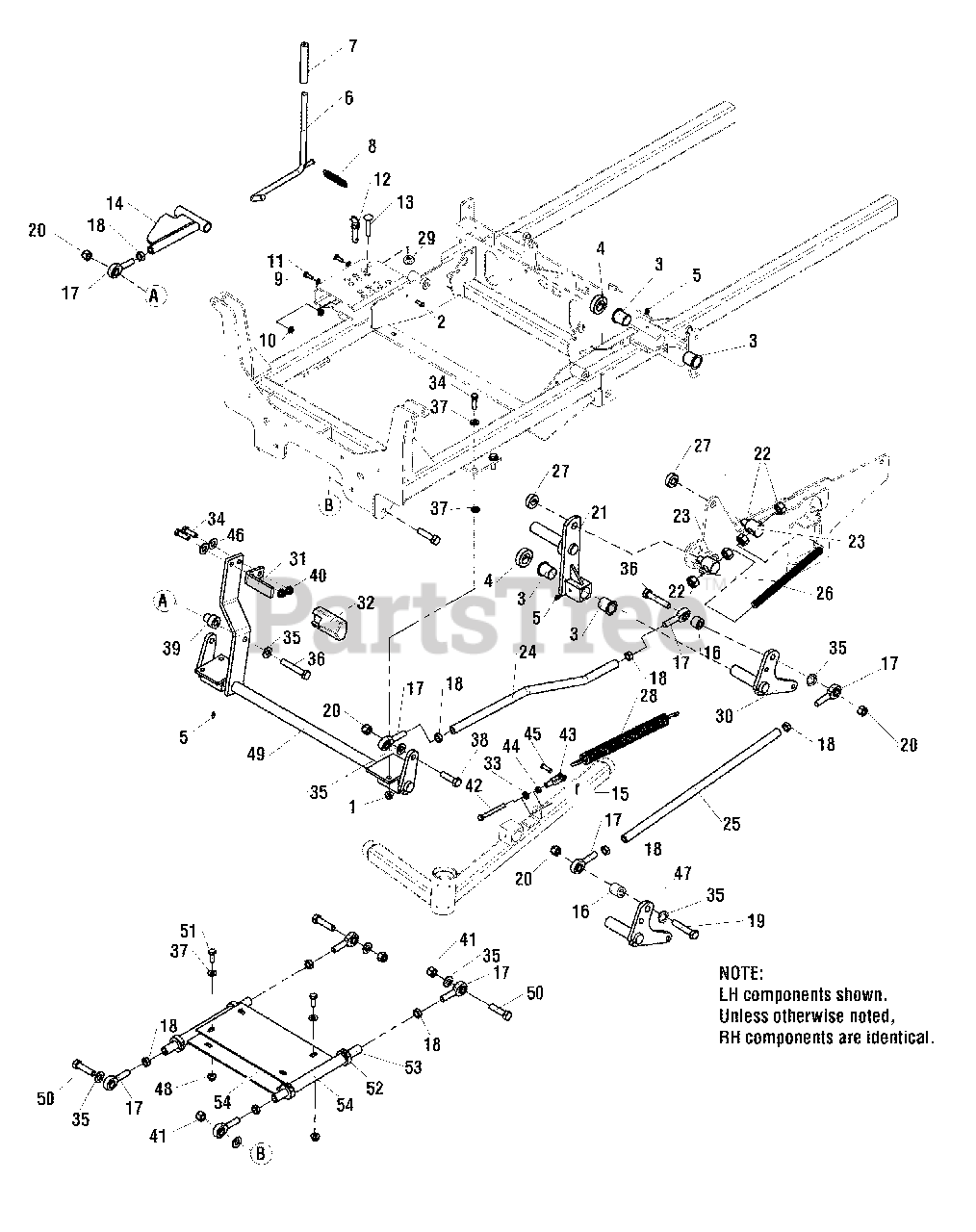

2690479 - Simplicity Cobalt 61" Zero-Turn Mower, 27hp Kohler Lift Group - S/N: 2000458824 & Below Parts Diagram

Cobalt 61" Zero-Turn Mower, 27hp Kohler

Lift Group - S/N: 2000458824 & Below Parts Diagram

  • Title

1

Simplicity 5025394SM

NUT, 3/8-16 HEX NYLOCK FLANGE

$4.49

$

In Stock, Qty 20+

0

2

Simplicity 5025412SM

PIN, CLEVIS, 1/4" x 3/4"
(Superseded to 5025212X7SM)

$4.99

$

Usually ships in 2-12 days

0

3

Simplicity 5023343SM

BUSHING, 1.00 X 1.13 X 1.38, PLASTIC

$6.49

$

Usually ships in 2-12 days

0

4

Simplicity 5020602SM

COLLAR, 1" SPLIT

$22.99

$

In Stock, only 1 left!

0

5

Simplicity 5020095SM

GREASE FITTING, 1/4-28 STR

$3.99

$

In Stock, only 3 left!

0

6

Simplicity 5400719A

WELD, ROD DECK LIFT - BLK
(Superseded to 5400719AYP)

$18.99

$

Usually ships in 2-12 days

0

7

Simplicity 5021880SM

GRIP, FOAM

$5.99

$

Usually ships in 2-12 days

0

8

Simplicity 5020639SM

SPRING, EXTENSION

$31.99

$

Usually ships in 2-12 days

0

9

Simplicity 703332

WASHER, 1/4 SAE (5025154)

$4.49

$

In Stock, Qty 20+

0

10

Simplicity 5025126SM

NUT, 1/4-20 HEX SERR. FLANGE
(Superseded to 703233)

$4.49

$

In Stock, Qty 5

0

11

Simplicity 5025010X6SM

BOLT, 1/4-20 X 3/4" GD5

$3.99

$

In Stock, Qty 20+

0

12

Simplicity 5023498SM

HITCH PIN, 1/2 X 2"

$8.99

$

In Stock, only 2 left!

0

13

Simplicity 5025146X16SM

CARRIAGE BOLT, 3/8-16 X 2"

$4.49

$

Usually ships in 2-12 days

0

14

Simplicity 5400769CSM

WELD, DECK ADJUST LINK - ORANGE

$62.99

$

Usually ships in 2-12 days

0

15

Simplicity 5025201X6SM

PIN, COTTER, 3/32" X 3/4
(Superseded to 703312)

$3.99

$

In Stock, Qty 20+

0

16

Simplicity 5045178SM

SPACER, .52 X 1.00 X .75

$7.49

$

In Stock, Qty 6

0

17

Simplicity 5022434SM

BALL JOINT, 1/2-20, MALE

$42.99

$

In Stock, only 2 left!

0

18

Simplicity 5025089SM

NUT, 1/2-20 HEX JAM

$3.99

$

In Stock, Qty 18

0

19

Simplicity 5025017X22SM

BOLT, 1/2-13 X 2-3/4" GD5

$5.99

$

In Stock, Qty 11

0

20

Simplicity 5025056SM

NUT, 1/2-13 HEX NYLON LOCK
(Superseded to 7091325YP)

$4.99

$

In Stock, only 1 left!

0

21

Simplicity 5400561CSM

WELD, REAR LIFT - LH - ORANGE

$85.99

$

Usually ships in 2-12 days

0

21

Simplicity 5400562CSM

WELD, REAR LIFT - RH - ORANGE

Note: (Not Shown)

$85.99

$

Usually ships in 2-12 days

0

22

Simplicity 5025040SM

NUT, 5/8-11 HEX

$3.49

$

In Stock, Qty 6

0

23

Simplicity 5045447SM

PIVOT, SPRING ROD

$25.99

$

Usually ships in 2-12 days

0

24

Simplicity 5100149SM

ROD, DECK LIFT BENT

$47.99

$

Usually ships in 2-12 days

0

25

Simplicity 5100148SM

ROD, DECK LIFT, OUTER

$62.99

$

Usually ships in 2-12 days

0

26

Simplicity 5100247SM

ROD, 5/8-11 X 9.00

$14.99

$

Usually ships in 2-12 days

0

27

Simplicity 5020441SM

COLLAR, 5/8" SPLIT

$14.99

$

In Stock, Qty 20+

0

28

Simplicity 5023355SM

SPRING, DECK LIFT ASSIST

$49.99

$

Usually ships in 2-12 days

0

29

Simplicity 5025100SM

NUT, 3/8-16 HEX SIDE LOCK

$3.49

$

In Stock, Qty 20+

0

30

Simplicity 5400782CSM

WELD, DECK LIFT LEVER, LH - ORANGE

$45.99

$

Usually ships in 2-12 days

0

30

Simplicity 5400783CSM

WELD, DECK LIFT LEVER, RH - ORANGE

Note: (Not Shown)

$45.99

$

Usually ships in 2-12 days

0

31

Simplicity 5061569A

PEDAL, FOOT - BLK
(Superseded to 5061569AA)

$40.99

$

Usually ships in 2-12 days

0

32

Simplicity 5104262YP

RUBBER, FOOT PEDAL

$10.99

$

Usually ships in 2-12 days

0

33

Simplicity 50252952SM

WASHER, 5/16" GD.9 FLAT

$

$

Not available

34

Simplicity 5025013X10SM

BOLT, 3/8-16 X 1-1/4" GD5

$3.99

$

In Stock, Qty 12

0

35

Simplicity 5025440SM

WASHER, 1/2" GD9 YZ

$4.49

$

In Stock, only 1 left!

0

36

Simplicity 5025017X28SM

BOLT, 1/2-13 X 3-1/2" GD5

$5.99

$

In Stock, only 2 left!

0

37

Simplicity 5025156SM

WASHER 3/8" SAE
(Superseded to 703590)

$3.99

$

In Stock, Qty 19

0

38

Simplicity 5025017X14

BOLT, 1/2-13 X 1-3/4" GD5 YZ
(Superseded to 5025017X14YP)

$3.49

$

In Stock, only 4 left!

0

39

Simplicity 5047103SM

ADAPTER, CASTER AXLE

$10.99

$

In Stock, Qty 20+

0

40

Simplicity 5025096SM

NUT, 3/8"-16 HEX NYLON LOCK

$3.49

$

In Stock, Qty 20+

0

41

Simplicity 5025098SM

NUT, 1/2-20 HEX NYLON LOCK

$5.99

$

In Stock, only 2 left!

0

42

Simplicity 5025425SM

BOLT, 5/16-18 X 3", FLT

$2.99

$

Usually ships in 2-12 days

0

43

Simplicity 5100301SM

CLEVIS, 5/16-18, 5/16" PIN HOLE, STEEL

$

$

Not available

44

Simplicity 5025032SM

NUT, 5/16-18 HEX

$3.49

$

Usually ships in 2-12 days

0

45

Simplicity 5025213X8SM

PIN, CLEVIS 5/16" X 1"

$4.99

$

Usually ships in 2-12 days

0

46

Simplicity 5025293SM

WASHER, 3/8" GR9 FLAT

$3.99

$

In Stock, Qty 5

0

47

Simplicity 5400632CSM

WELD, DECK LIFT PIVOT, LH - ORANGE

$43.99

$

Usually ships in 2-12 days

0

47

Simplicity 5400651CSM

WELD, DECK LIFT PIVOT, RH - ORANGE

Note: (Not Shown)

$43.99

$

Usually ships in 2-12 days

0

48

Simplicity 5025128SM

NUT, 3/8-16 HEX SERRATED FLANGE

$3.49

$

In Stock, only 2 left!

0

49

Simplicity 5400634CSM

WELD, DECK LIFT SHAFT

$225.99

$

Usually ships in 2-12 days

0

50

Snapper 5025018X14SM

BOLT, 1/2-20 X 1-3/4" GD5 YZ

$

$

Not available

51

Simplicity 5025013X8SM

BOLT, 3/8-16 X 1" GD5

$3.99

$

In Stock, Qty 6

0

52

Simplicity 5010114SM

COLLAR, 3/4" SPLIT

$19.99

$

Usually ships in 2-12 days

0

53

Simplicity 5100155SM

SHAFT, DECK STABILIZER

$40.99

$

Usually ships in 2-12 days

0

54

Simplicity 5400647A

WELD, DECK STABILIZER - BLK
(Superseded to 5400647AYP)

$60.99

$

Usually ships in 2-12 days

0
