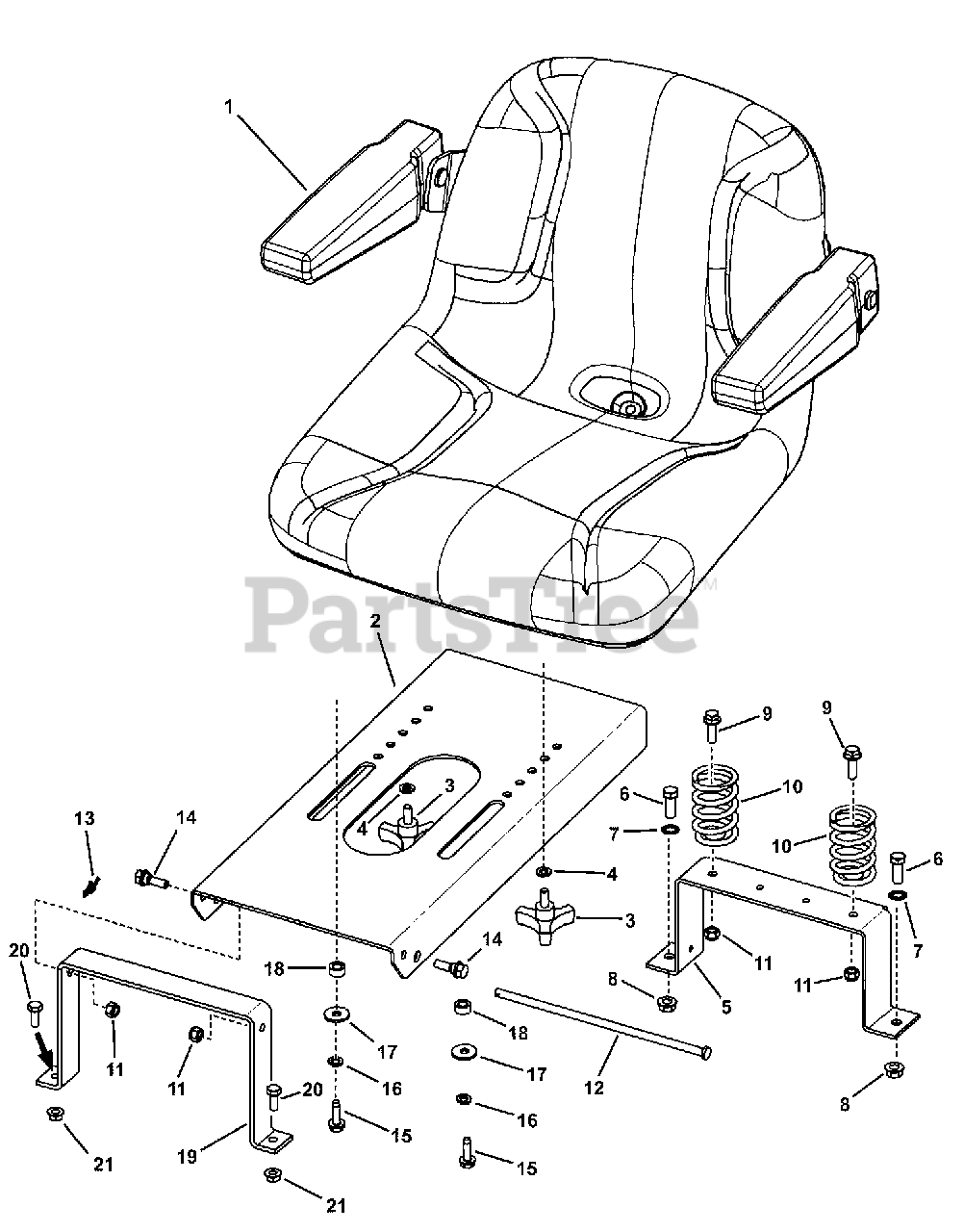

2690476 - Simplicity Javelin 38" Zero-Turn Mower, 20hp Kohler Seat Group (7500060) Parts Diagram

Javelin 38" Zero-Turn Mower, 20hp Kohler

Seat Group (7500060) Parts Diagram

  • Title

1

Simplicity 7100005SM

SEAT, 15" Back, w/Armrests
(Superseded to 1754218YP)

Note: Ref. Michigan Seat Co.

$552.99

$

Usually ships in 2-12 days

0

2

Simplicity 7300057SM

PLATE, Seat
(Superseded to 7300057BMYP)

$69.99

$

In Stock, only 1 left!

0

3

Simplicity 7023191SM

KNOB, Three Prong 5/16-18X3/4

$6.99

$

In Stock, only 2 left!

0

4

Simplicity 7090187SM

WASHER, Lock, .318X.583X.078 ZP
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

5

Simplicity 7043316SM

BRACKET, Seat Support
(Superseded to 7043316BMYP)

$19.99

$

Usually ships in 2-12 days

0

6

Simplicity 7091304SM

CAPSCREW, Hex Head, 3/8C X1 GR5 YZ
(Superseded to 703407)

$11.99

$

In Stock, Qty 7

0

7

Simplicity 7090390SM

WASHER, Lock, Internal Tooth, 3/8 BZ
(Superseded to 703930)

$4.49

$

Usually ships in 2-12 days

0

8

Simplicity 7091619SM

NUT, Hex Flange Lock, 3/8C YZ
(Superseded to 703333)

$4.99

$

In Stock, Qty 20+

0

9

Simplicity 7091591SM

CAPSCREW, Hex Head, Whiz Lock, Flange, 5/16C X1 GR5 YZ
(Superseded to 703410)

$4.49

$

In Stock, only 2 left!

0

10

Simplicity 7074218SM

SPRING, Compression, Seat Support

$

$

Not available

11

Simplicity 5025057SM

NUT, Hex, Lock, 5/16C ESNA YZ
(Superseded to 703902)

$3.99

$

In Stock, Qty 20+

0

12

Simplicity 7200008

ROD, Seat Hinge
(Superseded to 7200008SM)

$5.99

$

Usually ships in 2-12 days

0

13

Simplicity 7091593SM

PIN, Cotter
(Superseded to 703355)

$3.99

$

In Stock, Qty 14

0

14

Simplicity 7011078SM

BOLT, Shoulder, 5/16C X.704,.435 DIA,YZ
(Superseded to 703840)

$5.49

$

In Stock, only 2 left!

0

15

Simplicity 7091841SM

CAPSCREW, Hex Head Flange Taptite, 5/16C X1

$3.49

$

Usually ships in 2-12 days

0

16

Simplicity 7091315SM

WASHER, Lock, .32X.58X.08 YZ
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

17

Simplicity 7014098SM

WASHER, .34X1X.09 ZP

$16.99

$

In Stock, only 2 left!

0

18

Simplicity 7028620SM

SPACER, .625 OD X .340 ID X .31 L

$4.49

$

In Stock, only 1 left!

0

19

Simplicity 7043308SM

BRACKET, Lower Seat

$14.99

$

Usually ships in 2-12 days

0

20

Simplicity 7091318SM

CAPSCREW, Hex Head, 5/16C X3/4 GR5 YZ
(Superseded to 704287)

$3.99

$

In Stock, Qty 8

0

21

Simplicity 1931277SM

NUT, Hex Flange Lock, 5/16C GR5 YZ
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0
