2690476 - Simplicity Javelin 38" Zero-Turn Mower, 20hp Kohler Park Brake Group (7500061) Parts Diagram

Javelin 38" Zero-Turn Mower, 20hp Kohler

Park Brake Group (7500061) Parts Diagram

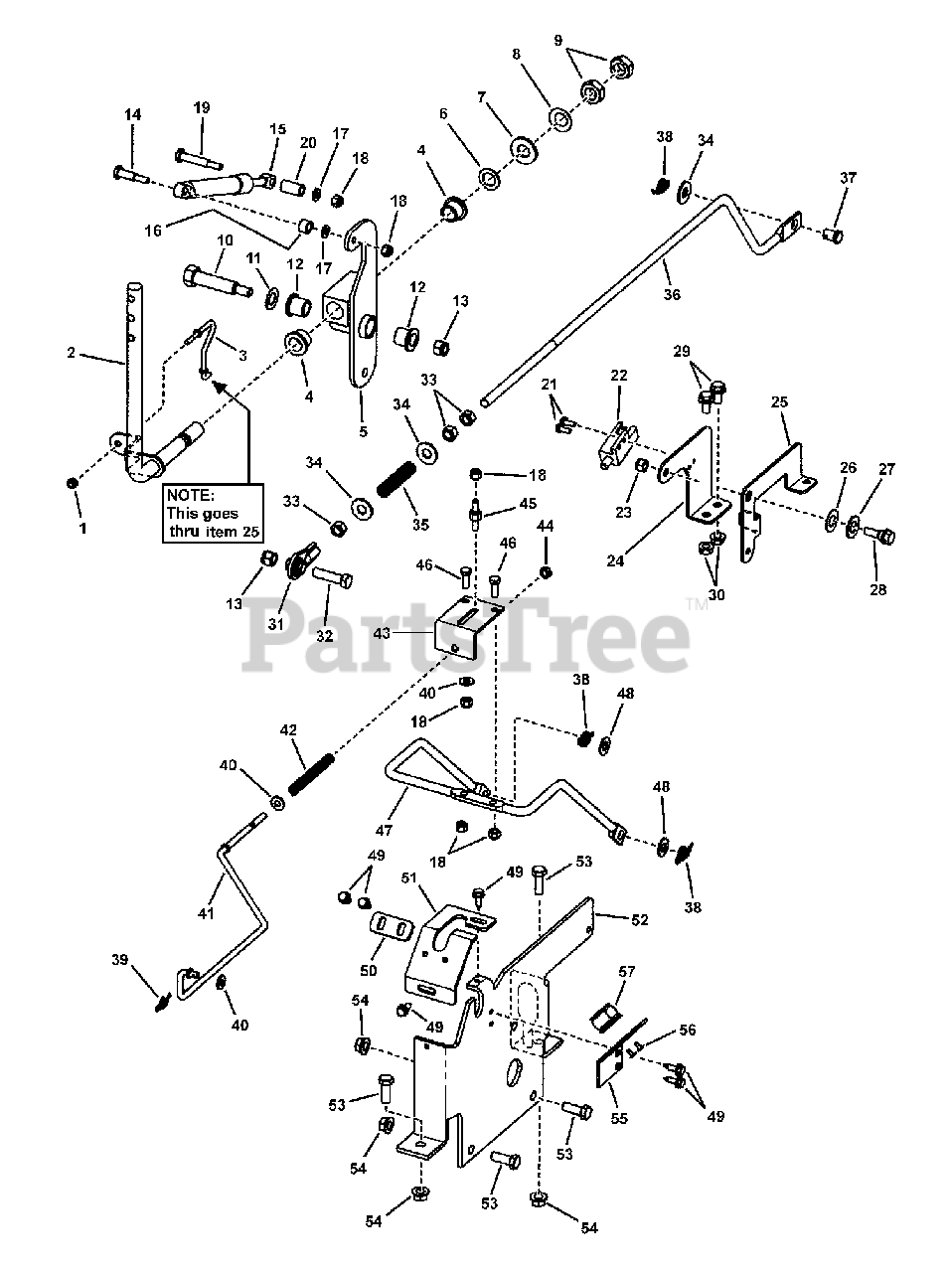

  • Title

1

Simplicity 7091290SM

NUT, Hex Lock Nylon, #10C YZ
(Superseded to 703412)

$4.49

$

In Stock, only 2 left!

0

2

Simplicity 7043336SM

* WELD, Control Arm, LH, Yellow

$77.99

$

Usually ships in 2-12 days

0

3

Simplicity 7043310SM

* HOOK, Park Brake

$51.99

$

Usually ships in 2-12 days

0

4

Simplicity 7013874SM

* BUSHING, ST, Powdered Metal

$5.99

$

In Stock, Qty 5

0

5

Simplicity 7043301SM

* WELD, Control Bracket, LH, Yellow
(Superseded to 7043301BMYP)

$170.99

$

Usually ships in 2-12 days

0

6

Simplicity 7900016SM

* WASHER, Nylon, 5/8 ID.X1"OD.X.065

$3.49

$

Usually ships in 2-12 days

0

7

Simplicity 7027344SM

* WASHER, .668X1.324X.098 YZ

$3.99

$

Usually ships in 2-12 days

0

8

Simplicity 7011121SM

* WASHER, Bellville, .64X1.125X.028

$3.49

$

In Stock, Qty 20+

0

9

Simplicity 7090658SM

* NUT, Hex, Jam, 5/8F ZP
(Superseded to 703904)

$4.99

$

In Stock, Qty 18

0

10

Simplicity 7200012

* SHOULDER BOLT, 3/8C
(Superseded to 7200012SM)

$15.99

$

Usually ships in 2-12 days

0

11

Simplicity 1670971SM

* WASHER, Thrust, .562 X 1.000 X .031

$4.49

$

In Stock, Qty 7

0

12

Simplicity 7014409SM

* BEARING, Flange, 9/16

$6.99

$

In Stock, Qty 19

0

13

Simplicity 7091299SM

* NUT, Hex, 3/8C, Nylock YZ
(Superseded to 703117)

$3.49

$

In Stock, Qty 20+

0

14

Simplicity 7900003SM

* SHOULDER BOLT, 5/16 X 1/4C

$4.99

$

In Stock, only 4 left!

0

15

Simplicity 5100728SM

* DAMPENER
(Superseded to 5103511YP)

$62.99

$

In Stock, Qty 16

0

16

Simplicity 7200006

* SPACER, .33 X .50 X .355, Yellow
(Superseded to 7200006SM)

$11.99

$

In Stock, only 2 left!

0

17

Simplicity 7100415SM

* WASHER, 1/4" ID, Harden

$4.99

$

Usually ships in 2-12 days

0

18

Simplicity 7091603SM

NUT, Hex Lock Nylon, 1/4C YZ
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

19

Simplicity 7900002SM

* SHOULDER BOLT, 5/16 X 1/4C

$2.99

$

Usually ships in 2-12 days

0

20

Simplicity 7200005

* SPACER, .33 X .50 X .929, Yellow
(Superseded to 7200005SM)

$15.99

$

Usually ships in 2-12 days

0

21

Simplicity 7090913SM

CAPSCREW, Hex Head Flange Taptite, TORX, #10C X1/2 YZ
(Superseded to 704060)

$3.49

$

In Stock, Qty 11

0

22

Simplicity 1717050SM

SWITCH, DPDT

$17.99

$

In Stock, Qty 20+

0

23

Simplicity 5025057SM

NUT, Hex, Lock, 5/16C ESNA YZ
(Superseded to 703902)

$3.99

$

In Stock, Qty 20+

0

24

Simplicity 7043312SM

BRACKET, Park Brake, Lower, LH, Yellow

$19.99

$

Usually ships in 2-12 days

0

25

Simplicity 7043311SM

BRACKET, Park Brake, Lower, RH, Yellow

$153.99

$

Usually ships in 2-12 days

0

26

Simplicity 7091192SM

WASHER, 1/2 x .090 Flat

$3.99

$

Usually ships in 2-12 days

0

27

Simplicity 7025074SM

WASHER, .531X1X.063 BZ

$4.49

$

Usually ships in 2-12 days

0

28

Simplicity 7011078SM

BOLT, Shoulder, 5/16C X.704,.435 DIA,YZ
(Superseded to 703840)

$5.49

$

In Stock, only 2 left!

0

29

Simplicity 7091811SM

CAPSCREW, Hex Head, Whiz Lock, Flange, 5/16C X5/8 GR5 YZ
(Superseded to 703823)

$3.99

$

In Stock, Qty 5

0

30

Simplicity 1931277SM

NUT, Hex Flange Lock, 5/16C GR5 YZ
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

31

Simplicity 7027936SM

* ROD END

$17.99

$

In Stock, only 2 left!

0

32

Simplicity 7091497SM

* CAPSCREW, Hex Head, 3/8C X1-1/2 GR5 YZ
(Superseded to 703406)

$4.99

$

In Stock, only 1 left!

0

33

Simplicity 7091630SM

* NUT, Hex, 3/8F GR5 YZ
(Superseded to 703895)

$4.49

$

In Stock, only 1 left!

0

34

Simplicity 7090517SM

WASHER, .438X1X.084 YZ

$4.49

$

In Stock, Qty 8

0

35

Simplicity 7074511SM

* SPRING, Brake Compression

$10.99

$

Usually ships in 2-12 days

0

36

Simplicity 7200009

* ROD, Link Fwd/Rev
(Superseded to 7200009SM)

$17.99

$

Usually ships in 2-12 days

0

37

Simplicity 7900000SM

* CLEVIS PIN, 7/16 X 1

$6.99

$

Usually ships in 2-12 days

0

38

Simplicity 7091594SM

PIN, Cotter, 1/2 Self, YZ

$2.99

$

In Stock, only 2 left!

0

39

Simplicity 7091593SM

PIN, Cotter
(Superseded to 703355)

$3.99

$

In Stock, Qty 14

0

40

Simplicity 7091294SM

WASHER, .28X.63X.065 YZ
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

41

Simplicity 7043335SM

ROD, Park Brake

$14.99

$

Usually ships in 2-12 days

0

42

Simplicity 7100100SM

SPRING, Compression

$3.49

$

Usually ships in 2-12 days

0

43

Simplicity 7300007SM

BRACKET, Park Brake

$3.99

$

Usually ships in 2-12 days

0

44

Simplicity 7091705SM

NUT, Hex, Lock, Taptite, 1/4C GR.B YZ
(Superseded to 704319)

$3.49

$

Usually ships in 2-12 days

0

45

Simplicity 7900005SM

ROD, Hanger

$10.99

$

Usually ships in 2-12 days

0

46

Simplicity 7091495SM

CAPSCREW, Hex Head, 1/4C X3/4 GR5 YZ
(Superseded to 703925)

$4.49

$

In Stock, Qty 7

0

47

Simplicity 7200007

ROD, Park Brake
(Superseded to 7200007SM)

$23.99

$

Usually ships in 2-12 days

0

48

Simplicity 1924940SM

WASHER, 3/8 SAE YZ
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

49

Simplicity 7090290SM

* CAPSCREW, Hex Head Flange Taptite, 1/4C X3/4 BZ
(Superseded to 703466)

$3.99

$

In Stock, Qty 11

0

50

Simplicity 7300009SM

* PLATE, Fwd/Rev Adjust
(Superseded to 7300009BMYP)

$8.49

$

Usually ships in 2-12 days

0

51

Simplicity 7300010SM

* TRACK, Control STICK, RH

$22.99

$

Usually ships in 2-12 days

0

52

Simplicity 7043302SM

* BRACKET, Control, LH

$46.99

$

Usually ships in 2-12 days

0

53

Simplicity 7091304SM

* CAPSCREW, Hex Head, 3/8C X1 GR5 YZ
(Superseded to 703407)

$11.99

$

In Stock, Qty 7

0

54

Simplicity 7091619SM

* NUT, Hex Flange Lock, 3/8C YZ
(Superseded to 703333)

$4.99

$

In Stock, Qty 20+

0

55

Simplicity 7300264SM

* BRACKET, Rod Holder, RZT

$14.99

$

Usually ships in 2-12 days

0

56

Simplicity 7091095SM

* POP RIVET, 1/8X3/8

$2.99

$

In Stock, Qty 12

0

57

Simplicity 7100487SM

* CLIP, Spring

$5.49

$

Usually ships in 2-12 days

0
