2690475 - Simplicity Javelin 44" Zero-Turn Mower, 20hp Briggs & Stratton 44" Mower Deck Roller Group (ja44domf) Parts Diagram

Javelin 44" Zero-Turn Mower, 20hp Briggs & Stratton

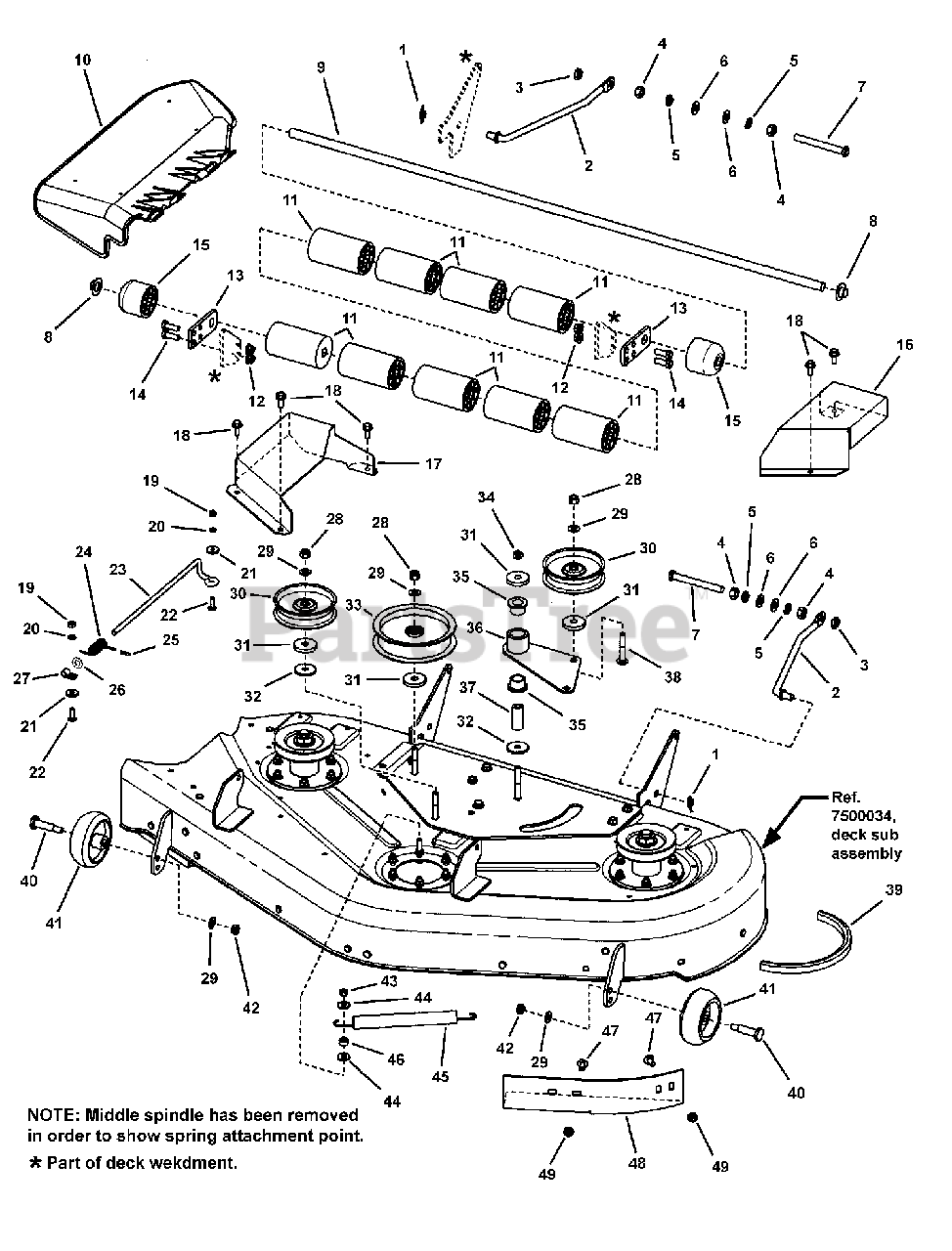

44" Mower Deck Roller Group (ja44domf) Parts Diagram

  • Title

1

Simplicity 7091594SM

PIN, Cotter, 1/2 SELF, YZ

$2.99

$

In Stock, only 2 left!

0

2

Simplicity 7100488SM

ROD, Stabilizer

$35.99

$

In Stock, only 2 left!

0

3

Simplicity 7090377SM

NUT, Hex Center Lock Jam, 7/16F GR5 YZ
(Superseded to 703348)

$5.49

$

In Stock, Qty 20+

0

4

Simplicity 7090460SM

NUT, Hex, 7/16F GR5 BZ

$2.49

$

Usually ships in 2-12 days

0

5

Simplicity 1918199SM

WASHER, Lock, .445X.776X.1 YZ
(Superseded to 704007)

$4.49

$

In Stock, Qty 20+

0

6

Simplicity 7091595SM

WASHER, .47X.92X.065 YZ
(Superseded to 703183)

$3.99

$

In Stock, only 2 left!

0

7

Simplicity 7900027SM

CAPSCREW, Hex Head, 7/16F X4-1/4 GR5 YZ

$15.99

$

Usually ships in 2-12 days

0

8

Simplicity 1960520SM

NUT, Push For 5/8 Diameter Stud Capped Black
(Superseded to 771009)

$3.99

$

In Stock, Qty 20+

0

9

Simplicity 7200041

SHAFT, Roller, 44, Black
(Superseded to 7200041SM)

$35.99

$

Usually ships in 2-12 days

0

10

Simplicity 1705449SM

DEFLECTOR, Black

$122.99

$

In Stock, only 1 left!

0

11

Simplicity 1668513SM

ROLLER

$10.99

$

In Stock, Qty 20+

0

12

Simplicity 7091619SM

NUT, Hex Flange Lock, 3/8C YZ
(Superseded to 703333)

$4.99

$

In Stock, Qty 20+

0

13

Simplicity 7300197SM

BAR, Roller, 44/50, Black

$22.99

$

Usually ships in 2-12 days

0

14

Simplicity 7091304SM

CAPSCREW, Hex Head, 3/8C X1 GR5 YZ
(Superseded to 703407)

$11.99

$

In Stock, Qty 7

0

15

Simplicity 1717675SM

ROLLER, Rounded

$6.99

$

In Stock, Qty 20+

0

16

Simplicity 7300206SM

COVER, Spindle, RZT 44/50", Orange, LH

$61.99

$

Usually ships in 2-12 days

0

17

Simplicity 7300205SM

COVER, Spindle, RZT 44/50", Orange, RH

$

$

Not available

18

Simplicity 1664847SM

CAPSCREW, Hex Head Flange Taptite, 5/16C X3/4 YZ
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

19

Simplicity 1916622SM

NUT, Hex 1/4-20 Black 588514
(Superseded to 703127)

$3.49

$

In Stock, Qty 20+

0

20

Simplicity 1916964SM

LOCKWASHER, Spring 1/4 Black
(Superseded to 704133)

$3.99

$

In Stock, Qty 11

0

21

Simplicity 1960353SM

WASHER, 1/4 Black
(Superseded to 703229)

$4.49

$

In Stock, Qty 7

0

22

Simplicity 1931318SM

CARRIAGE BOLT, 1/4-20X 7/8 G5 Black

$4.49

$

In Stock, only 2 left!

0

23

Simplicity 1706709SM

ROD, Deflector, Front

$8.49

$

In Stock, Qty 20+

0

24

Simplicity 1723938SM

SPRING, Torsion

$

$

Not available

25

Simplicity 1723323SM

CAP, Vinyl

$4.99

$

In Stock, only 1 left!

0

26

Simplicity 1919326SM

WASHER, 5/16 Black

$4.49

$

In Stock, Qty 6

0

27

Simplicity 1704873SM

CLAMP, Wire, 5/16 Diameter . (1) .281 Hole Black

$4.49

$

In Stock, Qty 20+

0

28

Simplicity 7091299SM

NUT, Hex, 3/8C, Nylock YZ
(Superseded to 703117)

$3.49

$

In Stock, Qty 20+

0

29

Simplicity 1924940SM

WASHER, 3/8 SAE YZ
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

30

Simplicity 7100448SM

PULLEY, Flat Idler, 4"

$59.99

$

In Stock, Qty 6

0

31

Simplicity 7091962SM

WASHER, .468X1.625X.25 YZ

$7.99

$

In Stock, only 1 left!

0

32

Simplicity 7091331SM

WASHER, .406X1.5X.120 YZ
(Superseded to 703591)

$5.49

$

In Stock, Qty 20+

0

33

Simplicity 7034422SM

PULLEY, Flat Idler 5.0 X

$38.99

$

In Stock, Qty 20+

0

34

Simplicity 7091585SM

NUT, Hex Center Lock, 3/8C GR5 ZP
(Superseded to 703347)

$4.99

$

In Stock, only 2 left!

0

35

Simplicity 7015363SM

BEARING, Powdered Metal

$

$

Not available

36

Simplicity 7400057SM

WELD, Hinge Pivot

$111.99

$

In Stock, only 1 left!

0

37

Simplicity 7200033

SPACER, Idler, Yellow
(Superseded to 7200033SM)

$16.99

$

Usually ships in 2-12 days

0

38

Simplicity 7900009SM

CARRAIGE BOLT, 3/8-16 X 2-1/4, GR5

$3.99

$

In Stock, only 1 left!

0

39

Simplicity 7100425SM

BELT, RZT, 44", EL 137.75, B SEC.

$92.99

$

In Stock, only 4 left!

0

40

Simplicity 7091526SM

BOLT, Shoulder, 3/8F X.62, 1/2 DIA, YZ

$

$

Not available

41

Simplicity 7026122SM

WHEEL, Gage 4 X 1.5

$10.99

$

In Stock, only 2 left!

0

42

Simplicity 7090289SM

NUT, Hex Center Lock, 3/8F GR5 YZ
(Superseded to 703458)

$4.99

$

In Stock, Qty 14

0

43

Simplicity 7091575SM

NUT, Hex Center Lock, 5/16C GR5 YZ
(Superseded to 703164)

$3.49

$

In Stock, Qty 18

0

44

Simplicity 7091528SM

WASHER, .375X.875X.083 YZ

$3.99

$

Usually ships in 2-12 days

0

45

Simplicity 7029272SM

SPRING, Idler Primary

$14.99

$

In Stock, only 1 left!

0

46

Simplicity 7028620SM

SPACER, .625 OD X .340 ID X .31 L

$4.49

$

In Stock, only 1 left!

0

47

Simplicity 7091508SM

CARRAIGE BOLT, 5/16C X3/4 GR5 YZ
(Superseded to 703185)

$3.49

$

In Stock, Qty 12

0

48

Simplicity 1724538ASM

SHORT BLOWOUT BAFFLE PLAIN

$45.99

$

In Stock, only 1 left!

0

49

Simplicity 1931277SM

NUT, Hex Flange Lock, 5/16C GR5 YZ
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0
