2690474 - Simplicity Javelin 50" Zero-Turn Mower, 22hp Briggs & Stratton Wheel Group - Multi-Trac (7050575) Parts Diagram

Javelin 50" Zero-Turn Mower, 22hp Briggs & Stratton

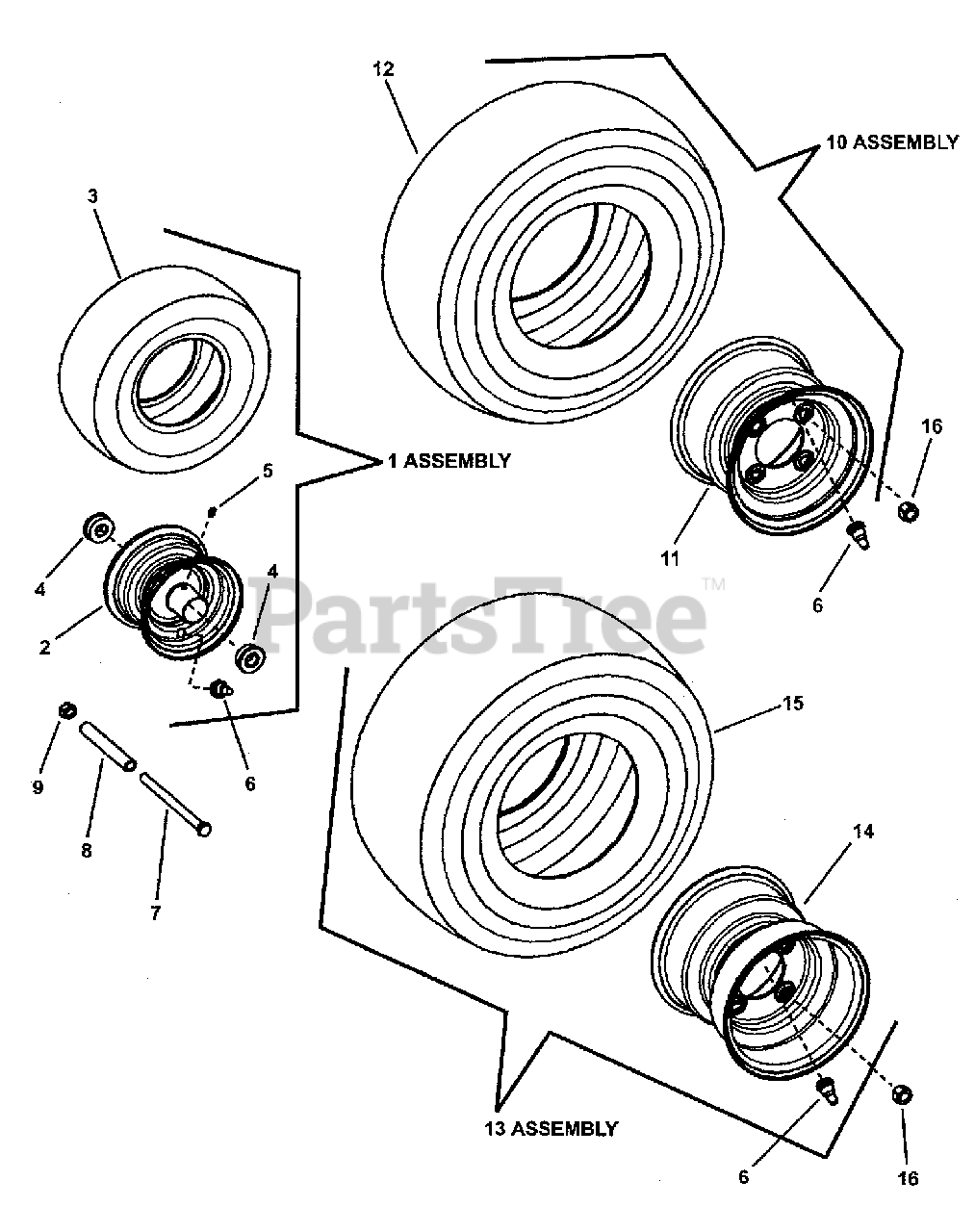

Wheel Group - Multi-Trac (7050575) Parts Diagram

  • Title

1

Simplicity 7059090SM

WHEEL ASSEMBLY, HOZ

$

$

Not available

2

Simplicity 7039477SM

RIM, Caster Wheel

$96.99

$

Usually ships in 2-12 days

0

3

Simplicity 7035618SM

TIRE, 11 x 4.00-5, Smooth Tread

$75.99

$

In Stock, only 3 left!

0

4

Simplicity 7035358SM

BALL BEARING, .625 x 1.38

$37.99

$

In Stock, only 4 left!

0

5

Simplicity 7029275SM

GREASE FITTING, 1/4-28 Thread forming
(Superseded to 703153)

$3.99

$

In Stock, Qty 12

0

6

Simplicity 7012234SM

VALVE STEM, Snap In

$6.49

$

Usually ships in 2-12 days

0

7

Simplicity 7091772SM

CAPSCREW, Hex Head, 7/16C X6 GR5 YZ

$8.49

$

In Stock, Qty 20+

0

8

Simplicity 7035359SM

SPACER, 5/8 OD
(Superseded to 1734841SM)

$12.99

$

In Stock, Qty 20+

0

9

Simplicity 7090839SM

NUT, Hex Center Lock, 7/16C GR5 ZP

$4.99

$

In Stock, Qty 5

0

10

Simplicity 7050539SM

WHEEL ASSEMBLY, 18 X 6.50-8, Turf Master

Note: used on 38" Mower Deck Models

$205.99

$

Usually ships in 2-12 days

0

11

Simplicity 7078114SM

RIM, 18 x 6.50, 4 Bolt

$

$

Not available

12

Simplicity 7078119SM

TIRE, 18 x 6.50-8, Turf Master

$

$

Not available

13

Simplicity 7050538SM

WHEEL ASSEMBLY, 18 X 8.50-8, Turf Master

Note: used on 44" & 50" Mower Deck Models

$222.99

$

Usually ships in 2-12 days

0

14

Simplicity 7078113SM

RIM, 18 x 8.50, 4 Bolt

$131.99

$

Usually ships in 2-12 days

0

15

Simplicity 7078109SM

TIRE, 18 x 8.50-8, Turf Master

$222.99

$

Usually ships in 2-12 days

0

16

Simplicity 7027192SM

LUG NUT, 1/2-20 YZ

$2.49

$

Usually ships in 2-12 days

0
