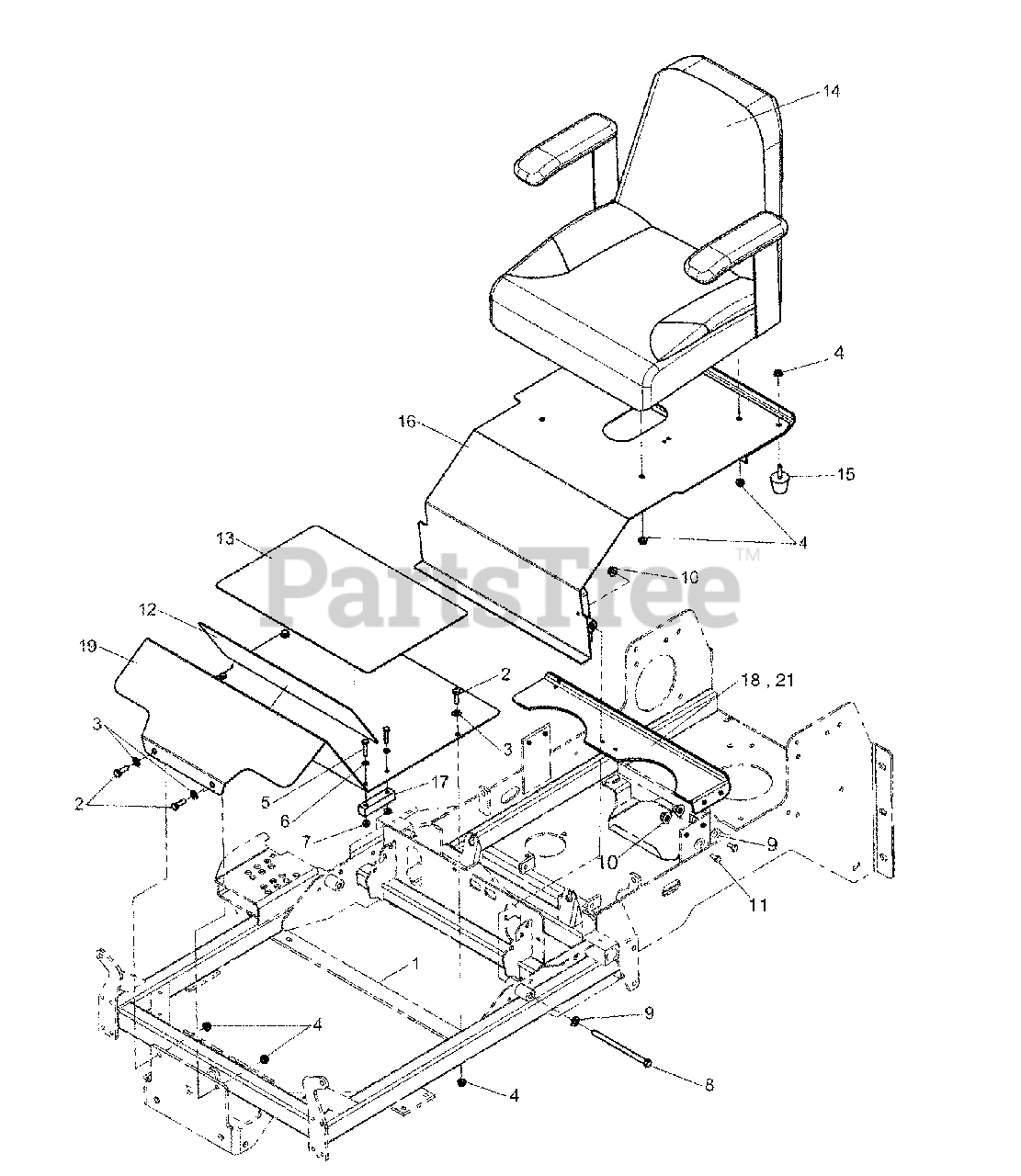

2690444 - Simplicity Citation 48" Zero-Turn Mower, 21hp Briggs & Stratton Seat, Mount & Floor Group - 48" Models & 52" Models S/N: 2014624505 & Below Parts Diagram

Citation 48" Zero-Turn Mower, 21hp Briggs & Stratton

Seat, Mount & Floor Group - 48" Models & 52" Models S/N: 2014624505 & Below Parts Diagram

  • Title

1

MAIN FRAME

$

$

Not available

2

Simplicity 5025011X8

BOLT, 5/16-18 X 1
(Superseded to 5025011X8FS)

$3.49

$

In Stock, Qty 17

0

3

Simplicity 5025292

WASHER 5/16" Gr. 9 Flat
(Superseded to 5025292SM)

$3.99

$

In Stock, Qty 20+

0

4

Simplicity 5025392

NUT, 5/16-18 Hex Nylock Flange
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

5

Simplicity 5025010X10

BOLT, 1/4-20 X 1-1/4
(Superseded to 5025010X10SM)

$3.99

$

In Stock, only 4 left!

0

6

Simplicity 703332

WASHER, 1/4 SAE (5025154)

$4.49

$

In Stock, Qty 20+

0

7

Simplicity 703463

NUT, 1/4-20 HEX NYLOCK FLANGE (5025391)

$4.49

$

In Stock, Qty 20+

0

8

Simplicity 5025013X48

BOLT, 3/8-16 X 6
(Superseded to 5025013X48SM)

$5.99

$

In Stock, Qty 20+

0

9

Simplicity 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

10

Simplicity 5025394

NUT, 3/8-16 Hex Nylock Flange
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

11

Simplicity 5025013X8

BOLT, 3/8-16 X 1" GD5 YZ
(Superseded to 5025013X8SM)

$3.99

$

In Stock, Qty 5

0

12

Simplicity 5049979

SAFETY WALK, FLOOR REST
(Superseded to 5101007SM)

$32.99

$

Usually ships in 2-12 days

0

13

Simplicity 5049978

SAFETY WALK, FLOOR PLATE
(Superseded to 5100999SM)

$29.99

$

Usually ships in 2-12 days

0

14

Simplicity 5061599

SEAT, BLACK
(Superseded to 5061599SM)

$744.99

$

Usually ships in 2-12 days

0

15

Simplicity 5022612

RUBBER BUMPER
(Superseded to 5022612SM)

$23.99

$

In Stock, only 2 left!

0

16

Simplicity 5401389

SEAT PLATE
(Superseded to 5401389SM)

Note: (Includes Safety Decal.)

$421.99

$

Usually ships in 2-12 days

0

17

Simplicity 5100643

BLOCK, DECK LIFT SUPPORT
(Superseded to 5100643SM)

$15.99

$

Usually ships in 2-12 days

0

18

Simplicity 5400849C

SUPPORT, SEAT PLATE
(Superseded to 5400849CSM)

Note: (S/N: 2012619803 & Below)

$68.99

$

Usually ships in 2-12 days

0

19

Simplicity 5049953C

PLATE, FLOOR
(Superseded to 5049953CSM)

$136.99

$

Usually ships in 2-12 days

0

20

Simplicity 1686907

ARM REST (SET OF 2)
(Superseded to 1686907SM)

$139.99

$

Usually ships in 2-12 days

0

21

Simplicity 5403632

PLATE, SEAT SUPPORT - ORG

Note: (S/N: 2012619804 & Above)

$

$

Not available
