2690444 - Simplicity Citation 48" Zero-Turn Mower, 21hp Briggs & Stratton Lift Group - 48" & 52" Models - S/N: 2013202962 - 2014624505 Parts Diagram

Citation 48" Zero-Turn Mower, 21hp Briggs & Stratton

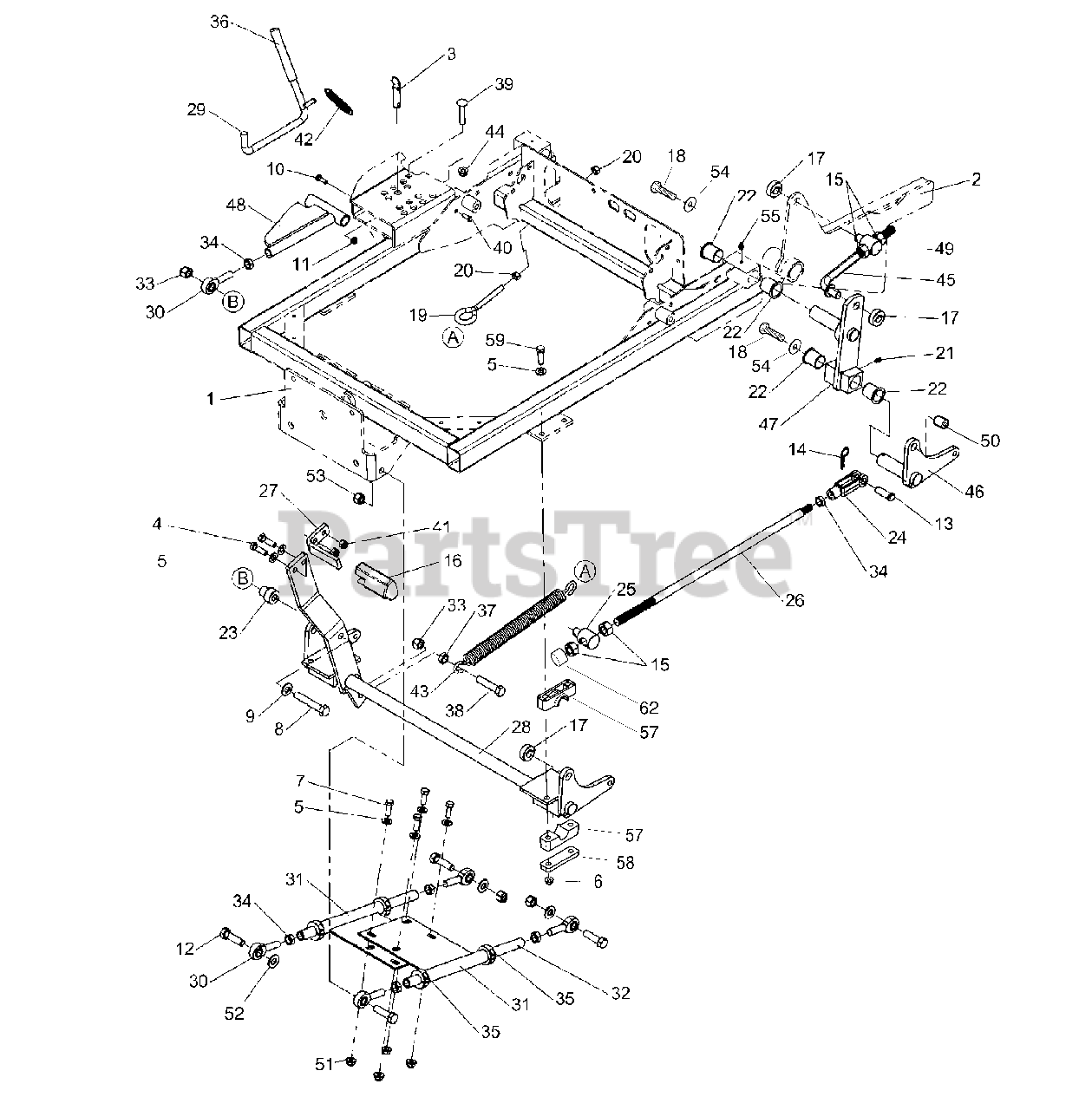

Lift Group - 48" & 52" Models - S/N: 2013202962 - 2014624505 Parts Diagram

  • Title

1

MAIN FRAME

$

$

Not available

2

MOTOR MOUNT

$

$

Not available

3

Simplicity 5023498SM

PIN, HITCH, 1/2 X 2.00 OAL, YP

$8.99

$

In Stock, only 2 left!

0

4

Simplicity 5025013X10SM

CAPSCREW, Hex Head, 3/8-16 x 1-1/4

$3.99

$

In Stock, Qty 12

0

5

Simplicity 5025293SM

WASHER, 3/8" GR. 9 FLAT

$3.99

$

In Stock, Qty 5

0

6

Simplicity 5025394SM

NUT, 3/8-16, Hex Flange Nylock

$4.49

$

In Stock, Qty 20+

0

7

Simplicity 5025013X8SM

CAPSCREW, Hex Head, 3/8-16 x 1

$3.99

$

In Stock, Qty 5

0

8

Simplicity 5025017X24SM

BOLT, 1/2-13 X 3 GD5 YZ

$5.99

$

In Stock, only 1 left!

0

9

Simplicity 5025158SM

WASHER, 1/2

$3.99

$

In Stock, Qty 14

0

10

Simplicity 703338

CAPSCREW, Hex Head, 1/4-20 x 5/8, GR5

$3.99

$

Usually ships in 2-12 days

0

11

Simplicity 5025126SM

NUT, Serrated Flange, 1/4-20
(Superseded to 703233)

$4.49

$

In Stock, Qty 9

0

12

Snapper 5025018X14SM

BOLT, 1/2-20 X 1-3/4" GD5 YZ

$

$

Not available

13

Simplicity 5025328X12SM

PIN, CLEVIS, 1/2 X 1 1/2, YZP

$4.99

$

In Stock, only 4 left!

0

14

Simplicity 1918196SM

PIN, Quick, 1-7/8 Lg
(Superseded to 5025210YP)

$3.99

$

In Stock, Qty 20+

0

15

Simplicity 5025040SM

NUT, Hex, 5/8-11

$3.49

$

Usually ships in 2-12 days

0

16

Simplicity 5104262YP

RUBBER, FOOT PEDAL

$10.99

$

Usually ships in 2-12 days

0

17

Simplicity 5020441SM

COLLAR, 5/8" SPLIT

$14.99

$

In Stock, Qty 20+

0

18

Simplicity 5025443SM

BOLT, 3/8-16 x 3/4, GD5, YZ WITH PATCH

$3.49

$

Usually ships in 2-12 days

0

19

Simplicity 5023497SM

EYEBOLT, 3/8-16 X 5, 2.88 THRD (5021812)

$9.49

$

In Stock, only 1 left!

0

20

Simplicity 1916950SM

NUT, Hex, Full, 3/8-16
(Superseded to 703577)

$4.49

$

In Stock, Qty 20+

0

21

Simplicity 5020095SM

GREASE FITTING, 1/4-28 STRAIGHT

$3.99

$

In Stock, only 3 left!

0

22

Simplicity 5023343SM

BUSHING, 1.00 X 1.13 X 1.38, PLASTIC

$6.49

$

Usually ships in 2-12 days

0

23

Simplicity 5047103SM

ADAPTER, Caster Wheel (2 per tire) (for serial no. 201 & up)

$10.99

$

In Stock, Qty 20+

0

24

Simplicity 5023174SM

CLEVIS, 1/2-20

$16.99

$

In Stock, only 1 left!

0

25

Simplicity 5045447SM

PIVOT, SPRING ROD

$25.99

$

Usually ships in 2-12 days

0

26

Simplicity 5049971SM

ROD,DECK LIFT ADJUSTMENT

$56.99

$

Usually ships in 2-12 days

0

27

Simplicity 5061569A

PEDAL, FOOT - BLK
(Superseded to 5061569AA)

$40.99

$

Usually ships in 2-12 days

0

28

Simplicity 5404305CSM

DECK LIFT SHAFT

$165.99

$

Usually ships in 2-12 days

0

29

Simplicity 5061527A

WELD, ROD DECK LIFT - BLK
(Superseded to 5061527AYP)

$35.99

$

Usually ships in 2-12 days

0

30

Simplicity 5022434SM

BALL JOINT, 1/2-20, MALE

$42.99

$

In Stock, only 2 left!

0

31

Simplicity 5049867CSM

WELD, DECK STABILIZER

$99.99

$

Usually ships in 2-12 days

0

32

Simplicity 5049868SM

SHAFT, DECK STABILIZER

$37.99

$

Usually ships in 2-12 days

0

33

Simplicity 5025056SM

NUT, Hex, Nylon Lock, 1/2-13
(Superseded to 7091325YP)

$4.99

$

In Stock, only 3 left!

0

34

Simplicity 5025089SM

NUT, Hex Jam, 1/2-20

$3.99

$

In Stock, Qty 20+

0

35

Simplicity 5010114SM

COLLAR, 3/4" SPLIT

$19.99

$

Usually ships in 2-12 days

0

36

Simplicity 5021880SM

GRIP, FOAM, .475 X 4.35 X .095

$5.99

$

Usually ships in 2-12 days

0

37

Simplicity 5025301SM

NUT, Hex, Jam, 1/2-13

$3.49

$

In Stock, only 1 left!

0

38

Simplicity 5025017X18SM

BOLT, 1/2-13 X 2-1/4" GD5 YZ

$5.99

$

Usually ships in 2-12 days

0

39

Simplicity 5025146X16SM

BOLT, 3/8-16 X 2, CARRIAGE, GD5, CZ

$4.49

$

In Stock, only 1 left!

0

40

Simplicity 5025412SM

PIN, CLEVIS, 1/4" x 3/4"
(Superseded to 5025212X7SM)

$4.99

$

Usually ships in 2-12 days

0

41

Simplicity 5025096SM

NUT, Hex, Nylon Lock, 3/8-16

$3.49

$

In Stock, Qty 20+

0

42

Simplicity 5020639SM

SPRING-EXT, .500 OD X 3.50 LG X .058 WR

$31.99

$

Usually ships in 2-12 days

0

43

Simplicity 5023355SM

SPRING-EXT, 1.00 ODX13.25LGX.177WR, BLK

$49.99

$

In Stock, only 1 left!

0

44

Simplicity 5025100SM

NUT, Hex, Side Lock, 3/8-16

$3.49

$

In Stock, Qty 20+

0

45

Simplicity 5049848SM

ROD, DECK LIFT

$15.99

$

Usually ships in 2-12 days

0

46

Simplicity 5402815CSM

DECK LIFT PIVOT, RH

$53.99

$

Usually ships in 2-12 days

0

46

Simplicity 5402814CSM

DECK LIFT PIVOT, LH

$53.99

$

Usually ships in 2-12 days

0

47

Simplicity 5600216CSM

ASSM, REAR LIFT - LH - CITATION
(Superseded to 5600216SM)

$86.99

$

Usually ships in 2-12 days

0

47

Simplicity 5600217CSM

ASSM, REAR LIFT - RH - CITATION

$

$

Not available

48

Simplicity 5061523CSM

WELD, DECK ADJUST LINK

$58.99

$

Usually ships in 2-12 days

0

49

Simplicity 5045447SM

PIVOT, SPRING ROD

$25.99

$

Usually ships in 2-12 days

0

49

Simplicity 5045856SM

PIVOT, SPRING ROD

$31.99

$

Usually ships in 2-12 days

0

50

Simplicity 5061780SM

BUSHING, .510 X .625 X .500

$5.99

$

In Stock, only 1 left!

0

51

Simplicity 5025128SM

NUT, Hex, Serrated Flange, 3/8-16 (S/N 616 & up)

$3.49

$

In Stock, only 2 left!

0

52

Simplicity 5025440SM

WASHER, 1/2" GR. 9 FLAT

$4.49

$

In Stock, only 1 left!

0

53

Simplicity 5025098SM

NUT, Hex, Nylon Lock, 1/2-20

$5.99

$

In Stock, only 2 left!

0

54

Simplicity 5100548SM

WASHER, .390 X 1.50 X .109, YZ

$4.49

$

Usually ships in 2-12 days

0

55

Simplicity 5020020SM

GREASE FITTING, 45 DEGREE

$4.49

$

Usually ships in 2-12 days

0

56

Simplicity 5025156SM

WASHER, Flat, 3/8
(Superseded to 703590)

$3.99

$

In Stock, Qty 12

0

57

Simplicity 5100634SM

BLOCK

$7.49

$

Usually ships in 2-12 days

0

58

Simplicity 5403925A

PLATE, PIVOT BLOCK SUPPORT - BLK
(Superseded to 5403925AAFS)

$3.49

$

Usually ships in 2-12 days

0

59

Simplicity 5025013X22SM

CAPSCREW, Hex Head, 3/8-16 X 2-3/4

$4.49

$

In Stock, only 3 left!

0

62

Simplicity 5101028

CAP, VINYL - .562 X .750 - BLK
(Superseded to 5101028SM)

$2.99

$

Usually ships in 2-12 days

0
