2690444 - Simplicity Citation 48" Zero-Turn Mower, 21hp Briggs & Stratton Lift Group - 48" & 52" Models - S/N: 2013202961 & Below Parts Diagram

Citation 48" Zero-Turn Mower, 21hp Briggs & Stratton

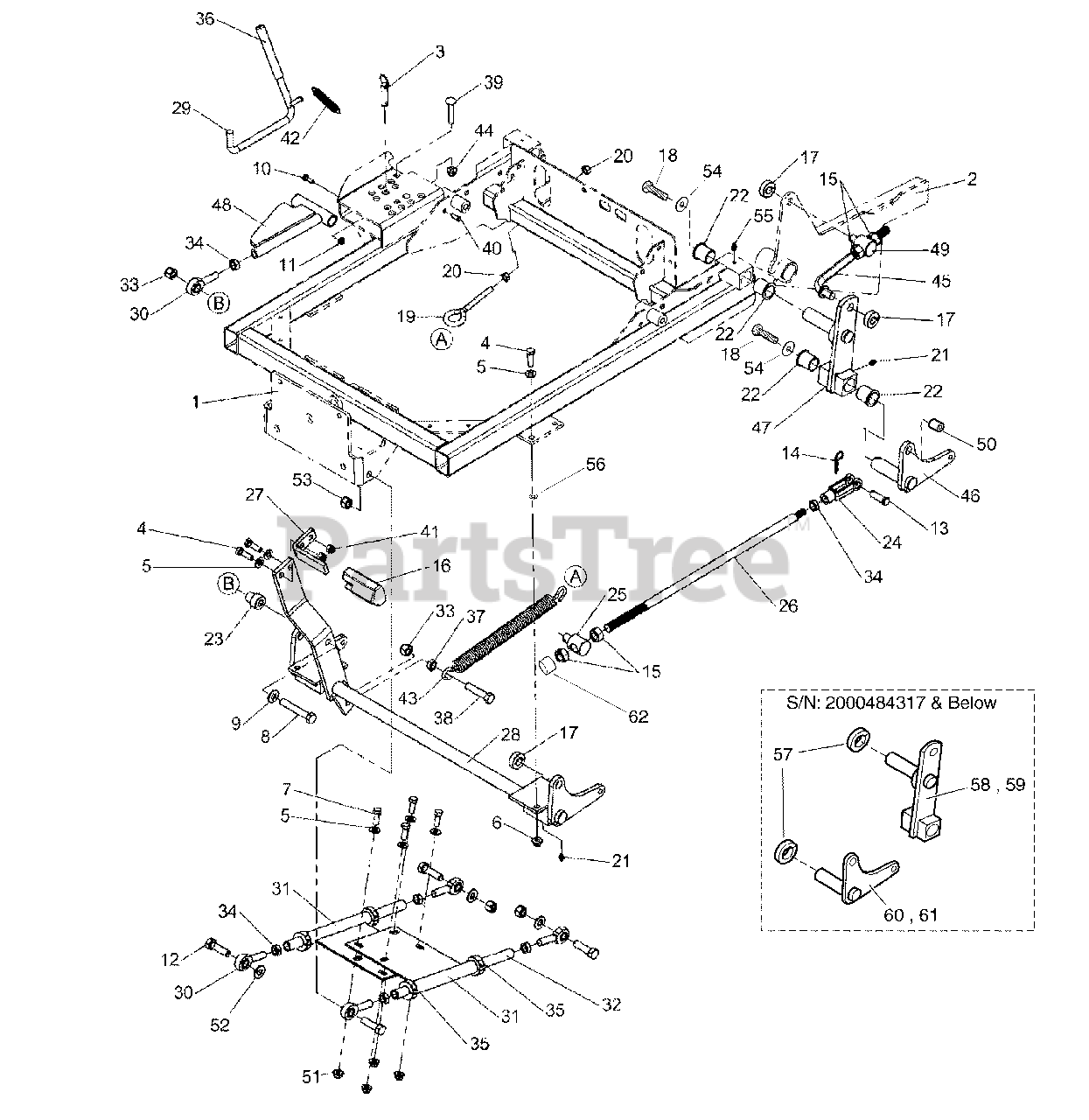

Lift Group - 48" & 52" Models - S/N: 2013202961 & Below Parts Diagram

  • Title

1

MAIN FRAME

$

$

Not available

2

MOTOR MOUNT

$

$

Not available

3

Simplicity 5023498SM

HITCH PIN, 1/2 X 2"

$8.99

$

In Stock, only 2 left!

0

4

Simplicity 5025013X10SM

BOLT, 3/8-16 X 1-1/4"

$3.99

$

In Stock, Qty 12

0

5

Simplicity 5025293SM

WASHER, 3/8 GR. 9 FLAT

$3.99

$

In Stock, Qty 5

0

6

Simplicity 5025394SM

NUT, 3/8-16 Hex Nylock Flange

$4.49

$

In Stock, Qty 20+

0

7

Simplicity 5025013X8SM

BOLT, 3/8-16 X 1"

$3.99

$

In Stock, Qty 6

0

8

Simplicity 5025017X24SM

BOLT, 1/2-13 X 3"

$5.99

$

In Stock, only 2 left!

0

9

Simplicity 5025158SM

WASHER, 1/2" SAE

$3.99

$

In Stock, Qty 8

0

10

Simplicity 703338

BOLT,1/4-20X5/8

$3.99

$

Usually ships in 2-12 days

0

11

Simplicity 5025126SM

NUT, 1/4-20 Hex Serrated Flange
(Superseded to 703233)

$4.49

$

In Stock, Qty 5

0

12

Snapper 5025018X14SM

BOLT, 1/2-20 X 1-3/4"

$

$

Not available

13

Simplicity 5025328X12SM

CLEVIS PIN, 1/2" X 1-1/2"

$4.99

$

In Stock, only 4 left!

0

14

Simplicity 1918196SM

HAIR PIN CLIP
(Superseded to 5025210YP)

$3.99

$

In Stock, Qty 20+

0

15

Simplicity 5025040SM

NUT, 5/8-11 HEX

$3.49

$

In Stock, Qty 6

0

16

Simplicity 5104262YP

RUBBER, FOOT PEDAL

$10.99

$

Usually ships in 2-12 days

0

17

Simplicity 5020441SM

COLLAR, 5/8" Split

$14.99

$

In Stock, Qty 20+

0

18

Simplicity 5025443SM

BOLT, 3/8-16X3/4 WITH PATCH

Note: (S/N: 2000484318 - 2013202961)

$3.49

$

Usually ships in 2-12 days

0

19

Simplicity 5023497SM

EYE BOLT, 3/8-16 X 6"

$9.49

$

In Stock, only 1 left!

0

20

Simplicity 1916950SM

NUT, 3/8-16 Hex
(Superseded to 703577)

$4.49

$

In Stock, Qty 20+

0

21

Simplicity 5020095SM

GREASE FITTING

$3.99

$

In Stock, only 3 left!

0

22

Simplicity 5023343SM

BUSHING, Flange

$6.49

$

Usually ships in 2-12 days

0

23

Simplicity 5047103SM

ADAPTER, CASTER AXLE

$10.99

$

In Stock, Qty 20+

0

24

Simplicity 5023174SM

CLEVIS , 1/2-20, STEEL

$16.99

$

Usually ships in 2-12 days

0

25

Simplicity 5045447SM

SPRING ROD PIVOT

$25.99

$

Usually ships in 2-12 days

0

26

Simplicity 5049971SM

DECK ADJUSTMENT ROD

$56.99

$

Usually ships in 2-12 days

0

27

Simplicity 5061569A

PEDAL, FOOT - BLK
(Superseded to 5061569AA)

$40.99

$

Usually ships in 2-12 days

0

28

Simplicity 5049839CSM

DECK LIFT SHAFT

$273.99

$

Usually ships in 2-12 days

0

29

Simplicity 5061527A

WELD, ROD DECK LIFT - BLK
(Superseded to 5061527AYP)

$35.99

$

Usually ships in 2-12 days

0

30

Simplicity 5022434SM

BALL JOINT, 1/2-20 Male

$42.99

$

In Stock, only 2 left!

0

31

Simplicity 5049867CSM

DECK STABILIZER

$99.99

$

Usually ships in 2-12 days

0

32

Simplicity 5049868SM

DECK STABILIZER SHAFT

$37.99

$

Usually ships in 2-12 days

0

33

Simplicity 5025056SM

NUT, 1/2-13 Hex Nylon Lock
(Superseded to 7091325YP)

$4.99

$

In Stock, only 1 left!

0

34

Simplicity 5025089SM

NUT, 1/2-20 Hex Jam

$3.99

$

In Stock, Qty 18

0

35

Simplicity 5010114SM

COLLAR, 3/4" Split

$19.99

$

Usually ships in 2-12 days

0

36

Simplicity 5021880SM

GRIP

$5.99

$

Usually ships in 2-12 days

0

37

Simplicity 5025301SM

NUT, 1/2-13 Hex Jam

$3.49

$

In Stock, only 1 left!

0

38

Simplicity 5025017X18SM

BOLT, 1/2-13 X 2-1/4"

$5.99

$

Usually ships in 2-12 days

0

39

Simplicity 5025146X16SM

CARRIAGE BOLT, 3/8-16 X 2"

$4.49

$

Usually ships in 2-12 days

0

40

Simplicity 5025412SM

CLEVIS PIN, 1/4" x 3/4"
(Superseded to 5025212X7SM)

$4.99

$

Usually ships in 2-12 days

0

41

Simplicity 5025096SM

NUT, 3/8-16 Hex Nylon Lock

$3.49

$

In Stock, Qty 20+

0

42

Simplicity 5020639SM

SPRING, Extension

$31.99

$

Usually ships in 2-12 days

0

43

Simplicity 5023355SM

DECK LIFT SPRING

$49.99

$

Usually ships in 2-12 days

0

44

Simplicity 5025100SM

NUT, 3/8"-16 SIDE LOCK

$3.49

$

In Stock, Qty 20+

0

45

Simplicity 5049848SM

DECK LIFT ROD

$15.99

$

Usually ships in 2-12 days

0

46

Simplicity 5402814CSM

DECK LIFT PIVOT, LH

Note: (S/N: 2000484318 - 2013202961)

$53.99

$

Usually ships in 2-12 days

0

46

Simplicity 5402815CSM

DECK LIFT PIVOT, RH

Note: (S/N: 2000484318 - 2013202961)

$53.99

$

Usually ships in 2-12 days

0

47

Simplicity 5600216CSM

ASSM, REAR LIFT - LH - CITATION
(Superseded to 5600216SM)

Note: (S/N: 2000484318 - 2013202961) (Includes Ref Nos 21 & 22)

$86.99

$

Usually ships in 2-12 days

0

47

Simplicity 5401666CSM

REAR DECK LIFT, RH

Note: (S/N: 2000484318 - 2013202961) (Includes Ref Nos 21 & 22)

$86.99

$

Usually ships in 2-12 days

0

48

Simplicity 5061523CSM

DECK ADJUST LINK

$58.99

$

Usually ships in 2-12 days

0

49

Simplicity 5045447SM

SPRING ROD PIVOT

$25.99

$

Usually ships in 2-12 days

0

49

Simplicity 5045856SM

SPRING ROD PIVOT

$31.99

$

Usually ships in 2-12 days

0

50

Simplicity 5061780SM

BUSHING, .510 X .625 X .500

$5.99

$

In Stock, only 1 left!

0

51

Simplicity 5025128SM

NUT, 3/8"-16 SERRATED FLANGE

$3.49

$

In Stock, only 2 left!

0

52

Simplicity 5025440SM

WASHER, 1/2" GR. 9 FLAT

$4.49

$

In Stock, only 1 left!

0

53

Simplicity 5025098SM

NUT, 1/2"-20 NYLON LOCK

$5.99

$

In Stock, only 2 left!

0

54

Simplicity 5100548SM

FLAT WASHER, THICK

Note: (S/N: 2000484318 - 2013202961)

$4.49

$

Usually ships in 2-12 days

0

55

Simplicity 5020020SM

GREASE FITTING 45

$4.49

$

Usually ships in 2-12 days

0

56

Simplicity 5025156SM

WASHER, 3/8" SAE
(Superseded to 703590)

$3.99

$

In Stock, Qty 19

0

57

Simplicity 5020602SM

COLLAR, 1" SPLIT

Note: (S/N: 2000484317 & Below) (Includes Ref Nos 21 & 22)

$22.99

$

In Stock, only 1 left!

0

58

Simplicity 5049836CSM

WELD, REAR LIFT, LH - ORG

Note: (S/N: 2000484317 & Below) (Includes Ref Nos 21 & 22)

$

$

Not available

59

Simplicity 5049837CSM

WELD, REAR LIFT, RH - ORG

Note: (S/N: 2000484317 & Below)

$92.99

$

Usually ships in 2-12 days

0

60

Simplicity 5045449CSM

WELD, PIVOT, DECK LIFT - LH - ORG

Note: (S/N: 2000484317 & Below)

$

$

Not available

61

Simplicity 5045450CSM

WELD, PIVOT, DECK LIFT - RH - ORG

Note: (S/N: 2000484317 & Below)

$

$

Not available

62

Simplicity 5101028SM

CAP, BLACK VINYL

$2.99

$

Usually ships in 2-12 days

0
