2690444 - Simplicity Citation 48" Zero-Turn Mower, 21hp Briggs & Stratton Instrument Control Panel Group Parts Diagram

Citation 48" Zero-Turn Mower, 21hp Briggs & Stratton

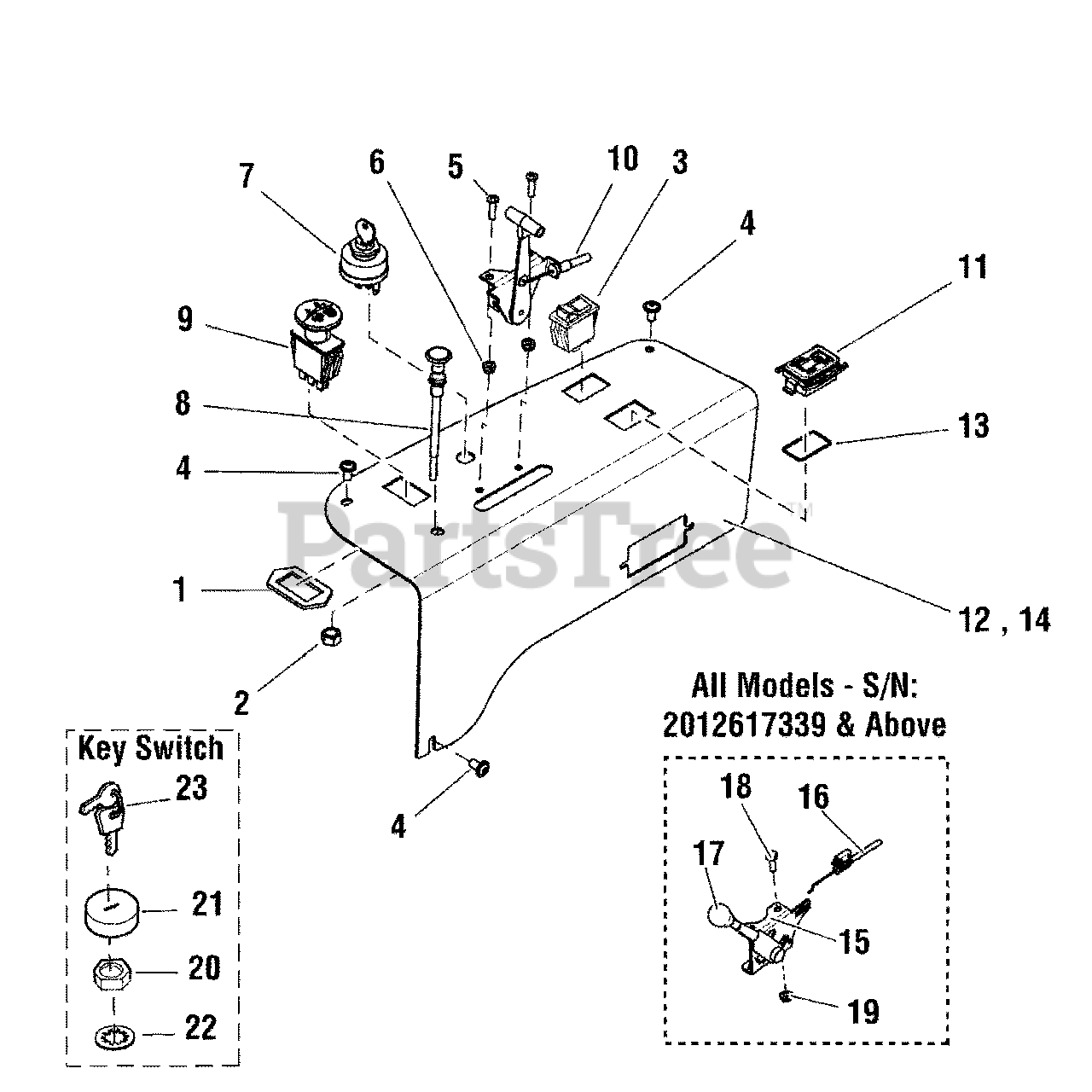

Instrument Control Panel Group Parts Diagram

  • Title

1

Simplicity 5022222SM

SWITCH RETAINER RING

$4.49

$

In Stock, only 1 left!

0

2

Simplicity 5025039SM

NUT, 3/8-24 Hex

$2.99

$

Usually ships in 2-12 days

0

3

Simplicity 1703799SM

SWITCH, LIGHT

$31.99

$

In Stock, only 1 left!

0

4

Simplicity 5025299X4SM

SCREW, Allen Head, 1/4-20 x 1/2

$4.99

$

In Stock, only 2 left!

0

5

Simplicity 703338

BOLT,1/4-20X5/8

Note: (S/N: 2012617338 & Below)

$3.99

$

Usually ships in 2-12 days

0

6

Simplicity 5025095SM

NUT, 1/4-20 Hex Nylon Lock

Note: (S/N: 2012617338 & Below)

$3.49

$

In Stock, Qty 5

0

7

Simplicity 1737853SM

SWITCH ASMY-IGNITION INDAK NO KEYS/ HDWR
(Superseded to 1737853YP)

$35.99

$

In Stock, Qty 20+

0

8

Simplicity 5046501SM

CABLE, Choke Control, 47"

$55.99

$

In Stock, only 1 left!

0

9

Simplicity 1722887SM

SWITCH, PTO

$33.99

$

In Stock, Qty 20+

0

10

Simplicity 5048231SM

CABLE, Throttle Control, 40"

Note: (S/N: 2012617338 & Below)

$46.99

$

In Stock, only 1 left!

0

11

* HOUR METER, ASSEMBLY (5409263)

Note: (S/N: 2015551938 & Above)

$

$

Not available

11

Simplicity 5100978SM

HOURMETER, Digital
(Superseded to 5102417YP)

Note: (S/N: 2015551937 & Below)

$65.99

$

In Stock, only 1 left!

0

12

Simplicity 5061361ASM

CONTROL PANEL

Note: (S/N: 2012617338 & Below)

$29.99

$

Usually ships in 2-12 days

0

13

Simplicity 5022269SM

O-RING, 7/8" ID X 1/16" W

$3.49

$

Usually ships in 2-12 days

0

14

Simplicity 5403402ASM

PLATE, CONTROL PANEL - BLACK

Note: (S/N: 2012617339 & Above)

$71.99

$

Usually ships in 2-12 days

0

15

Simplicity 5101118SM

LEVER, THROTTLE CONTROL
(Superseded to 5101537SM)

Note: (S/N: 2012617339 & Above)

$48.99

$

Usually ships in 2-12 days

0

16

Simplicity 5101073SM

CABLE, THROTTLE, 42"

Note: (S/N: 2012617339 & Above)

$33.99

$

In Stock, only 2 left!

0

17

Simplicity 5046360X1SM

KNOB, THROTTLE CONTROL (SV)

Note: (S/N: 2012617339 & Above)

$10.99

$

In Stock, only 1 left!

0

18

Simplicity 5025179X6SM

SCREW, #10-24 X 3/4" ROUND PHILLIPS

Note: (S/N: 2012617339 & Above)

$3.99

$

Usually ships in 2-12 days

0

19

Simplicity 703412

NUT, #10-24 HEX NYLON LOCK

Note: (S/N: 2012617339 & Above)(5025271)

$4.49

$

In Stock, only 2 left!

0

20

Simplicity 1717549SM

NUT-HEX FLANGE, 5/8-32 IGN SW DIE CAST
(Superseded to 847144)

$10.99

$

Usually ships in 2-12 days

0

21

Simplicity 1717550SM

COVER, SWITCH
(Superseded to 847150)

$8.49

$

In Stock, Qty 16

0

22

Simplicity 1960547SM

LOCKWASHER-INTERNAL TOOTH .625 THIN BLK

$4.49

$

In Stock, only 3 left!

0

23

Simplicity 1737836SM

KEYS, BLISTER PK KIDS+MWRS DON'T MIX, DOM
(Superseded to 1737836YP)

$20.99

$

In Stock, only 1 left!

0
