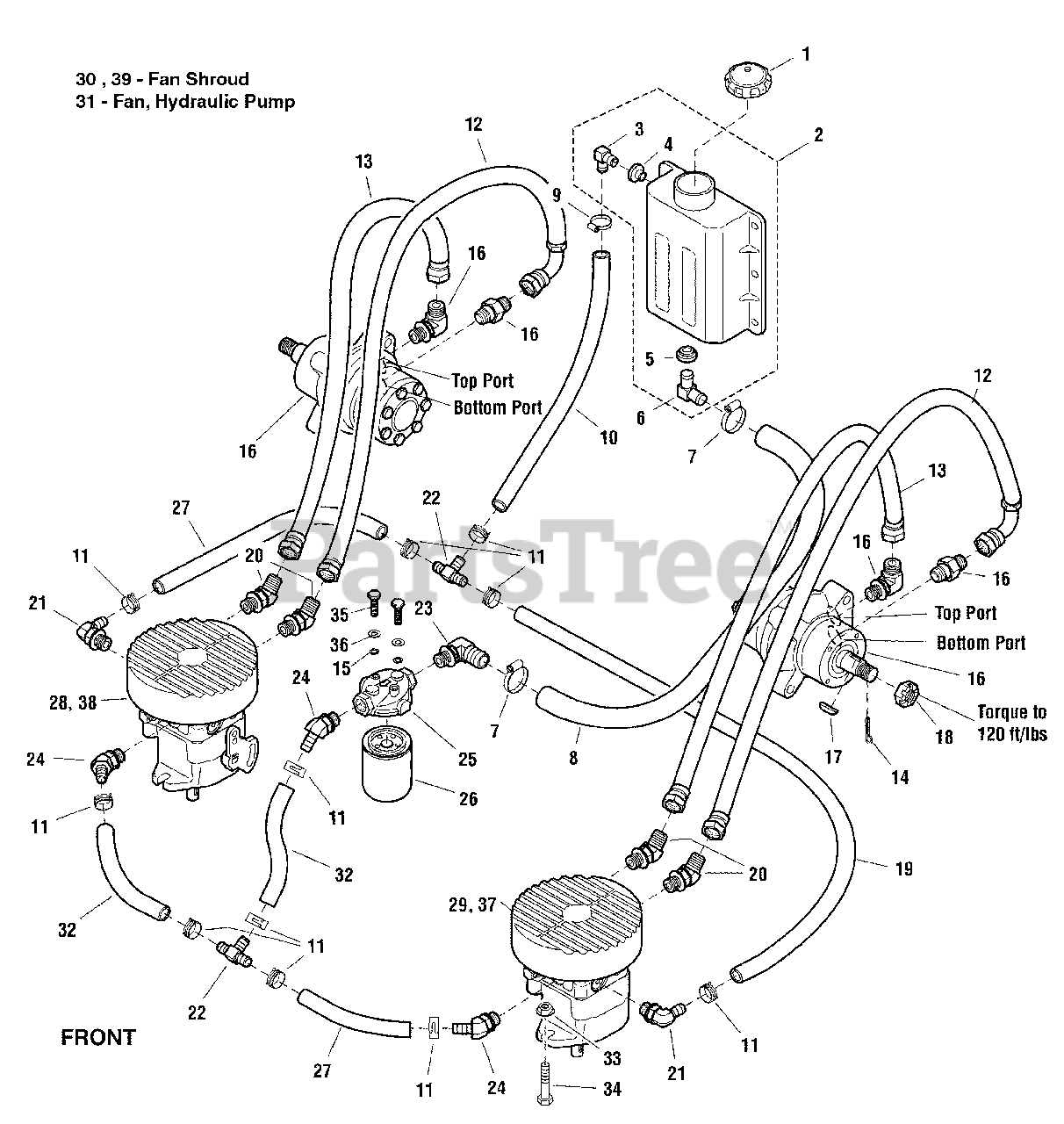

2690444 - Simplicity Citation 48" Zero-Turn Mower, 21hp Briggs & Stratton Hydraulic Group - 48" Models & 52" Models S/N: 2014624505 & Below Parts Diagram

Citation 48" Zero-Turn Mower, 21hp Briggs & Stratton

Hydraulic Group - 48" Models & 52" Models S/N: 2014624505 & Below Parts Diagram

  • Title

1

Simplicity 5100017SM

CAP, Hydraulic Oil Only

$23.99

$

In Stock, only 1 left!

0

2

Simplicity 5061712SM

HYDRAULIC OIL RESERVOIR, Complete

$154.99

$

In Stock, Qty 6

0

3

Simplicity 5023118SM

FITTING, Elbow, 3/8"

$7.99

$

Usually ships in 2-12 days

0

4

Simplicity 1726400SM

GROMMET
(Superseded to 1654930SM)

$7.99

$

In Stock, Qty 20+

0

5

Simplicity 5023121SM

GROMMET

$15.99

$

In Stock, only 1 left!

0

6

Simplicity 5023119SM

FITTING, Elbow, 5/8"

$26.99

$

Usually ships in 2-12 days

0

7

Simplicity 5021164SM

CLAMP, #10 Hose

$3.99

$

In Stock, only 3 left!

0

8

Simplicity 5050933X24P5SM

HOSE, Hydraulic, 24.5"

$50.99

$

Usually ships in 2-12 days

0

9

Simplicity 5022922SM

CLAMP, #4 Hose

$3.49

$

In Stock, only 1 left!

0

10

Simplicity 5050860X18P5SM

HOSE, Hydraulic, 18.5"

$22.99

$

In Stock, only 1 left!

0

11

Simplicity 5023268SM

CLAMP, Hose

$3.49

$

Usually ships in 2-12 days

0

12

Simplicity 5102095SM

HYDRAULIC HOSE ASSEMBLY, 25"
(Superseded to 5102095YP)

$142.99

$

Usually ships in 2-12 days

0

13

Simplicity 5102094SM

HYDRAULIC HOSE ASSEMBLY, 21"
(Superseded to 5102094YP)

$104.99

$

In Stock, only 1 left!

0

14

Simplicity 5025203X16SM

PIN, COTTER

$3.99

$

Usually ships in 2-12 days

0

15

Simplicity 703332

WASHER, 1/4 SAE (5025154)

$4.49

$

In Stock, Qty 20+

0

16

Refer to Hydraulic Components Service Group

$

$

Not available

17

Simplicity 5022042X2SM

KEY

$10.99

$

In Stock, only 1 left!

0

18

Simplicity 5022042X3SM

NUT, CASTLE

$34.99

$

In Stock, only 1 left!

0

19

Simplicity 5050860X18SM

HOSE, Hydraulic, 18"

$15.99

$

Usually ships in 2-12 days

0

20

Simplicity 5023338SM

FITTING, O-Ring, 45 Deg.

$36.99

$

Usually ships in 2-12 days

0

21

Simplicity 5023267SM

FITTING, O-Ring, 90 Deg.

$30.99

$

Usually ships in 2-12 days

0

22

Simplicity 5022920SM

FITTING, TEE, 3/8" Hose

$18.99

$

Usually ships in 2-12 days

0

23

Simplicity 5023346SM

FITTING, O-Ring, 90 Deg.

$42.99

$

Usually ships in 2-12 days

0

24

Simplicity 5023461SM

FITTING, O-Ring, 45 Deg.

$40.99

$

Usually ships in 2-12 days

0

25

Simplicity 5023096SM

FILTER HEAD

$52.99

$

Usually ships in 2-12 days

0

26

Simplicity 1719168SM

FILTER
(Superseded to 1719168YP)

$26.99

$

In Stock, Qty 20+

0

27

Simplicity 5050860X6P5SM

HOSE, Hydraulic, 6-1/2"

$8.99

$

Usually ships in 2-12 days

0

28

Simplicity 5023373SM

HYDRAULIC PUMP, RH

Note: (S/N: 2012607199 & BELOW)

$1463.99

$

Usually ships in 2-12 days

0

29

Simplicity 5023372SM

HYDRAULIC PUMP, LH

Note: (S/N: 2012607199 & BELOW)

$1463.99

$

Usually ships in 2-12 days

0

30

Simplicity 5023371SM

FAN SHROUD

Note: (S/N: 2012607199 & BELOW)

$56.99

$

Usually ships in 2-12 days

0

31

Simplicity 5100333SM

FAN, HYD. PUMP

$54.99

$

In Stock, only 1 left!

0

32

Simplicity 5050860X6SM

HOSE, Hydraulic, 6"

$8.49

$

Usually ships in 2-12 days

0

33

Simplicity 5025128SM

NUT, 3/8-16 Hex Serrated Flange

$3.49

$

In Stock, only 2 left!

0

34

Simplicity 5025013X10SM

BOLT, 3/8-16 X 1-1/4"

$3.99

$

In Stock, Qty 12

0

35

Simplicity 5025010X6SM

BOLT, 1/4"-20 X 3/4"

$3.99

$

In Stock, Qty 20+

0

36

Simplicity 5025169SM

WASHER, 1/4" LOCK
(Superseded to 704133)

$3.99

$

In Stock, Qty 11

0

37

Simplicity 5100670SM

HYDRAULIC PUMP, LH
(Superseded to 5102174YP)

Note: (S/N: 2012607200 & ABOVE)

$1590.99

$

Usually ships in 2-12 days

0

38

Simplicity 5100671SM

HYDRAULIC PUMP, RH
(Superseded to 5102175YP)

Note: (S/N: 2012607200 & ABOVE)

$1515.99

$

Usually ships in 2-12 days

0

39

Simplicity 5100162SM

FAN SHROUD

Note: (S/N: 2012607200 & ABOVE)

$22.99

$

Usually ships in 2-12 days

0
