2690369 - Simplicity Citation 48" Zero-Turn Mower, 21hp Briggs & Stratton Fuel Tank & Mount Group (197TNK0) Parts Diagram

Citation 48" Zero-Turn Mower, 21hp Briggs & Stratton

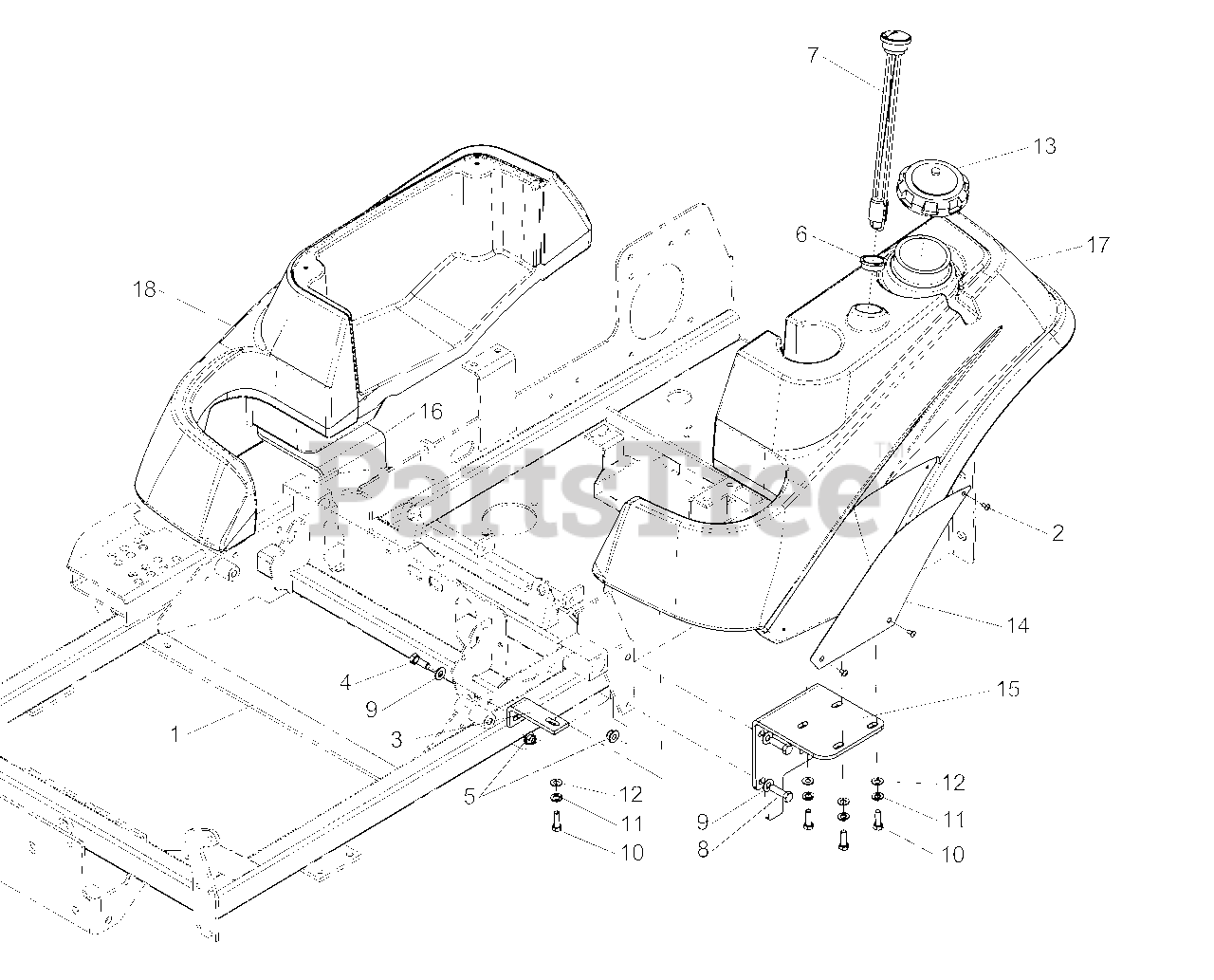

Fuel Tank & Mount Group (197TNK0) Parts Diagram

  • Title

1

MAIN FRAME (See Main Frame Group)

$

$

Not available

2

Simplicity 5025386SM

SCREW, Allen Head, #10-24 x 3/8"

$3.99

$

In Stock, only 2 left!

0

3

Simplicity 5400012A

MOUNT, TANK, FRONT - BLK
(Superseded to 5400012AYP)

$14.99

$

Usually ships in 2-12 days

0

4

Simplicity 5025013X8SM

BOLT, 3/8-16 X 1" GD5

$3.99

$

In Stock, Qty 6

0

5

Simplicity 5025394SM

NUT, 3/8-16 Hex Nylock Flange

$4.49

$

In Stock, Qty 20+

0

6

Simplicity 5022917X1SM

GROMMET

$6.99

$

In Stock, Qty 5

0

7

Simplicity 5022917SM

GAUGE, FUEL LEVEL

$50.99

$

In Stock, Qty 20+

0

8

Simplicity 5025013X10SM

BOLT, 3/8-16 X 1-1/4"

$3.99

$

In Stock, Qty 12

0

9

Simplicity 5025156SM

WASHER 3/8" SAE
(Superseded to 703590)

$3.99

$

In Stock, Qty 10

0

10

Simplicity 5025011X8SM

BOLT, 5/16-18 X 1"
(Superseded to 703585)

$4.99

$

In Stock, only 1 left!

0

11

Simplicity 5025170SM

WASHER, 5/16" Lock

$3.99

$

Usually ships in 2-12 days

0

12

Simplicity 5025155SM

WASHER, 5/16" SAE
(Superseded to 703350)

$4.49

$

In Stock, only 3 left!

0

13

Simplicity 5022158SM

CAP, FUEL TANK, 3-1/2" NECK
(Superseded to 5101651SM)

$30.99

$

In Stock, Qty 20+

0

14

Simplicity 5400250CSM

PLATE, BADGE

$11.99

$

Usually ships in 2-12 days

0

15

Simplicity 5049942CSM

TANK MOUNT - LH

$50.99

$

Usually ships in 2-12 days

0

16

Simplicity 5049941CSM

TANK MOUNT - RH

$

$

Not available

17

Simplicity 5049947SM

TANK, FUEL, CITATION/ZT400 - LH
(Superseded to 5103301YP)

$555.99

$

Usually ships in 2-12 days

0

18

Simplicity 5049948SM

TANK, FENDER, CITATION/ZT4000 - RH

$308.99

$

In Stock, only 1 left!

0
