2690367 - Simplicity Stallion 61" Zero-Turn Mower, 25hp Kohler Rear Suspension Group (4235susr) Parts Diagram

Stallion 61" Zero-Turn Mower, 25hp Kohler

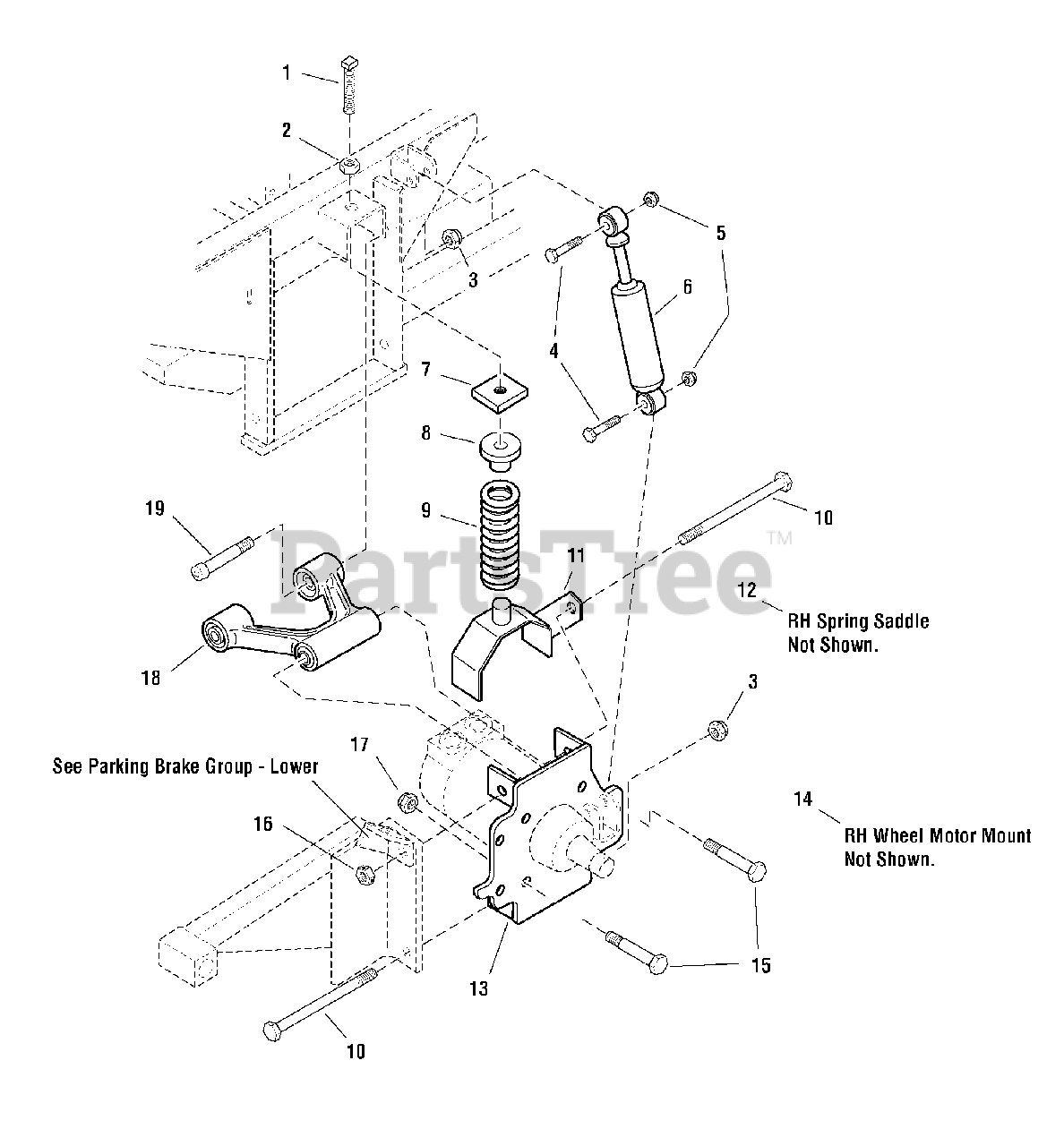

Rear Suspension Group (4235susr) Parts Diagram

  • Title

1

Simplicity 5025298SM

SET SCREW, Square Head, 1/2-13 x 3

$4.99

$

Usually ships in 2-12 days

0

2

Simplicity 5025301SM

NUT, 1/2-13 Hex Jam

$3.49

$

In Stock, only 1 left!

0

3

Simplicity 5025056SM

NUT, 1/2-13 Hex Nylon Lock
(Superseded to 7091325YP)

$4.99

$

In Stock, only 1 left!

0

4

Simplicity 5025013X16SM

BOLT, 3/8-16 x 2

$4.49

$

In Stock, Qty 6

0

5

Simplicity 5025096SM

NUT, 3/8-16 Hex Nylon Lock

$3.49

$

In Stock, Qty 20+

0

6

Simplicity 5022912SM

DAMPENER

$176.99

$

Usually ships in 2-12 days

0

7

Simplicity 5045904SM

SPRING COMPRESSION PLATE

$14.99

$

Usually ships in 2-12 days

0

8

Simplicity 5045898SM

SPRING RETAINER

$

$

Not available

9

Simplicity 5061182SM

SPRING, Compression

$

$

Not available

10

Simplicity 5025017X52SM

BOLT, 1/2-13 x 6-1/2

$10.99

$

In Stock, only 2 left!

0

11

Simplicity 5045601CSM

SPRING SADDLE-LH

$

$

Not available

12

Simplicity 5045602CSM

SPRING SADDLE-RH

$

$

Not available

13

Simplicity 5061558C

WHEEL MOTOR MOUNT - LH

$

$

Not available

14

Simplicity 5061856C

WHEEL MOTOR MOUNT - RH

$

$

Not available

15

Simplicity 5025018X24SM

BOLT, 1/2-20 x 3

$4.99

$

Usually ships in 2-12 days

0

16

Simplicity 5025332

NUT, 1/2-13 Hex Side Lock
(Superseded to 5025332SM)

$3.49

$

In Stock, Qty 11

0

17

Simplicity 5025098SM

NUT, 1/2-20 Hex Nylon Lock

$5.99

$

In Stock, only 2 left!

0

18

Simplicity 5061178SM

CAST A-ARM

$190.99

$

Usually ships in 2-12 days

0

19

Simplicity 5025294SM

BOLT, Allen Head, 1/2-13 x 3

$6.99

$

Usually ships in 2-12 days

0
