2690367 - Simplicity Stallion 61" Zero-Turn Mower, 25hp Kohler Main Frame & Front Suspension Group (4235frm0) Parts Diagram

Stallion 61" Zero-Turn Mower, 25hp Kohler

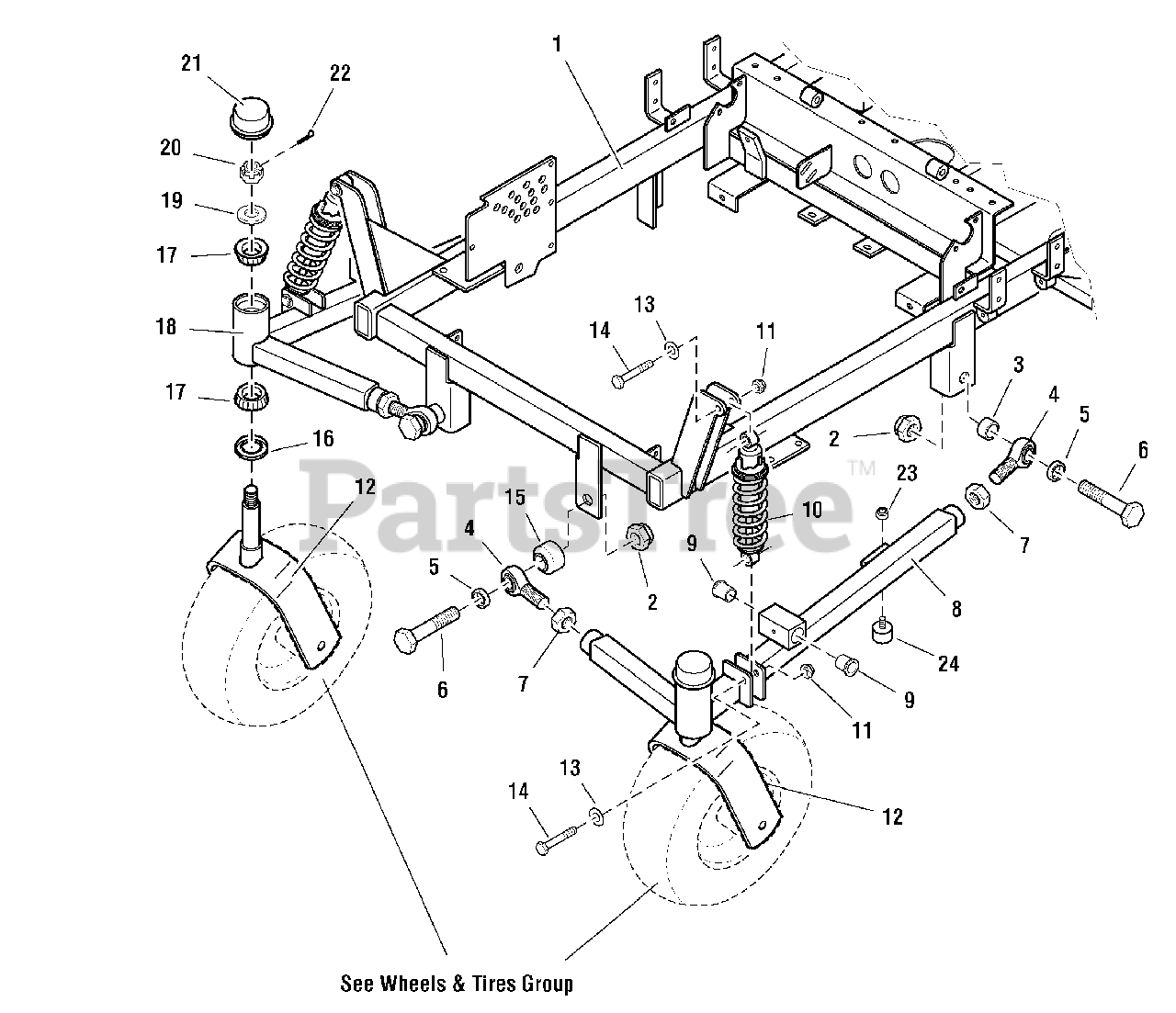

Main Frame & Front Suspension Group (4235frm0) Parts Diagram

  • Title

1

Simplicity 5061308CSM

MAIN FRAME

$

$

Not available

2

Simplicity 5025284SM

NUT, 3/4-16 Hex Nylon Lock

$3.49

$

In Stock, only 1 left!

0

3

Simplicity 5046092SM

SPACER, .76 x 1.00 x .50

$6.49

$

In Stock, only 1 left!

0

4

Simplicity 5022039SM

BALL JOINT, 3/4-16 Male

$38.99

$

Usually ships in 2-12 days

0

5

Simplicity 5047461SM

SPACER, .76 x 1.00 x .25

$4.99

$

In Stock, only 2 left!

0

6

Simplicity 5025265X28SM

BOLT, 3/4-16 x 3-1/2

$15.99

$

Usually ships in 2-12 days

0

7

Simplicity 5025093SM

NUT, 3/4-16 Hex Jam

$4.49

$

In Stock, only 1 left!

0

8

Simplicity 5047743CSM

SUSPENSION ARM ASSEMBLY - LH

$302.99

$

Usually ships in 2-12 days

0

9

Simplicity 5023343SM

BUSHING, Flange

$6.99

$

In Stock, only 2 left!

0

10

Simplicity 5022842SM

SHOCK & SPRING ASSEMBLY

$227.99

$

In Stock, only 2 left!

0

11

Simplicity 5025096SM

NUT, 3/8-16 Hex Nylon Lock

$3.49

$

In Stock, Qty 9

0

12

Simplicity 5045769C

CASTER TIRE MOUNT

$

$

Not available

13

Simplicity 5025156SM

WASHER, 3/8" SAE
(Superseded to 703590)

$3.99

$

In Stock, Qty 20+

0

14

Simplicity 5025013X18SM

BOLT, 3/8-16 x 2-1/4

$4.49

$

In Stock, Qty 8

0

15

Simplicity 5046093SM

SPACER, .75 x 1.50 x 1.00

$11.99

$

In Stock, only 2 left!

0

16

Simplicity 5021072SM

GREASE SEAL

$7.99

$

In Stock, Qty 14

0

17

Simplicity 5020884SM

BEARING, Tapered Roller

$26.99

$

In Stock, Qty 20+

0

18

Simplicity 5047742

SUSPENSION ARM ASSEMBLY - RH

$509.99

$

Usually ships in 2-12 days

0

19

Simplicity 5025160SM

WASHER, 3/4" SAE

$4.49

$

In Stock, only 2 left!

0

20

Simplicity 5025104SM

NUT, 3/4-16 Hex Slotted
(Superseded to 1960387SM)

$6.49

$

Usually ships in 2-12 days

0

21

Simplicity 5021073SM

CAP

$7.99

$

In Stock, only 4 left!

0

22

Simplicity 5025203X10SM

COTTER PIN, 1/8" X 1-1/4"

$3.99

$

In Stock, only 1 left!

0

23

Simplicity 5025095SM

NUT, 1/4-20 Hex Nylon Lock

$3.49

$

In Stock, only 4 left!

0

24

Simplicity 5022673SM

RUBBER BUMPER

$20.99

$

In Stock, only 1 left!

0
