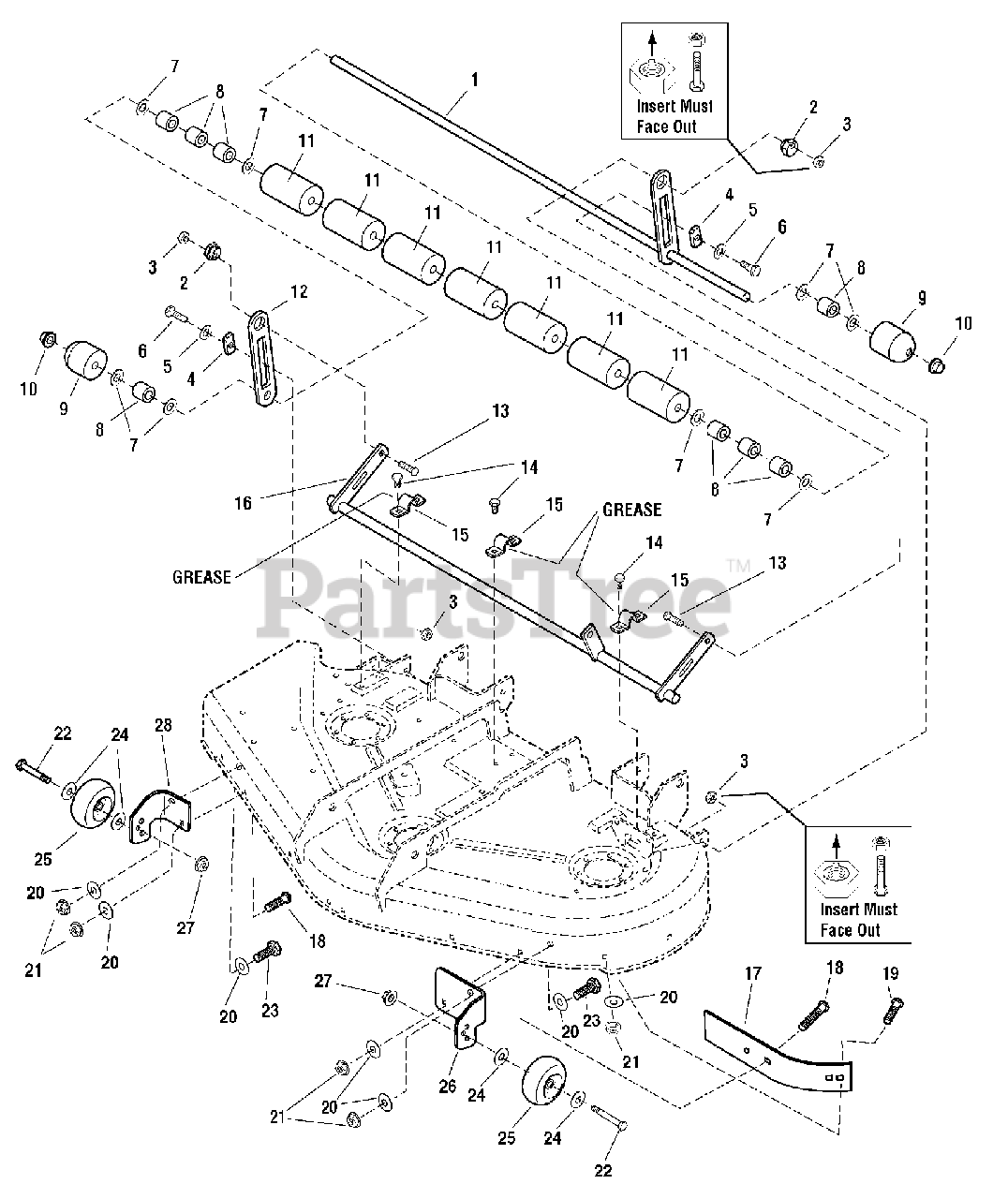

2690355 - Massey Ferguson Champion 44" Zero-Turn Mower, 18hp Kohler 44" Mower Deck - Roller Bar Group (FI0029) Parts Diagram

Champion 44" Zero-Turn Mower, 18hp Kohler

44" Mower Deck - Roller Bar Group (FI0029) Parts Diagram

  • Title

1

Simplicity 5048676CSM

SHAFT, Roller, 44"

$164.99

$

Usually ships in 2-12 days

0

2

Simplicity 1704082SM

NUT, Hex Adjusting, .99 DIA .687

$5.49

$

In Stock, Qty 17

0

3

Simplicity 2860681SM

NUT, Hex Aluminum Insert Lock, 3/8-16

$4.49

$

In Stock, Qty 11

0

4

Simplicity 1677507SM

SLIDE

$6.99

$

In Stock, Qty 5

0

5

Simplicity 1924361SM

WASHER, Plain, 1/2
(Superseded to 703451)

$4.49

$

In Stock, Qty 20+

0

6

Simplicity 2172622SM

BOLT, Shoulder, 3/8-16 X 1.34

$6.99

$

In Stock, Qty 20+

0

7

Simplicity 1924366SM

WASHER, 5/8
(Superseded to 703580)

$4.49

$

In Stock, Qty 20+

0

8

Simplicity 1602946SM

SPACER, .66 ID

$13.99

$

In Stock, Qty 20+

0

9

Simplicity 1717675SM

ROLLER, Rounded

$6.99

$

In Stock, Qty 20+

0

10

Simplicity 1960520SM

NUT, Push
(Superseded to 771009)

$3.99

$

In Stock, Qty 20+

0

11

Simplicity 1668513SM

ROLLER

$10.99

$

In Stock, Qty 20+

0

12

Simplicity 5049040CSM

BAR, Roller

$26.99

$

Usually ships in 2-12 days

0

13

Simplicity 1931352SM

CARRIAGE BOLT, 3/8-16 X 1-1/2

$4.49

$

In Stock, only 2 left!

0

14

Simplicity 1664847SM

CAPSCREW, Hex Head Taptite, 5/16-18 X 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

15

Simplicity 1665374SM

STRAP
(Superseded to 1761690HYP)

$7.99

$

Usually ships in 2-12 days

0

16

Simplicity 5048672CSM

SHAFT, Deck Lift, 44"

$100.99

$

Usually ships in 2-12 days

0

17

Simplicity 1724538ASM

BAFFLE, Short Blowout

$45.99

$

In Stock, only 1 left!

0

18

Simplicity 5025145X8SM

CARRIAGE BOLT, 5/16-18 X 1

$3.99

$

In Stock, Qty 9

0

19

Simplicity 5025145X6SM

CARRIAGE BOLT, 5/16-18 X 3/4

$3.99

$

In Stock, Qty 5

0

20

Simplicity 5025155SM

WASHER, 5/16, Plain, SAE
(Superseded to 703350)

$4.49

$

In Stock, only 2 left!

0

21

Simplicity 5025057SM

NUT, 5/16-18, Hex, Nylon Lock
(Superseded to 703902)

$3.99

$

In Stock, Qty 20+

0

22

Simplicity 2108765SM

BOLT, Rear Wheel

$6.49

$

In Stock, Qty 20+

0

23

Simplicity 5025011X8SM

CAPSCREW, Hex Head, 5/16-18 X 1
(Superseded to 703585)

$4.99

$

In Stock, only 1 left!

0

24

Simplicity 1960027SM

WASHER
(Superseded to 703128)

$3.49

$

In Stock, Qty 20+

0

25

Simplicity 1714760SM

WHEEL, Guage

$6.49

$

In Stock, Qty 20+

0

26

Simplicity 5049017CSM

BRACKET, Gauge Wheel, LH, Orange
(Superseded to 1719852ASM)

$26.99

$

In Stock, only 1 left!

0

26

Simplicity 5049017DSM

BRACKET, Gauge Wheel, LH, Red
(Superseded to 1719852ASM)

$26.99

$

In Stock, only 1 left!

0

27

Simplicity 5025394SM

NUT, 3/8-16 HEX NYLON FLANGE

$4.49

$

In Stock, Qty 20+

0

28

Simplicity 5049018CSM

BRACKET, Gauge Wheel, RH, Orange
(Superseded to 1719853ASM)

$29.99

$

In Stock, only 1 left!

0

28

Simplicity 5049018DSM

BRACKET, Gauge Wheel, RH, Red

$

$

Not available
