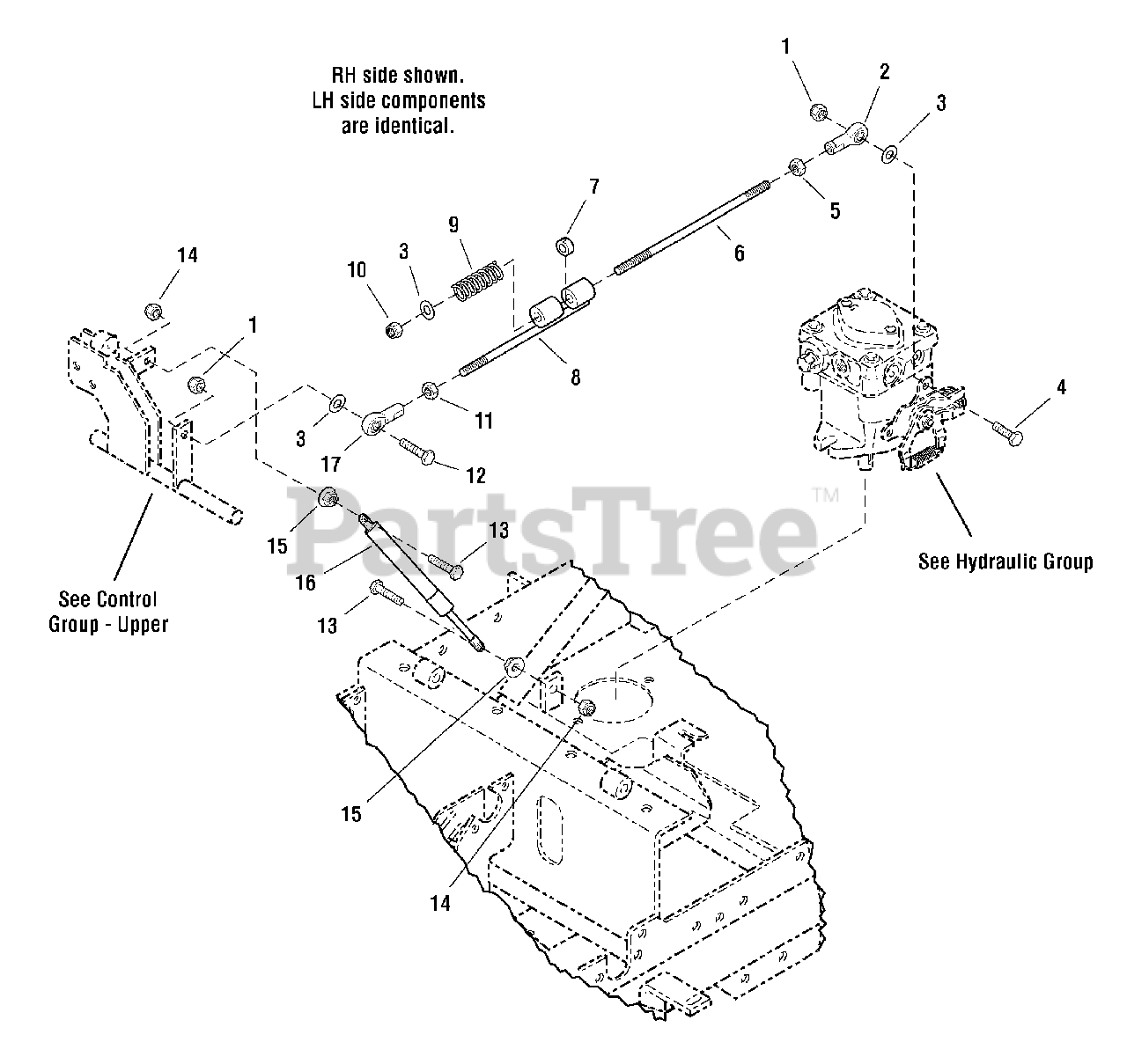

2690083 - Simplicity Consumer 50" Zero-Turn Mower, 20hp Controls Group - Lower (FI0018) Parts Diagram

Consumer 50" Zero-Turn Mower, 20hp

Controls Group - Lower (FI0018) Parts Diagram

  • Title

1

Simplicity 5025057SM

NUT, Hex Nylon Lock, 5/16-18
(Superseded to 703902)

$3.99

$

In Stock, Qty 20+

0

2

Simplicity 5104579YP

BALL JOINT 5/16-24 LH FEMALE STAMPED STL

$

$

Not available

3

Simplicity 5025155SM

WASHER, SAE, 5/16
(Superseded to 703350)

$4.49

$

In Stock, only 1 left!

0

4

Simplicity 5025011X9SM

CAPSCREW, Hex Head, 5/16-18 X 1-1/8

$3.99

$

In Stock, only 1 left!

0

5

Simplicity 5023212SM

NUT, Hex, 5/16-24, LH

$3.49

$

Usually ships in 2-12 days

0

6

Simplicity 5103673YP

ROD, 5/16 X 8.38, LH-RH, CZ

$6.49

$

Usually ships in 2-12 days

0

7

Simplicity 5020047SM

COLLAR, SET, 5/16

$7.49

$

In Stock, only 1 left!

0

8

Simplicity 5048923SM

ROD ASSEMBLY, Slider

$45.99

$

Usually ships in 2-12 days

0

9

Simplicity 5023242SM

SPRING

$6.99

$

Usually ships in 2-12 days

0

10

Simplicity 5025045SM

NUT, Hex Nylon Lock, 5/16-24

$3.49

$

In Stock, Qty 11

0

11

Simplicity 5025033SM

NUT, Hex, 5/16-24
(Superseded to 703331)

$3.99

$

In Stock, Qty 20+

0

12

Simplicity 5025011X10SM

CAPSCREW, Hex Head, 5/16-18 X 1-1/4

$3.99

$

Usually ships in 2-12 days

0

13

Simplicity 5025335SM

CAPSCREW, Hex Head, M8-1.25 X 35MM

$3.49

$

Usually ships in 2-12 days

0

14

Simplicity 5025354SM

NUT, Hex Nylon Lock, M8-1.25

$3.49

$

Usually ships in 2-12 days

0

15

Simplicity 5025355SM

NUT, Hex Serrated Flange, M8-1.25

$3.49

$

Usually ships in 2-12 days

0

16

Simplicity 5100728SM

DAMPENER
(Superseded to 5103511YP)

$62.99

$

In Stock, Qty 16

0

17

Simplicity 5104578YP

BALL JOINT 5/16-24 RH FEMALE STAMPED STL

$11.99

$

Usually ships in 2-12 days

0
