2690050 - Simplicity Lancer 44" Rear-Engine Riding Mower, 17hp Lift Group Parts Diagram

Lancer 44" Rear-Engine Riding Mower, 17hp

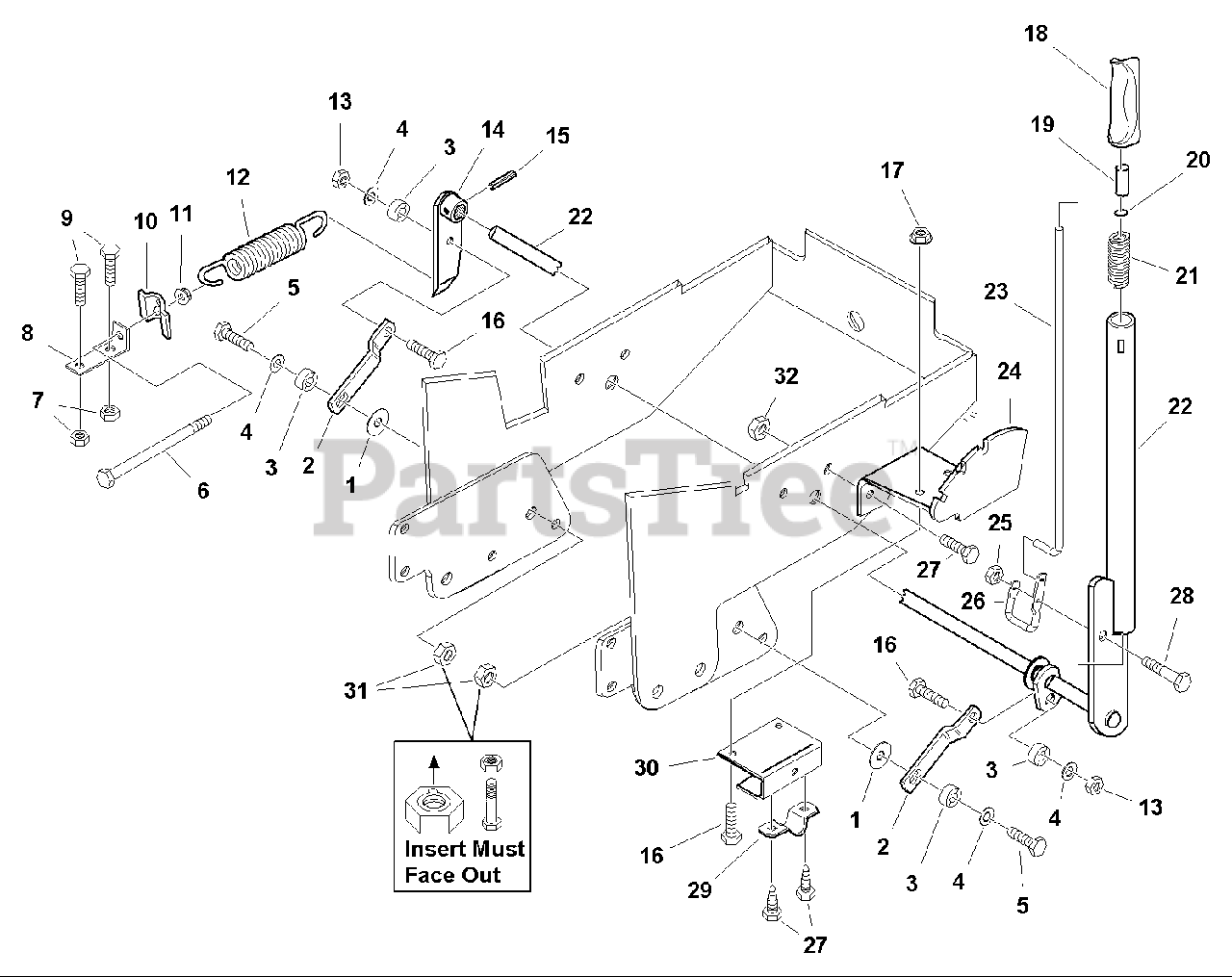

Lift Group Parts Diagram

  • Title

1

Simplicity 1960071SM

WASHER, 3/8, Black

$8.49

$

In Stock, only 1 left!

0

2

Simplicity 1723194ASM

LINK, Lift

$14.99

$

Usually ships in 2-12 days

0

3

Simplicity 2154177SM

SPACER

$39.99

$

In Stock, only 1 left!

0

4

Simplicity 1922755SM

WASHER,3/8, Black
(Superseded to 704128)

$4.99

$

In Stock, Qty 9

0

5

Simplicity 1921971SM

CAPSCREW, Hex Head, 3/8-16 x 1-3/4, Black
(Superseded to 704289)

$4.99

$

In Stock, Qty 12

0

6

Simplicity 1722357SM

CAPSCREW, Hex Washer Head, 5/16-18 x 4-1/2, Black

$17.99

$

Usually ships in 2-12 days

0

7

Simplicity 1917372SM

NUT, Hex, 5/16-18, Black
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

8

Simplicity 1723202ASM

ANCHOR, Spring

$14.99

$

Usually ships in 2-12 days

0

9

Simplicity 1921719SM

CAPSCREW, Hex Head, 5/16-18 x 2-1/2
(Superseded to 703868)

$4.99

$

In Stock, only 3 left!

0

10

Simplicity 1723499SM

RETAINER, Spring

$8.49

$

In Stock, only 2 left!

0

11

Simplicity 1935255SM

NUT, Speed, 5/16-18

$3.49

$

In Stock, only 2 left!

0

12

Simplicity 1675232SM

SPRING, Extension, 9" Long

$20.99

$

Usually ships in 2-12 days

0

13

Simplicity 1930645SM

NUT, Hex Flange Lock, 3/8-16, Black
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

14

Simplicity 1723203ASM

BAR & HUB ASSEMBLY

$42.99

$

Usually ships in 2-12 days

0

15

Simplicity 2815523SM

PIN, Spring, 5/16 x 1-1/2

$3.49

$

Usually ships in 2-12 days

0

16

Simplicity 1920415SM

CAPSCREW, Hex Head, 3/8-16 x 1-1/4, Black
(Superseded to 703871)

$4.99

$

Usually ships in 2-12 days

0

17

Simplicity 1931277SM

NUT, Hex Flange Whiz Lock, 5/16-18, Black
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

18

Simplicity 1722291SM

GRIP, Lift Lever

$11.99

$

In Stock, Qty 11

0

19

Simplicity 1723124SM

BUTTON, Red

$5.99

$

In Stock, Qty 20+

0

20

Simplicity 1960674SM

NUT, Push, 1/4, Black
(Superseded to 703826)

$3.49

$

In Stock, Qty 20+

0

21

Simplicity 1723321SM

SPRING, Compression, 3.85" Long

$6.99

$

In Stock, only 4 left!

0

22

Simplicity 1723200ASM

HANDLE ASSEMBLY, Lift

$142.99

$

Usually ships in 2-12 days

0

23

Simplicity 1723224SM

ROD

$12.99

$

Usually ships in 2-12 days

0

24

Simplicity 1723285ASM

QUADRANT, Lift

$31.99

$

Usually ships in 2-12 days

0

25

Simplicity 1920397SM

NUT, Hex Lock ESNA, 1/4-20, Black
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

26

Simplicity 1720599SM

LATCH "U" Wire

$22.99

$

Usually ships in 2-12 days

0

27

Simplicity 1930591SM

CAPSCREW, Hex Head, Whiz Lock, 5/16-18 x 3/4, Black
(Superseded to 703354)

$5.49

$

In Stock, Qty 6

0

28

Simplicity 1921159SM

CAPSCREW, Hex Head, 1/4-20 x 2-1/4, Black
(Superseded to 704291)

$5.49

$

Usually ships in 2-12 days

0

29

Simplicity 1665374SM

STRAP
(Superseded to 1761690HYP)

$7.99

$

Usually ships in 2-12 days

0

30

Simplicity 1723529ASM

BRACE, Support

$14.99

$

Usually ships in 2-12 days

0

31

Simplicity 2860681SM

NUT, Hex Lock Aluminum Insert, 3/8-16

$4.49

$

In Stock, Qty 7

0

32

Simplicity 1928352SM

NUT, Hex Whiz Lock , 3/8-16
(Superseded to 703793)

$4.49

$

In Stock, only 3 left!

0
