2690020 - Simplicity Lancer 44" Rear-Engine Riding Mower, 17hp 44" Mower Deck - Housing, Arbors & Blades Parts Diagram

Lancer 44" Rear-Engine Riding Mower, 17hp

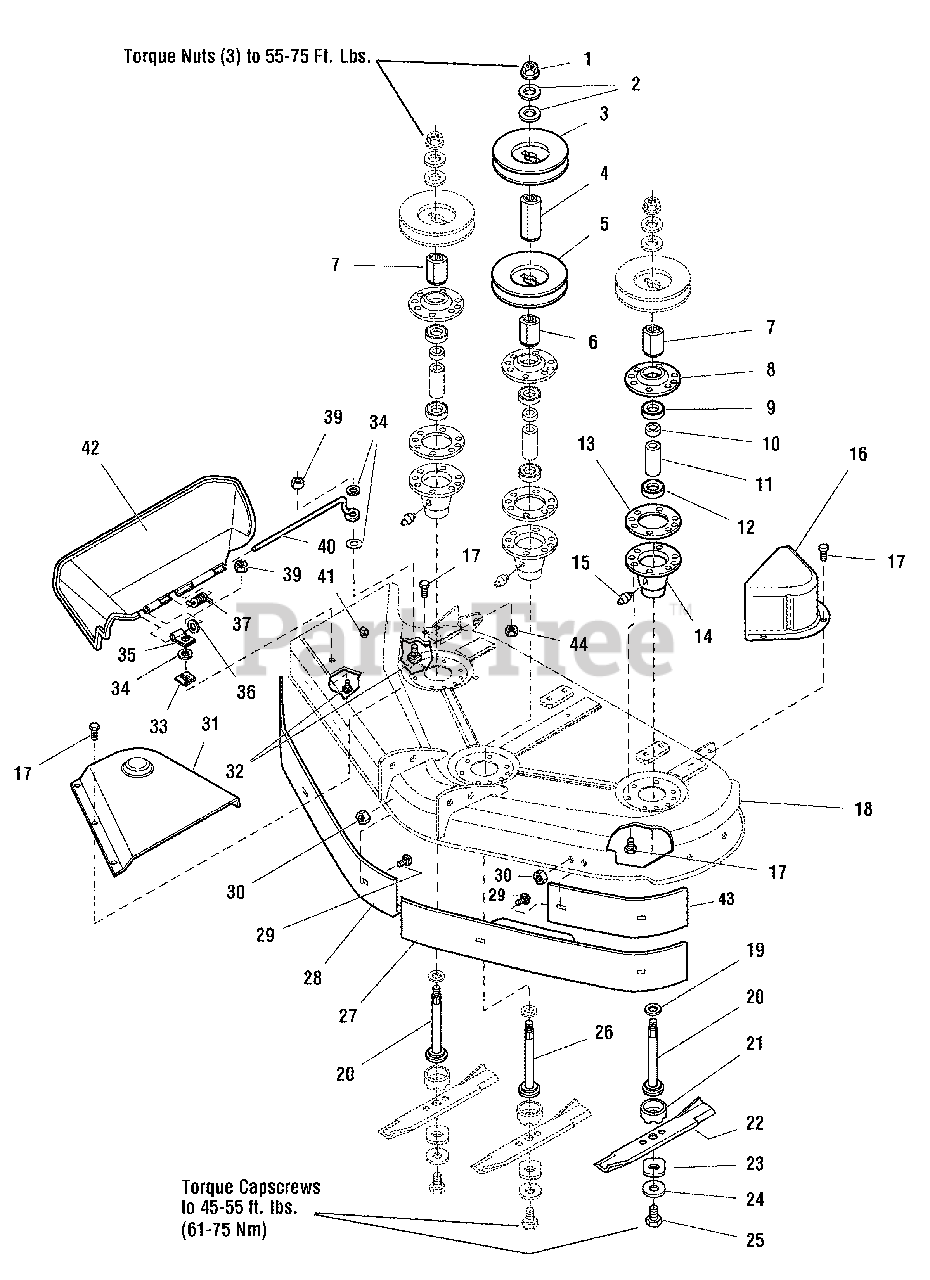

44" Mower Deck - Housing, Arbors & Blades Parts Diagram

  • Title

1

Simplicity 1714419SM

NUT, Hex Flange, 9/16-18

$5.99

$

In Stock, Qty 20+

0

2

Simplicity 1713675SM

WASHER, Bellville

$4.49

$

In Stock, Qty 20+

0

3

Simplicity 1713161SM

PULLEY

$20.99

$

In Stock, Qty 20+

0

4

Simplicity 1713158SM

HUB

$18.99

$

In Stock, Qty 20+

0

5

Simplicity 1713098SM

PULLEY

$19.99

$

In Stock, Qty 20+

0

6

Simplicity 1713533SM

HUB

$9.99

$

In Stock, Qty 20+

0

7

Simplicity 1713197SM

HUB

$6.99

$

In Stock, Qty 20+

0

8

Simplicity 1655729ASM

COVER, Arbor Housing

$14.99

$

Usually ships in 2-12 days

0

9

Simplicity 2108202SM

BEARING

$11.99

$

In Stock, Qty 20+

0

10

Simplicity 1715724SM

SPACER

$9.49

$

In Stock, Qty 20+

0

11

Simplicity 1732544SM

SPACER

$5.49

$

In Stock, Qty 20+

0

12

Simplicity 1705897SM

BEARING

$8.49

$

In Stock, Qty 20+

0

13

Simplicity 1707335SM

GASKET, Foam

$5.99

$

In Stock, Qty 20+

0

14

Simplicity 1713338ASM

HOUSING ASSEMBLY, Arbor Bottom, w/Lube Fitting

Note: (Includes Ref. No. 15)

$41.99

$

In Stock, Qty 20+

0

15

Simplicity 1704314SM

FITTING, Lube
(Superseded to 703907)

$4.99

$

In Stock, Qty 20+

0

16

Simplicity 1729666SM

COVER, Arbor

$43.99

$

In Stock, only 1 left!

0

17

Simplicity 1664847SM

CAPSCREW, Hex Washer Head, Taptite, 5/16-18 x 3/4, Black
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

18

Simplicity 1686937SM

HOUSING ASSEMBLY, 44" Front Cut

Note: (Orange)

$1595.99

$

Usually ships in 2-12 days

0

18

Simplicity 1687189SM

HOUSING ASSEMBLY, 44" Front Cut

Note: (Red)

$1880.99

$

Usually ships in 2-12 days

0

19

Simplicity 1713619SM

WASHER, Cup

$4.49

$

In Stock, Qty 20+

0

20

Simplicity 1713195SM

SHAFT

$31.99

$

In Stock, Qty 8

0

21

Simplicity 1713196SM

SHIELD, Grass

$9.49

$

In Stock, Qty 20+

0

22

Simplicity 1704100ASM

BLADE, Mower, 16-1/8
(Superseded to 1716696ASM)

Note: (For 44" Deck)

$25.99

$

In Stock, Qty 20+

0

23

Simplicity 1713089SM

WASHER, Hex, Special

$4.99

$

In Stock, Qty 20+

0

24

Simplicity 1656916SM

WASHER, Black

$7.49

$

In Stock, Qty 20+

0

25

Simplicity 2823471SM

CAPSCREW, Hex Head, 7/16-14 x 1-1/4, Black
(Superseded to 703579)

$4.49

$

In Stock, Qty 20+

0

26

Simplicity 1713612SM

SHAFT, Arbor

$

$

Not available

27

Simplicity 1716879ASM

BAFFLE, Anti-Blowout, LH

Note: (CE Only)

$115.99

$

Usually ships in 2-12 days

0

28

Simplicity 1716878ASM

BAFFLE, Anti-Blowout, RH

Note: (CE Only)

$97.99

$

Usually ships in 2-12 days

0

29

Simplicity 1931333SM

CARRIAGE BOLT, 5/16-18 x 3/4, Black
(Superseded to 703185)

Note: (qty. 2 for Domestic)

$3.49

$

In Stock, Qty 12

0

30

Simplicity 1927557SM

NUT, Hex Flange Whiz Lock, 5/16-18, Black

Note: (qty. 2 for Domestic)

$4.99

$

Usually ships in 2-12 days

0

31

Simplicity 1703601SM

COVER, Arbor

$80.99

$

In Stock, only 1 left!

0

32

Simplicity 1931318SM

CARRIAGE BOLT, 1/4-20 x 7/8, Black

$4.49

$

In Stock, only 2 left!

0

33

Simplicity 1960518SM

NUT, Push, 1/4, Black
(Superseded to 703826)

$3.49

$

In Stock, Qty 20+

0

34

Simplicity 1960353SM

WASHER, 1/4, Black
(Superseded to 703229)

$4.49

$

In Stock, Qty 7

0

35

Simplicity 1704873SM

CLAMP

$4.49

$

In Stock, Qty 20+

0

36

Simplicity 1919326SM

WASHER, 5/16, Black

$4.49

$

In Stock, Qty 6

0

37

Simplicity 7101082SM

SPRING, Torsion
(Superseded to 1759750YP)

$8.49

$

In Stock, Qty 20+

0

39

Simplicity 1920397SM

NUT, Hex, 1/4-20, Black, ESNA
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

40

Simplicity 1706709SM

ROD, Deflector, Front

$8.49

$

In Stock, Qty 20+

0

41

Simplicity 1705115SM

PLUG, Hole

$4.49

$

In Stock, only 1 left!

0

42

Simplicity 1705449SM

DEFLECTOR, Plastic

$122.99

$

In Stock, only 1 left!

0

43

Simplicity 1724538ASM

BAFFLE, Anti Blowout, LH

$45.99

$

In Stock, only 1 left!

0

44

Simplicity 1931277SM

NUT, Hex Whiz Lock, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0
