2690 (31BM73Q3766) - Troy-Bilt Storm Tracker 26" Track Drive Snow Thrower (2009) Transmission & Track Drive System Parts Diagram

Storm Tracker 26" Track Drive Snow Thrower

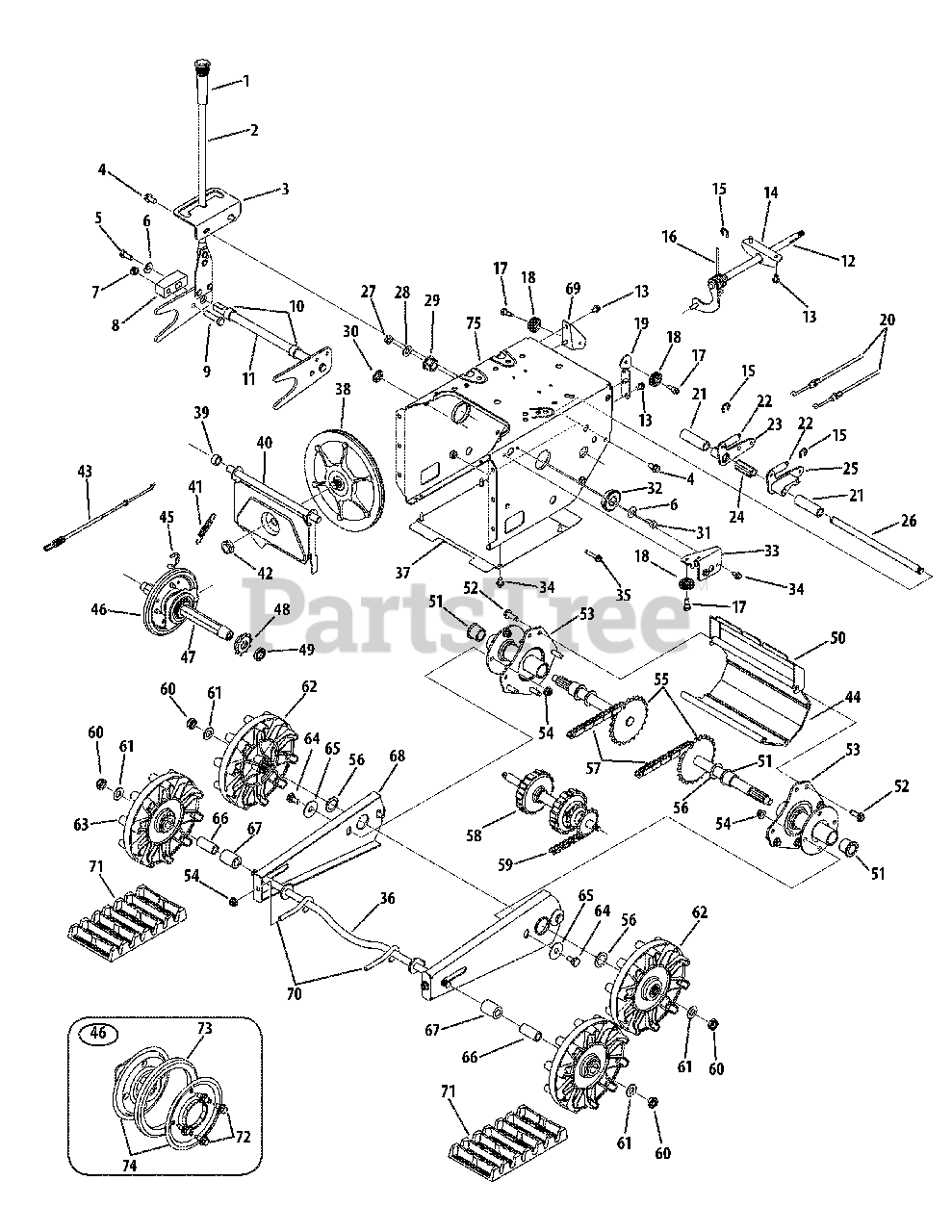

Transmission & Track Drive System Parts Diagram

  • Title

1

Troy-Bilt 720-0223

Grip, .5 ID x 3.45

$14.99

$

In Stock, Qty 6

0

2

Troy-Bilt 984-0038

Track Lock Handle Assembly
(Superseded to 684-0038)

$58.99

$

Usually ships in 3-6 days

0

3

Troy-Bilt 784-5642-4033

Lockout Track Bracket Plate

$

$

Not available

4

Troy-Bilt 710-04484

Hex Washer Screw, 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

5

Troy-Bilt 710-0157

Hex Screw, 5/16-24 x .75

$4.49

$

In Stock, Qty 8

0

6

Troy-Bilt 736-0242

Bell Washer, .340 x .872 x .060

$4.49

$

In Stock, Qty 20+

0

7

Troy-Bilt 912-3000

Hex Lock Nut, 3/8-16
(Superseded to 712-3000)

$4.49

$

In Stock, Qty 9

0

8

Troy-Bilt 748-0353A

Lift Shaft Drive

$21.99

$

Usually ships in 3-6 days

0

9

Troy-Bilt 710-0344

Hex Screw, 3/8-16 x 1.50

$5.99

$

In Stock, only 1 left!

0

10

Troy-Bilt 750-0547

Spacer, .828 ID x .875 OD x .500

$5.99

$

In Stock, only 2 left!

0

11

Troy-Bilt 684-0009A-4033

Pivot Rod Assembly
(Superseded to 684-0009A-0637)

$52.99

$

Usually ships in 3-6 days

0

12

Troy-Bilt 684-04307

Shift Rod Assembly

$

$

Not available

13

Troy-Bilt 710-0599

Hex Washer Screw, 1/4-20 x .500

$4.49

$

In Stock, Qty 20+

0

14

Troy-Bilt 784-5590-4033

Shift Frame Bracket
(Superseded to 784-5590)

$12.99

$

Usually ships in 3-6 days

0

15

Troy-Bilt 916-0104

E-Ring

$3.99

$

In Stock, Qty 15

0

16

Troy-Bilt 732-04514

Torsion Spring, .750 ID x .968

$

$

Not available

17

Troy-Bilt 738-0924A

Shoulder Screw, .34 x .335 x 1/4-28

$6.99

$

In Stock, Qty 5

0

18

Troy-Bilt 756-0625

Cable Roller

$9.49

$

In Stock, Qty 16

0

19

Troy-Bilt 784-5687A-0637

Auger Cable Guide Bracket

$

$

Not available

20

Troy-Bilt 746-0948A

Track Steering Cable
(Superseded to 946-0948A)

$37.99

$

Usually ships in 3-6 days

0

21

Troy-Bilt 750-0903B

Spacer, .515 x 735 x 2.44

$10.99

$

Usually ships in 3-6 days

0

22

Troy-Bilt 932-0209

Extension Spring, .48 OD x 2.03

$7.99

$

In Stock, only 2 left!

0

23

Troy-Bilt 618-0043

Dogg Assembly, RH

$23.99

$

In Stock, only 1 left!

0

24

Troy-Bilt 750-05021

Spacer, .491 ID x 1.87

$3.99

$

Usually ships in 3-6 days

0

25

Troy-Bilt 618-0044

Dogg Assembly, LH

$24.99

$

In Stock, only 1 left!

0

26

Troy-Bilt 911-04927

Shift Actuator

$

$

Not available

27

Troy-Bilt 912-0116

Jam Lock Nut, 3/8-24
(Superseded to 712-0116)

$

$

Not available

28

Troy-Bilt 936-0300

Flat Washer, .406 x .875 x .059
(Superseded to 736-0300)

$4.49

$

In Stock, Qty 20+

0

29

Troy-Bilt 741-1111

Hex Flange Bearing

$9.99

$

In Stock, only 3 left!

0

30

Troy-Bilt 726-0221

Speed Nut, .500

$6.49

$

In Stock, only 1 left!

0

31

Troy-Bilt 710-0538

Hex Lock Screw, 5/16-18 x .625

$4.49

$

In Stock, Qty 9

0

32

Troy-Bilt 941-0563

Ball Bearing

$36.99

$

In Stock, Qty 11

0

33

Troy-Bilt 790-00287-0637

Auger Cable Support Guide

$

$

Not available

34

Troy-Bilt 710-1652

Hex Washer Screw, 1/4-20 x .625

$4.49

$

In Stock, Qty 20+

0

35

Troy-Bilt 710-0788

Hex Washer Screw, 1/4-20 x 1.000

$7.49

$

In Stock, only 4 left!

0

36

Troy-Bilt 684-04240

Axle Assembly

Variations

Troy-Bilt 684-04240-0637

AXLE ASM-IDLER 700 - POWDER BLACK (0637)

$67.99

$

Usually ships in 3-6 days

0

$62.99

$

Usually ships in 3-6 days

0

37

Troy-Bilt 784-5648A-4033

Track Frame Cover
(Superseded to 784-5648A-0637)

$

$

Not available

38

Troy-Bilt 656-04025A

Friction Wheel Disc Assembly
(Superseded to 656-04055A)

$59.99

$

Usually ships in 3-6 days

0

39

Troy-Bilt 750-04748

Spacer, .525 ID x .750 x .42

$9.99

$

Usually ships in 3-6 days

0

40

Troy-Bilt 684-04241-0637

Friction Wheel Support Bracket
(Superseded to 684-04241A-0637)

$

$

Not available

41

Troy-Bilt 932-0264

Extension Spring

$4.99

$

In Stock, Qty 20+

0

42

Troy-Bilt 712-0417A

Flange Nut, 5/16-18

$6.99

$

In Stock, Qty 20+

0

43

Troy-Bilt 946-0898

Drive Clutch Cable

$27.99

$

In Stock, Qty 20+

0

44

Troy-Bilt 719-0295A

Housing

$

$

Not available

45

Troy-Bilt 716-0136

E-Ring

$8.99

$

In Stock, only 2 left!

0

46

Troy-Bilt 684-04159

Friction Wheel Assembly
(Superseded to 684-04159C)

$96.99

$

In Stock, only 2 left!

0

47

Troy-Bilt 911-04928

Hex Track Shaft

$46.99

$

Usually ships in 3-6 days

0

48

Troy-Bilt 913-04015

Sprocket, 10T

$12.99

$

Usually ships in 3-6 days

0

49

Troy-Bilt 950-0997

Spacer, .675 ID x 1.00 OD x .23

$6.99

$

In Stock, only 4 left!

0

50

Troy-Bilt 784-5609-4033

Steering Cable Bracket

$

$

Not available

51

Troy-Bilt 941-0339

Flange Bearing

$12.99

$

In Stock, Qty 20+

0

52

Troy-Bilt 710-0602

Hex Washer Screw, 5/16-18 x 1.0

$4.49

$

In Stock, Qty 20+

0

53

Troy-Bilt 683-0024-0637

Track Hub Assembly

$84.99

$

Usually ships in 3-6 days

0

54

Troy-Bilt 712-04063

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

55

Troy-Bilt 611-0053

Track Axle Assembly

$97.99

$

In Stock, only 2 left!

0

56

Troy-Bilt 936-0287

Flat Washer, .793 x 1.24 x .06
(Superseded to 736-0287)

$

$

Not available

57

Troy-Bilt 713-0437

Chain

$37.99

$

Usually ships in 3-6 days

0

58

Troy-Bilt 918-0169B

Drive Track Shift Assembly

$345.99

$

Usually ships in 3-6 days

0

59

Troy-Bilt 713-0233

Chain

$41.99

$

Usually ships in 3-6 days

0

60

Troy-Bilt 912-0346

Jam Lock Nut, 1/2-20
(Superseded to 712-0346)

$4.99

$

In Stock, Qty 8

0

61

Troy-Bilt 936-0272

Flat Washer, .510 x 1.00 x .060
(Superseded to 736-0272)

$4.99

$

In Stock, Qty 20+

0

62

Troy-Bilt 731-1538A

Track Drive Wheel

$36.99

$

In Stock, Qty 5

0

63

Troy-Bilt 631-0032

Track Idler Wheel
(Superseded to 631-0032A)

$45.99

$

In Stock, only 2 left!

0

64

Troy-Bilt 938-0140

Shoulder Screw, .43 x .56 5/16-18
(Superseded to 738-0140)

$

$

Not available

65

Troy-Bilt 936-0406

Flat Washer, .442 x 1.38 x .060

$6.99

$

In Stock, only 1 left!

0

66

Troy-Bilt 750-0995

Spacer, .51 ID x .75 OD x 1.67

$16.99

$

Usually ships in 3-6 days

0

67

Troy-Bilt 750-0909

Spacer, .510 ID x 1.0 OD x 1.34

$9.49

$

Usually ships in 3-6 days

0

68

Troy-Bilt 784-5639-0637

Side Plate

$41.99

$

Usually ships in 3-6 days

0

69

Troy-Bilt 784-5688-0637

Drive Cable Guide Bracket

$

$

Not available

70

Troy-Bilt 710-1231

Eye Bolt, 5/16-18 x 3.0

$9.49

$

Usually ships in 3-6 days

0

71

Troy-Bilt 731-1292

Snow Trac

$291.99

$

Usually ships in 3-6 days

0

72

Troy-Bilt 710-0896

Hex Washer Screw, 1/4-14 x .625

$4.49

$

In Stock, Qty 20+

0

73

Troy-Bilt 935-04054

Friction Wheel
(Superseded to 935-04054A)

$39.99

$

In Stock, Qty 20+

0

74

Troy-Bilt 790-00174

Friction Plate
(Superseded to 790-00174C)

$14.99

$

Usually ships in 3-6 days

0

75

Troy-Bilt 684-04302A-4033

Frame Assembly
(Superseded to 684-04302B-4033)

$

$

Not available
