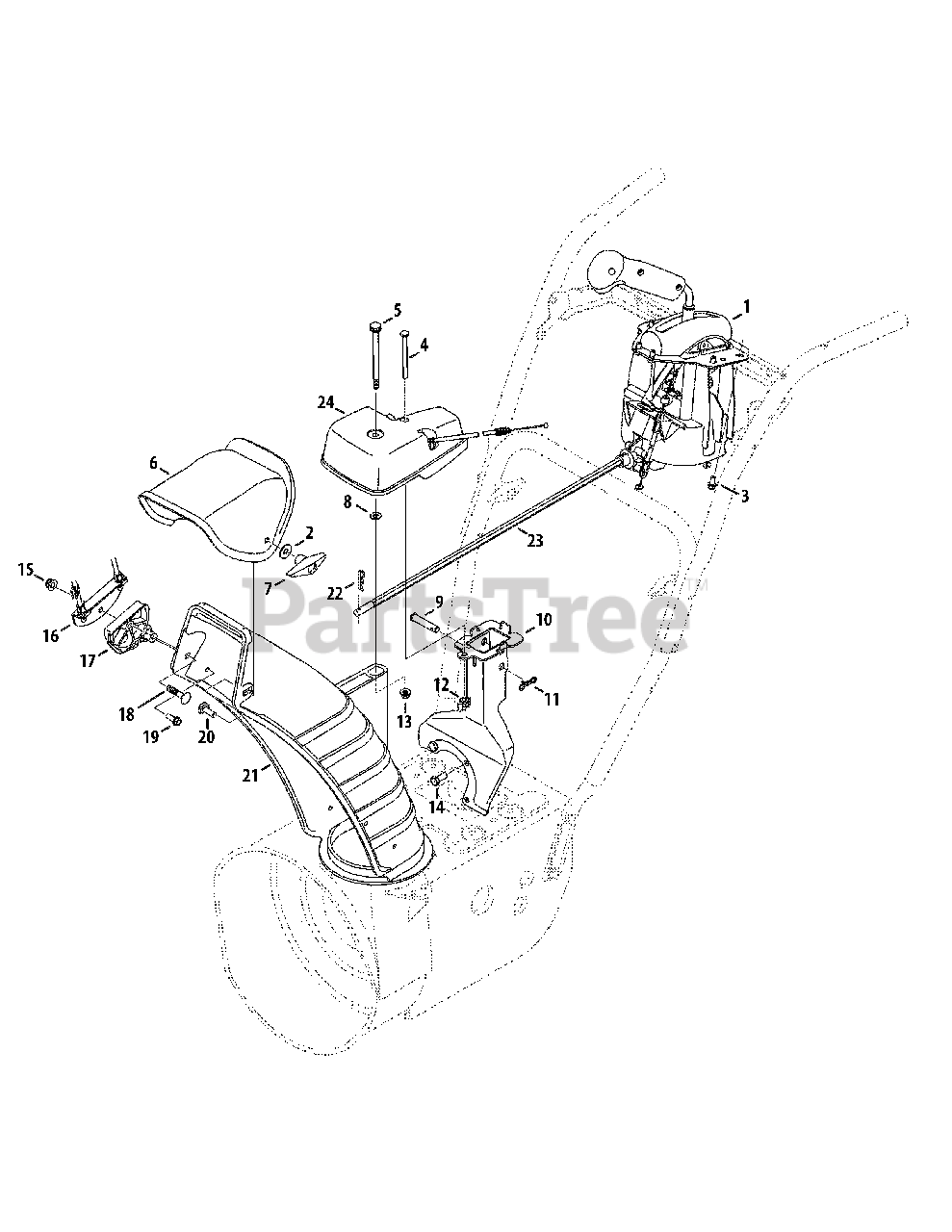

2690 (31BM73Q3766) - Troy-Bilt Storm Tracker 26" Track Drive Snow Thrower (2009) 4-Way Extended Chute Parts Diagram

Storm Tracker 26" Track Drive Snow Thrower

4-Way Extended Chute Parts Diagram

  • Title
1

Troy-Bilt 984-04338

Chute Control, 4-Way
(Superseded to 984-04338A)

$217.99

$

In Stock, only 4 left!

0

1

Troy-Bilt 753-06153

4-Way Joystick Housing

Note: Not shown

$85.99

$

In Stock, only 1 left!

0

1

Troy-Bilt 753-06152

Gear Set Kit

Note: Not shown

$25.99

$

In Stock, only 2 left!

0

1

Troy-Bilt 984-04324A

Shift Assembly

Note: Not shown (includes Joint Block Assembly, Shifter, Pitch Control)

$108.99

$

Usually ships in 3-6 days

0

1

Troy-Bilt 715-04095

Spring Pin, .156 dia. x .875 Lg.

Note: Not shown

$5.49

$

In Stock, Qty 14

0

1

Troy-Bilt 684-04350

Block Assembly, Joint

Note: Not shown

$29.99

$

In Stock, only 4 left!

0

1

Troy-Bilt 746-04528A

Chute Cable
(Superseded to 946-04528B)

Note: Not shown (Front housing cable)

$41.99

$

In Stock, Qty 12

0

1

Troy-Bilt 746-04477

Chute Cable includes routing clip
(Superseded to 946-04477)

Note: Not shown (Rear housing cable)

$44.99

$

In Stock, only 2 left!

0

1

Troy-Bilt 753-06151

Control, Trigger Housing Kit

Note: Not shown

$28.99

$

In Stock, Qty 8

0

2

Troy-Bilt 936-0159

Washer, Flat, .349 x .879
(Superseded to 736-0159)

$

$

Not available

3

Troy-Bilt 710-04187

Hex Washer Screw, 1/4-15 x .50
(Superseded to 710-04187A)

$6.99

$

In Stock, Qty 20+

0

4

Troy-Bilt 710-04370

Hex Head Screw, 1/4-20 x 3.00

$4.49

$

In Stock, Qty 8

0

5

Troy-Bilt 738-04367

Screw, Shoulder, .312 x 3.5 x 1/4-20

$4.99

$

In Stock, Qty 8

0

6

Troy-Bilt 731-04427A

Upper Chute
(Superseded to 731-04427B)

$16.99

$

In Stock, Qty 8

0

7

Troy-Bilt 720-04072A

Wing Knob, 5/16-18

$6.99

$

In Stock, Qty 20+

0

8

Troy-Bilt 736-04446

Washer, Flat, .25 x .630

$4.49

$

In Stock, Qty 20+

0

9

Troy-Bilt 711-04469A

Clevis Pin, 3/8 x 1.87

$5.99

$

In Stock, only 2 left!

0

10

Troy-Bilt 684-04311A-0637

Chute Support Bracket

$42.99

$

Usually ships in 3-6 days

0

11

Troy-Bilt 714-04040

Bow-Tie Cotter Pin

$1.49

$

In Stock, Qty 20+

0

12

Troy-Bilt 712-3087

Wing Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

13

Troy-Bilt 712-04064

Flange Lock Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

14

Troy-Bilt 710-0627

Hex Lock Screw, 5/16-24 x .750

$4.49

$

In Stock, Qty 20+

0

15

Troy-Bilt 712-04063

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

16

Troy-Bilt 784-5594-0637

Cable Bracket

$11.99

$

In Stock, only 3 left!

0

17

Troy-Bilt 731-06451

Chute Tilt Cable Guide

$4.99

$

In Stock, Qty 12

0

18

Troy-Bilt 710-0262

Carriage Bolt, 5/16-18 x 1.50

$3.99

$

In Stock, Qty 9

0

19

Troy-Bilt 710-0895

Hex Washer Screw, 1/4-15 x .750

$6.49

$

In Stock, Qty 10

0

20

Troy-Bilt 710-04071

Carriage Bolt, 5/16-18 x 1.00

$4.49

$

In Stock, Qty 10

0

21

Troy-Bilt 731-06440A

Lower Chute, 5.0

$51.99

$

In Stock, Qty 16

0

22

Troy-Bilt 914-0101

Internal Cotter Pin
(Superseded to 714-0101)

$

$

Not available

23

Troy-Bilt 747-05116

Chute Rod, 3/8 Hex

$30.99

$

In Stock, Qty 10

0

24

Troy-Bilt 918-04801

Gearbox Assembly, Chute Rotation
(Superseded to 918-04801B)

$128.99

$

In Stock, Qty 13
